Nutted
"Great way to use a spare Core 360 reg and get a nitro setup cheaper"
Nitrogen Adaptor for Mini 360 Core Regulator (Suitable for 2.2L KL N2 Cylinders) (G1/2 Male x M10 Female)
$9.95
Sale price
$9.95
Regular price
Skip to product information
In stock

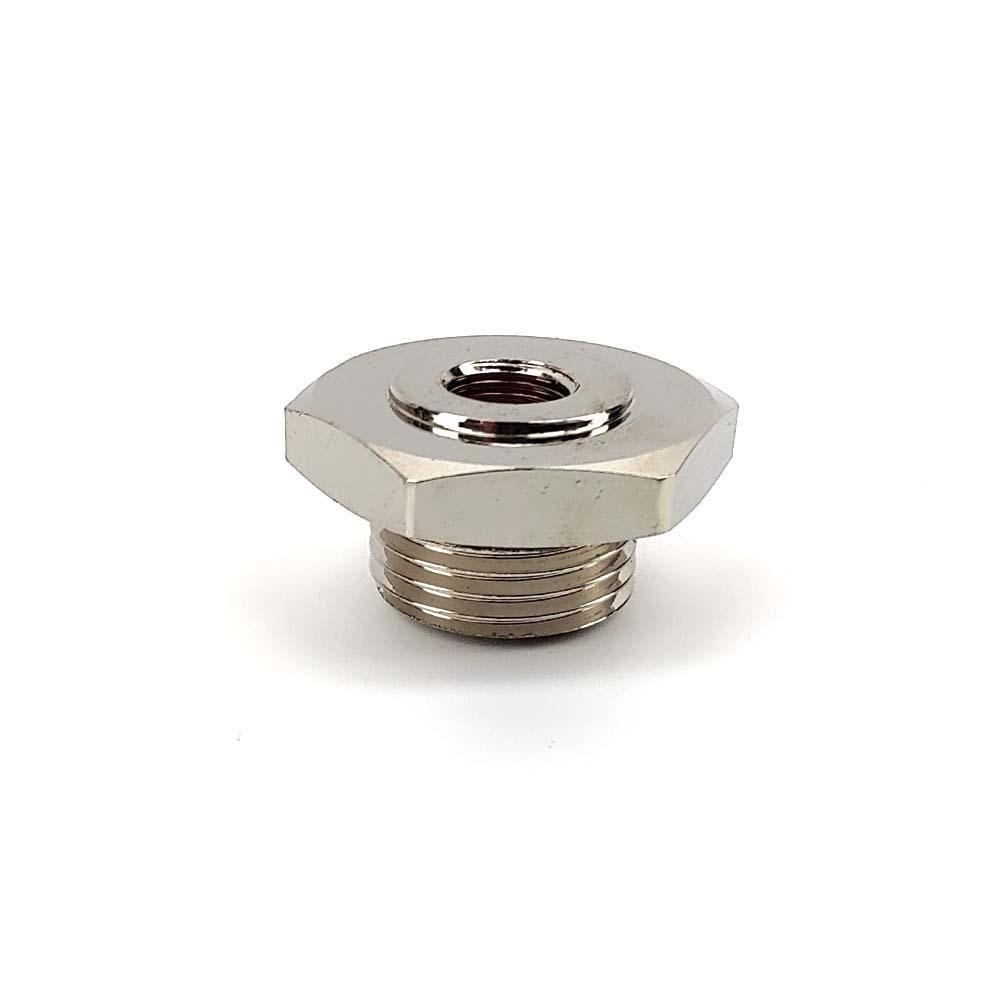

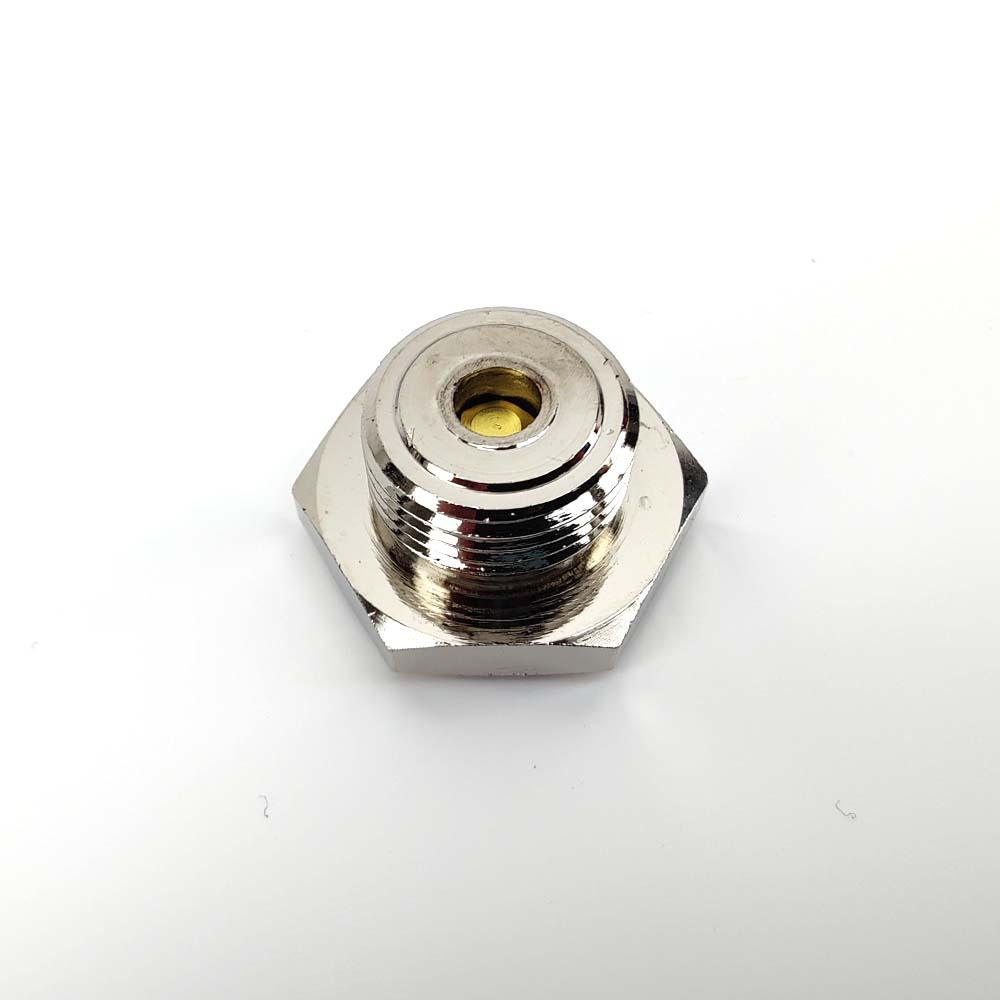

Nitrogen Adaptor for Mini 360 Core Regulator (Suitable for 2.2L KL N2 Cylinders) (G1/2 Male x M10 Female)
KL32087
$9.95
Sale price
$9.95
Regular price

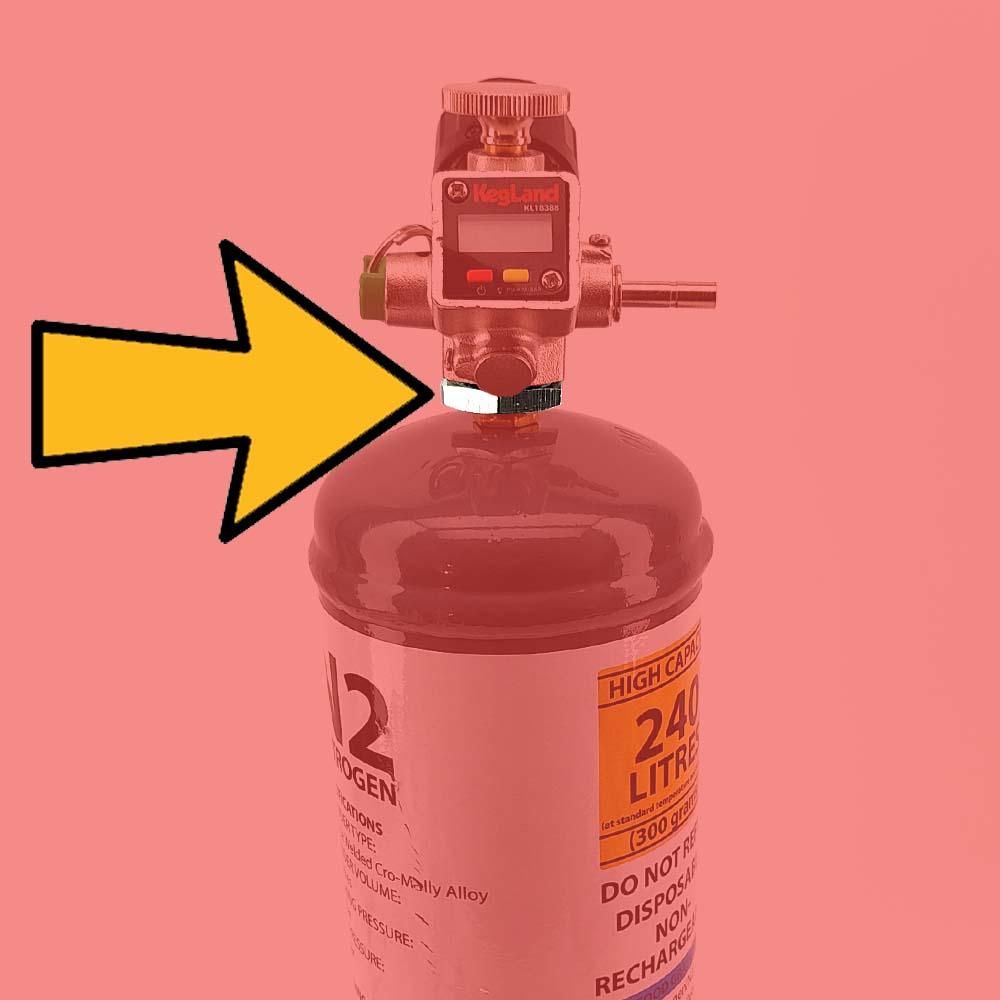

If you are looking to dispense Nitro Coffee or Stout using a high capacity M10 Nitrogen Cylinder and a Mini 360 Core Actuator Regulator, then you will also need this G1/2" Male x M10 Female adaptor for Nitrogen Cylinders.
Directions for use:
1. Remove the gas bulb-reducing bush from the Mini 360 Core Actuator Regulator (If present).
2. Screw the G1/2" Male x M10 Female adaptor for Nitrogen Cylinders into the Mini 360 Core Actuator Regulator and tighten with a spanner.
3. Connect the Nitrogen cylinder valve onto the regulator. It is recommended that you use a spanner to hold the neck of your Nitrogen cylinder while attaching and detaching the Mini 360 Core Actuator Regulator. Do not overtighten your cylinder into the regulator.
4. Screw the thumbscrew on the Mini 360 Core Actuator Regulator in to to depress the valve on the Nitrogen Cylinder.
5. Set the outlet flow/pressure on the regulator. Please note to turn off the gas you must remove the regulator from the cylinder.
PLEASE NOTE: If you are removing the regulator at any point you MUST use a spanner to hold the brass neck of the cylinder. Failure to do so could cause the strong adhesive glue to crack and the cylinder detach from the fitting.
6. Perform a leak test on your system.
Specifications:
G1/2" Male x M10 Female
*does not include Mini 360 regulator or gas canister
Product Downloads
You may also like
Overall rating: 2.5555556 / 5 from 9 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Have had it connected to
"Have had it connected to kegland a disposable nitrogen bottle for over 6 months with no issues. I turn the gas off when not using. Have not had any leak issues like some reviews are reporting."
Nut for Nitro Stout
"Doesn’t work"
Only works if less than finger tight.
"Does not work as expected. If you tighten the adapter and regulator onto the tank, no N2 flows to the regulator. However, it works perfectly fine if it is somewhat “loose” on the N2 tank. I don’t like that is has to be looser than finger tight to work, as it seems this would greatly increase the risk of leaks."
Avoid
"Doesn't work. The metal siezes against the 360 regulator very easily, then if you do tighten it, metal shavings appear and block the regulator. It was incredibly fussy and now I think my regulator is broken."
Doesn't seem to work
"Failed to work with either of my Core 360 regulators and the disposable Nitro canister. Looks like a waste of money to me. . ."
does not work as advertised
"the pin in this adapter is too short, does not open the valve in the N2 cylinder."
Does not work at all
"This does not work at all. It lacks the pin necessary to depress the valve in the disposable N2 bottles and allow gas to flow. The pin in the mini 360 regulator does not reach with this adapter and is the wrong type anyway."
"good quality"
Q&A
- Do you sell this adaptor for use with the US Core 360 Mini, with the US sodastream base?
- We don't! Check with MoreBeer
