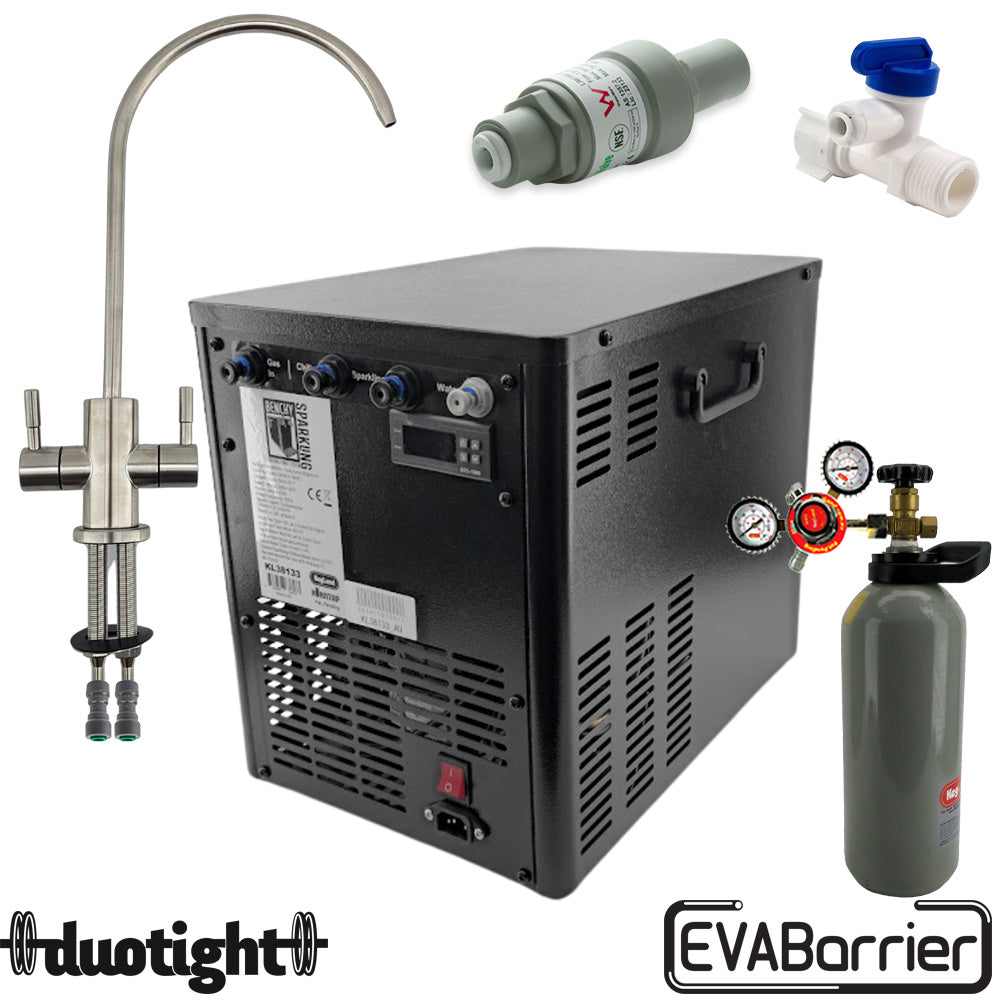

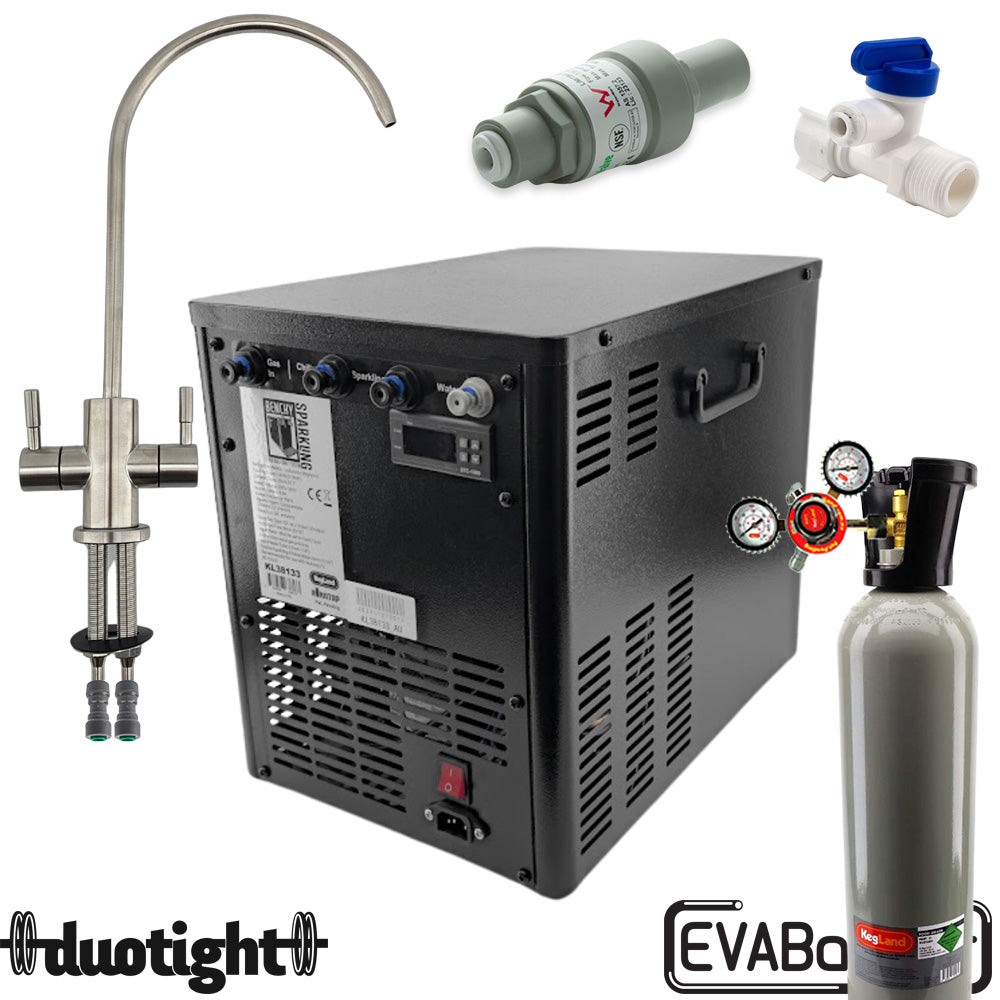

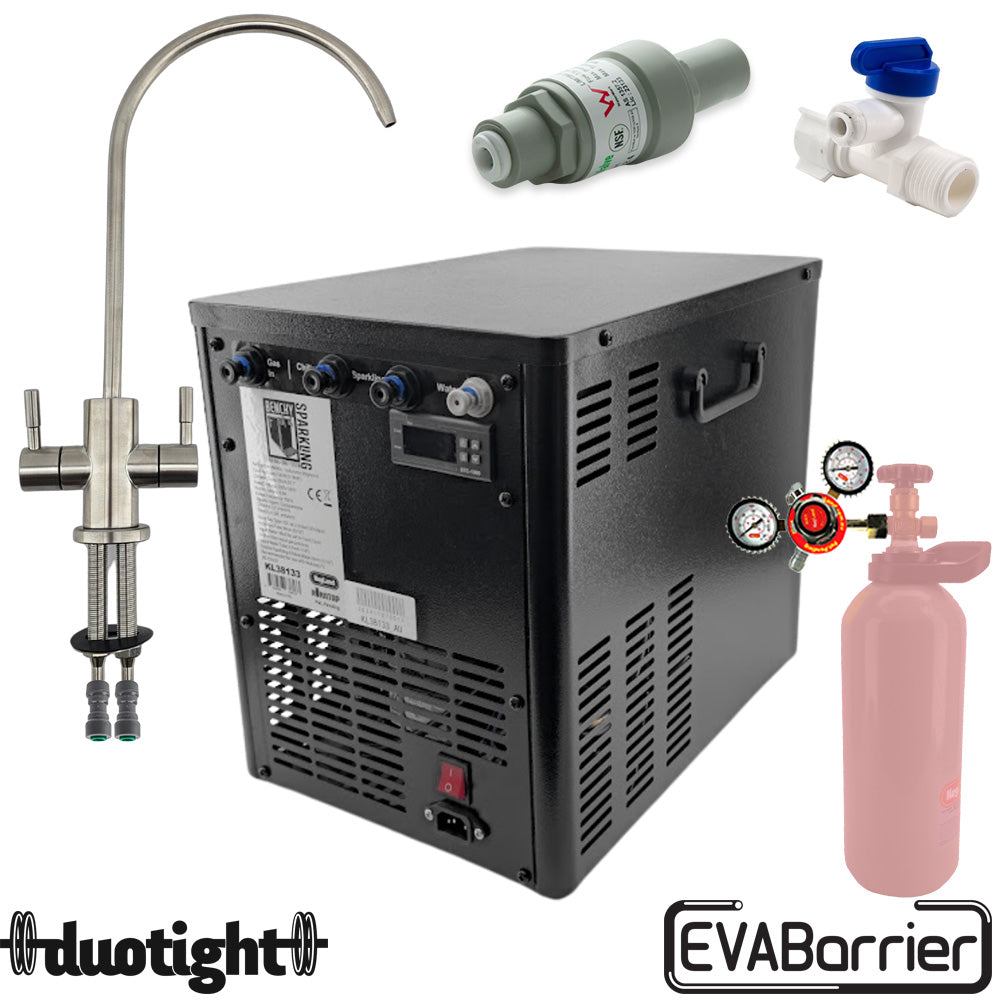

Benchy Sparkling Zero - Under Bench Chilled / Sparkling Tap Kit

This Soda Water Kit contains all the neccessary components required for an undercounter system which provides instant chilled and 3.2L of carbonated water on demand.

*Ensure that the unit is installed and operated according to the instruction manual which can be found under the more information tab.

The Benchy Sparkling is the answer for instant chilled and carbonated water water on demand.  Simply connect mains water and CO2 Cylinder to the unit and receive unlimited sparkling and chilled water from the taps.  Perfect for every household, workplace and for restaurants and cafes where no complicated plumbing is necessary.

Our Benchy range is far superior to other units on the market in terms of cost, ease of use and flexibility. Using the regulator, you are able to adjust and really dial in carbonation levels to your specific taste preferences which you are unable to do on other similar systems on the market. This unit is also significantly cheaper and easier to setup.

Literally, all you do is*:

1. Plug into the wall

2. Connect mains water
3. Connect CO2 Cylinder
4. Pour chilled sparking water.

It's that simple and you can be enjoying chilled sparking water in under 1hr with this setup and barely any time at all to cool down.

Sparkling Water Pressures.
For Lightly Sparkling
Water 30psi
CO2 20psi

For normal Sparkling Water
Water 50psi
CO2 40psi

Spicy Sparkling Water
Water 60psi
CO2 50psi

Please note, the higher level of carbonation you go, the more hose line length you will need on the sparkling water OUT. This is in order to balance the line.

Fully Adjustable - The Benchy Sparkling has integrated digital temp controller so you can control the temperature from 0.5C and up to 10C.  You can also vary the carbonation level from 0.5 volumes to over 5 volumes for super bubbly water.

Cooling Performance - The Benchy Sparkling is able to chill about 20-30L of sparkling water per hour (based on ambient water and air temperature of 20C).  To further increase the capacity of this unit you can pre-chill the mains water supply either by a holding tank (Keg) in the fridge or a G40 Chiller.  If you pre-chill the mains water supply you can more than double the output of the Benchy Sparkling.

Specifications:

Height: 465mm
Width: 290mm
Depth: 520mm (Excluding sight glass that can be removed)
Refrigerant: r600a - (80grams)
Cooling Power: 130watts (0.18HP)
Rated Current: 0.9A
Capacity: about 25L per hour (based on 20C ambient temperature)
Input Gas: CO2 @ 2-3.5bar(8mm (5/16) OD Tube)
Input Water: Must be 1 bar (15psi) higher than gas pressure (6.35mm (1/4") OD Tube)
Sparkling/Chilled Water Out: 8mm (5/16") OD Tube
Climate Class: SN.N.ST.T

Tapping Option:
This kit includes a basic dual water tap. If this does not suit your decor, we would recommend purchasing the items individually listed below except the tap. Then source an alternative tap from another supplier.
Example: A Billi Tap. Item Code No. 852217
