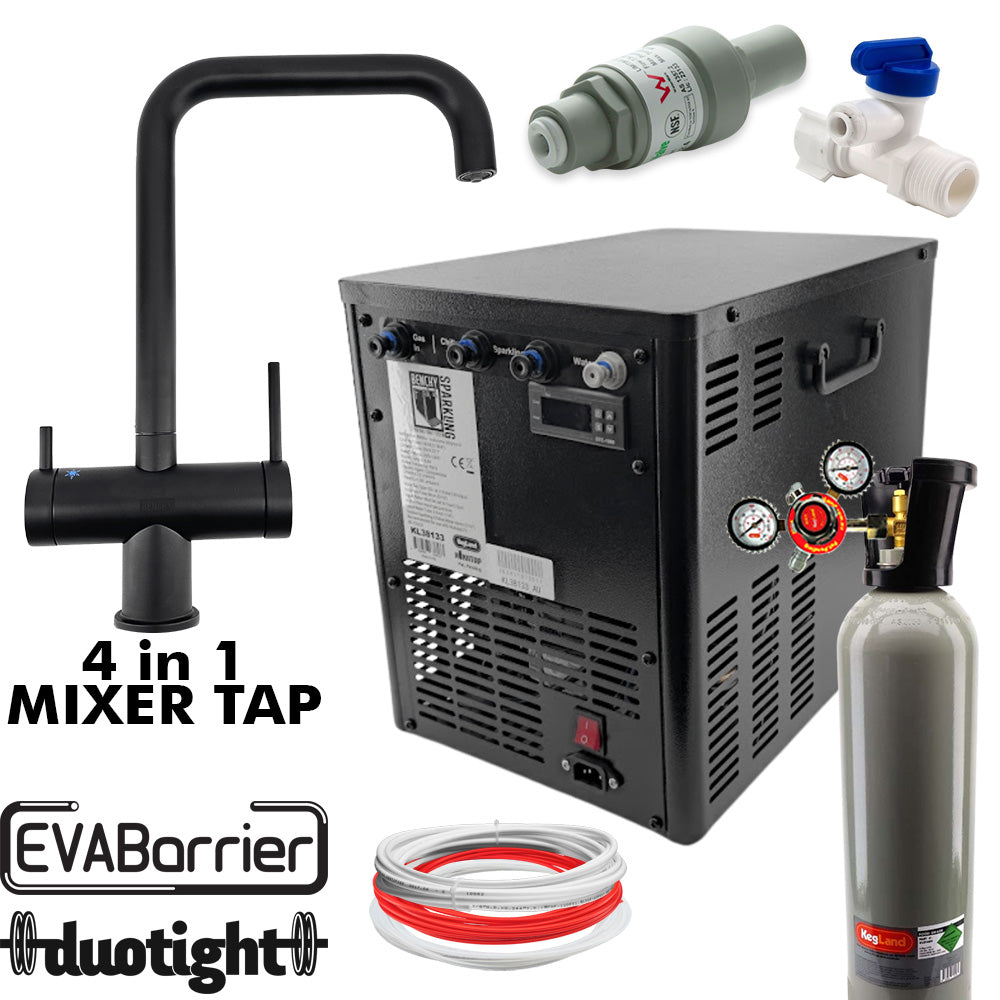

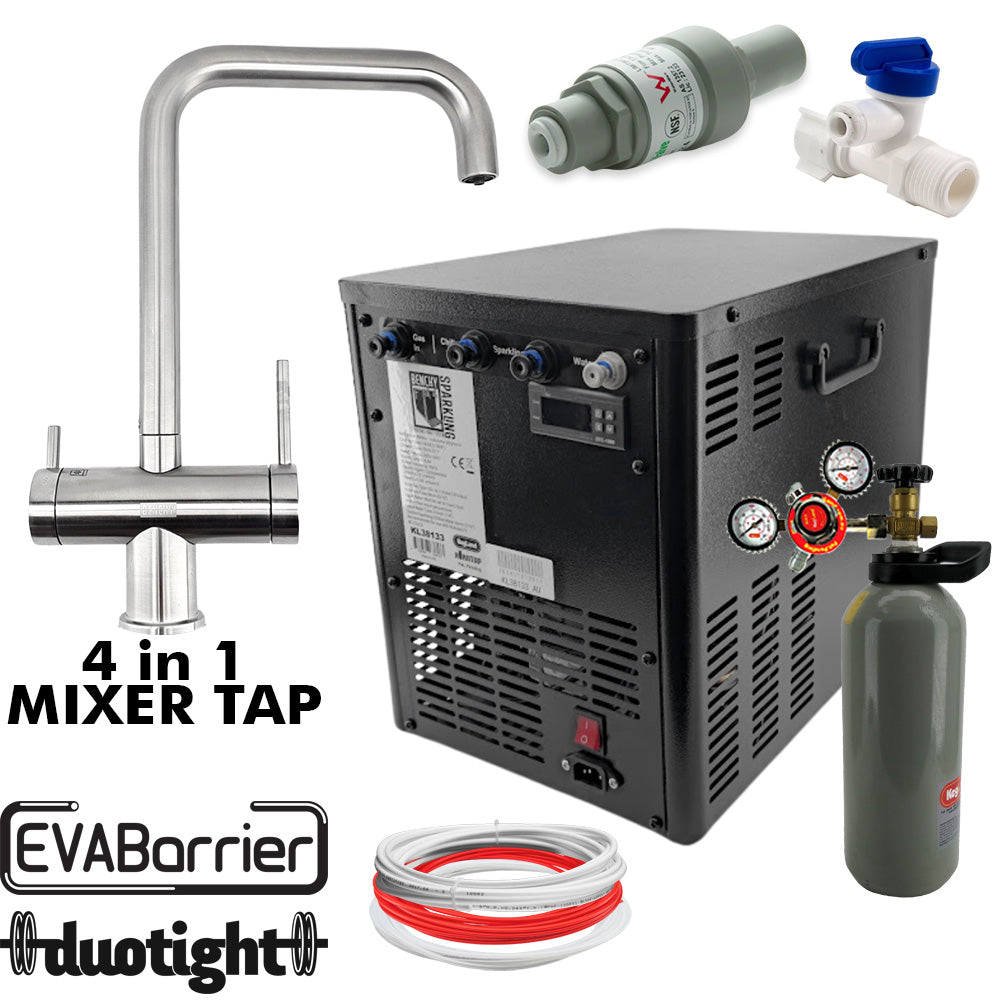

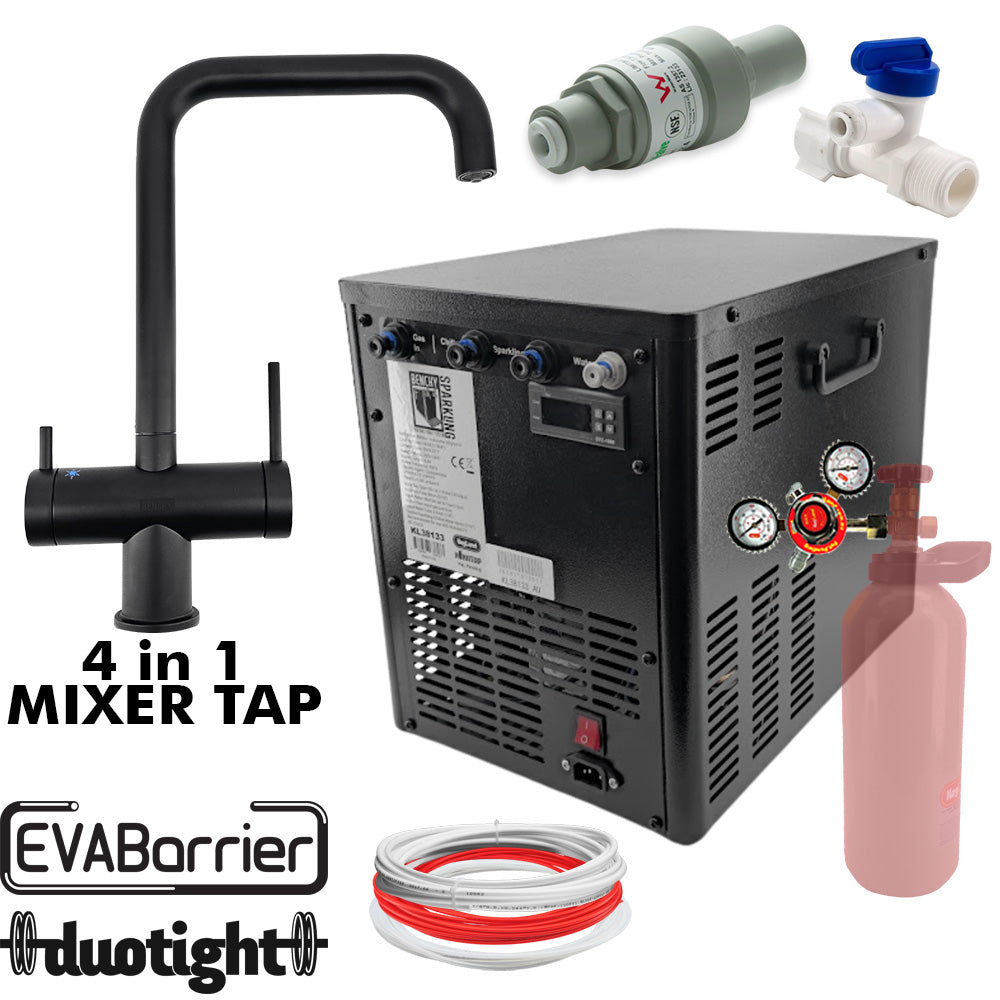

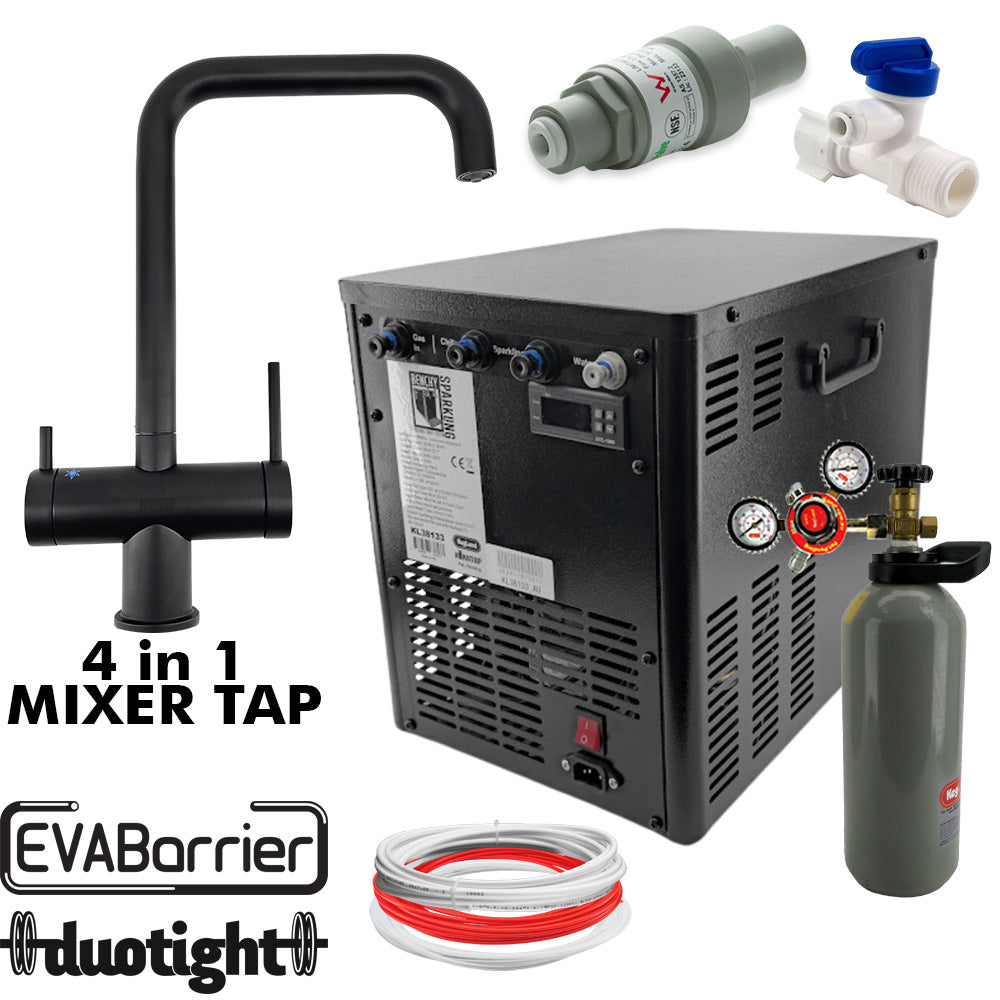

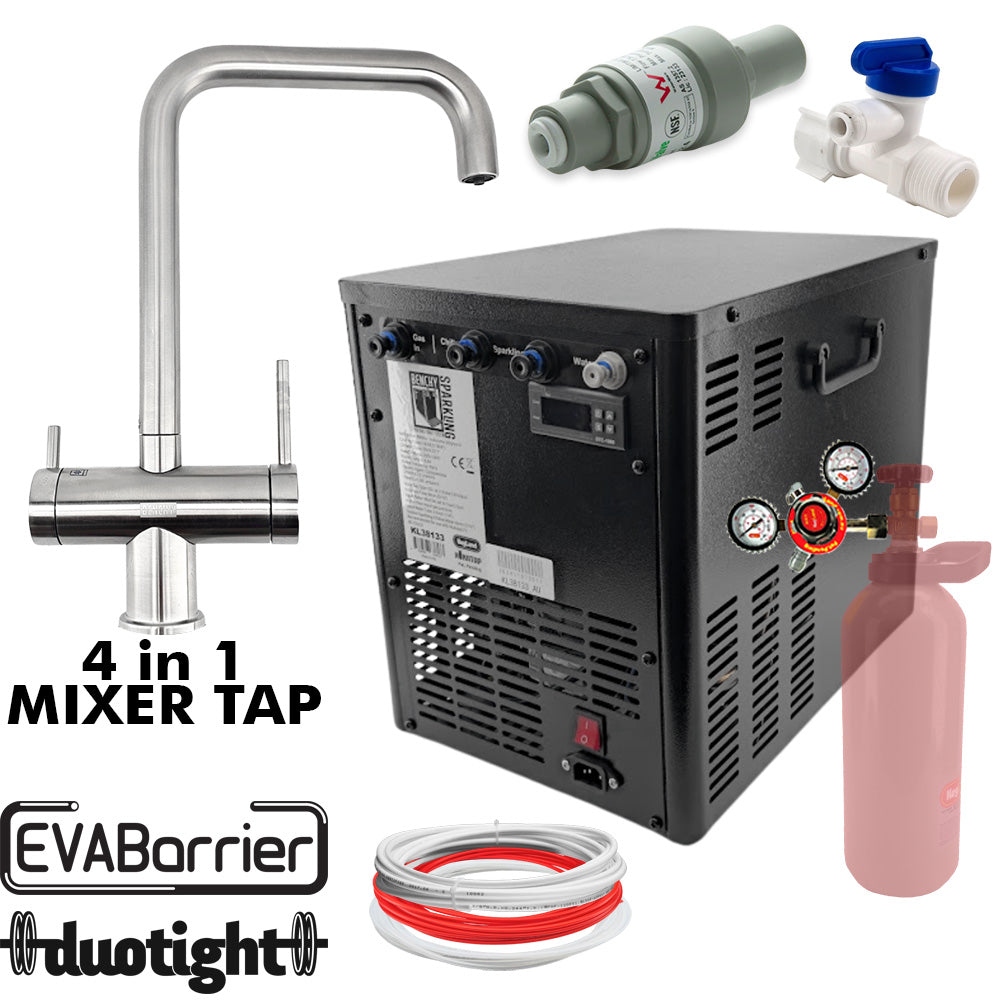

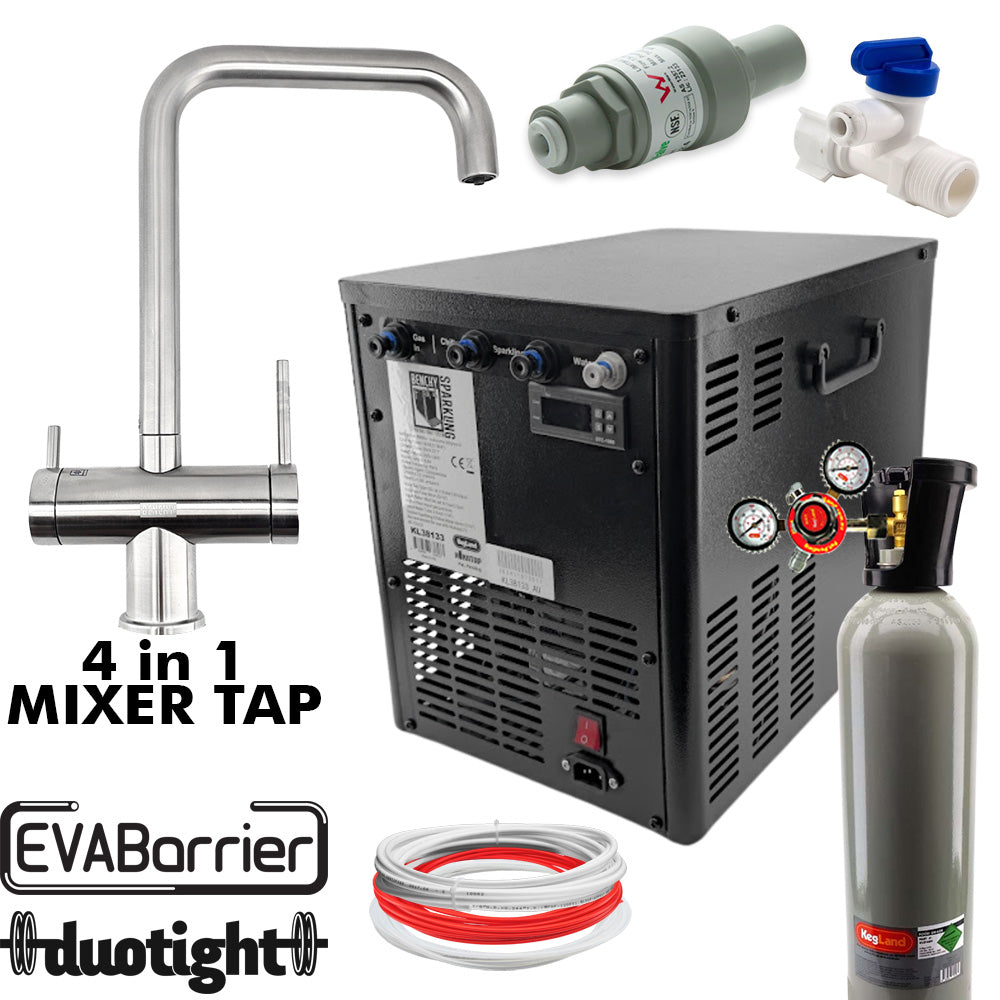

Benchy Sparkling Zero - 4 in 1 Kitchen Mixer Kit
Description
*Ensure that the unit is installed and operated according to the instruction manual which can be found under the more Products Download Tab.
The Benchy Sparkling is the answer for instant chilled and carbonated water water on demand. Simply connect a regulated mains water source and CO2 Cylinder to the unit and receive unlimited sparkling and chilled water from the taps. Perfect for every household, workplace and for restaurants and cafes where no complicated plumbing is necessary.
Our Benchy range is far superior to other units on the market in terms of cost, ease of use and flexibility. Using the maximum pressure reducer of 70psi water inlet pressure, with a gas pressure of 60psi on the regulator. You'll be able to dispense up to 200L with a 2.6kg Cylinder, and 500L of Sodawater with a 6kg Cylinder. The savings there speak for themselves!
Literally, all you do is*:
1. Plug into the wall
2. Connect mains water
3. Connect CO2 Cylinder
4. Pour chilled sparking water.
It's that simple and you can be enjoying chilled sparking water in under 1hr with this setup and barely any time at all to cool down.
Sparkling Water Pressures.
Water: 70psi (As per inline regulator)
Gas CO2: Set to 60psi (with Grey PRV in regulator)
Do not go lower than 55psi or higher than 65psi on your Regulator.
Please note, the higher level of carbonation you go, the more hose line length you will need on the sparkling water OUT. This is in order to balance the line.
1 x KL38133 - Benchy Sparkling Zero Unit
1 x KL07429 - Type 30 - MK4 Regulator (4.5bar PRV & 65psi Gauge)
1 x KL03070 - Grey Pressure Release Valve (100psi) - SWAP ON REGULATOR
1 x KL42741 - Red EVABarrier 5mm ID x 8mm OD x 12m Roll - Double Wall Semi-Transparent EVA
1 x KL06224 - EVABarrier 4mm ID x 8mm OD x 12m Roll - Double Wall EVA
1 x KL11143 - PE Water 4mm (5/32inch) ID x 6.3mm(1/4inch)OD - 10m Roll
1 x KL17756 - duotight 6.35mm RO Filter System Diverter Valve
1 x KL42925 - 6.35mm (1/4″) In Line Pressure Limiting Valve - 70psi (490kpa) - NSF Watermark
2 x KL07481 - duotight - 6.35mm Female x 8mm Female Reducers Optional if unit is not directly under tap. Use 4x8 or 5x8 to balance flow.
Option 1 - Mixer Finish
KL42932 - Brushed Stainless Steel 4 Way Benchy Mixer Tap (Hot, Cold, Chilled & Sparkling)
OR
KL42949 - Matte Black Finish 4 Way Benchy Mixer Tap (Hot, Cold, Chilled & Sparkling)
KL01489 - 2.6kg CO2 Gas Cylinder (FULL) Capable of Carbonating up to 200L of Sodawater.
OR
KL01496 - 6kg CO2 Gas Cylinder (FULL) Capable of Carbonating up to 500L of Sodawater.
Fully Adjustable - The Benchy Sparkling has integrated digital temp controller so you can control the temperature from 0.5C and up to 10C.
Important to note
With this kit you are limited at the end of scale of maximum carbonation. This is because the inline water pressure reducer is capped at 70psi and is not adjustable. You must have a differential of Water being 10-15psi higher than the gas. Meaning 55psi-60psi CO2 gas pressure on the regulator.
If you are finding it too sparkling / very very carbonated for your liking, we would suggest finding a watermarked inline pressure reducer from another retailer.
DO NOT APPLY MAINS PRESSURE TO BENCHY
Cooling Performance - The Benchy Sparkling is able to chill about 20-30L of sparkling water per hour (based on ambient water and air temperature of 20C). To further increase the capacity of this unit you can pre-chill the mains water supply either by a holding tank (Keg) in the fridge or a G40 Chiller. If you pre-chill the mains water supply you can more than double the output of the Benchy Sparkling.
Specifications:
Height: 465mm
Width: 290mm
Depth: 520mm (Excluding sight glass that can be removed)
Refrigerant: r600a - (80grams)
Cooling Power: 130watts (0.18HP)
Rated Current: 0.9A
Capacity: about 25L per hour (based on 20C ambient temperature)
Input Gas: CO2 @ 2-3.5bar(8mm (5/16) OD Tube)
Input Water: Must be 1 bar (15psi) higher than gas pressure (6.35mm (1/4") OD Tube)
Sparkling/Chilled Water Out: 8mm (5/16") OD Tube
Climate Class: SN.N.ST.T
