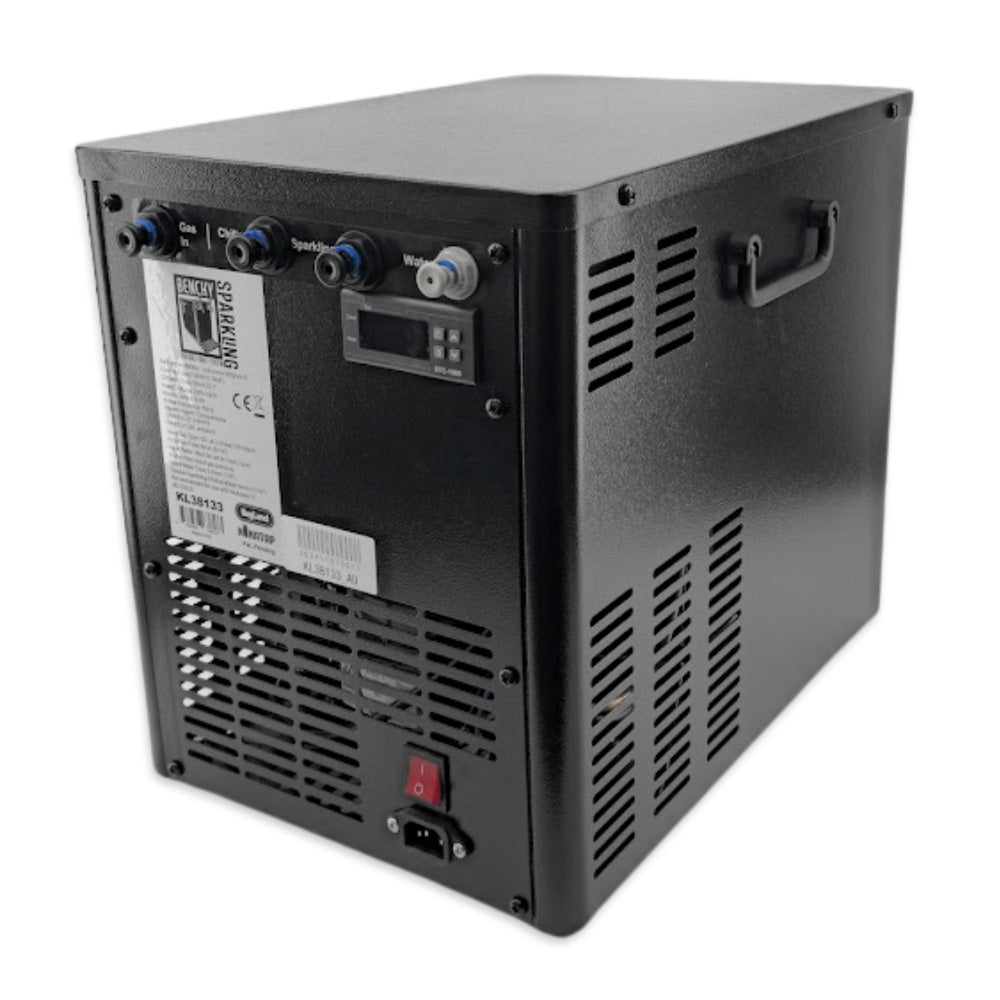

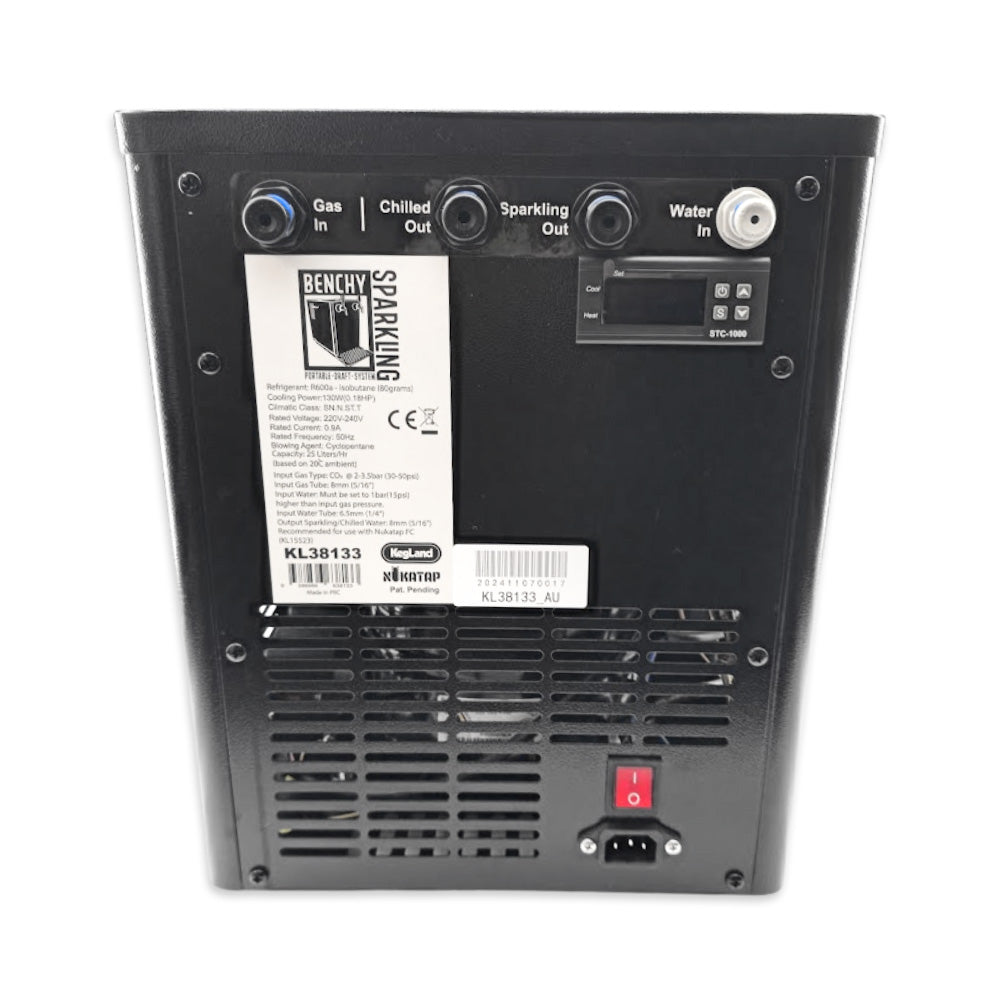

Benchy Sparkling Zero - Under Bench Water Carbonator / Chiller 3.2L (240v)
KL38133
The Benchy Sparkling - Bench Top/ Undercounter - Carbonator/Chiller is the easiest way to setup a sparkling water system. No ice or Glycol required just plumb the water and CO2 Gas and you're ready to go.
Benchy Sparkling is the answer for instant chilled and carbonated water water on demand. Simply connect mains water and CO2 Cylinder to the unit and receive unlimited sparkling and chilled water from the taps.
Our Bency range is far superior to other units on the market in terms of cost, ease of use and flexibility. Using the regulator, you are able to adjust and really dial in carbonation levels to your specific taste preferences which you are unable to do on other similar systems on the market. This unit is also significantly cheaper and easier to setup.
Literally, all you do is*:
You no longer need to fill the resevoir with water. This unique system uses a solid carbon block with tiny copper tubes to chill down the water as it passes through the Benchy.
It's that simple and you can be enjoying chilled sparking water in under 1hr with this setup and barely any time at all to cool down.
*Ensure that the unit is installed and operated according to the instruction manual which can be found under the more information tab.
Fully Adjustable - The Benchy Sparkling has integrated digital temp controller so you can control the temperature from 0.5C and up to 10C. You can also vary the carbonation level from 0.5 volumes to over 5 volumes for super bubbly water.
Cooling Performance - The Benchy Sparkling is able to chill about 20-30L of sparkling water per hour (based on ambient water and air temperature of 20C). To further increase the capacity of this unit you can pre-chill the mains water supply either by a holding tank (Keg) in the fridge or a G40 Chiller. If you pre-chill the mains water supply you can more than double the output of the Benchy Sparkling.
Specifications:
Height: 380mm
Width: 290mm
Depth: 420mm
Allow atleast 100mm at the front of the unit for ventilation + hosing bend radius.
Power Consumption:
Refrigerant: r600a - (80grams)
Cooling Power: 600watts
Power Consumption: 155w (idle power consumption less than 5 watts)
Capacity: about 25L per hour (based on 20C ambient temperature)
Input Gas: CO2 @ 2-3.5bar(8mm (5/16) OD Tube)
Input Water: Must be 1 bar (15psi) higher than gas pressure (6.35mm (1/4") OD Tube)
Sparkling/Chilled Water Out: 8mm (5/16") OD Tube
NOTE: For bench top installation Nukatap FC taps sold Separately or for bench top installation use dual RO water taps KL23917
Other recommended accessories:
KL23917 - Dual Outlet Water Tap - Still and Sparkling Water Tap
KL01489 - 2.6kg CO2 Gas Cylinder
KL30670 - MK5 CO2 Regulator
KL06224 - EVABarrier 4mm ID x 8mm OD Tubing
KL07481 - 2 x duotight - 6.35mm (1/4") Female x 8mm (5/16") Female Reducers
KL11143 - 6.35mm (1/4") PE Water Supply Tubing
KL17756 - 1/4" x 1/2" Female x 1/2" Male - Diverter Valve
KL15035 - duotight In Line Regulator
KL07047 - 1 x duotight 8mm x 8mm check valve (gas and water/liquid)
Under Bench Installation - Recommended Accessories:
1 x Filtered water Tap
1 x HSS Stepped Drill Bit
Counter Top Installation - Recommended Accessories:
2 x Short Shank without Nut, Angle Barbtail and Collar.
2 x 5/8" BSP Lock Nut.
2 x duotight - 8mm (5/16") Female x 5/8 Female Thread.
2 x NukaTap FC Tap Only (SS) + 2 x NukaTap FC Auto Close Springs.
2 x Tap Handles of choice.
1 x Tube Cutter - 2 in 1.
1 x 7 in 1 Faucet Tap Wrench/Spanner Tool.
