Commonly referred to as the "Slide On Coupler" or "German Slider", this Commercial Coupler Kit includes ball lock disconnect fittings for existing homebrew kegerator setups.

Total height of an A type coupler with the low profile elbow bend will be 128mm.

Suitable for attaching Tooheys, Coopers, XXXX and most Craft Breweries kegs.
This is also the standard for the Oxebar - Kegasaurus Kegs. More at the bottom of the page.

Suitable for attaching Tooheys, Coopers, XXXX and most Craft Breweries kegs.

This is also the standard for the Oxebar - Kegasaurus Kegs. More at the bottom of the page.

Total height of an A type coupler with the low profile elbow bend will be 128mm.

Includes:

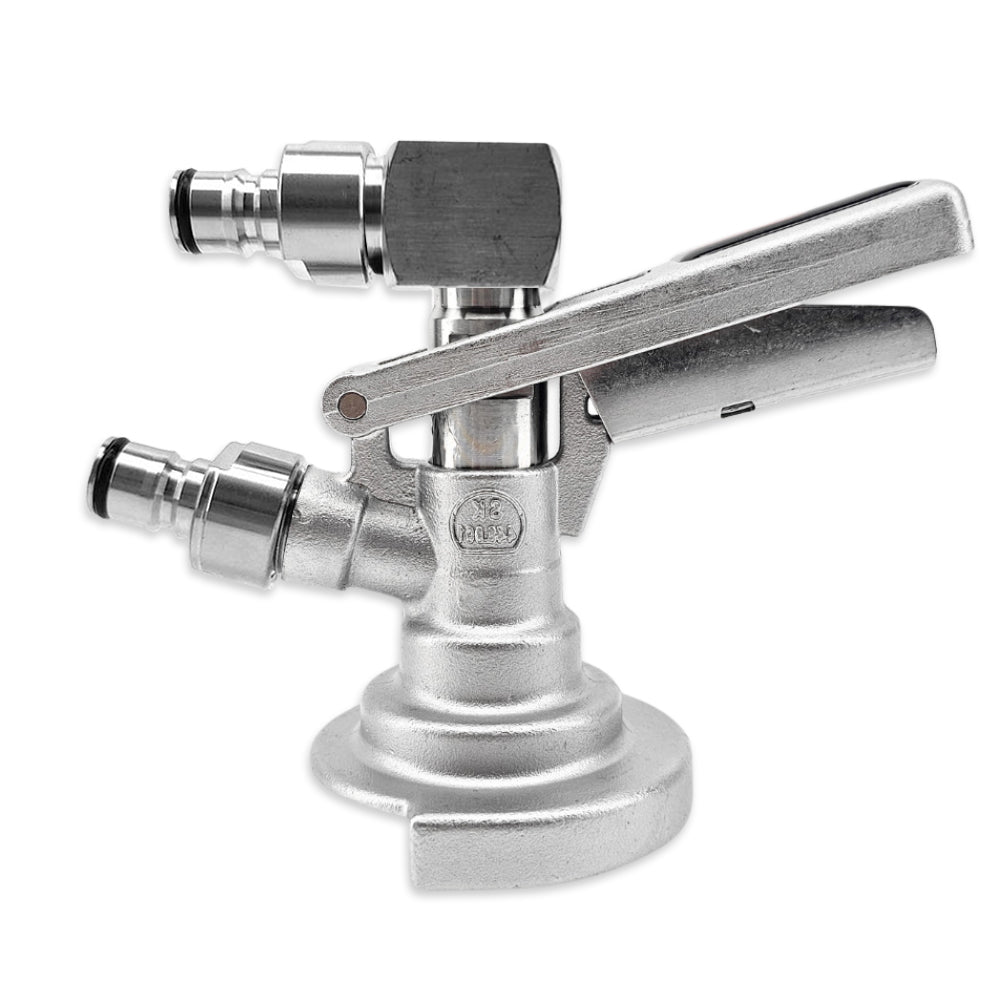

1 x - A-Type Coupler with 5/8" Male (Liquid Out) and Gas (IN) threads
1 x - 5/8" Stainless Steel Ball Lock Disconnect Liquid
1 x - 5/8" Stainless Steel Ball Lock Disconnect Liquid (marked by a strike through around the base)
1 x - 5/8" Low Profile Elbow
1 x - Gas Duck Bill valve (Non-Return Gas)
1 x - Liquid Non-Return Kit (Ball and Net)

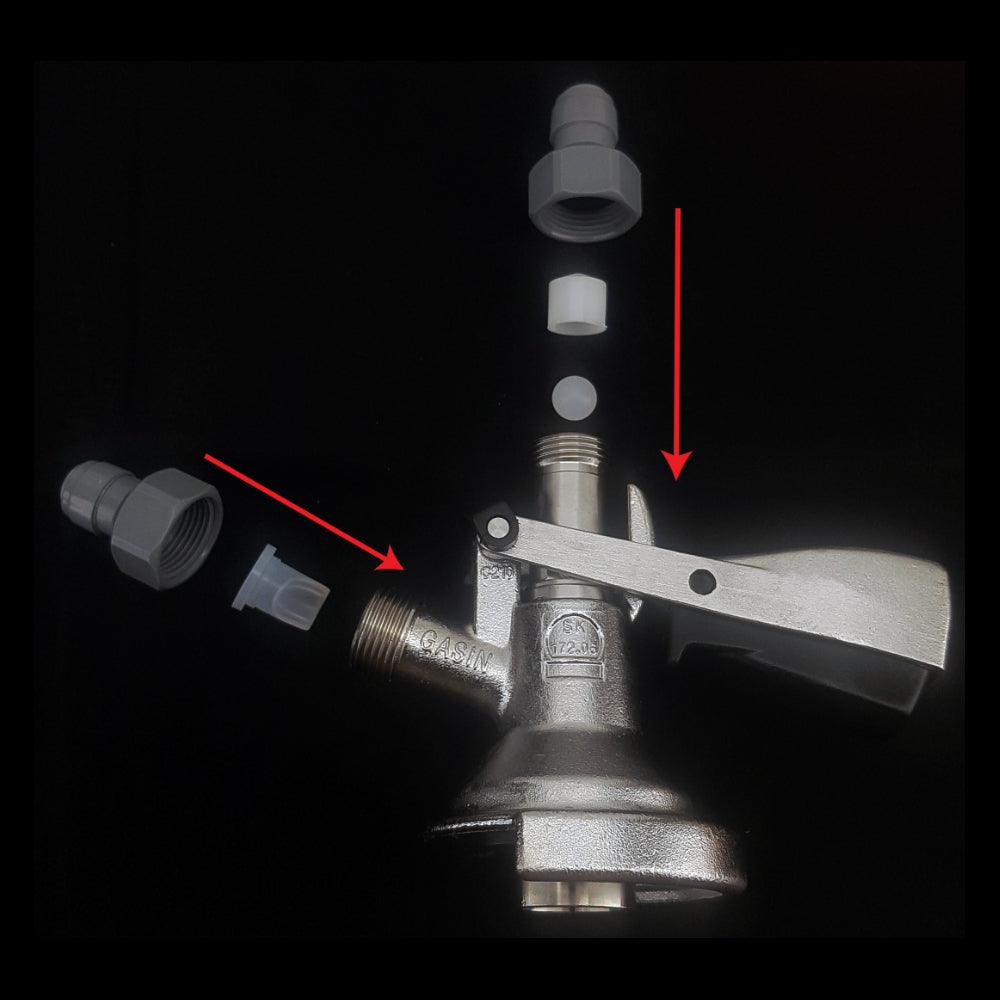

How To Assemble Correctly

Step 1 - Remove the gas ball lock post o-ring on the inside
Step 2 - Insert the duck bill valve into the side port of the coupler
Step 3 - Tighten the gas ball lock post to the coupler
Step 4 - Drop the ball down the vertical port on the coupler
Step 5 - Push the netting cap inside the coupler
Step 6 - Screw the low profile elbow on the vertical port
Step 7 - Screw on the liquid ball lock post

Compatible Brands but not limited to:

5 Seeds
Balmain Brewing
Bridge Road
Brookvale
Bundaberg & Cola
Canadian Club
Carlsberg
Coopers
Franzikaner
Furphy
Guinness
Hahn
Heineken
Hills Cider
James Boags
James Squire
Kilkenny
Kirin
Kosciuszko
Kronenbourg
Little Creatures
Lowenbrau
Magners
Paulaner
Pipsqueak
Rocks Brewing Co.
Sample
Sapporo
Spaten
Tooheys
Two Birds
White Rabbit
XXXX Gold
Young Henrys

See below for an instructional video on commercial keg couplers.  We highly recommend that you watch this video if you have not used a keg coupler before:
