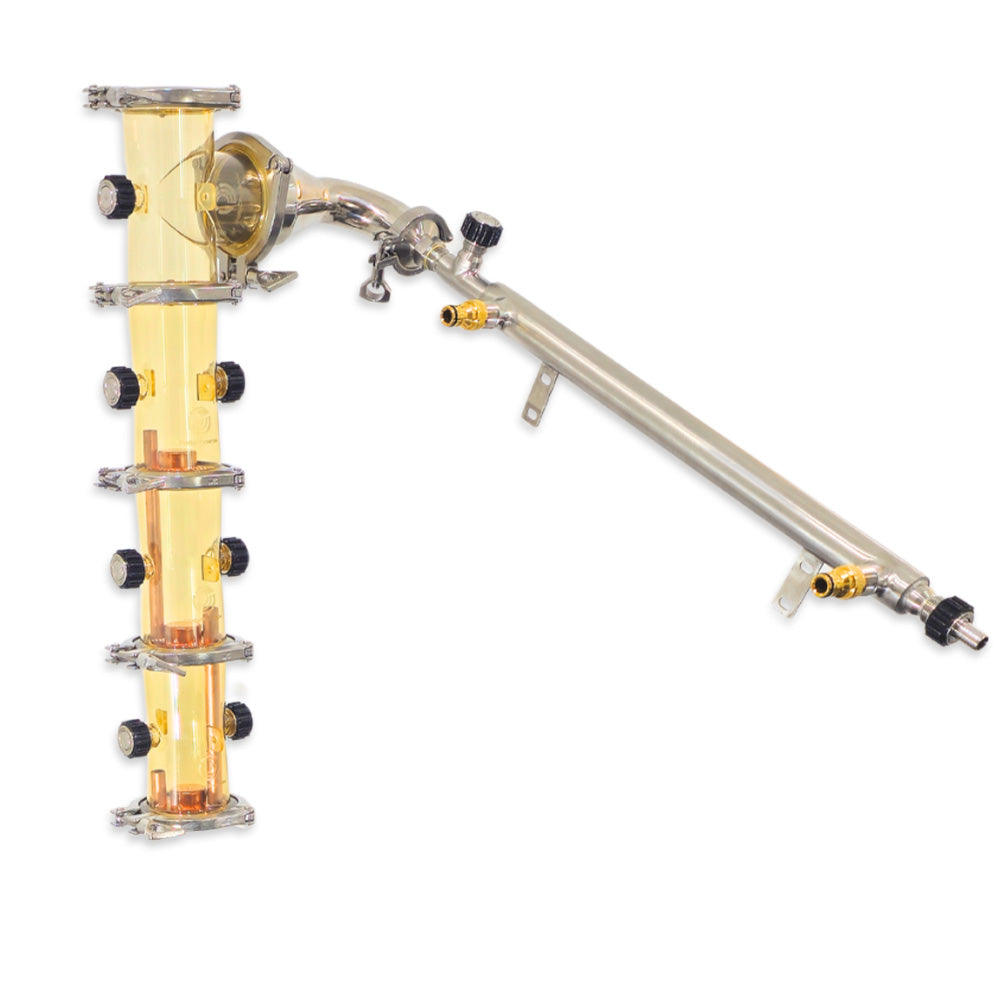

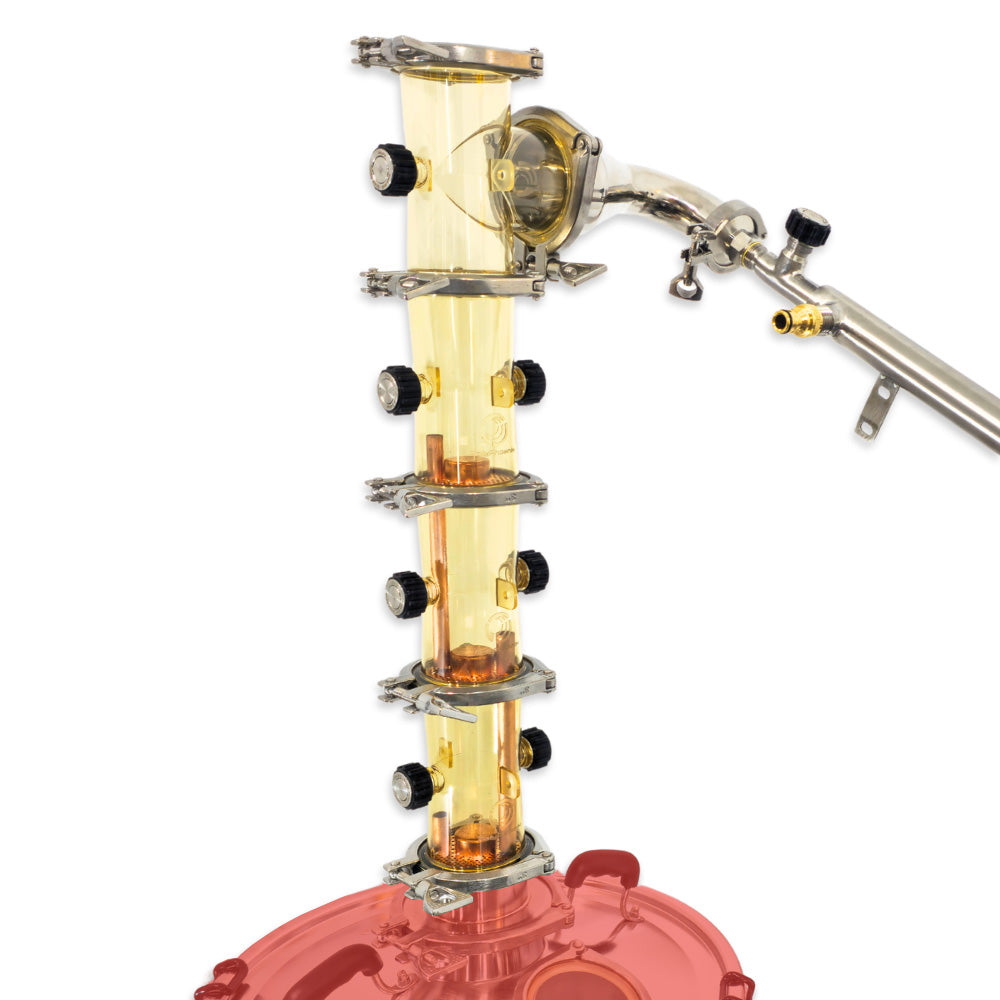

3" PolyPhoenix WRB-3 Copper Bubble Plate Still

What do Bubbler Plates do?
Bubble plates are used to create more reflux in the column. Think of it like modular distillation chambers that allow alcohol vapour to pass up the column, as well as a "downcomer" that lets excess liquid on the plate fall back to the plate below.
Each time refining and changing phase over and over until it reaches a condenser. This helps to regulate the rate that good spirit is collected and can help to produce a more consistent, high-quality spirit.

This rising and falling action helps to separate the different types of alcohol in the still, with lighter alcohols gradually moving upwards where they can be removed so that they don't form part of the final product. The heavier alcohols, on the other hand, remain lower in the column and are eventually removed once the unwanted alcohols that form the foreshots, and heads are removed.

Why would I use a Bubbler Plate?
They allow for greater control over the distillation process. The distiller can adjust the height of the plates to control the reflux ratio, this is the amount of vapour that is condensed and returned to the column.

Do Bubbler Plates have to be Copper? (Short Answer...Yes)
Having a high level of copper contact helps neutralise and remove flavour and aroma compounds that aren't desirable in the finished product, and by forcing the alcohol vapour to pass through the bubble plates multiple times this effect is greatly enhanced.

General Rules of Thumb:
3 Plates is for absolute maximum flavour transfer of your Whiskey, Rum or Brandy (WRB)
4 Plates is a perfect middle ground for versatility of higher strength with a lot of flavour passthrough.
5 Plates is for even greater strength distillate with still quite a bit of flavour pass over.
7 Plates will get you the highest purity, but the least amount of flavour carry over.

This Kit Includes:
3 x KL39666    PolyPhoenix - Straight Bubble Capper Kit - PPSU 3 Inch TC
1 x KL37976    PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser
1 x KL36962    PolyPhoenix - Tee Piece - PPSU 3 Inch TC
3 x KL31547    KegLand Quick Swivel Connector 1/2' Nut With Silicone Grip Only
2 x KL31646    Stainless Steel End Cap Only (18mm) for KegLand Quick Swivel Connector 1/2'
1 x KL31585    13mm (1/2') Straight Barb Only for KegLand Quick Swivel Connector 1/2'
3 x KL25799    3 Inch TC Clamp - 3 Segments
3 x KL25805    3 Inch TC Beaded Seal - Silicone
1 x KL22071    3 Inch TC PPSU Sight Glass / End Plate
1 x KL29469    3 Inch TC to 1.5 Inch TC Reducing Elbow
1 x KL01878    1.5 Inch TC Clamp - 2 Segments
1 x KL01861    1.5 Inch TC Beaded Seal - Silicone
1 x KL25362    1.5 Inch TC with 1/2 Female Thread (BSP) (Teflon Required)
2 x KL09461    Garden Hose Male Quick Connect Coupling 1/2 inch Female

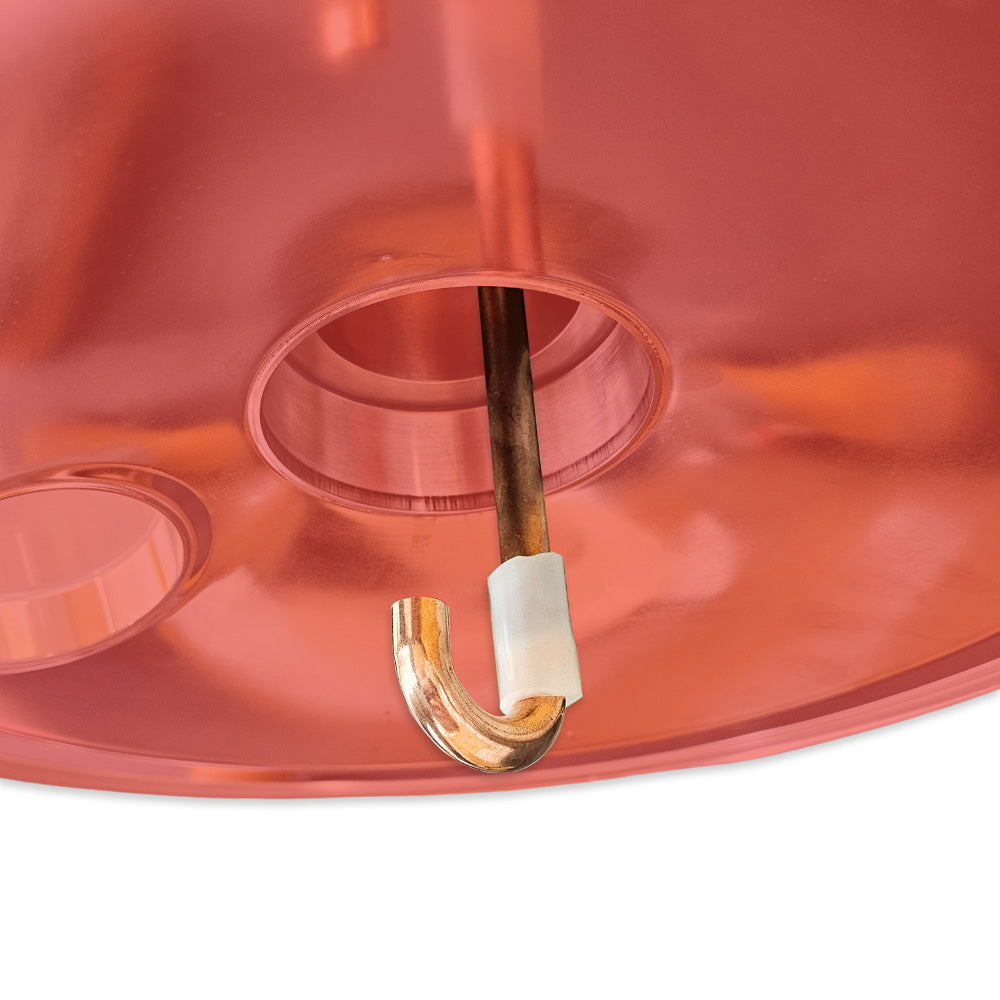

1 x KL37921    PolyPhoenix - Copper U-Bend with Silicone Tube


Drop-down menu options:

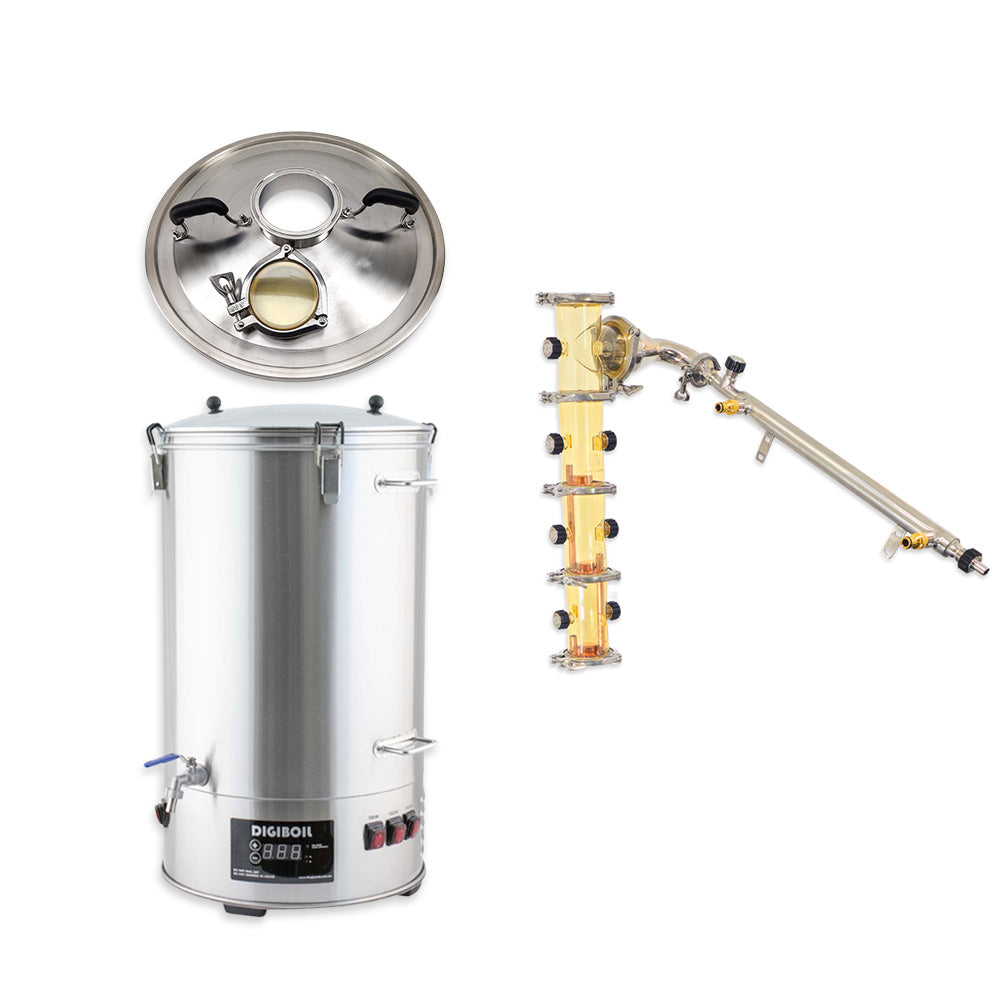

65L DigiBoil PolyPhoenix Boiler Bundle Indlues:
1 x KL07313    DigiBoil 65L - 3500watt - Digital 220-240V
1 x KL30649    BrewZilla + DigiBoil S.S Adjustable Lid Clamps - Short (4pcs/set) (Removal of current clamps on DigiBoil Recommended)
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

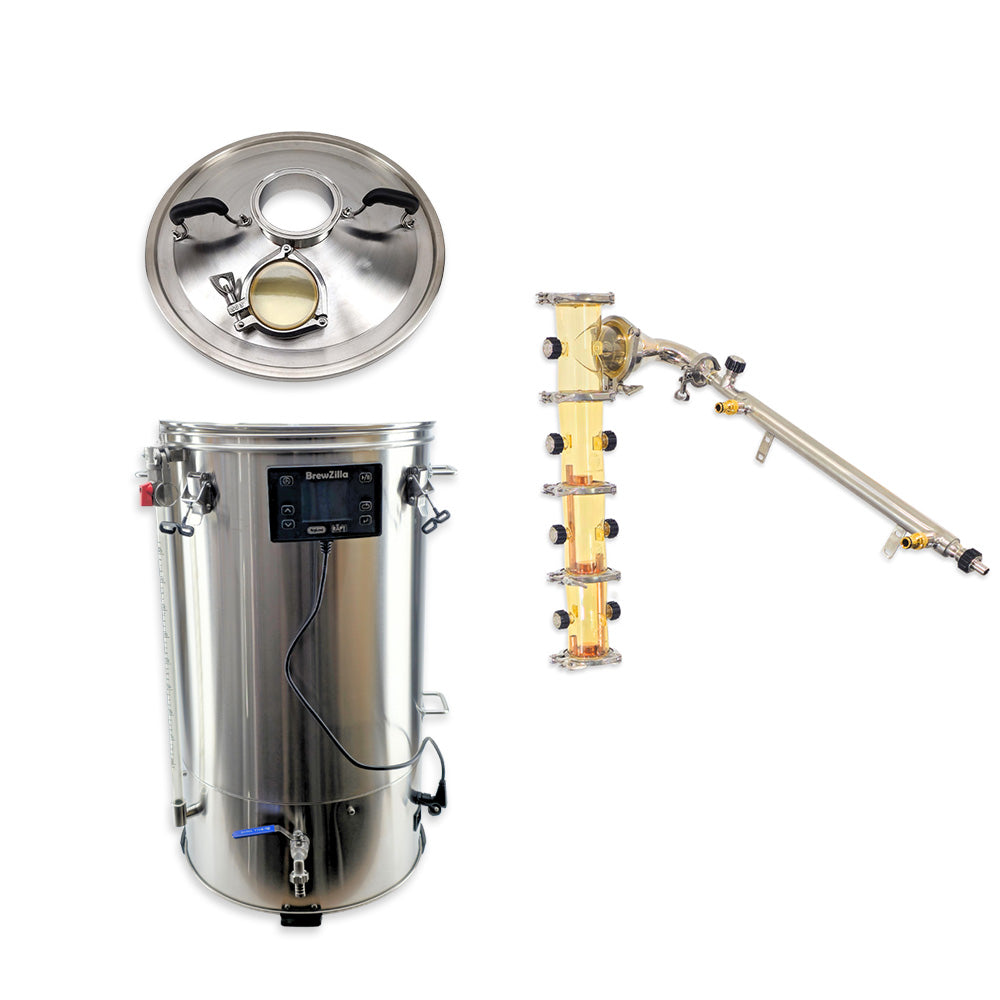

65L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27458    65L BrewZilla Gen 4.1
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

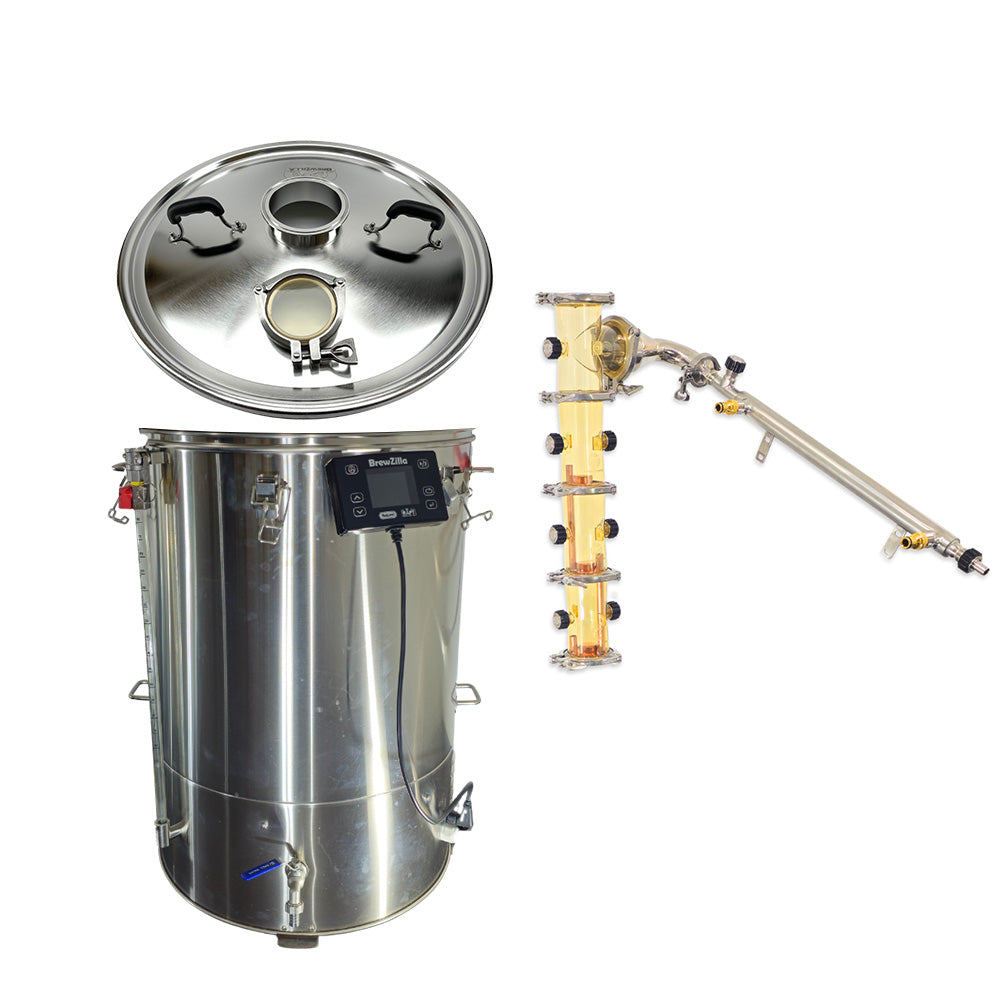

100L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27465    100L BrewZilla Gen 4.1
1 x KL25836    100L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal
