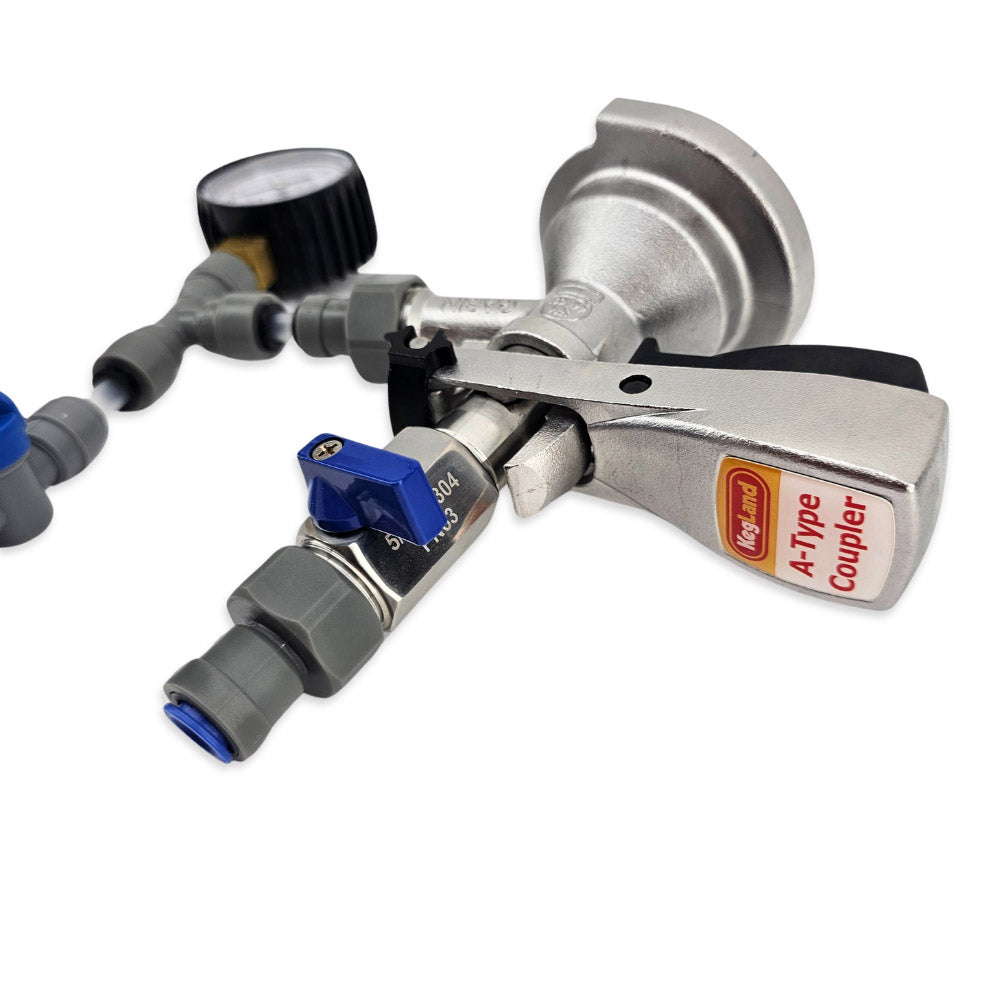

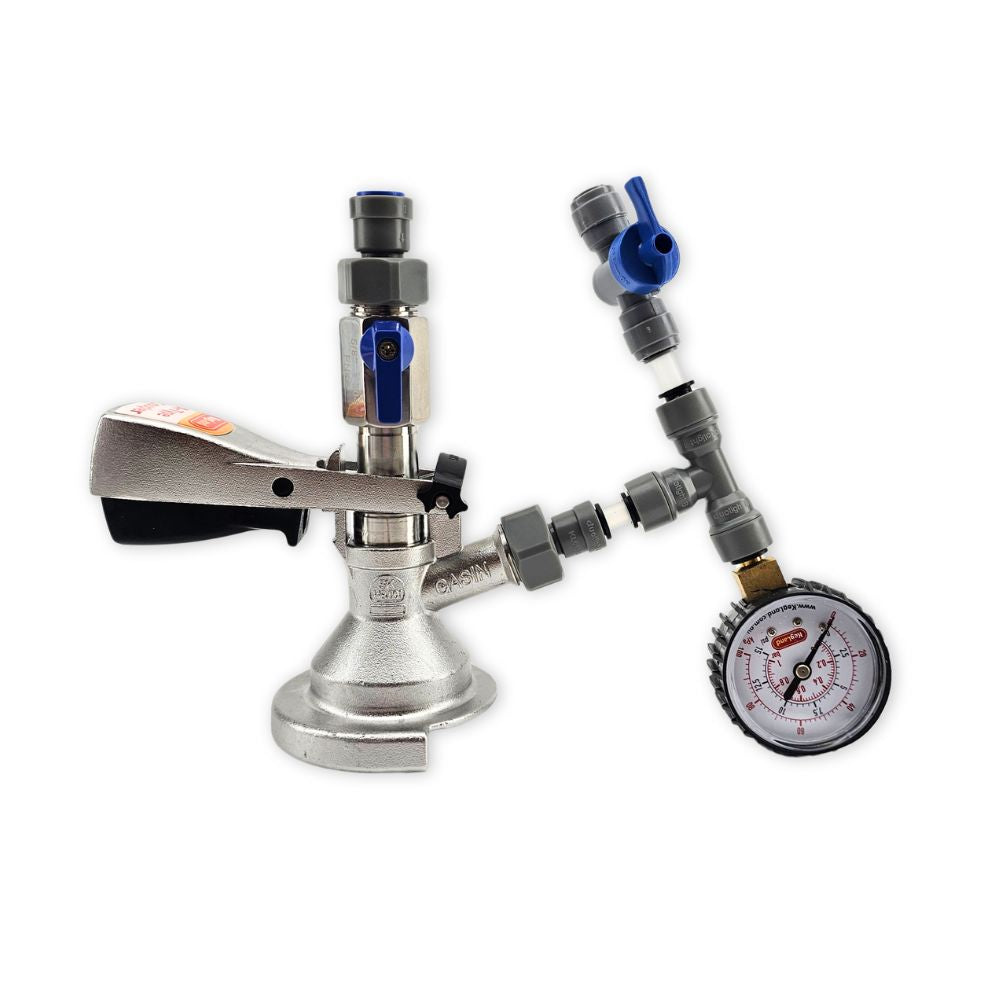

Talos A-Type Filling Coupler (KegLand duotight)

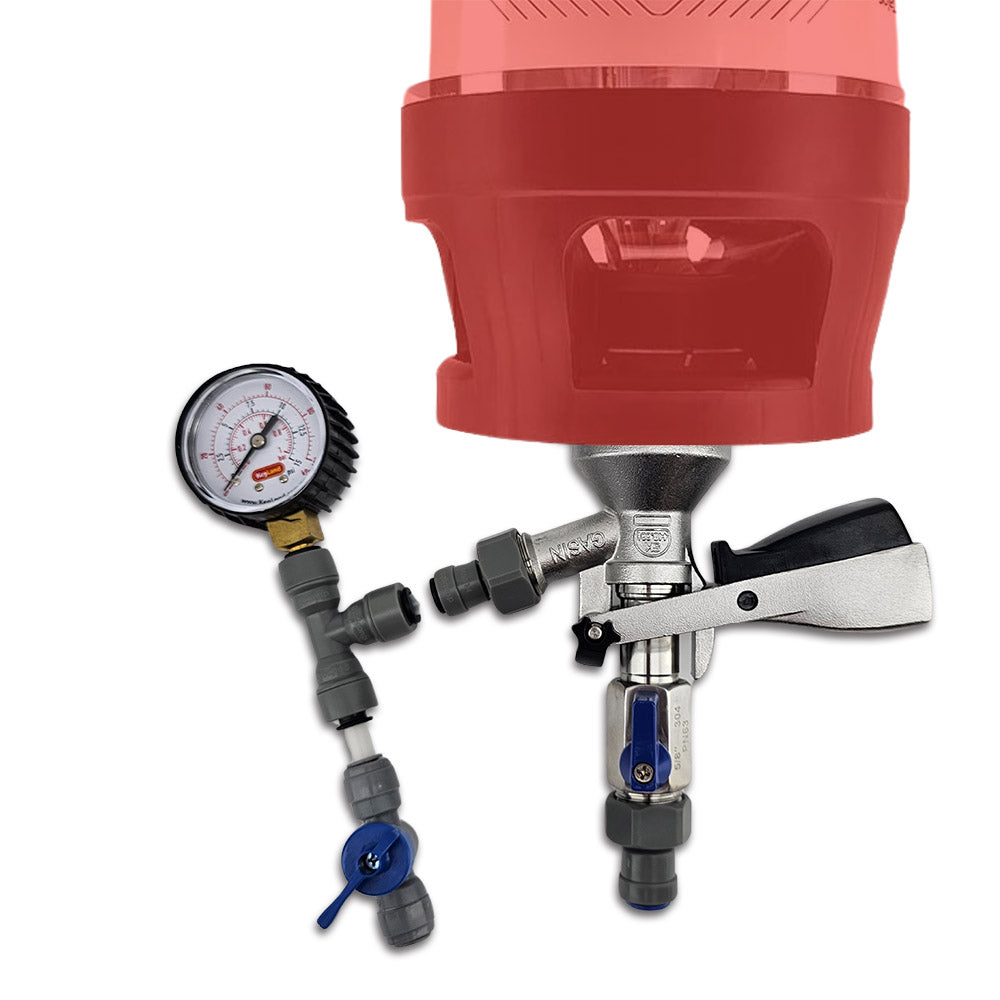

It is recommend to fill with counter pressure to ensure CO2 stays in solution. This can be monitored on the gauge and adjusted using the blue 8mm ball valve.

This Talos A-Type Filling coupler is fitted with a 9.5mm duotight x 5/8" Female fitting. Suitable hosing to fill would be KL06248 EVABarrier 6.3mm(1/4inch)ID x 9.5mm (3/8inch)OD (12m)

The liquid filling side can be interchanged with:
8mm duotight x 5/8" (included in the coupler by default)

If you prefer straight barb tails please see:
KL05098 - 6mm Straight Barbtail for (for 5/8 Hex Nut)
KL05104 - 8mm Straight Barbtail for (for 5/8 Hex Nut)
KL05111 - 10mm Straight Barbtail for (for 5/8 Hex Nut)
KL05128 - 13mm Straight Barbtail for (for 5/8 Hex Nut)

Each barbtail option uses the same fittings:
1 x KL05074 5/8" Hex Nut and KL07078 5/8 EPDM Washers
