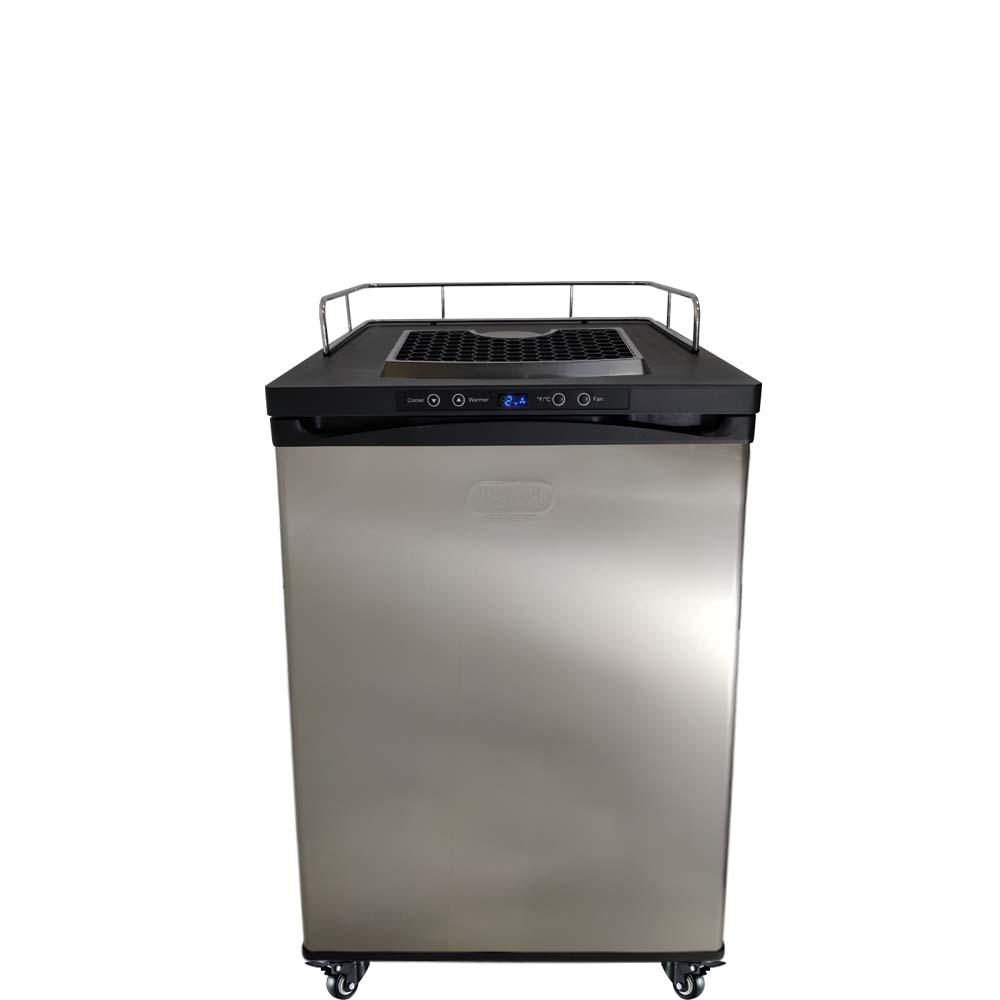

Series X.1 Kegerator Base Unit Keg Fridge
KL15080
EXTENDED WARRANTY: NOW WITH A 2 YEAR
2 years from date of purchase for all units purchased after 01/08/2024 in Australia
This new kegerator model is a big step up from the older Series 4 model. This new Series X.1 has several major advancements:
This Kit includes:

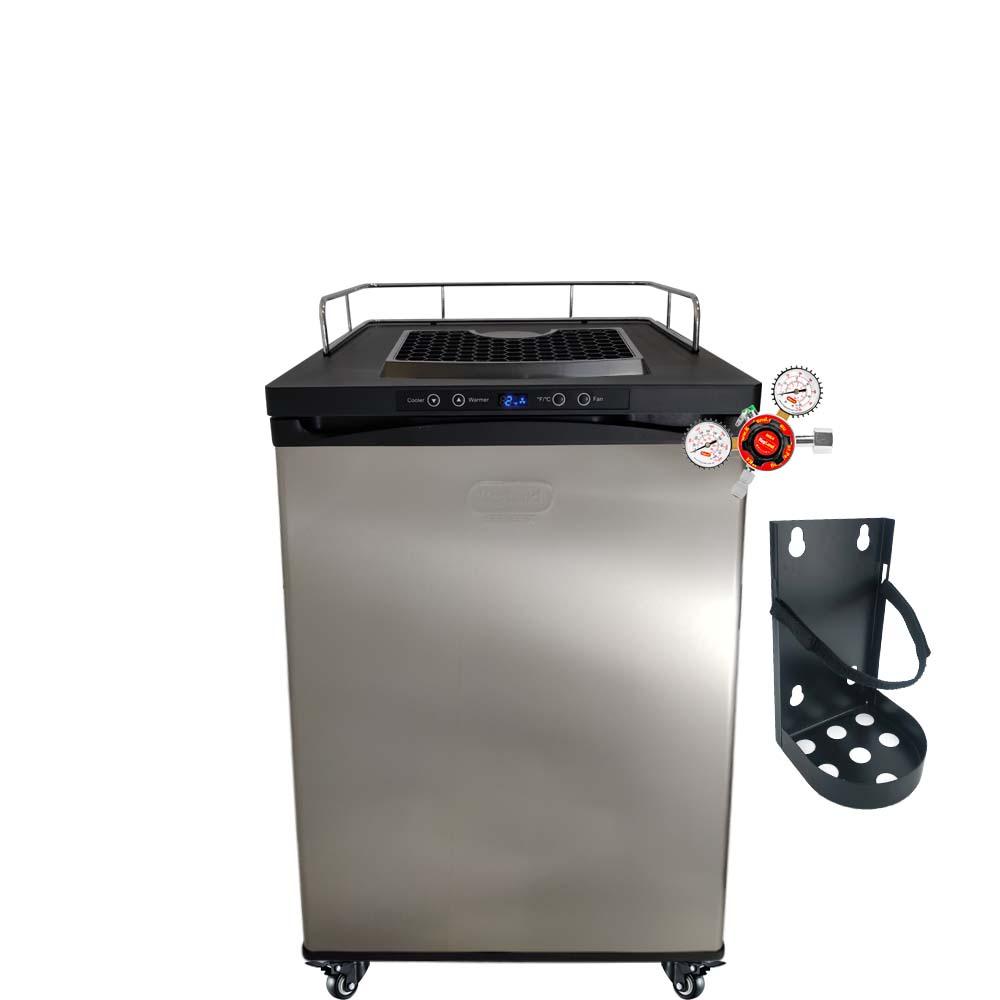

1 x Series X.1 Base Model Kegerator includes:
1 x KL07429 MK4 KegLand Regulator with 1 x KL06680 8mm duotight x FFL fitting

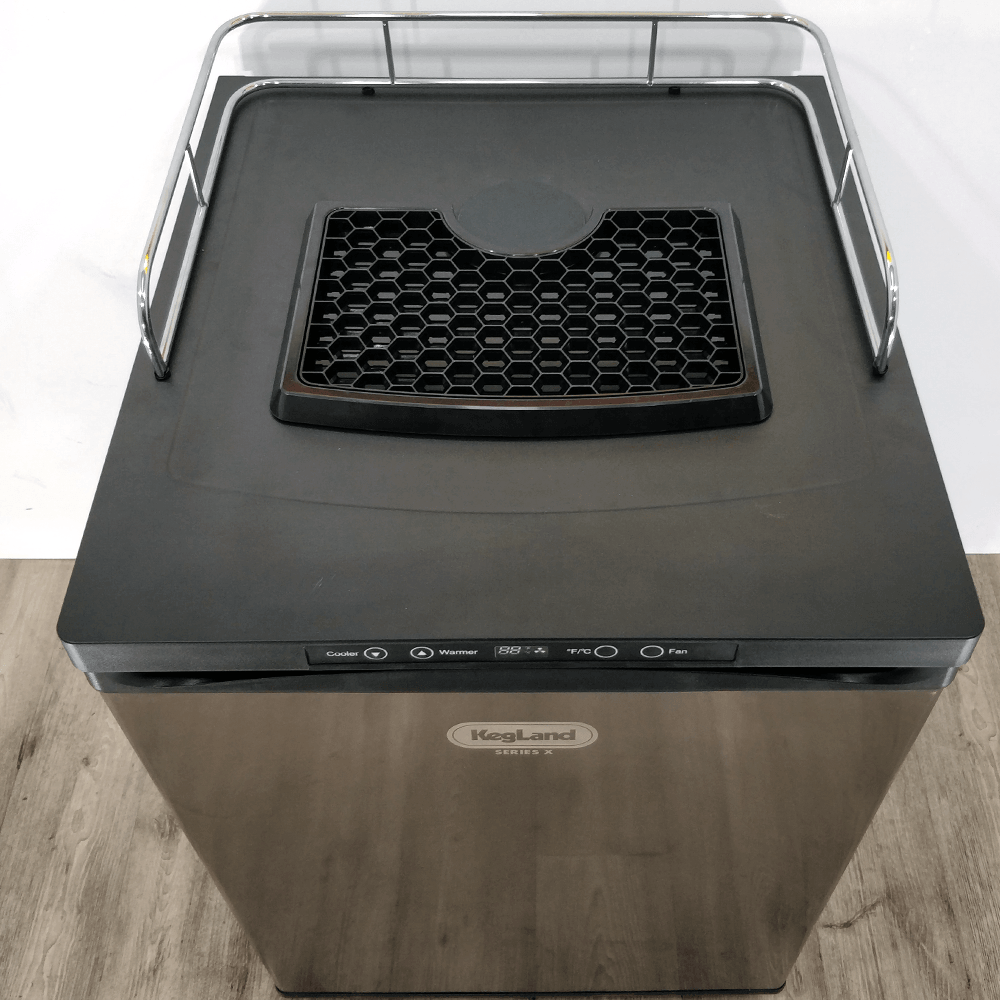

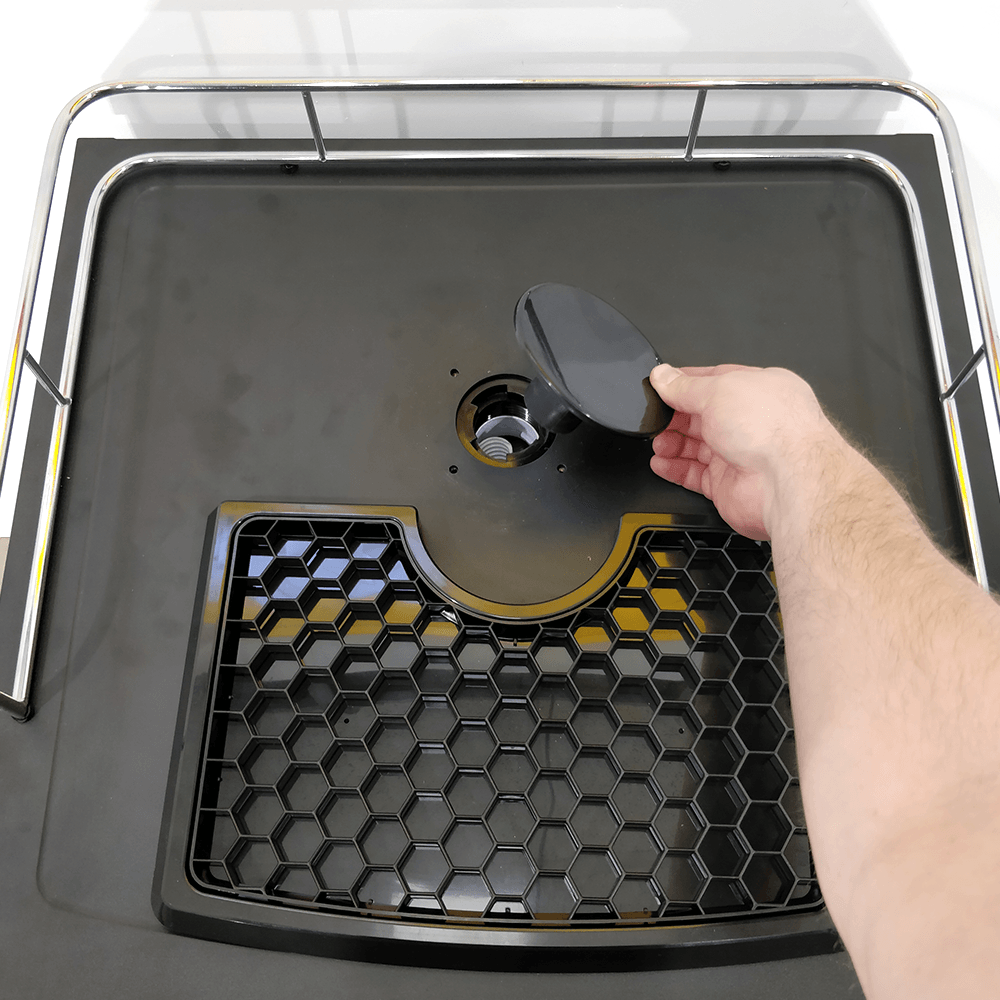

1 x KL00192 Black Plastic Wrap Around Drip Tray
1 x KL00222 Set of 4 Castor Wheels + bolts. (2 x Front Locking, 2 Free Spinning)

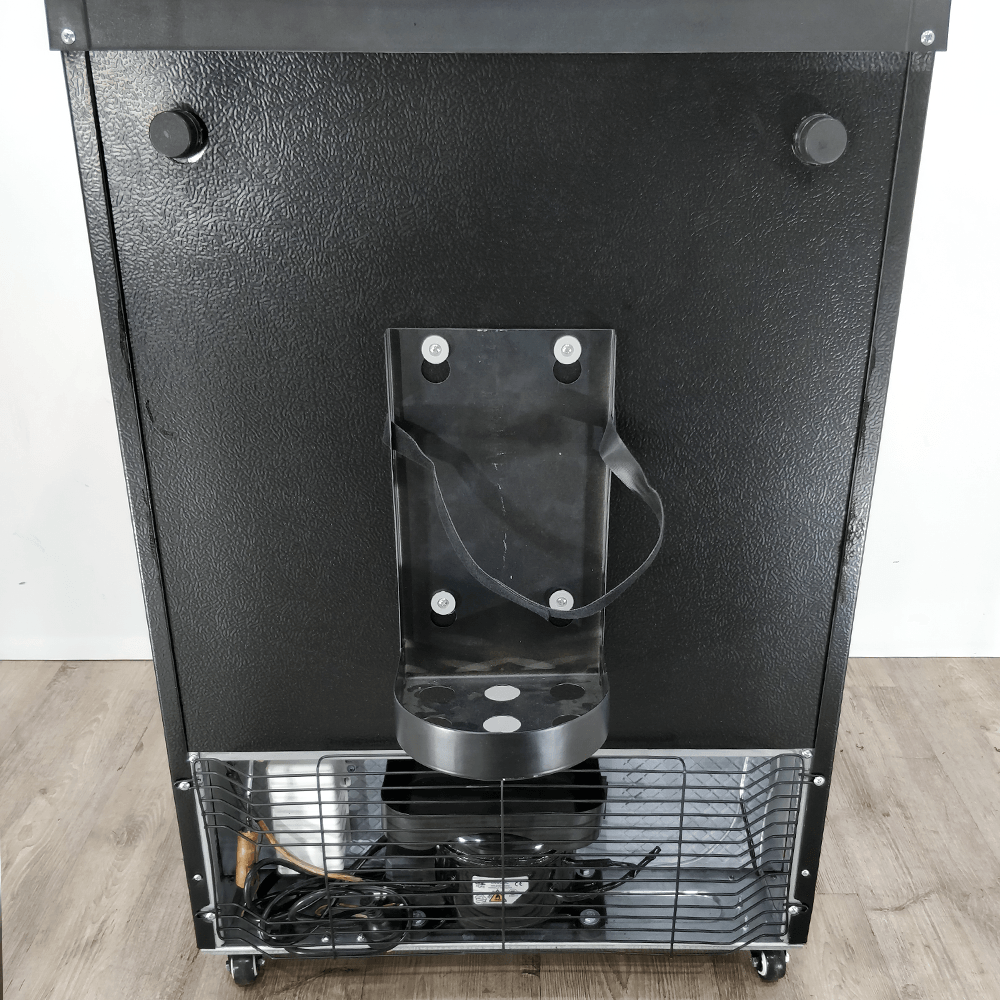

1 x KL00215 CO2 Cylinder Holder (designed to suit 2.6kg gas cylinder)
1 x KL00208 Chrome Plated Guard Rail with rubber locking feet.
1 x KL24051 NEW! Carbonation Chart Sticker
Please note: These items cannot be removed from the pack. No Shelf included.
If you want a full kegerator package you will need a FONT PACK, TAPS, CONNECTION PACK, GAS CYLINDER and KEGS.
FONT PACK - you will need one of these 4 different font options
a) KL00475 Single Tap Font Kit
b) KL00482 Double Tap Font Kit
c) KL00499 Triple Tap Font Kit
d) KL15745 Quadruple (Four) - 4 Tap Font Kit
TAPS
a) KL15509 NukaTap Stainless Steel
b) KL26482 NukaTap Stainless Steel - Black - Punisher Edition
c) KL15523 NukaTap Stainless Steel Flow Control
CONNECTION PACK - this is the different connection types to fit the various different kegs that exist in Australia
a) KL43250 A-type Keg Coupler (If you are using a 50L A-type Keg you will also need a low profile elbow bend)
b) KL43267 D-type Keg Coupler
c) KL20756 duotight 8mm (5/16") x Ball Lock Disconnect (Grey+ Red/Gas) and KL20749 duotight 9.5mm (3/8") x Ball Lock Disconnect - (Black + Yellow Liquid) Ball Lock fittings for 19L cornelius kegs.
GAS CYLINDER
For beer you will most likely want to get option a) or b) however some nitro beverages such as stout or nitro coffee require nitrogen which is option c)
a) KL01489 CO2 Gas Cylinders 2.6kg (FULL)
b) KL01496 CO2 Gas Cylinders 6kg (FULL)
c) KL01533 High Capacity Disposable NS Gas Cylinder and KL02158 Inert Gas Regulator for N2
KEGS
Options a-e are good options for home brewing but option f) is the best choice if you want to purchase commercial beer.
a) KL02899 19L Ball Lock Kegs. This is the most popular option for home brewing.
b) KL02882 9.5L Ball Lock kegs.
c) KL18111 20L All Stainless Commercial Keg with KL18173 A-type or KL18180 D-type spear.
d) KL18128 30L All Stainless Commercial Kegwith KL18173 A-type or KL18180 D-type spear.
e) KL09485 50L Keg with with KL18173 A-type or KL18180 D-type spear or KL10610 ball lock tapping head. Very few people home brew in these large kegs but it can be done if you really want to.
f) No kegs. If you want to get commercial beer from a brewery this normally comes in a keg so no need to purchase your own.
Series X Dimensions
- 600mm Wide
- 650mm Deep
- 840mm Height (excluding castor wheels and the height of guard rail, drip tray or font)
- 890mm Height of the fridge part (including castor wheels but excluding the height of guard rail, drip tray or font)
To download the Series X dimensioned drawings click here

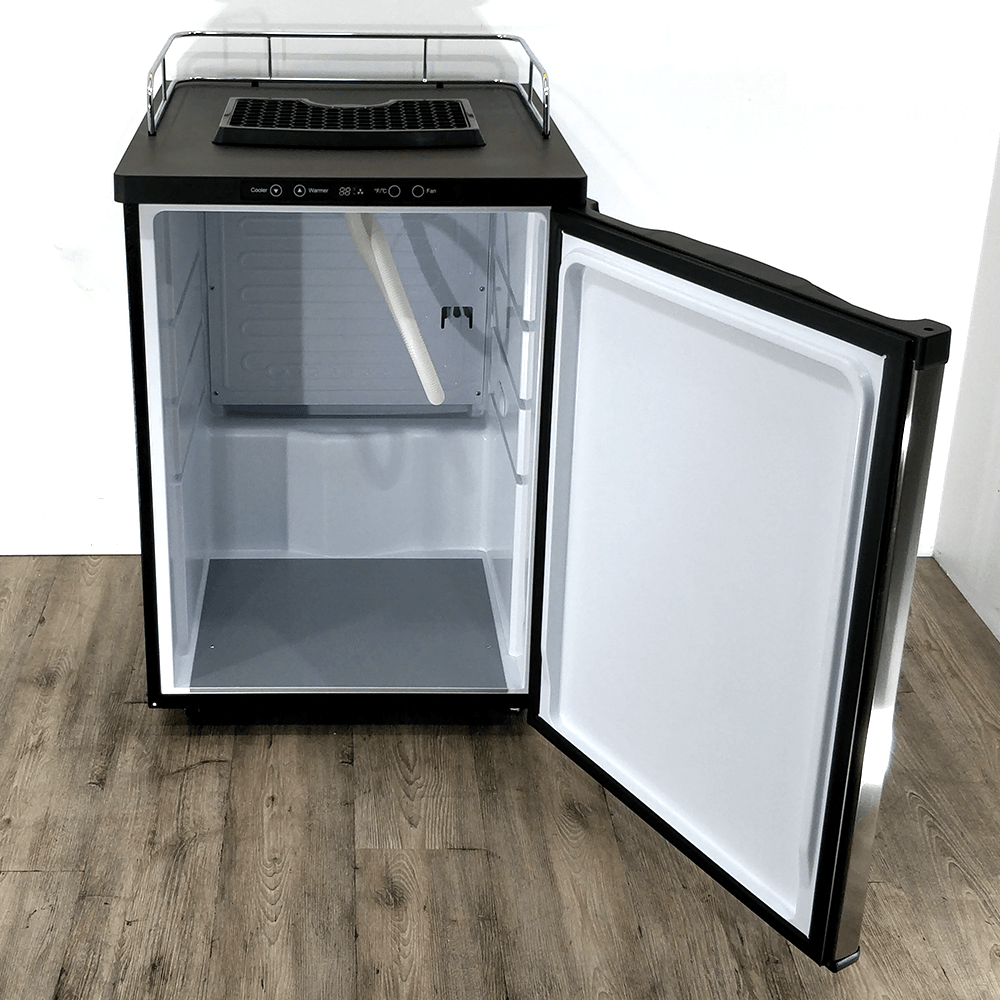

HOW MANY KEGS CAN FIT IN THE SERIES X FRIDGE?
19L Ball Lock Kegs - Up to 4
9.5L Ball Lock Kegs - Up to 4
20L and 30L All Stainless Commercial Kegs - up to 3 x 20L kegs or 1 x 20L keg and 1 x 30L keg
50L Keg - 1
Please note most A-type kegs are too tall to fit in the Series X without a "KL00390 - Low Profile Elbow Bend" as well as an EPDM 5/8" Washer on the couplers liquid out side (sold seperately).
Australian 12 Month Warranty
Overall rating: 4.7777777 / 5 from 18 reviews.
Review topics: ["kegerator","unit"].
"4 kegs fit ok. Teamed it up with a T 4 tap font. This all works really well. Pours much better than my last one. However I have to get rid of it. I have it in my open plan kitchen lounge and it’s so noisy. I’ve tried unsuccessfully to get used to it over the last 6 months with no luck. My advice is don’t put this in your living space. If I can’t find another brand that Is quieter I’ll make something up out of either a chest freezer or fridge."
"Much more power efficient than the old one"

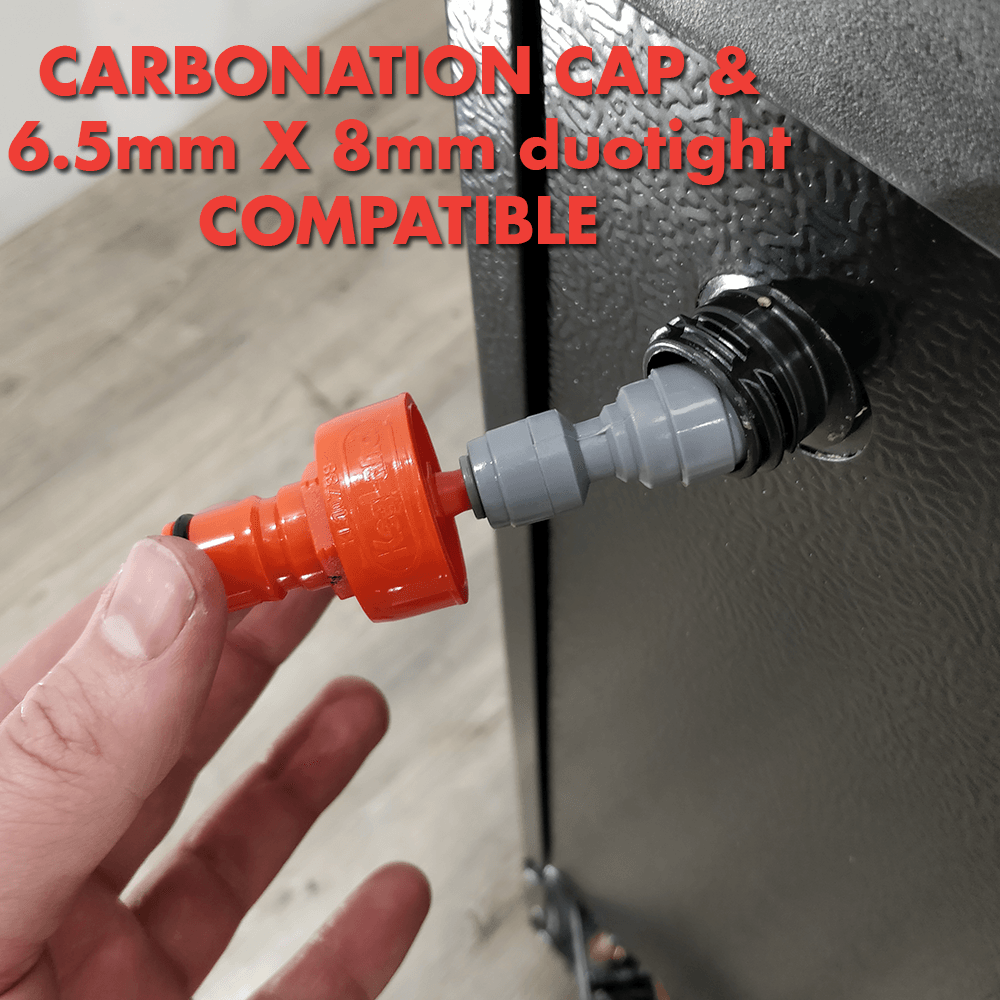

"So easy to use for kegs with no compressor lump in the way. I have a slimline font/ taps on order for this one. Do yourself a hugh favour and order an 8mm to 6. 35mm duotight reducer and a Carbonation Cap with the Kegerator. You push the carbo cap into the reducer and then screw it into one of the gas ports on the back of the Kegerator. You can then simply unclip the gas line to use for pressure transfers from your Brewzilla to your kegs. Too easy!"
