great little unit
"The unit is simple and cost effective. It works as intended. The only thing is the 60PSI gauge which is slightly painful to remove and is useless for most applications. Why not having a blank option to add the gauge as needed?"
KL15035

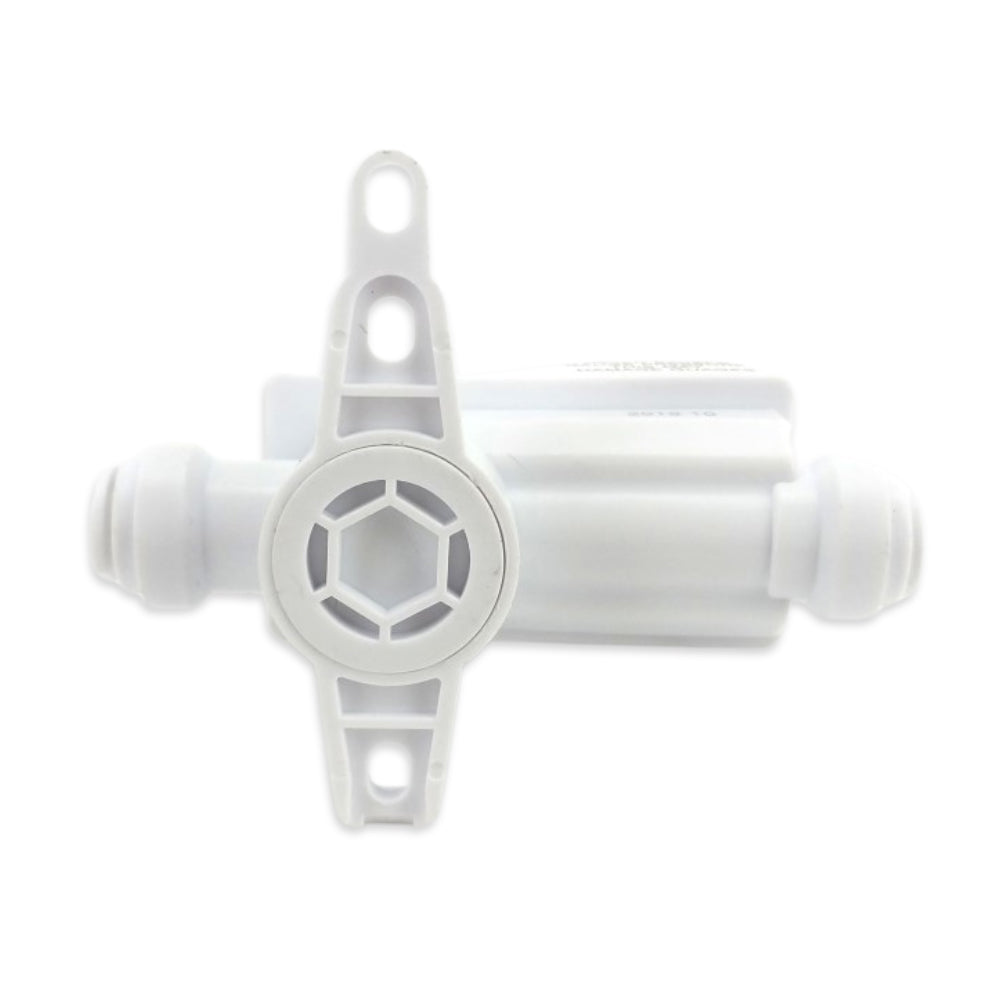

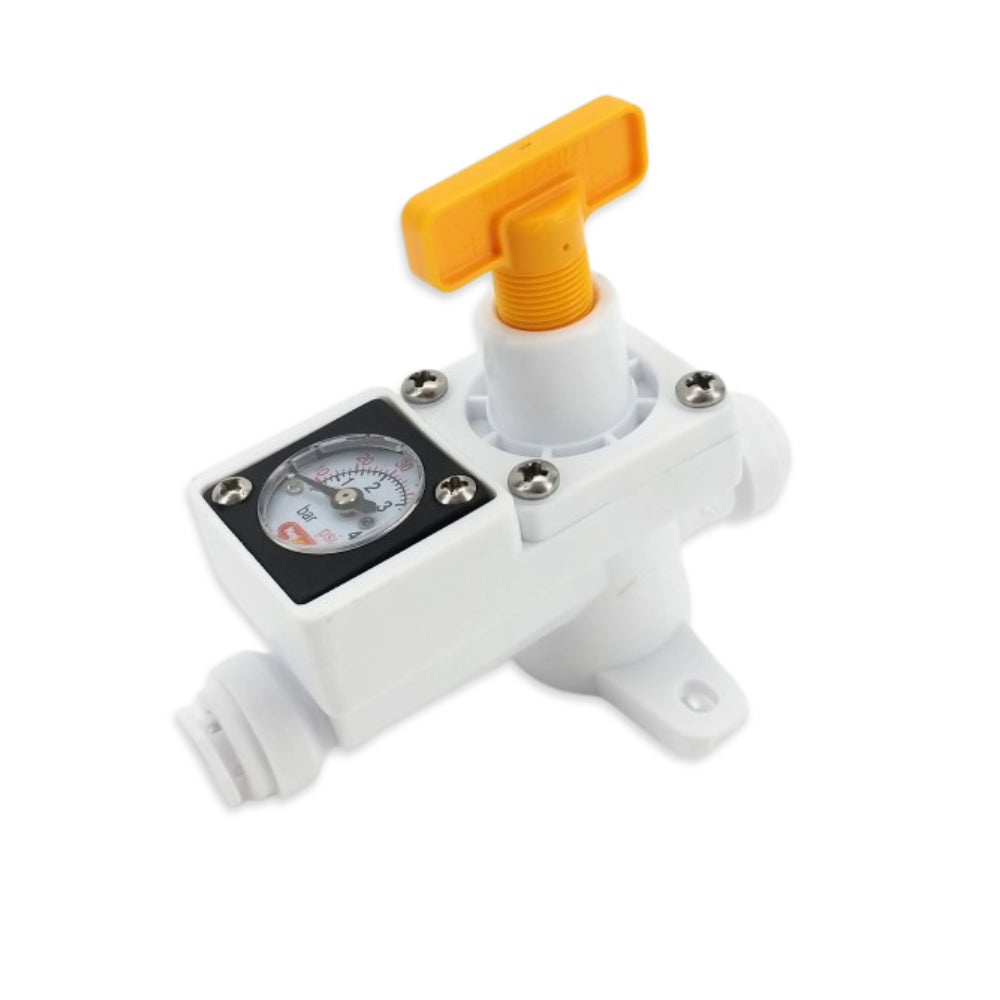

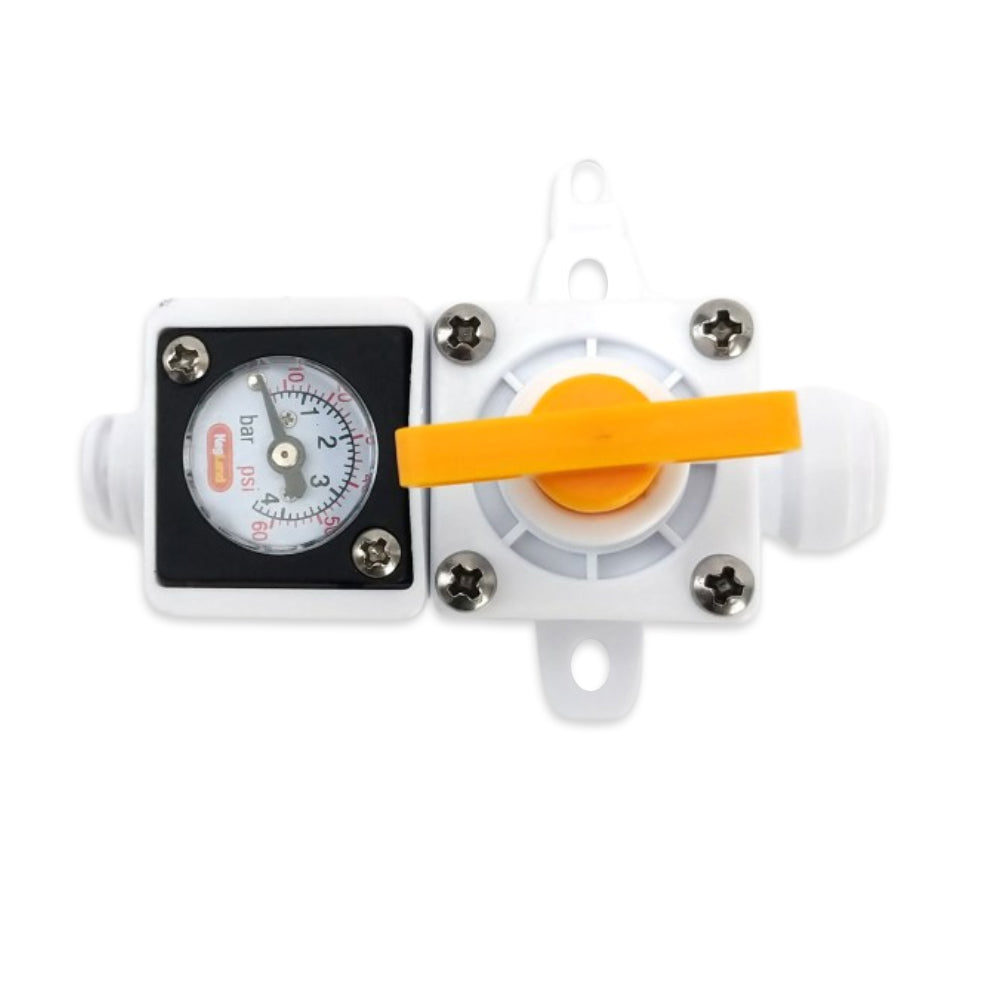

These compact inline regulators have been designed to suit 8mm (5/16") Evabarrier Tubing. For higher pressures such as mains water supply we recommend the 4mm ID Tubing here or 5mm ID here if you do not need as high pressures and you would prefer higher flow rate.
Suits pressures 0-150psi however this unit is packed with the 0-60psi gauge as standard.
Suitable for mains water pressure
Suitable for liquid or gas
Made from Acetal/POM, EPDM o-rings and stainless teeth
Suits 8mm (5/16) OD Tubing such as our Evabarrier Tubing

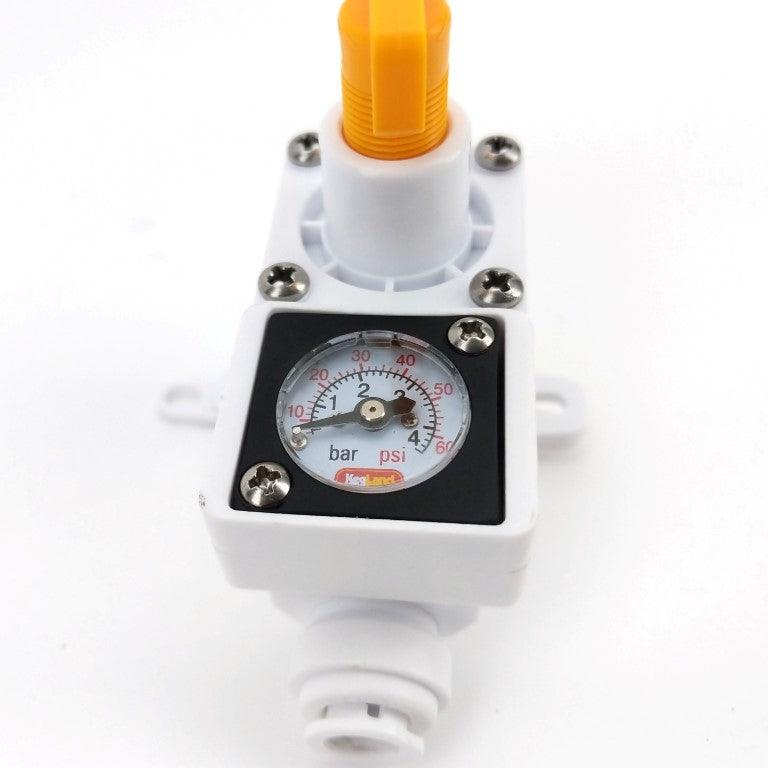

Includes integrated 0-60psi Pressure Gauge
If you are looking for a compact digital gauge with backlight illumination click here.
This awesome compact solution for adjusting water and gas pressure can be useful in many different applications. This can be used for compressed air, CO2, nitrogen, mains water supply and many other things.
The unit is made from food grade engineering plastic, stainless steel and quality made EPDM seals.
The design utilizes the reliability of the KegLand patented duotight o-ring system to make sure you can fit hoses to this unit quickly and with leak free connections.
NOTE: These small gauges enable the regulator to be so compact however for more accurate pressure readings we recommend getting different gauges to suit the pressure range you want to use.
KL14984 Mini Gauge 0-23psi
KL14991 Mini Gauge 0-30psi
KL15004 Mini Gauge 0-60psi (this one comes included and already installed to the regulator)
KL15011 Mini Gauge 0-150psi
These gauges are accurate to about 10% of the range of the pressure gauge. So if you use the lowest range possible it will ensure the best possible accuracy.
If you are looking for a compact digital gauge with backlight illumination click here.

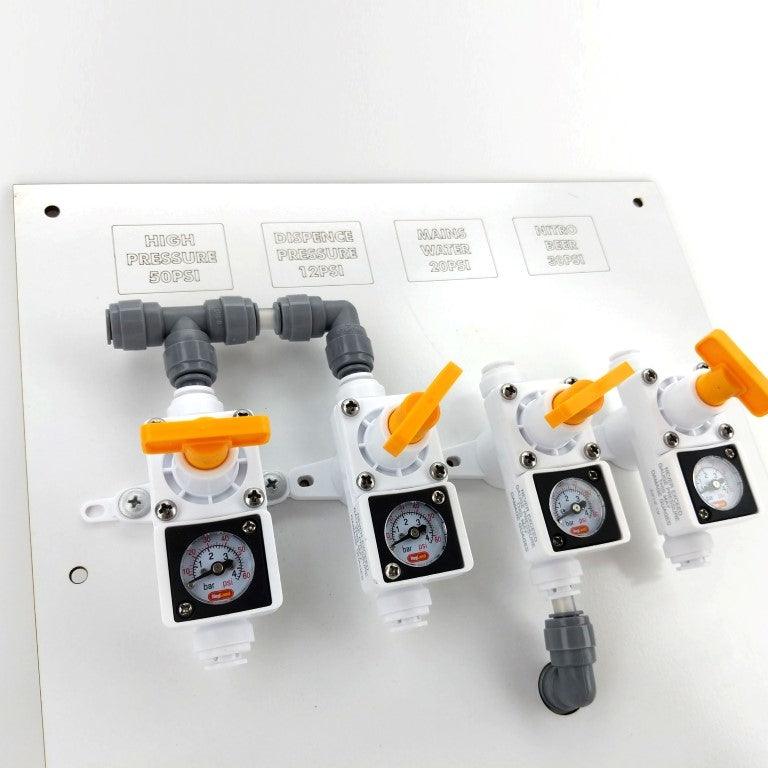

If you would like to set up a 4 way or 6 way manifold using inline regulators then use one of these custom polypropylene boards to set them up:
KL17718 Plastic Gas Board for 6 x Inline regulators
KL17701 Plastic Gas Board for 4 x Inline regulators
Do not exceed 75% of the scaled-gauge pressure. If you exceed gauge pressure it will damage the capillary in the gauge and prevent the gauge from working correctly. NEVER exceed the 75% or more of the gauge display pressure range.
Not tested or approved for pure oxygen.
Overall rating: 4.7906976 / 5 from 129 reviews.
The 8mm duotight inline regulator with an integrated 0-60psi gauge is praised for its quality and suitability for various applications. It is designed for 8mm tubing and suits pressures up to 150psi, though it comes with a 0-60psi gauge. Customers have mixed views on pressure, with some finding it fantastic and others experiencing issues with gas lines.
Review topics: ["fit","quality","delivery","issues","price","kit","design","works","solution","setup","value","regulator","gauge","pressure","keg","unit","lines","dials","use","manifold","tap","co2","addition","set","difference","service","beer","screw","kegland","brew"].
"The unit is simple and cost effective. It works as intended. The only thing is the 60PSI gauge which is slightly painful to remove and is useless for most applications. Why not having a blank option to add the gauge as needed?"
"Great product. Solved my gas line issues and tidied up the whole area."
"These are great, I can run different pressure on each keg"
"Handy in the kegerator when different carbonation and dispensing pressures are required"
"Good product works well"
"I bought this to use on my fermenter, both when cold crashing (to push low pressure CO2 into the fermenter as needed), and to do an oxygen free transfer from fermenter to keg. It works great, and I’m very happy with it"
"I swapped out the 60 psi gauge for the 30 as I'm using it for keg carbonation only. It would be nice if the size gauge was selectable- I now have a bunch of 60psi gauges that I can't see myself using. Not a product fault, rather a useful feature to make the purchase even more affordable."
"Agreat little helper, I can now run two different pressures at the same time, happy as."
"Since getting hooked on the new Vinka beverages over summer, such as the Ginger Beer, Hard Pub Lemon and Lime squash and the Nordi Apple Cider, I've decided I needed to sort out my gas lines in my kegerator. Having a 3-tap font, I usually have two dedicated to an IPA and a lager, with the 3rd tap kept for seasonal brews such as dark beers in the cooler months and the Vinka selection during the warmer months. With the Vinkas needing about 23psi and the beers about 10~12psi I needed a solution. This is where I've reconfigured my gas manifold inside the kegerator. If I've got a Vinka keg on board the gas from the bottle comes into the manifold at 23psi. One of the offtakes goes to the Vinka keg at manifold pressure and the other two kegs are fed via the inline regulators. When you've got three kegs in one of the older 3-keg kegerators there's not a lot of room so I've inadvertently knocked the regulator adjuster screws. So I've cut the 'wings' off the adjuster screws to limit this problem. The analogue gauges are recessed a bit inside their housings which can make it a bit difficult to read in the cramped confines of a full kegerator. Wouldn't it be nice to have the all the gas regulation for the kegs on the outside of the kegerator with 3 lines of regulated gas going into the back of the kegerator."
"Great little regulator to use in my CO2 gas manifold setup. Priced reasonably as well"
