duotight - 9.5mm (3/8”) Female x 1/2'' Male Thread Ball Valve
$3.95 AUD
Skip to product information
In stock

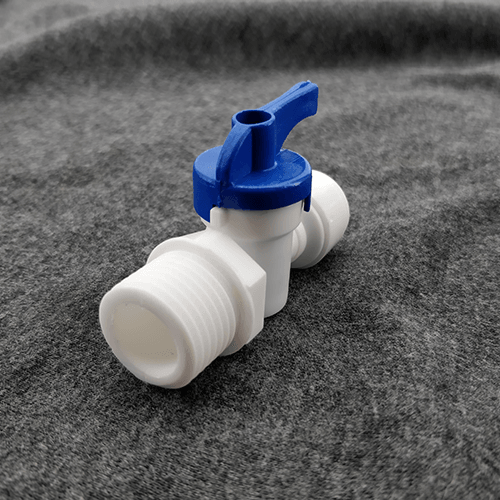

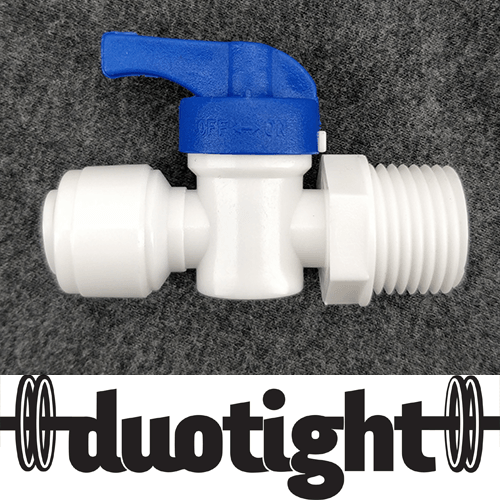

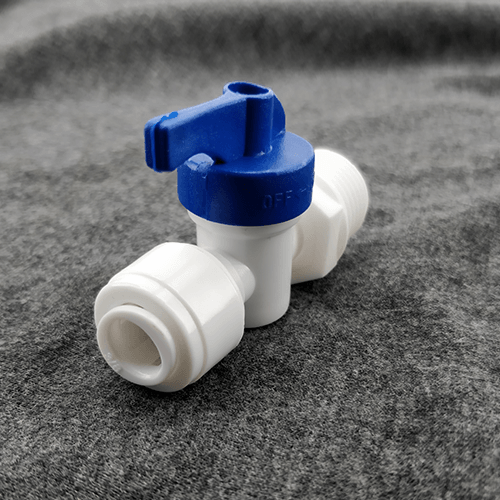

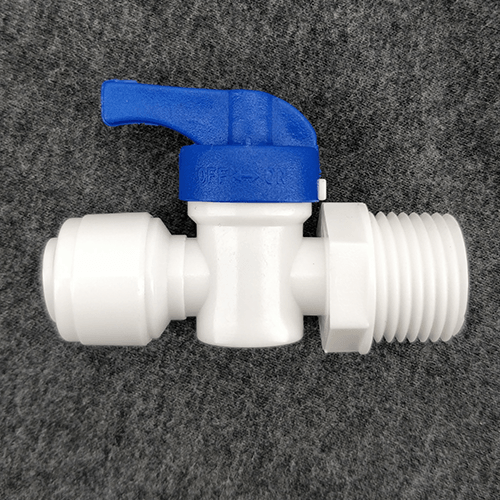

duotight - 9.5mm (3/8”) Female x 1/2'' Male Thread Ball Valve
KL07375
$3.95 AUD
Easily isolate liquid or gas lines using this convenient push-in ball valve, designed to provide simple and reliable control over your flow system. Features a 1/2" BSP male thread for easy integration into any 1/2" system. Perfectly suited for use with our Red Reaper Counterflow Chiller.
Applications & Compatibility
- Liquid lines: Can be used to control the flow of your liquid lines.
- 1/2" BSP: Can be screwed directly into any 1/2" BSP female fitting.
9.5mm Tubing Compatibility
This 9.5mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:
- KL06248: 6.3mm ID x 9.5mm OD | 12m
- KL42772: 6.3mm ID x 9.5mm OD | 12m (Black Lightshield)
The duotight Generation 2 Difference
Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.
Dual-Material Double O-Ring Design
The secret to our superior seal is a two-stage system using two different high-quality materials:
- EPDM O-Ring: Provides exceptional chemical and gas resistance.
- Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.
High-Performance Materials (POK)
Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).
- Higher Chemical Resistance: Withstands harsh brewery cleaners.
- UV Protection: Won't become brittle over time.
- Extreme Durability: Rated for over 300psi @ 25°C.
User-Friendly Features
- Color-Coded Collets: Blue denotes 9mm (3/8").
- Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
- No Clamps Necessary: Simply push to seal; push the collet to release.
We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
Product Downloads
You may also like
Overall rating: 4.875 / 5 from 16 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["works"].
Review highlights
Reviews
Duotight 9. 5 female with tap.
"Great fitting. I use this for the 1 micron filter, while filtering my beer. Does a great job."
Flow restriction
"Looks great, just signing down filter flow"
Does its job
"Excellent for the price"
"Thx"
Very nice fitting
"Excellent job everything works well"
Perfect for what I need.
"Perfect for what I need. Can purge housing with co2 and close these off for storage."
Very handy fitting, but....

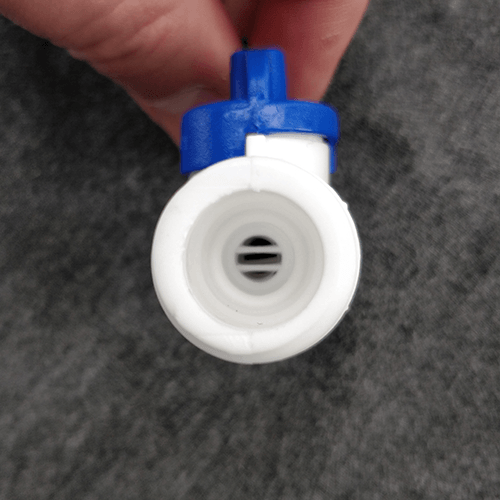

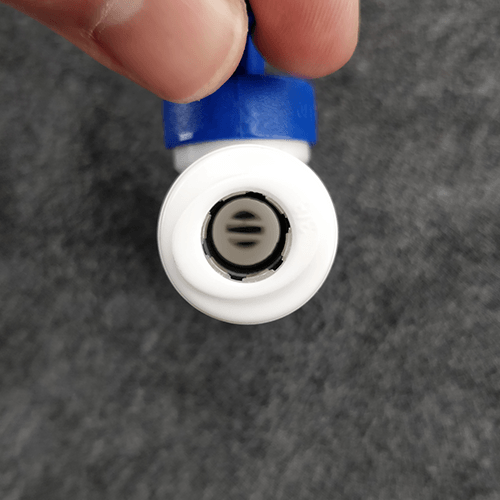

"This is a great little fitting for things like a counter flow chiller. The biggest issue using it with any wort is that it has small grills internally which means it gets clogged very easily. To get around this, i drilled the grills out internally and how it works perfectly."
Works well
"Used it on my counterflow chiller to choose how much mains water goes in the chiller. Only ever have a valve on the water IN side."
Great item
"A solid tap which works great for what I need!"
