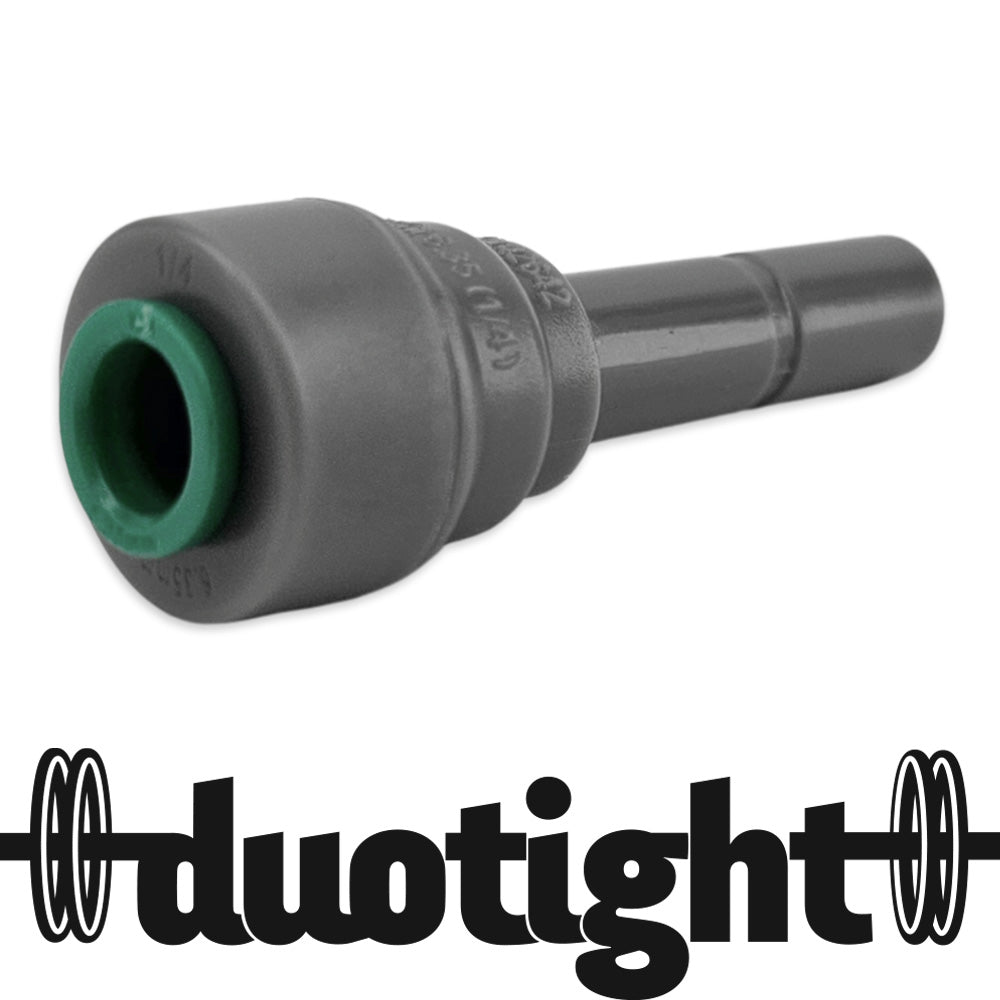

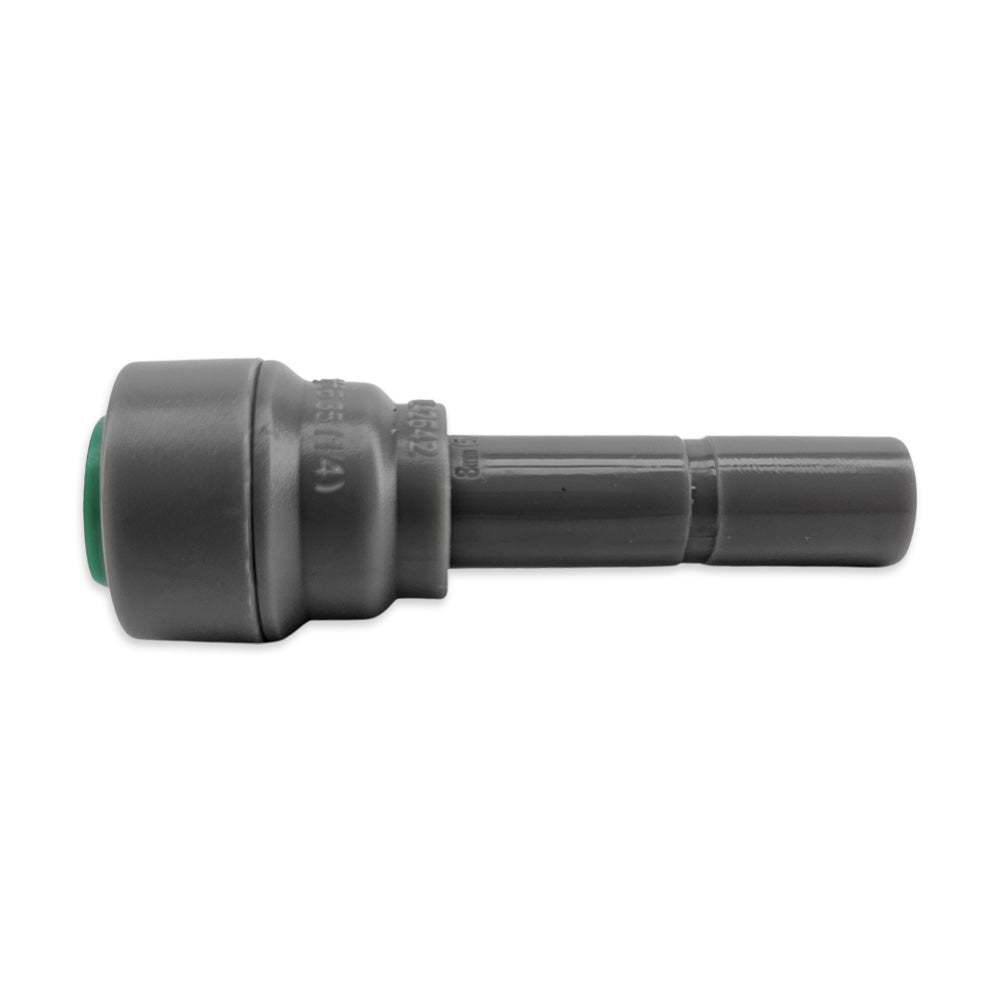

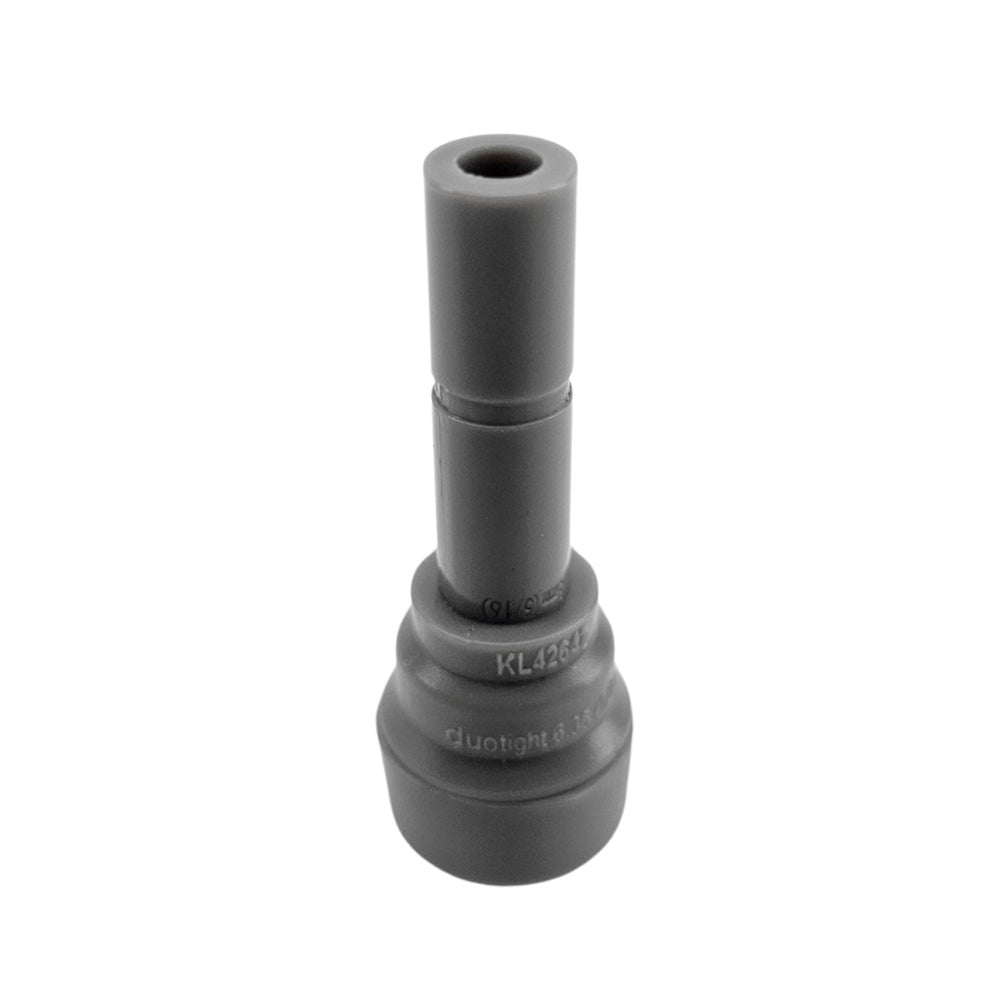

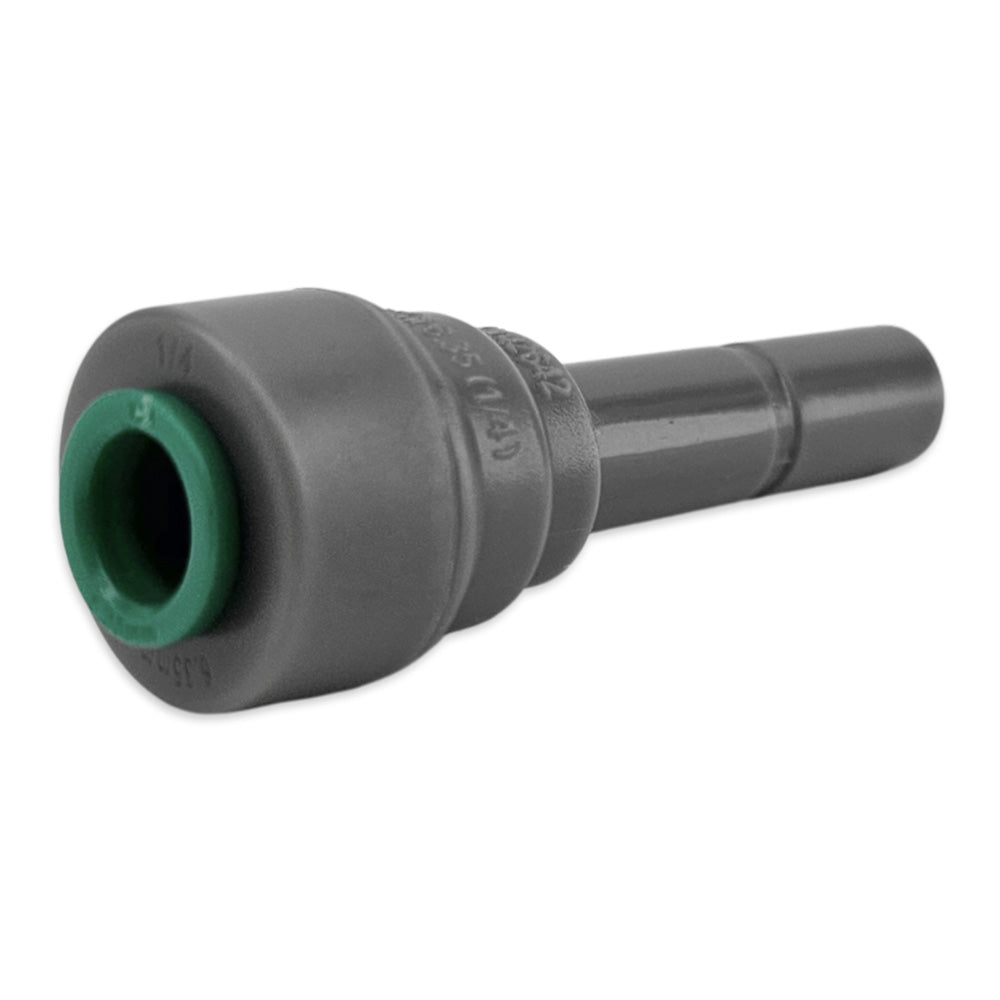

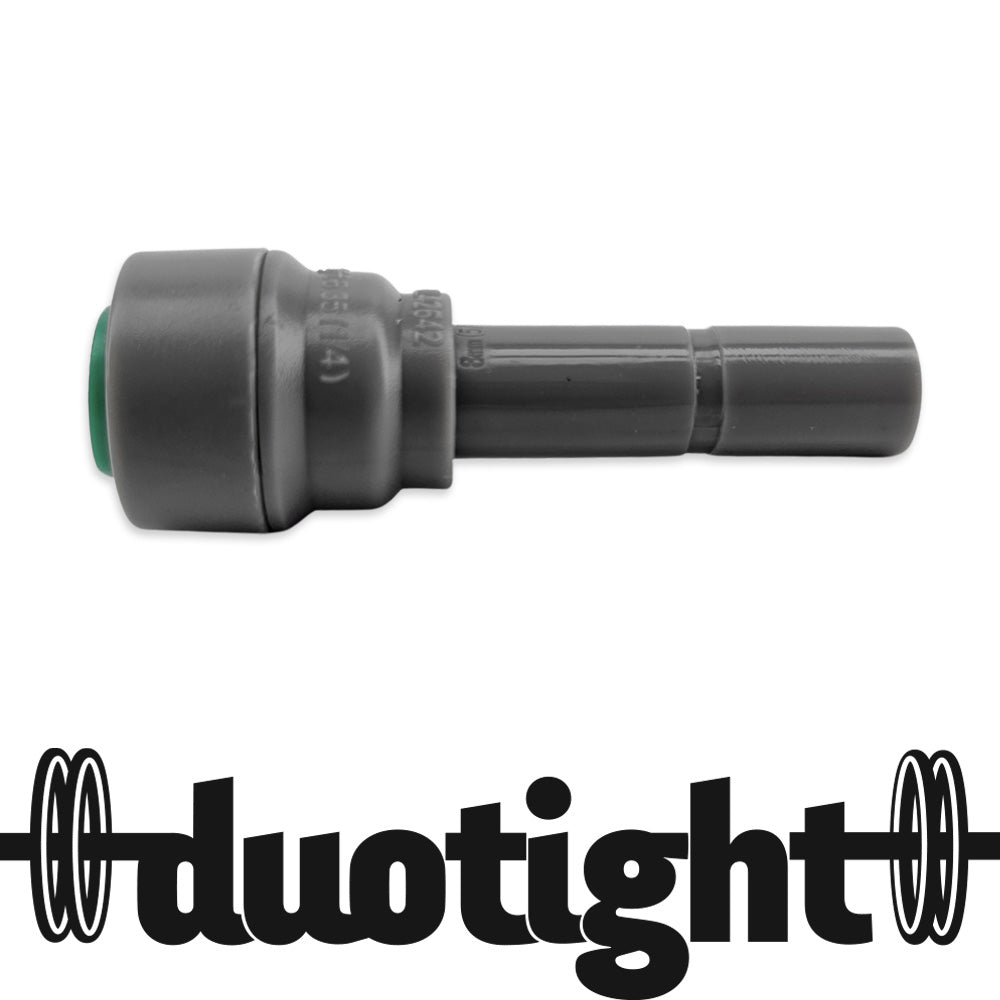

duotight - 8mm (5/16'') Male x 6.35mm (1/4'') Female Reducer

The male stem is seamlessly compatible with any 8mm (5/16") duotight push-in fitting. This handy little component works its magic by giving you a super-snug, leak-free seal without any hassle—making it the ultimate shortcut for tidying up your draft setup and reducing line length in a sleek, space-saving way!

Applications & Compatibility

• Benchy Zero: Have an older model Benchy Zero and want to reduce your line OD? Use one of these to restrict your output to 6.35mm

• Benchy Carbon, Glycol, or Nitro: Using 6.35mm beer line for any of the other units in the Benchy Range? These will easily join that smaller line to those units.
• 8mm female duotight fittings: Will push in easily to any of our 8mm female fittings.

6.35mm Tubing Compatibility

This 6.35mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL25331 : 3mm ID x 6.35mm OD | 12m
• KL42758 : 3mm ID x 6.35mm OD | 12m (Red)
• KL42789: 3mm ID x 6.35mm OD | 12m (Black Lightshield)
• KL42758 : 3mm ID x 6.35mm OD | 12m (PE Water Line)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Black denotes 8mm (5/16").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
