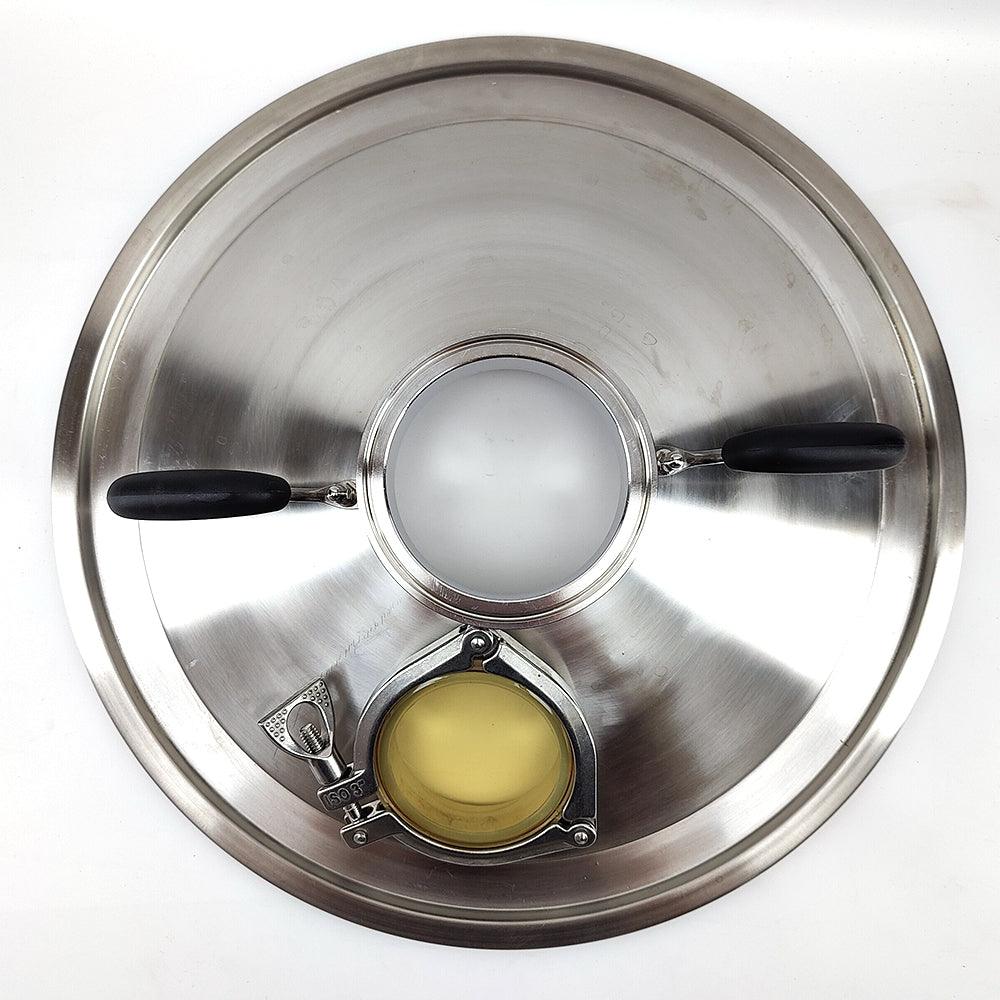

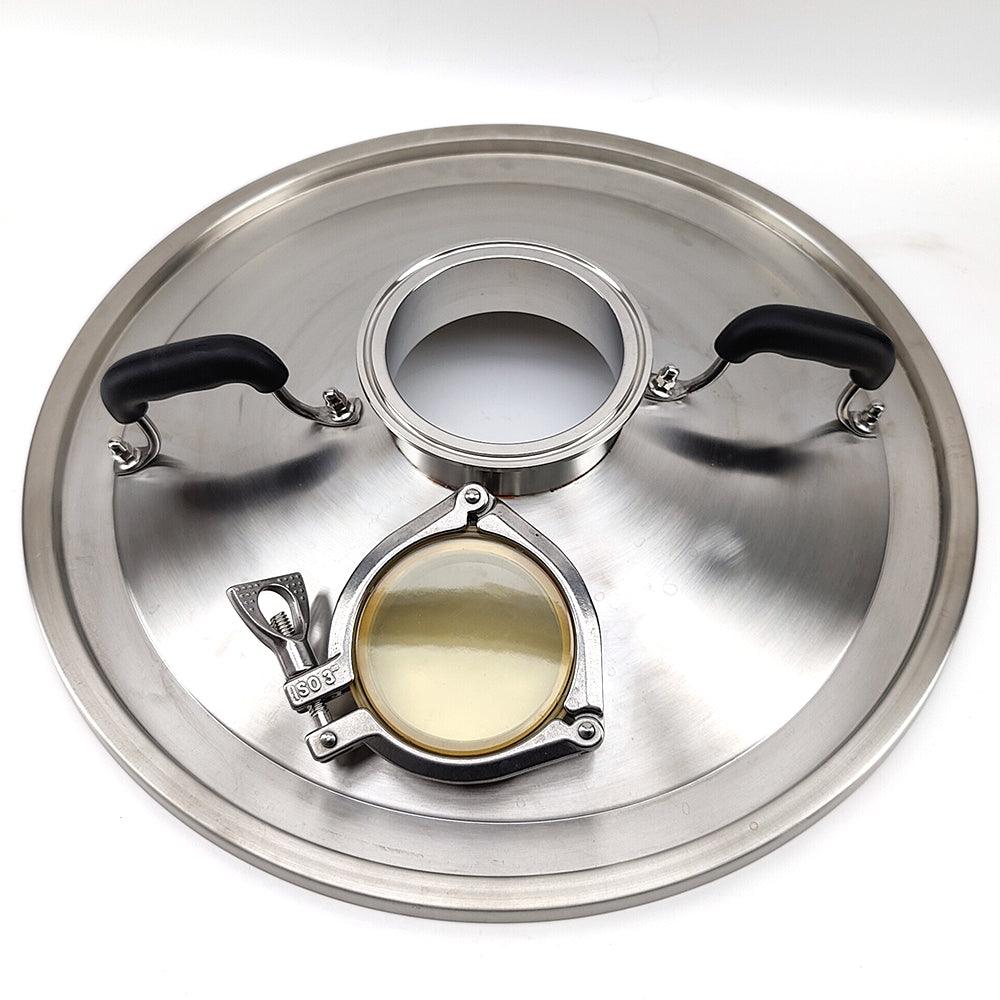

BrewZilla 65L Pro Sight Glass Distillation / Steam Condenser Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
KL25829
Suits 65L Gen 4 and Gen 3 BrewZillas, 65L Digiboils and older model Robobrews.
Designed to be extremely sturdy when using heavier stills or off-center steam condenser units. Now you can watch your wash boil and see if it's foaming or about to puke. If you are brewing beer indoors you may want to use a steam condenser lid set, without having to take off the entire lid to do hop/salt additions, simply remove the 3" Sight Glass and throw in (take care when hot).
PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.
We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.
Can be used with the 4 Inch Tri-Clover Glass Sight Glass Bubble Plate Still - Coming Soon
Can be used in conjunction with a 2" to 4" Tri-Clover Concentric Reducer a:
AlcoEngine - Thors Hammerhead Reflux Still - Coming Soon.
AlcoEngine Reflux Still
AlcoEngine Pot Still
and any other still that can be used with a 2 Inch Tri-Clover Port
Do you want to brew indoors but don't want the roof to get all sticky? Try the BrewZilla Steam Condenser Lid with the 2" to 4" Tri-Clover Concentric Reducer.
Specifications
- Thicker Silicone O-Ring for a tighter seal

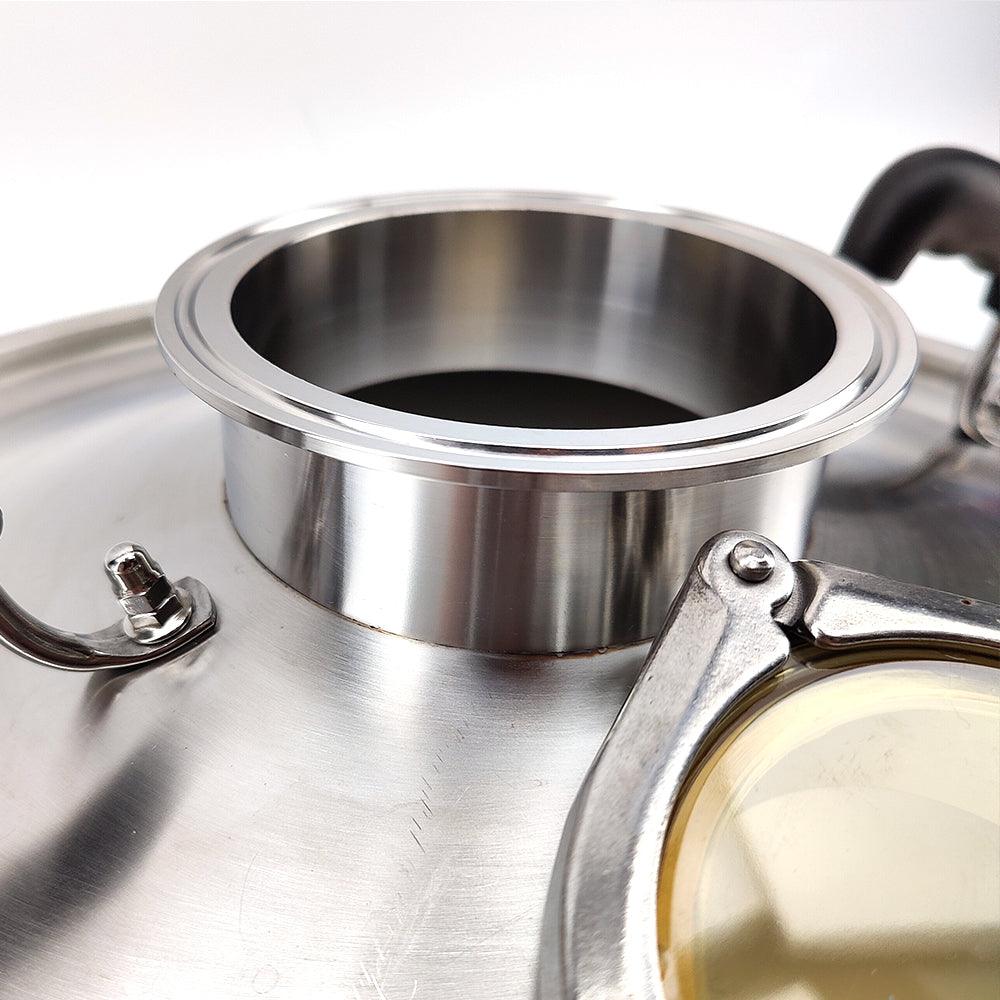

- 4 Inch Tri-clover Top Ferrule Port

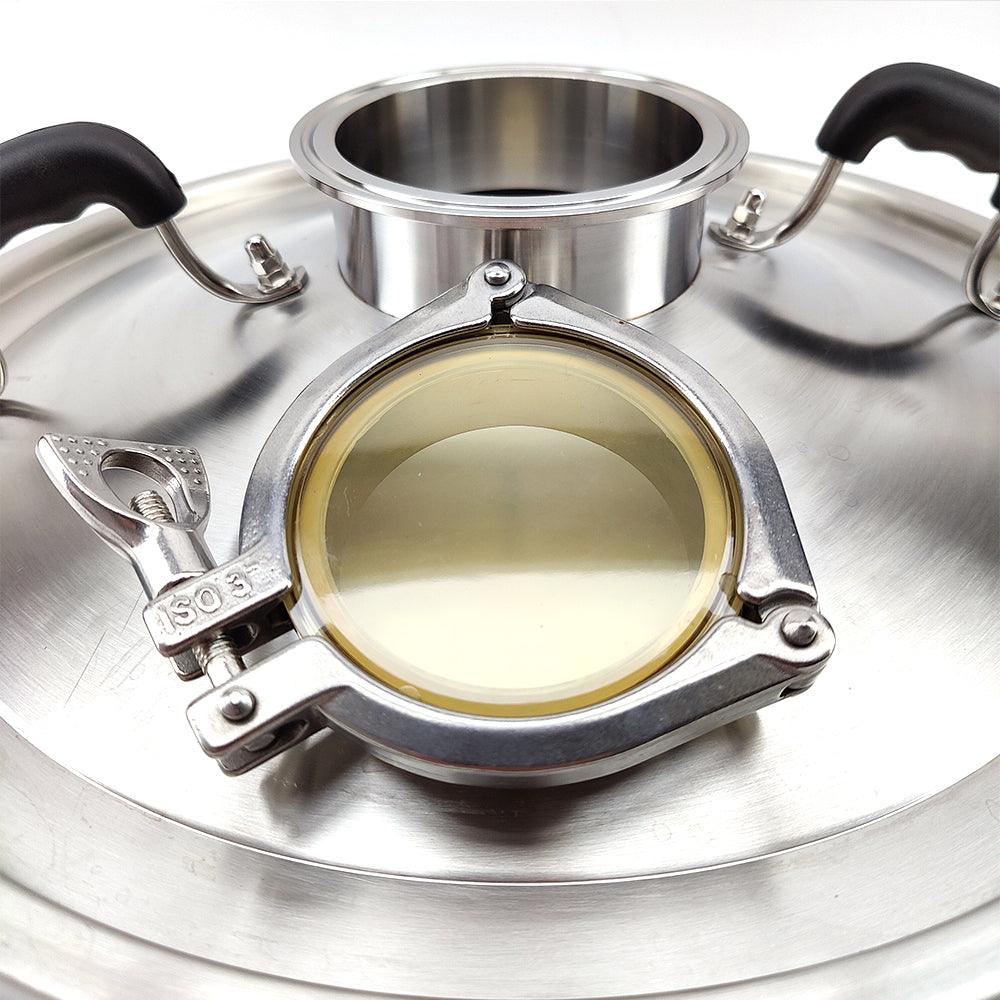

- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.
This unit has been designed to be used with the DigiBoil and BrewZilla 65L. We do not have data on other branded boilers if their clamps are suitable to make a complete seal.
Overall rating: 4.5384617 / 5 from 13 reviews.
Review topics: [lid].
"I’m glad I bought it yet packaging seems to be an issue as always. Glass had scratches on it, and as got as customer service is at replacing things, I just don’t have the time to follow everything up. I’ll just live with it. Why sell a product and make it look second hand by the time it gets to me? It’s just annoying since I have spent 000s. Hopefully you can take the initiative and contact me now as I have done many time with you"
"Solid, stable, seals perfectly on my v3 65L brewzilla with only the 4 clamps. Used to use the old style one and had to put extra clamps on and weights on top to get a seal, now i can throw all 3. 5kw at it without an issue. Worthy upgrade."
"All good"
"The part arrived quickly and worked perfectly on my 70 L Keg-King boiler"
"Dont buy for bulk distilling. Lid leaks to much and by the time you take off the foreshots and initial heads the gas lost from lid will leave nothing worth keeping if using in reflux mode."
"Fantastic lid for distillation. Well constructed and sturdy. I'm using it with the polyphenix 7 segment reflux still and it works great!"
"Great very sturdy lid for distillation!"
"Perfect for both boiling up a Beer Wort or Distilling your favourite Spirit… Heavy Duty with Sight Glass & or TC for Agitator"
"Perfect. Means I’m good to go."
"Has solved my problems"
