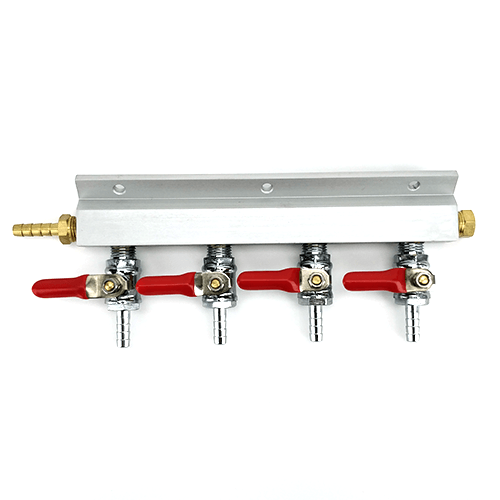

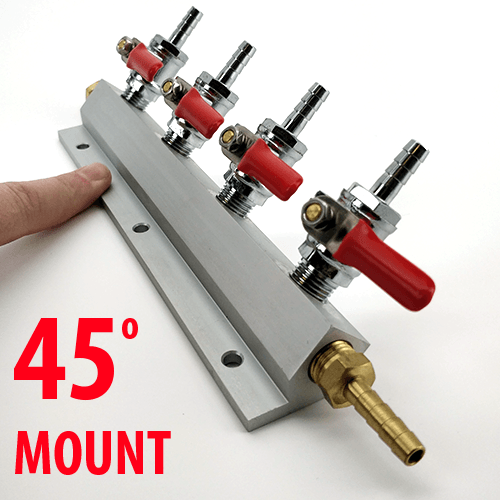

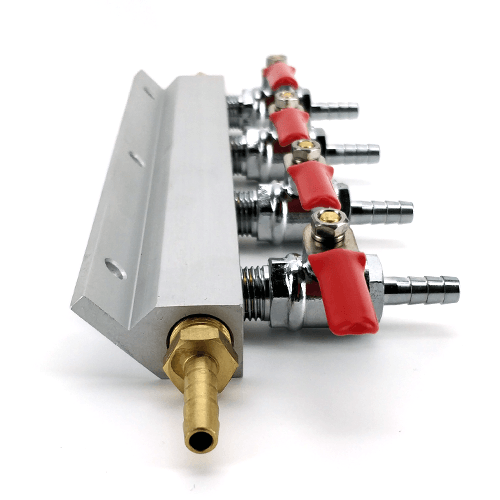

Gas Line Manifold Splitter 4 ways (1/4inch, 6mm Barb)

These gas manifolds are rated to 100psi and include ball valves that screw into the aluminium extrusion with 1/4inch threads.

This is an easy and convenient way to split your single gas line into multiple gas lines.

NOTE: This product is not suitable for beer or other beverages. It's gas only.

These gas manifolds are rated to 100psi and include 4 gas line outputs and 4 x 1/4inch ball vales.

This unit can be turned into a 5way manifold by adding a 1/4 inch ball valve (part KL05173) as shown in the picture to the left.

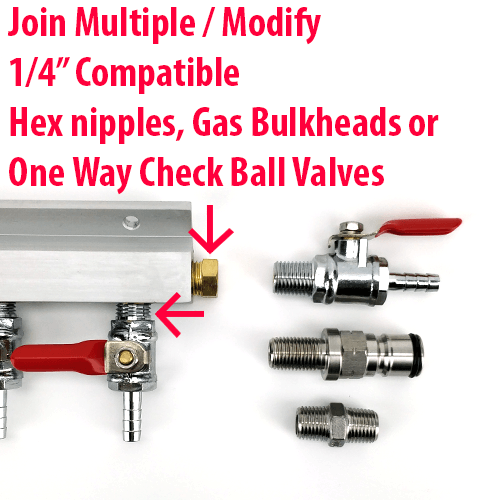

You can also attach a Gas Ball Lock Post with 1/4 Inch Bulkhead Assembly (part KL03179) if you want to be able to easily disconnect/reconnect a gas line. Alternatively you can also fit the Duotight 8mm to 1/4" push in fittings to this manifold KL06897.

Lastly if you want to join multiple manifolds together you can do this using the stainless hex nipple (KL06439)
Please note that due to the check valve mechanism there is about a 2 psi pressure drop over the ball valves in these manifolds. You will need to set the pressure on the regulator about 2 psi higher than the desired pressure in the keg.
