Capture as much distillate from the wash as possible, with as much heating power as your condenser can take as you can as you're not worried about taking cuts.

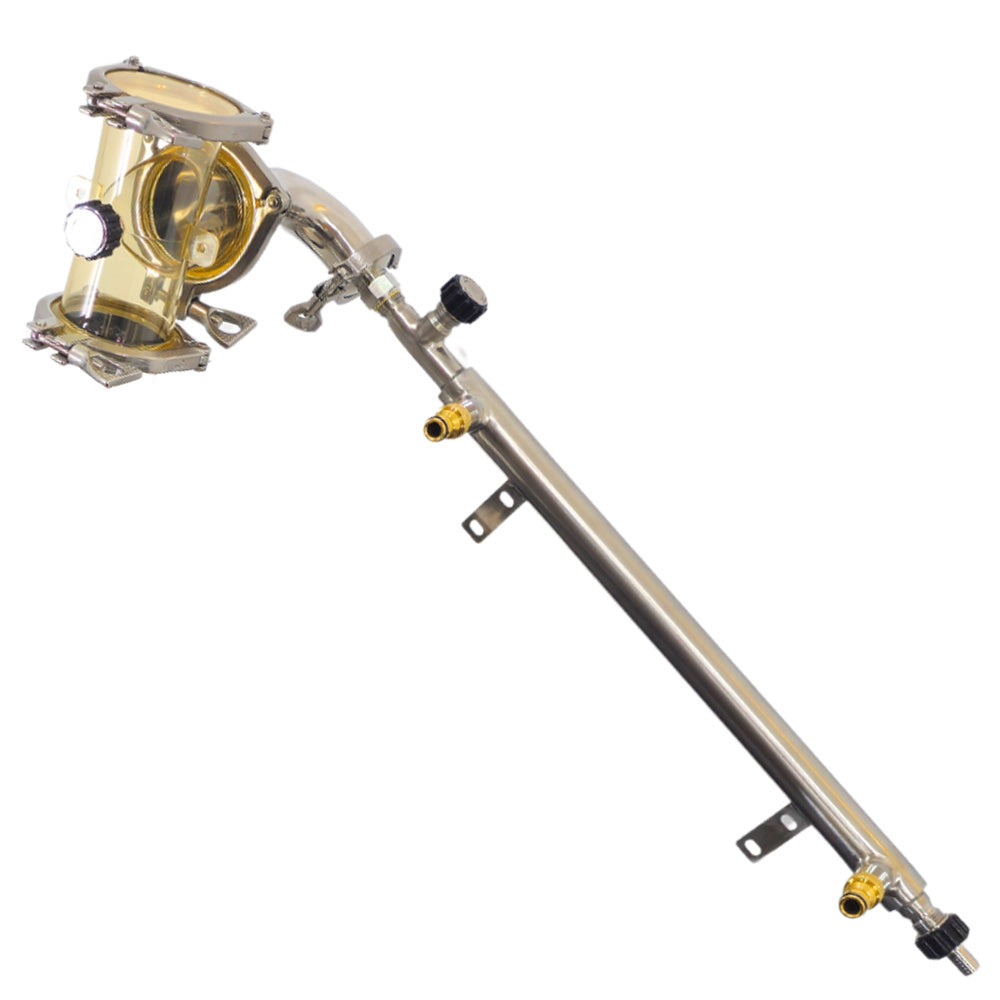

3" PolyPhoenix Pot Stripping Runner Kit

KB25561

$246.20
Sale price  $246.20 Regular price
In stock

It's definitely worth it to do stripping runs. We believe you get a much better product and can make better cuts when you do a final spirit run with your low wines you've collected.
It's definitely a larger commitment to strip distill multiple times if you have a large wash. But we think it's a necessary part of the craft to get a better final product with less unwanted flavours in the end.

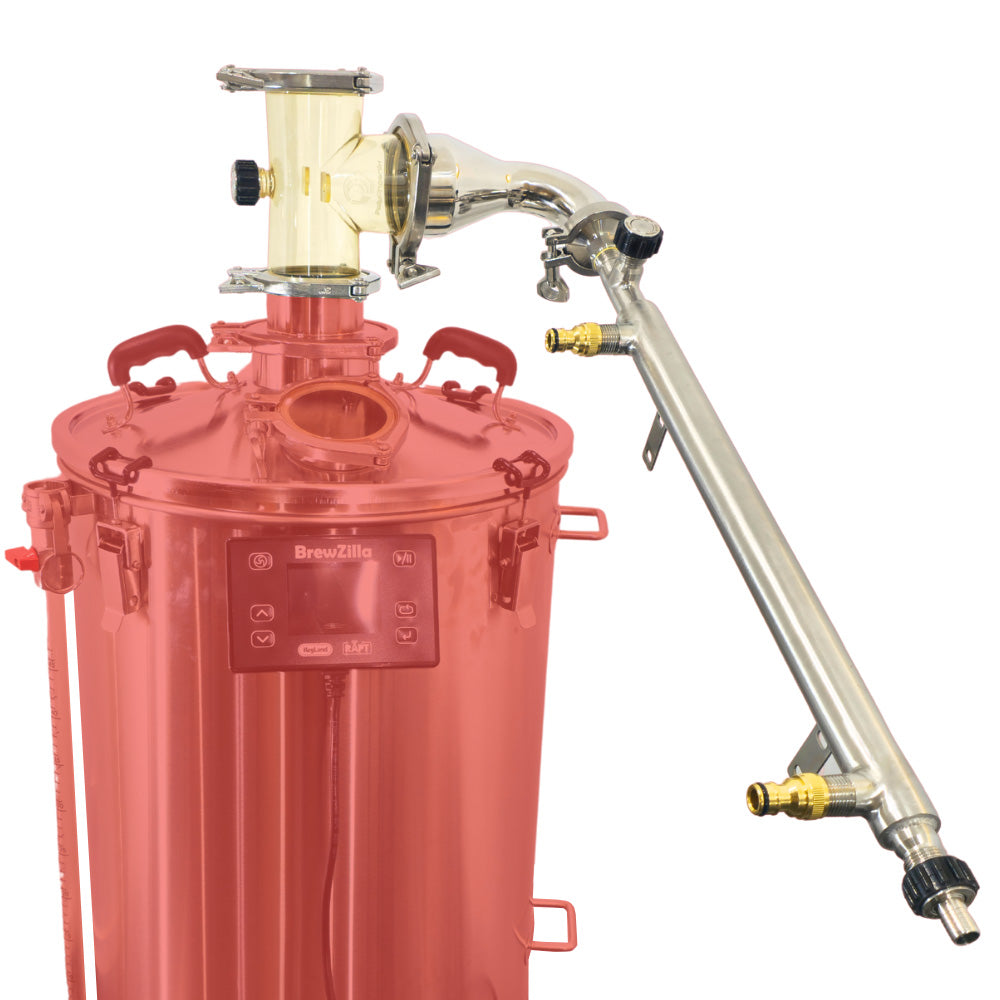

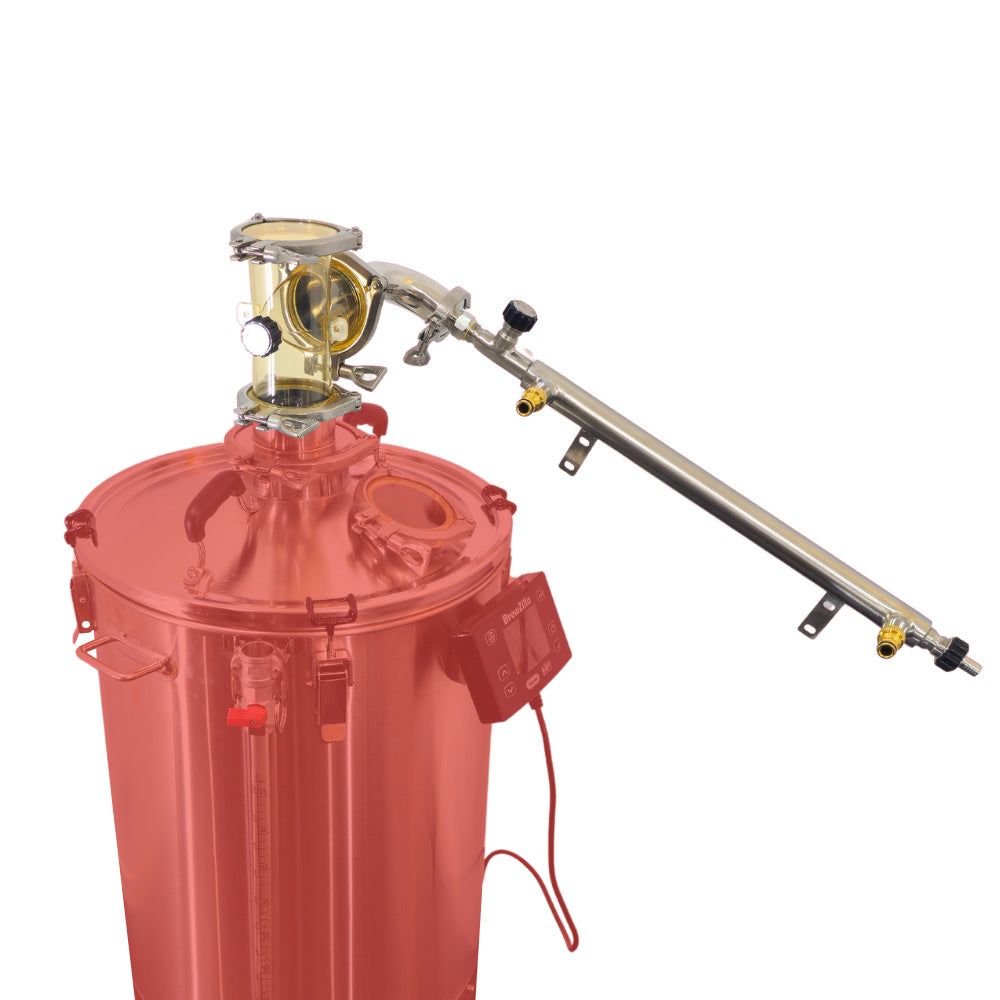

This kit uses a PolyPhoenix Tee as the basic head for your pot still. You'll have a wider view of what's happening in your still!

The purpose of a short pot still is to reduce any chance of a reflux ratio. You just want to rip it and strip it. Gather as much low wines from your wash as possible then perform a final spirit run on a bubbler plate still if you're distilling a Whiskey, Rum or Brandy (WRB). Or if you're making neutral alcohol (Vodka) for drinking or Gins / Adding flavour afterwards, then you would use a Reflux Tower Still.


Liebig Condenser Dimensions:
Overall length including 1/2" NPT Fittings = 500mm
Outer tubing OD: 32mm
Inner tubing OD: 22mm
Fittings: 1/2" NPT

Capabilities:
Wattage Limit: 4000 watts
With 20°C coolant water at rate of 3.5L per minute exiting the condenser.
The colder the water, the higher the wattage rating.

This Kit Includes:
KL37976    PolyPhoenix - Straight Liebig / Shotgun Condenser
KL36962    PolyPhoenix - Tee Piece - PPSU 3 Inch TC
KL31547    KegLand Quick Swivel Connector 1/2' Nut With Silicone Grip Only
KL31646    Stainless Steel End Cap Only (18mm) for KegLand Quick Swivel Connector 1/2'
KL31585    13mm (1/2') Straight Barb Only for KegLand Quick Swivel Connector 1/2'
KL25799    3 Inch TC Clamp - 3 Segments
KL25805    3 Inch TC Beaded Seal - Silicone
KL22071    3 Inch TC PPSU Sight Glass / End Plate
KL29469    3 Inch TC to 1.5 Inch TC Reducing Elbow
KL01878    1.5 Inch TC Clamp - 2 Segments
KL01861    1.5 Inch TC Beaded Seal - Silicone
KL25362    1.5 Inch TC with 1/2 Female Thread (BSP)
KL09461    Garden Hose Male Quick Connect Coupling 1/2 inch Female

Please note: If you want to set it up differently, simply add the items from the list above, and not add the parts you don't want. It is not cheaper by being in a kit, it is simply a grouped bundle of products used to make what is in the product photo.

Assembly required...
