Home distillation has gained popularity among enthusiasts and hobbyists for its potential to produce high-quality spirits, such as vodka and gin. One standout tool for this purpose is the Alcoengine reflux still, renowned for its efficiency, reliability, and user-friendliness. If you’re ready to venture into the world of home distillation, understanding how to properly set up and operate a reflux still is essential. In this guide, we will walk you through the process, including setup, operation, and tips for achieving optimal results.
What is a Reflux Still?
A reflux still is a type of distillation apparatus designed to separate liquids based on their boiling points. It operates by allowing vapor to rise through packing material where it cools and condenses back into a liquid. This cycle ensures that only the higher purity liquid (the desired spirit) is collected, making it especially effective for producing neutral spirits. Unlike other still designs, reflux stills usually require minimal adjustments to water flow, making them ideal for both beginners and experienced distillers alike.
Benefits of Using an Alcoengine Reflux Still
Ease of Use:
The Alcoengine design ensures you can set it up quickly and begin distilling with little hassle. Once it’s running, you can monitor temperatures and collection without needing constant adjustments.
High Purity Spirits
This still allows for excellent purification, producing neutral spirits that can be used in various recipes.
Versatility
You can create vodka, gin, whiskey, and even flavored liqueurs using this apparatus.
Setting Up Your Alcoengine Reflux Still
Components of the Still

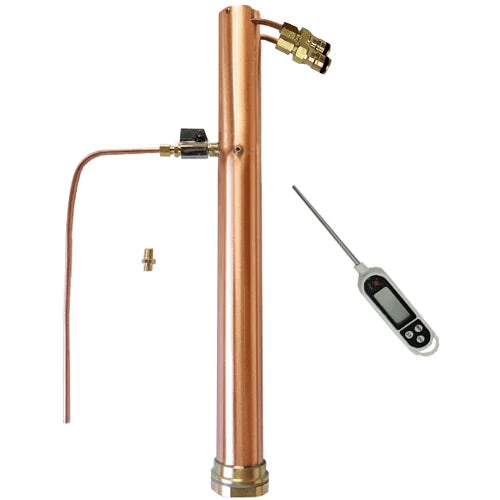

When you unbox your Alcoengine reflux still, you will typically find:
- Main still body: Crafted from high-quality copper for efficient heat retention.
- Thermometer: A probe thermometer to monitor temperature accurately.
- Copper collection tube: Essential for catching the distilled spirits.
- Flow restrictors: Includes different size holes (1mm and 0.6mm) for controlling flow rates and purity.
- Ball valve: For controlling the outflow of your distilled liquid.
Assembly Steps
1. Join the Ball Valve: Begin by attaching the ball valve to the still. Use Teflon tape to ensure a proper seal without overtightening since there’s no significant pressure buildup.
2. Insert the Flow Restrictor: Choose your flow restrictor based on your desired speed and purity. For a quick stripping run, use the 1mm insert; for a more refined spirit, use the 0.6mm insert. Ensure the breather hole on the insert is oriented vertically to facilitate proper function.
3. Connect the Collection Tube: Attach the copper collection tube to the still for catching the distilled product. Bend the copper tubing as necessary to match your collection vessel’s position.
4. Attach Cooling Hoses: Finally, connect your cooling water hoses. The direction of water entry and exit is not critical, but ensure you have continuous cooling running while distilling.
Understanding the Distillation Process
The Reflux Process
The reflux process is vital for obtaining high-purity alcohol. Here’s how it works:
1. Heating the Wash: Begin with your wash (a fermented mixture of sugar, water, and yeast) inside the boiler. Perform a preliminary clean-up of the wash to remove yeast and sediment for better quality spirits.
2. Circulating Cooling Water: As you heat the wash, start the cooling water flow through the still. This keeps vapors from escaping and enables a controlled cooling process.
3. Collecting Distillate: Once the temperature stabilizes around 77 to 80 degrees Celsius (170 to 176 degrees Fahrenheit), you can begin collecting spirit. Monitor the thermometer for changes—this indicates where to cut off the collection.
Key Temperature Notes
- The distillation starts at lower temperatures, gradually increasing as the distillate is collected.
- Discard the first 50ml of liquid you collect to remove any potential methanol or impurities that may be harmful.
- It’s not specific temperatures that dictate the quality—watch for temperature changes indicating when to stop the process.
Tips for Successful Distillation
- Cleaning is Crucial: Always clarify your wash to remove any excessive yeast or sediment. This prevents sulfides from contaminating your spirits.
- Use a Distilling Conditioner: A few drops of distilling conditioner can help prevent foaming during the boil.
- Monitor Water Temperature: Ensure your cooling water does not exceed 38 degrees Celsius (100 degrees Fahrenheit) to maintain efficiency and prevent loss of vapor.
- Maintain Reflux Ratios: The reflux ratio determines how much vapor returns to the packing for further purification. Adjust your outflow based on your desired purity.
Conclusion
The Alcoengine reflux still is an excellent tool for both novice and experienced distillers alike. By following the setup and process explained in this guide, you can create high-quality neutral spirits at home. From vodka to flavored liqueurs, the versatility of these stills can lead to remarkable homebrewing experiences. With practice and attention to detail, you'll master the art of distillation in no time.
Ready to dive into home distilling? Gather your materials, set up your Alcoengine reflux still, and start your journey towards crafting your very own spirits today!
