Two Door Grand Deluxe 3 Kegerator Builder
Description
Our Grand Deluxe 3 models are made and built tough for a commercial environment for your use in the man cave or small bar / cafe.

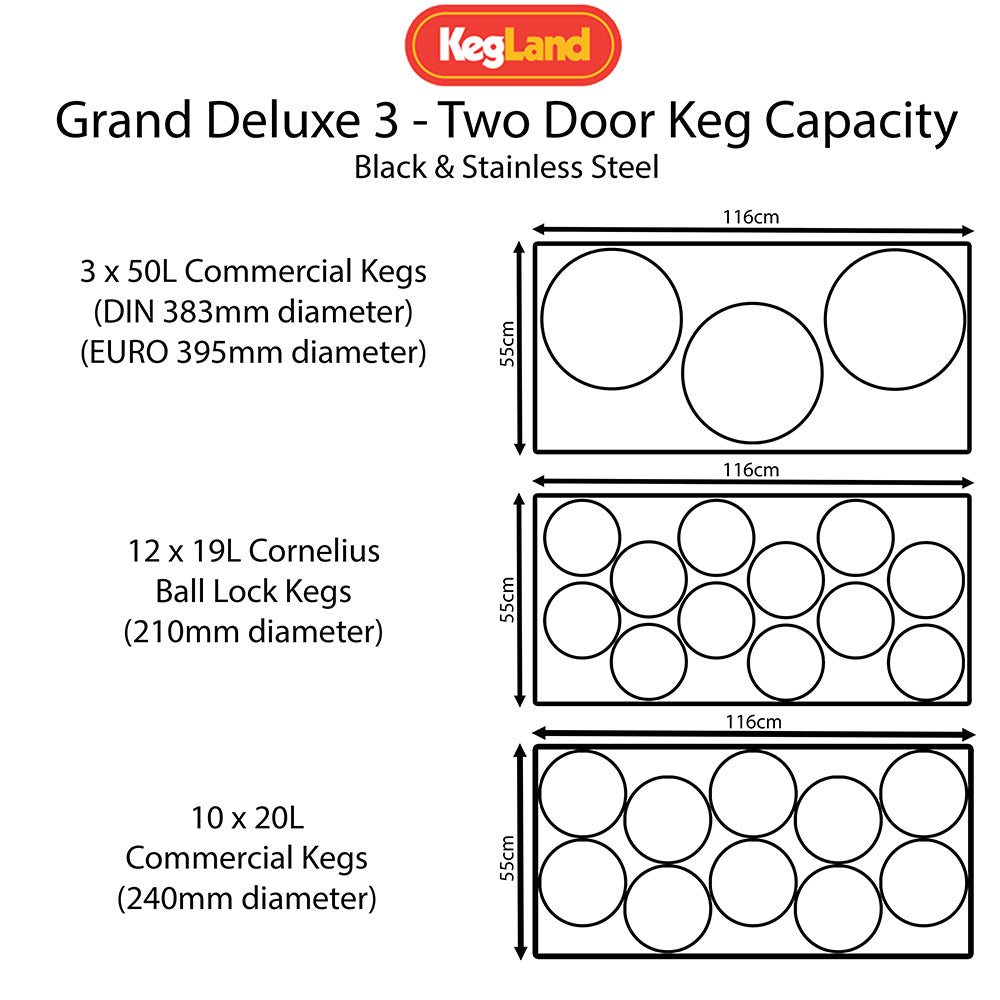

This two door model can fit a large combination of kegs.
12 x 19L Cornelius Ball Lock Kegs
OR
3 x 50L DIN type Kegs or a mix and match of both to your liking.
This kit does not come with connectors. Please see below of the three most common types based on your needs.
If you are a homebrewer:
If you are looking to set this up as a Ball Lock Disconnect Home Brew setup.
You will need:
One Gas Ball Lock Disconnect
KL20756 duotight 8mm (5/16) x Ball Lock Disconnect - (Grey + Red Gas)
and One Liquid Ball Lock Disconnect we would recommend
KL20749 duotight 8mm (5/16) x Ball Lock Disconnect - (Black + Yellow Liquid) per keg in your chosen tap configuration.
If you buy commercial kegs only.
If you are just looking to hook up premade beer/cocktail kegs from a brewery. Then you will need the appropriate keg coupler to suit. Check first with your keg supplier what coupler type is needed.
Most commonly there are A-Type Couplers and D-Type Couplers. Rarely S-Type.
You will need one of those per keg in your set up.
KL08815 A-Type Keg Coupler
KL08822 D-Type Keg Coupler
KL08839 S-Type Keg Coupler
If you want the ability to dispense Homebrew Kegs and Commercial Kegs.
If you would like the freedom of both Commercial and Homebrew kegs, you could use the ball lock disconnects on the commercial keg couplers with the specified adaptors.
One Gas Ball Lock Disconnect
KL20756 duotight 8mm (5/16) x Ball Lock Disconnect - (Grey + Red Gas)
and One Liquid Ball Lock Disconnect
KL20749 duotight 8mm (5/16) x Ball Lock Disconnect - (Black + Yellow Liquid) per keg in your chosen system.
As well as a combination of the below couplers for commercial kegs.
KB10825 Ball Lock A-Type Coupler
KB10849 Ball Lock D-Type Coupler
KB10873 Ball Lock S-Type Coupler
Recent Grand Deluxe 3 Upgrades:
- Embraco Compressor - EM2X3117U
- 220V
Features:
- 304 Stainless Steel Countertops with thick core foam to aid in temperature loss from your refrigerator.
- Black matte steel finish on the outside that has been chemically engineered with a vinyl substrate to prevent corrosion.
- Double glazed tempered safety glass with self-closing lockable doors as standard. (6 x Keys)
- Exterior LED light switch
- Inbuilt countersunk stainless drip tray system with drainage tubes fitted. One font mounting hole pre-fitted.
- 2 x Rubberised Steel wire racks for promotional bottles and cans.
- 4 x Heavy duty castor wheels (not fitted)
- Climate Class 4 Rated*
Dimensions:
External: 1495mm (L) x 705mm (W) x 910 (H) [without 100mm castor wheels]
Internal: 1160mm (L) x 550mm (D) x 780mm (H)
Breakdown of options within this kit:

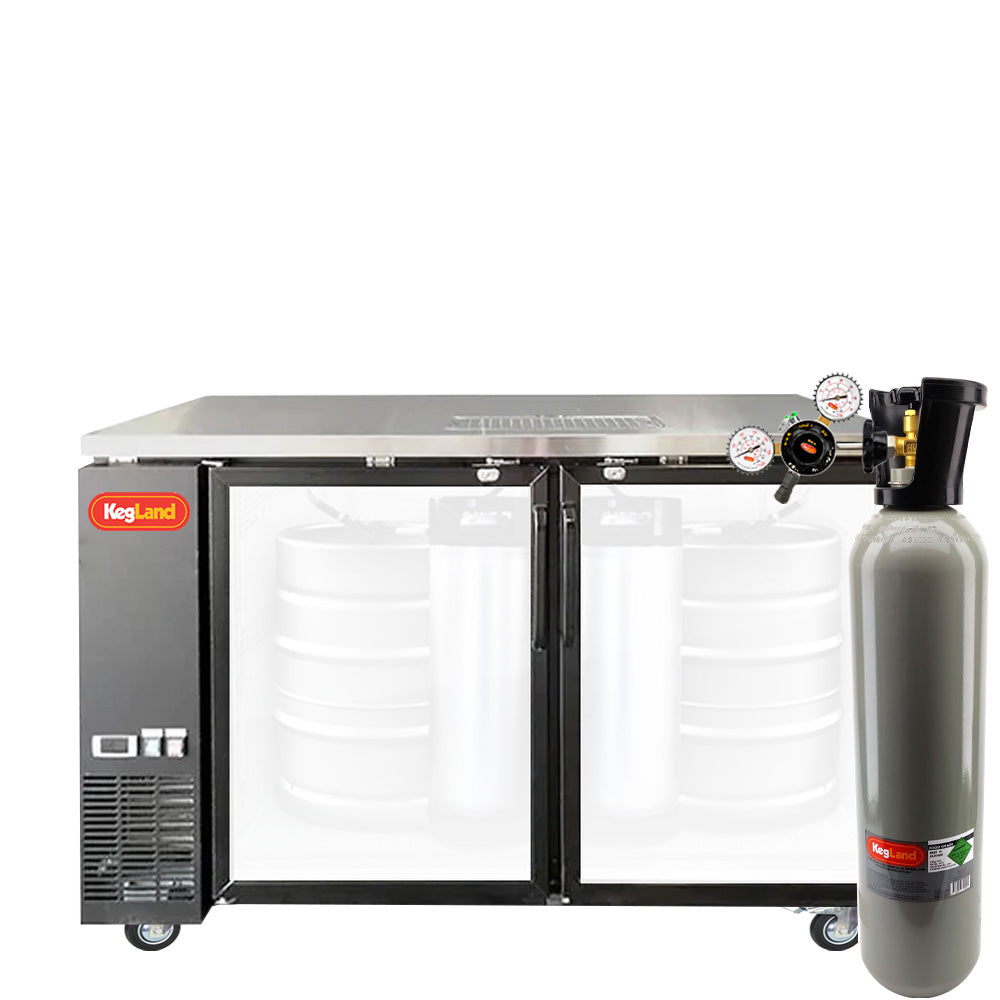

This Grand Deluxe 3 Model comes with a:
1 x KL07429 Type 30 - MK4 Regulator (6.5bar PRV & 100psi Gauge) This cannot be removed from the kit.
Option 1:
KL08877 Grand Deluxe 3 Black Two Glass Door Kegerator

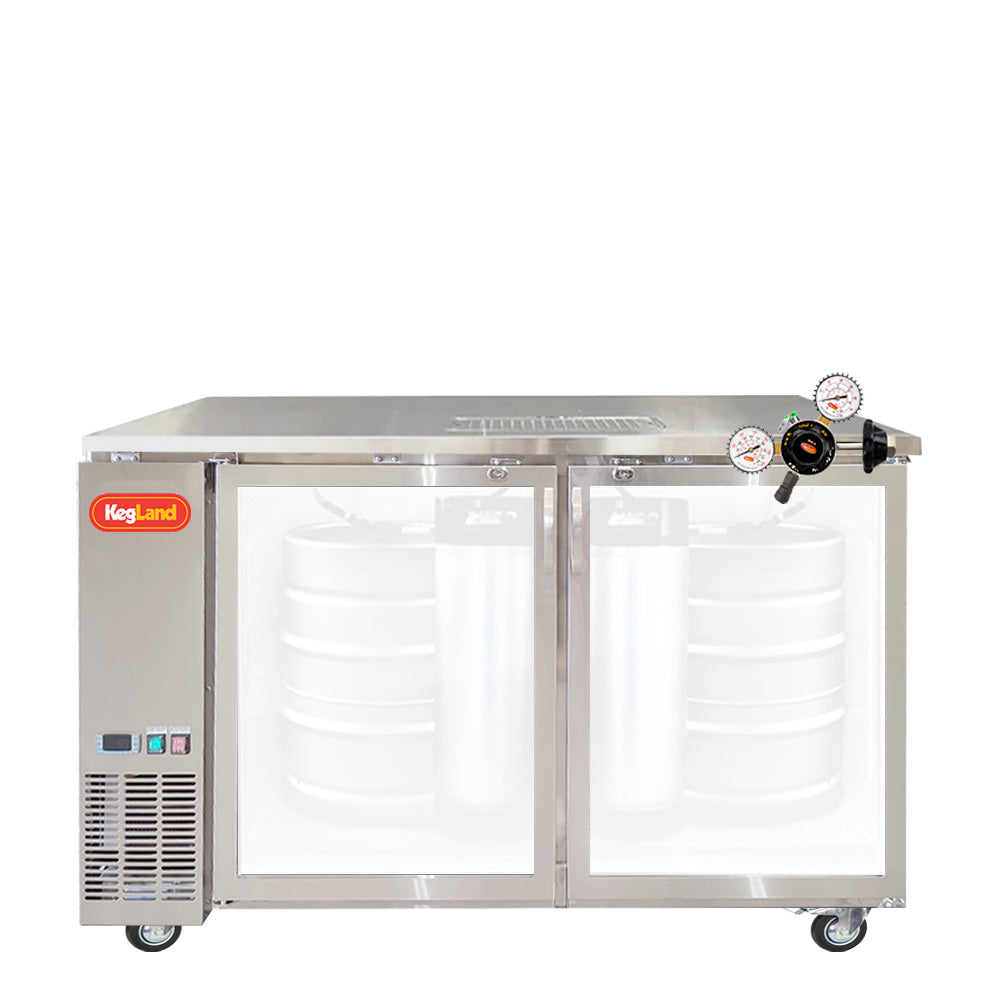

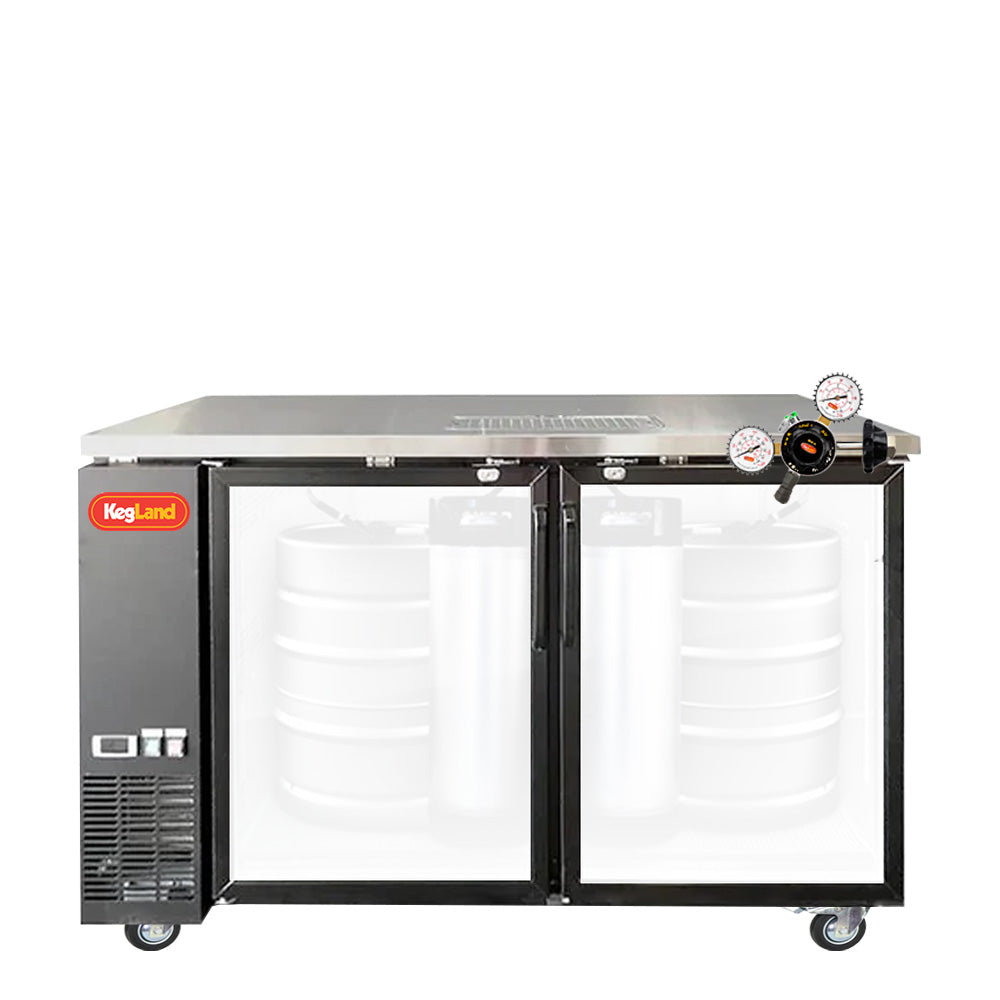

KL32605 Grand Deluxe 3 Stainless Steel - Two Glass Door Kegerator
Option 2:

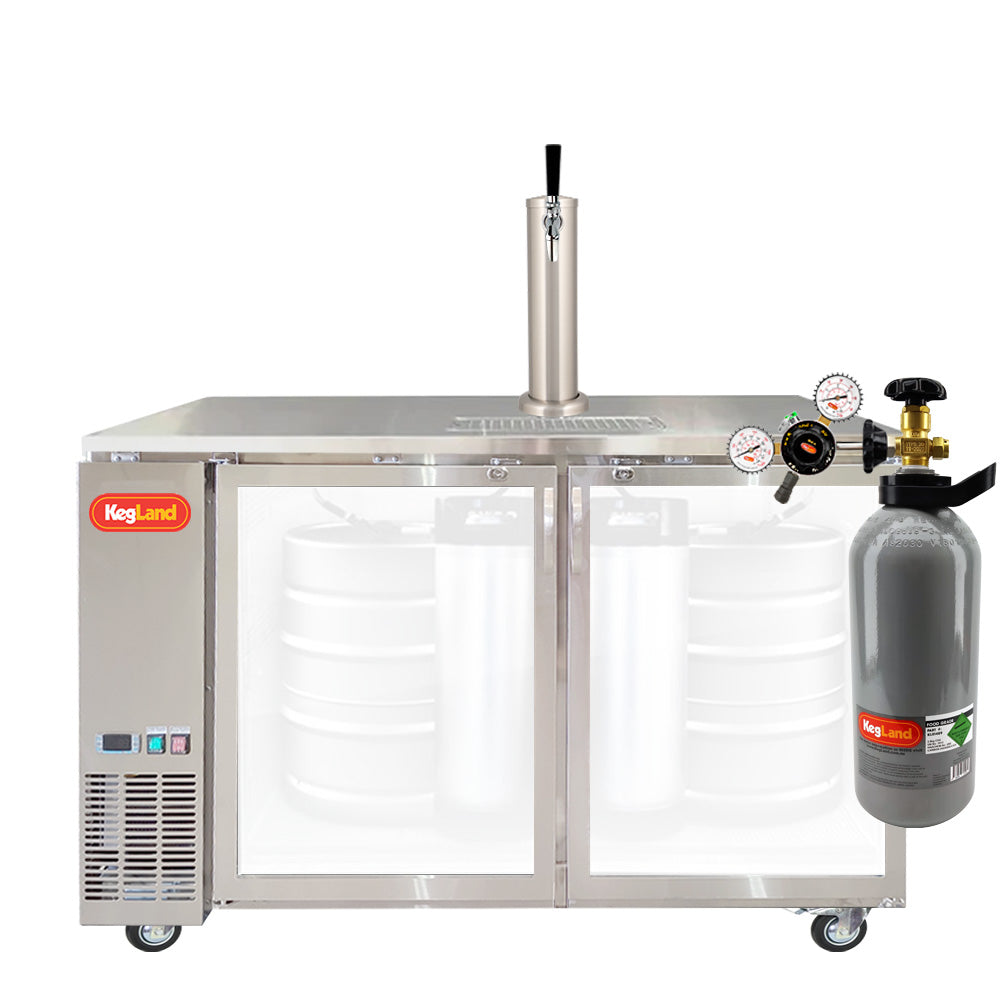

One Tap Kit Includes:

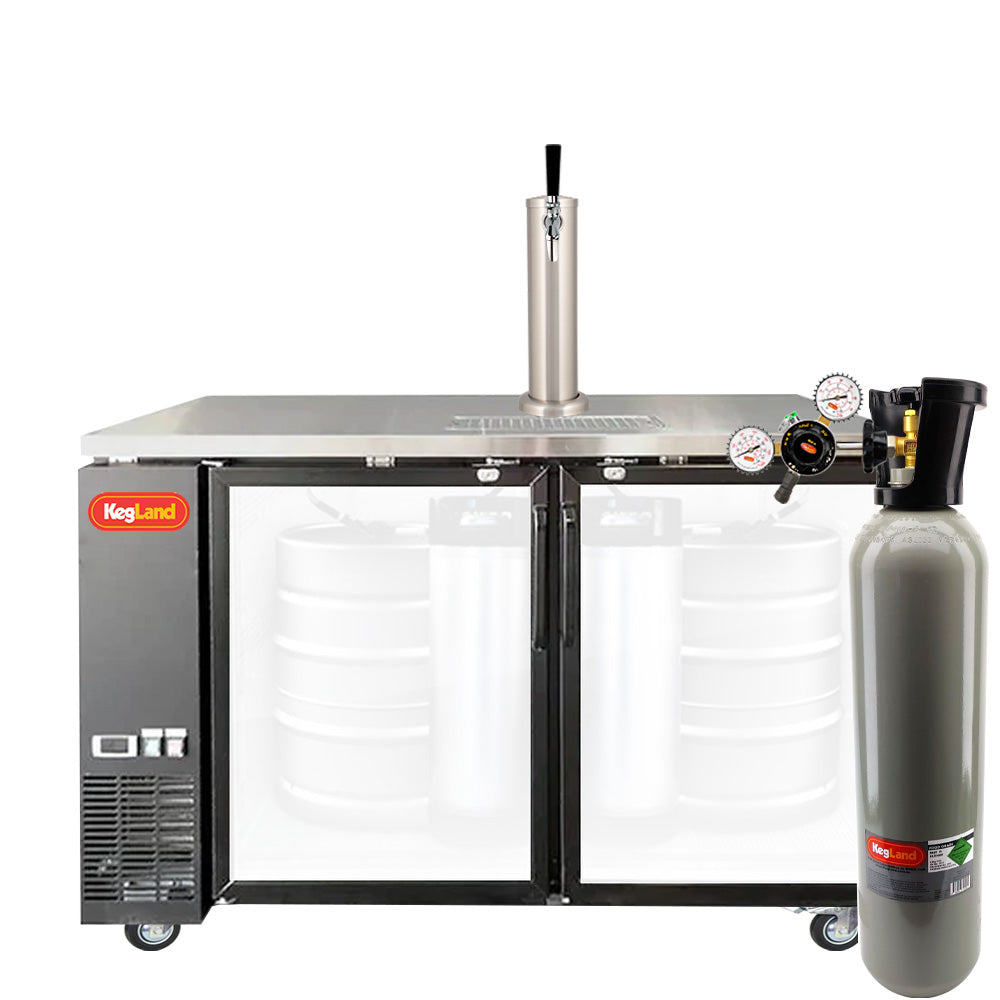

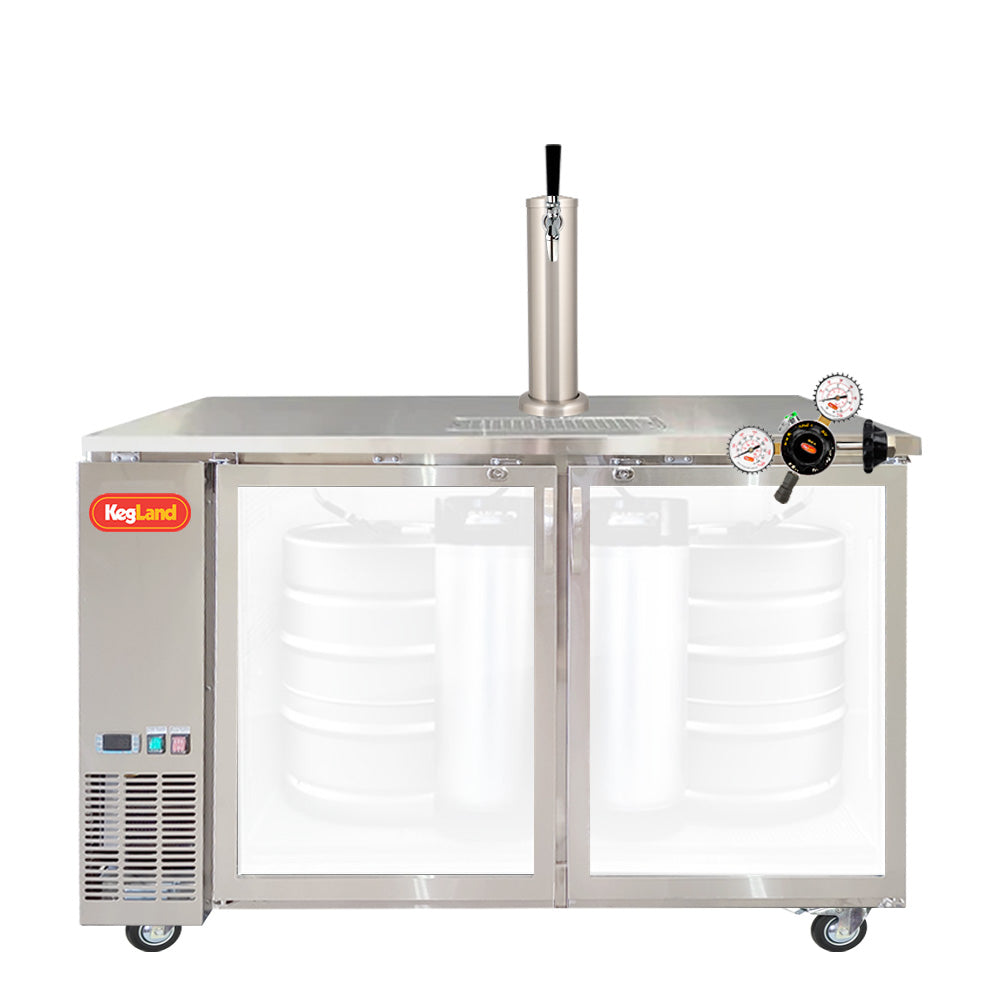

1 x KL00475 Brushed Stainless Single Tap Font Kit
1 x KL15509 NukaTap Stainless Steel Tap

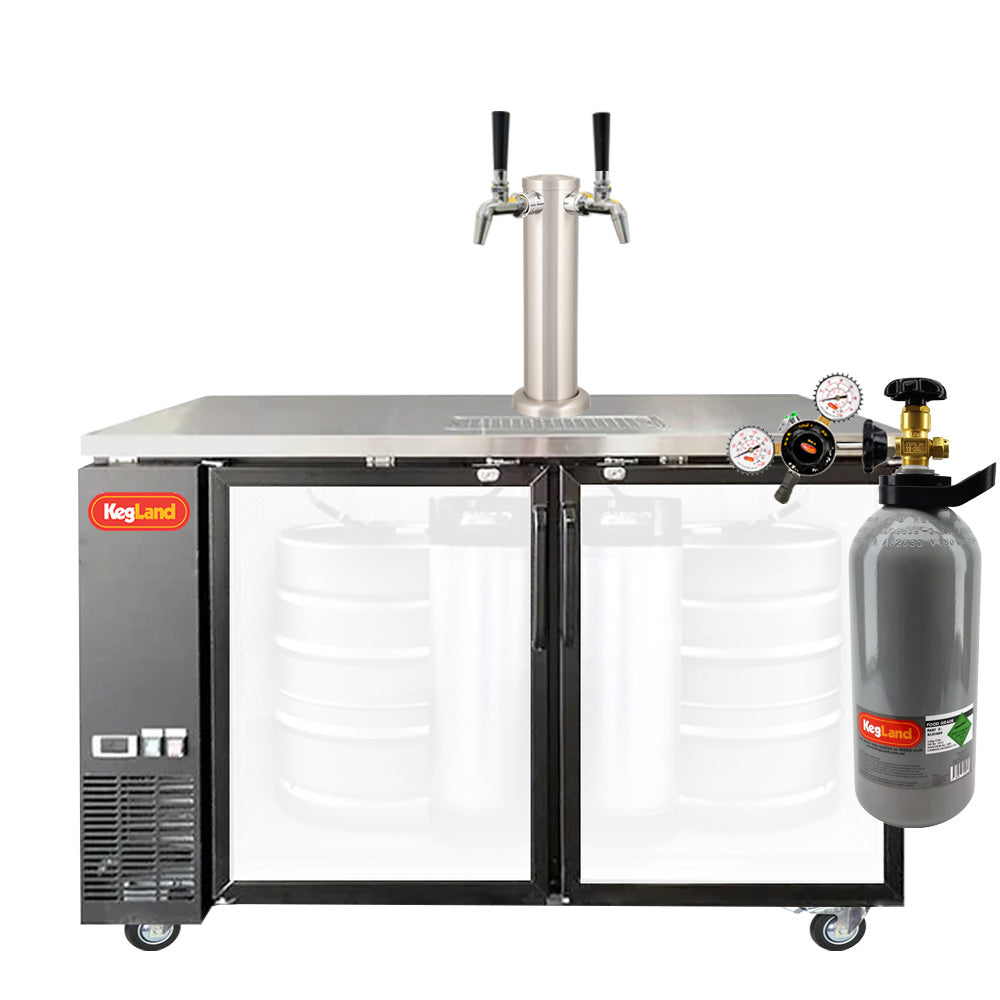

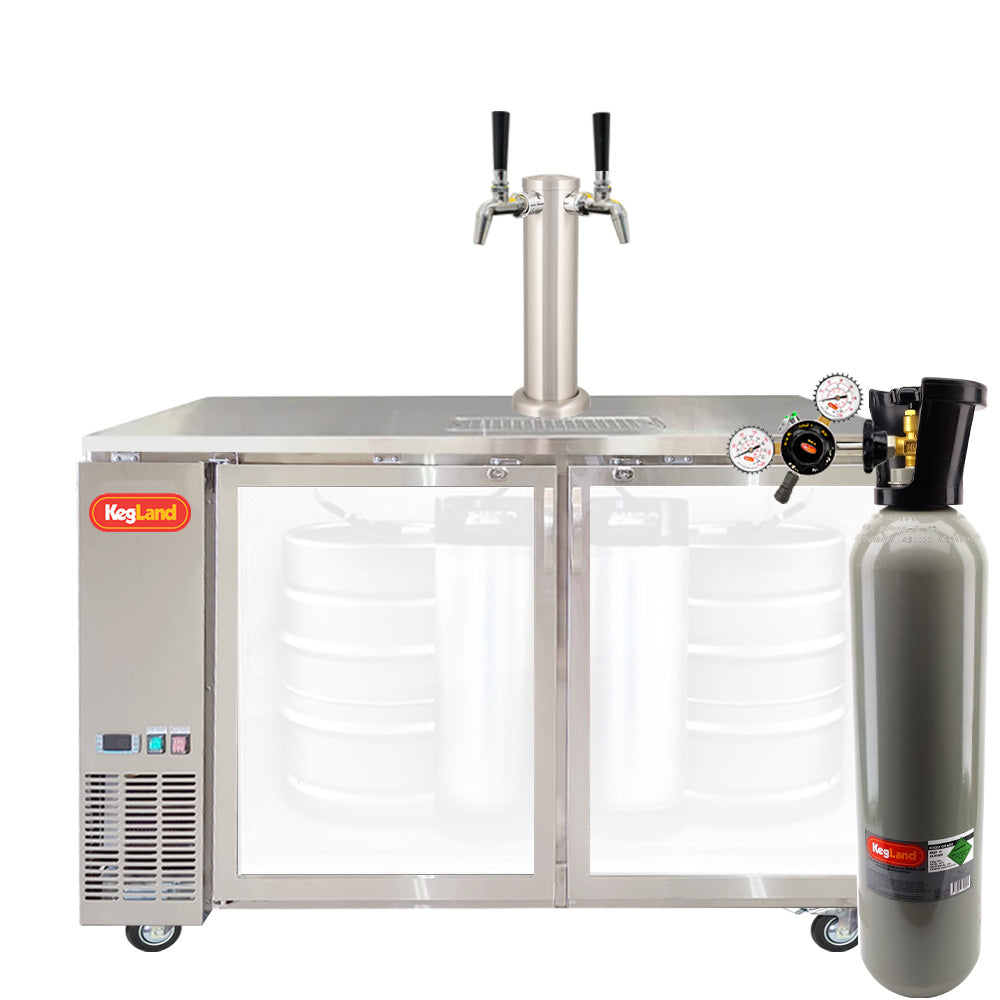

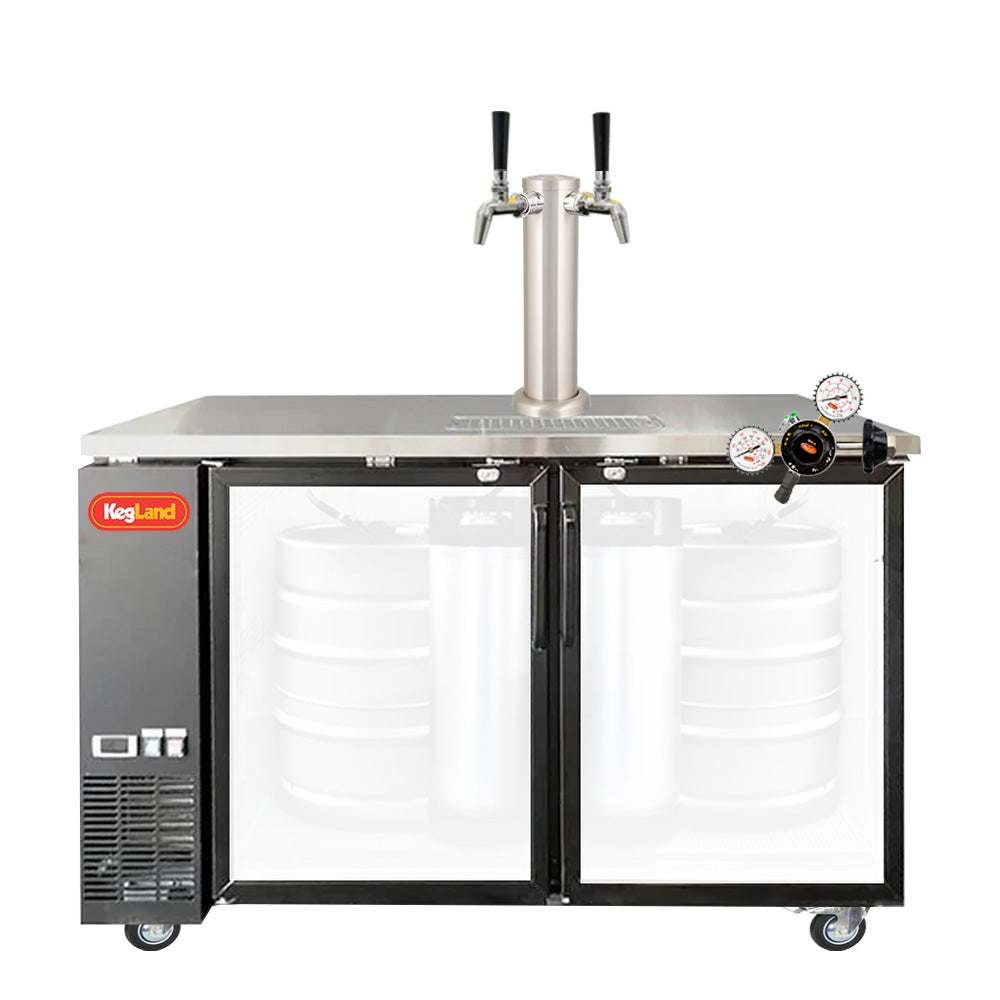

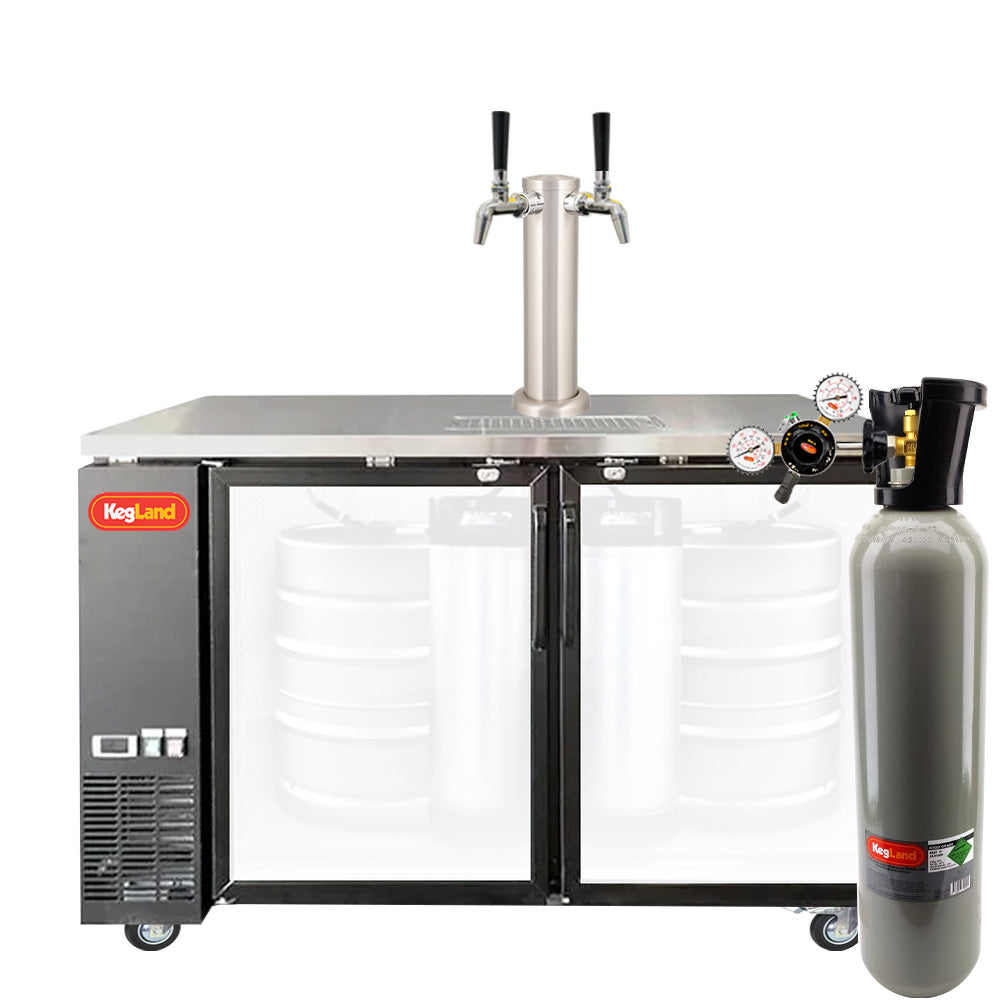

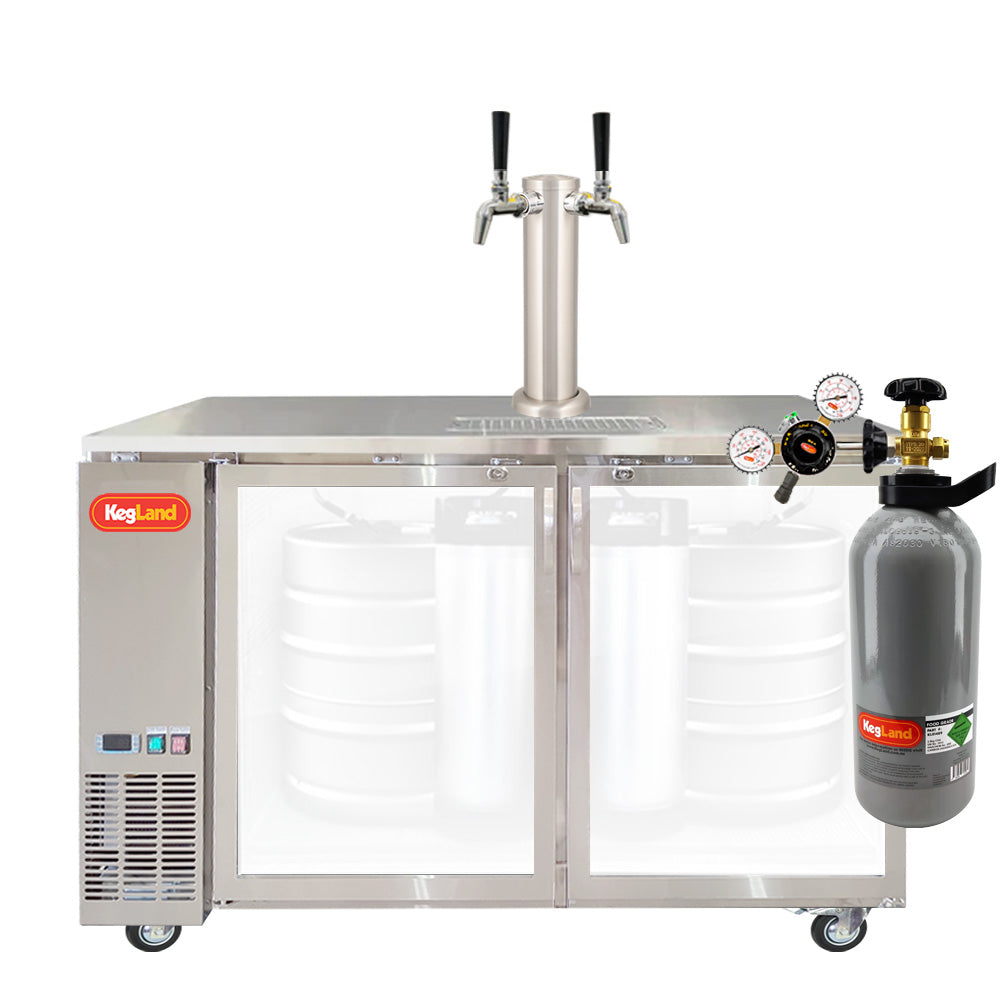

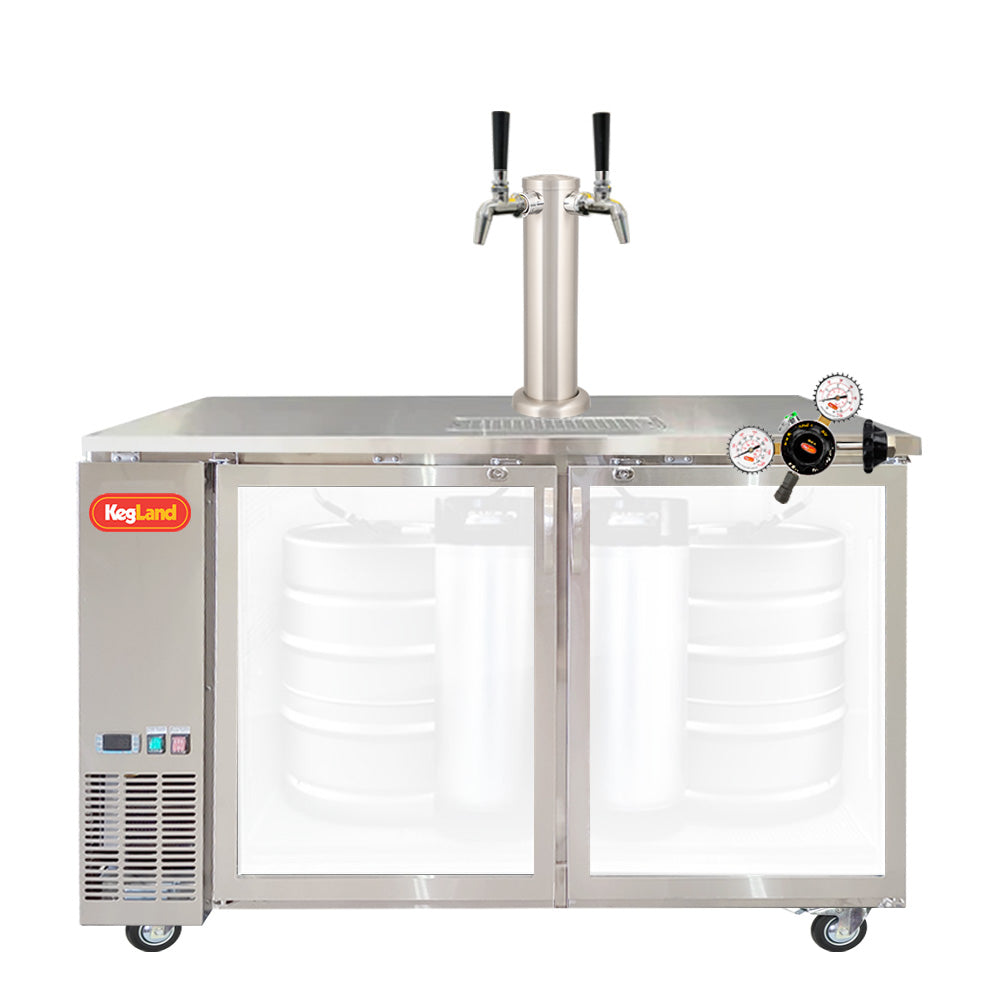

Two Tap Kit Includes:
1 x KL00482 Brushed Stainless Double Tap Font Kit
2 x KL15509 NukaTap Stainless Steel Taps

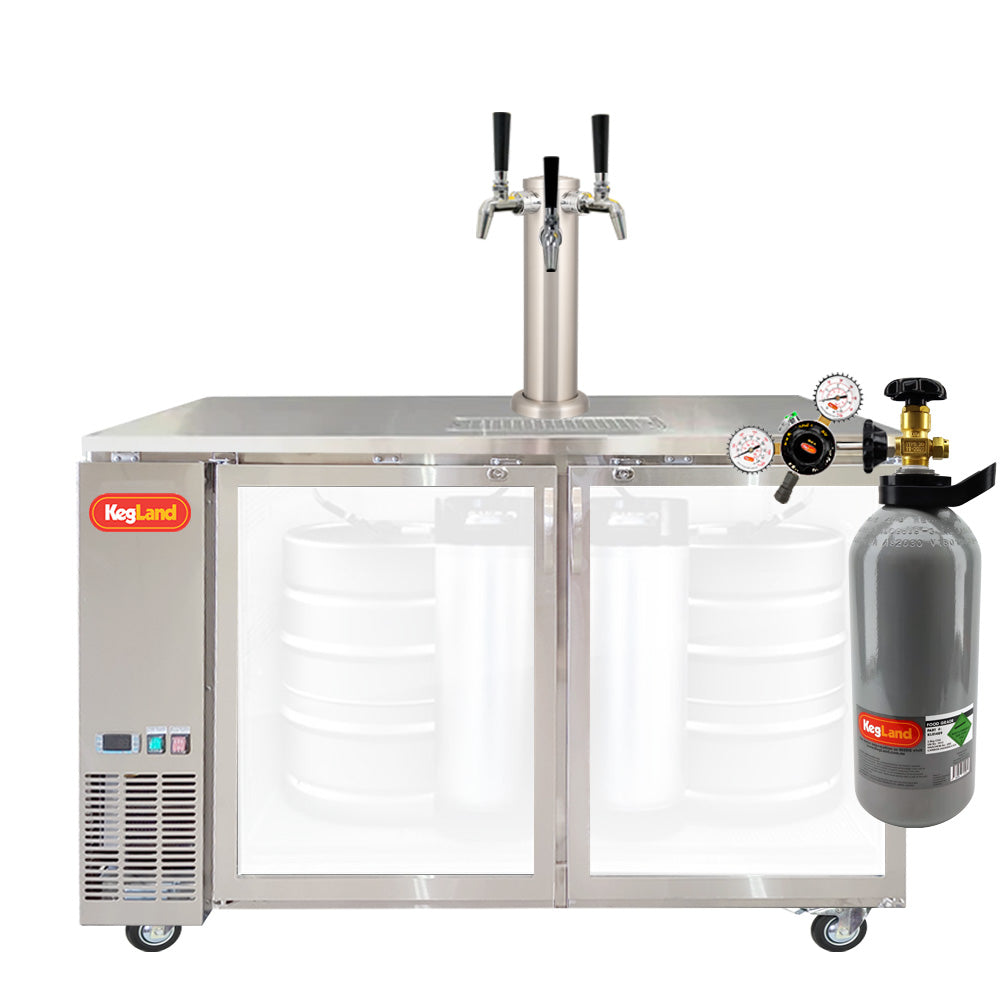

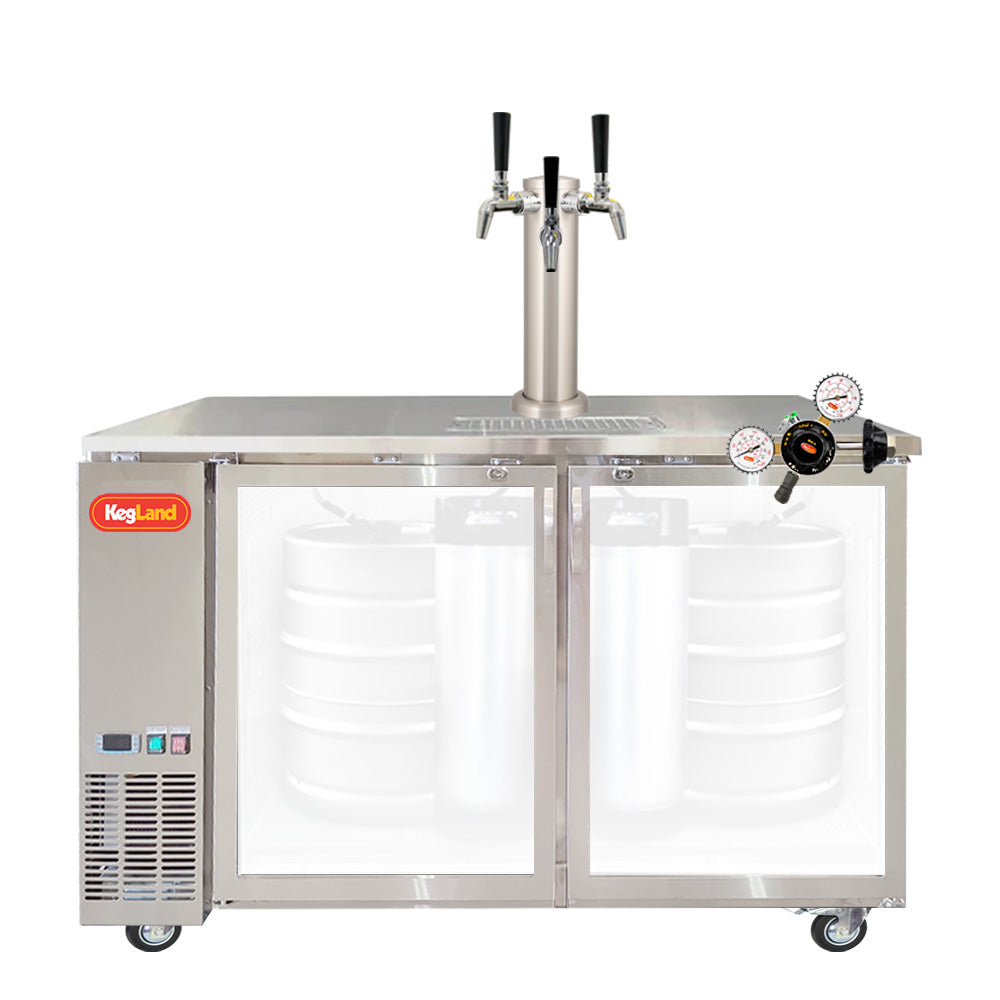

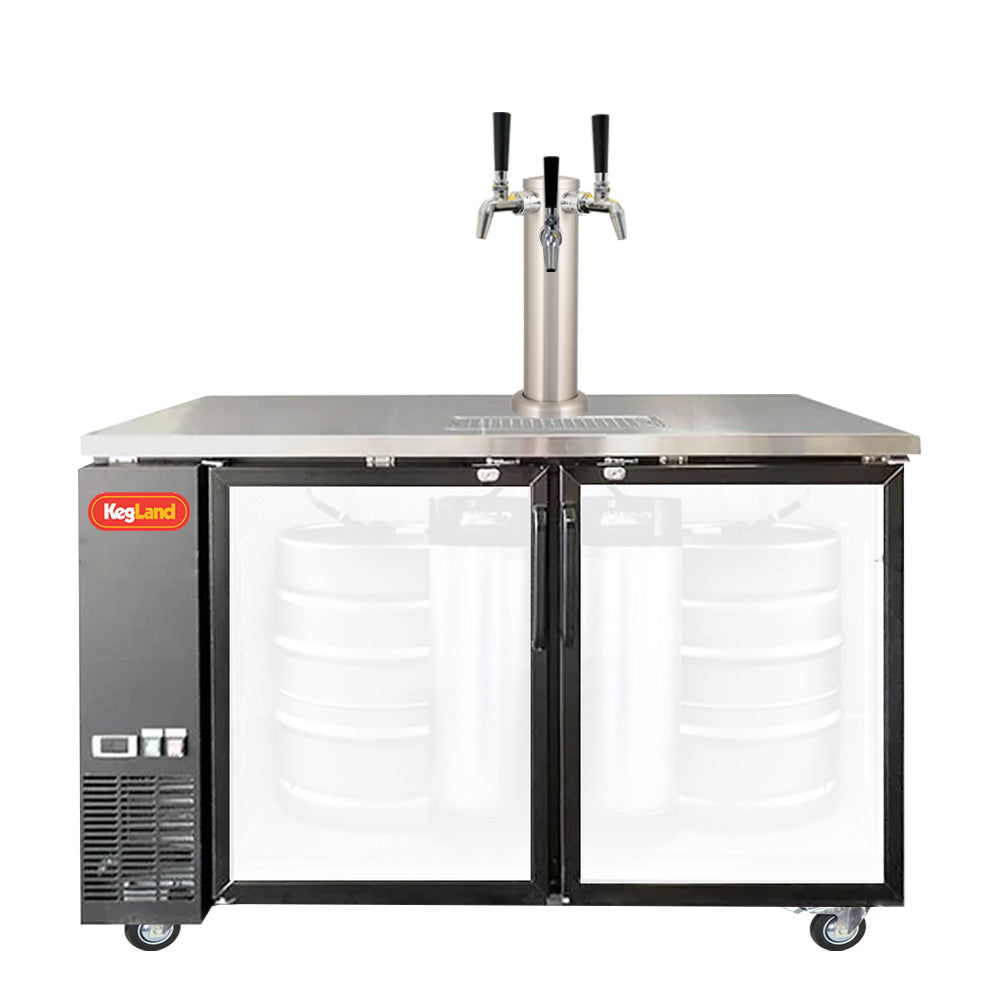

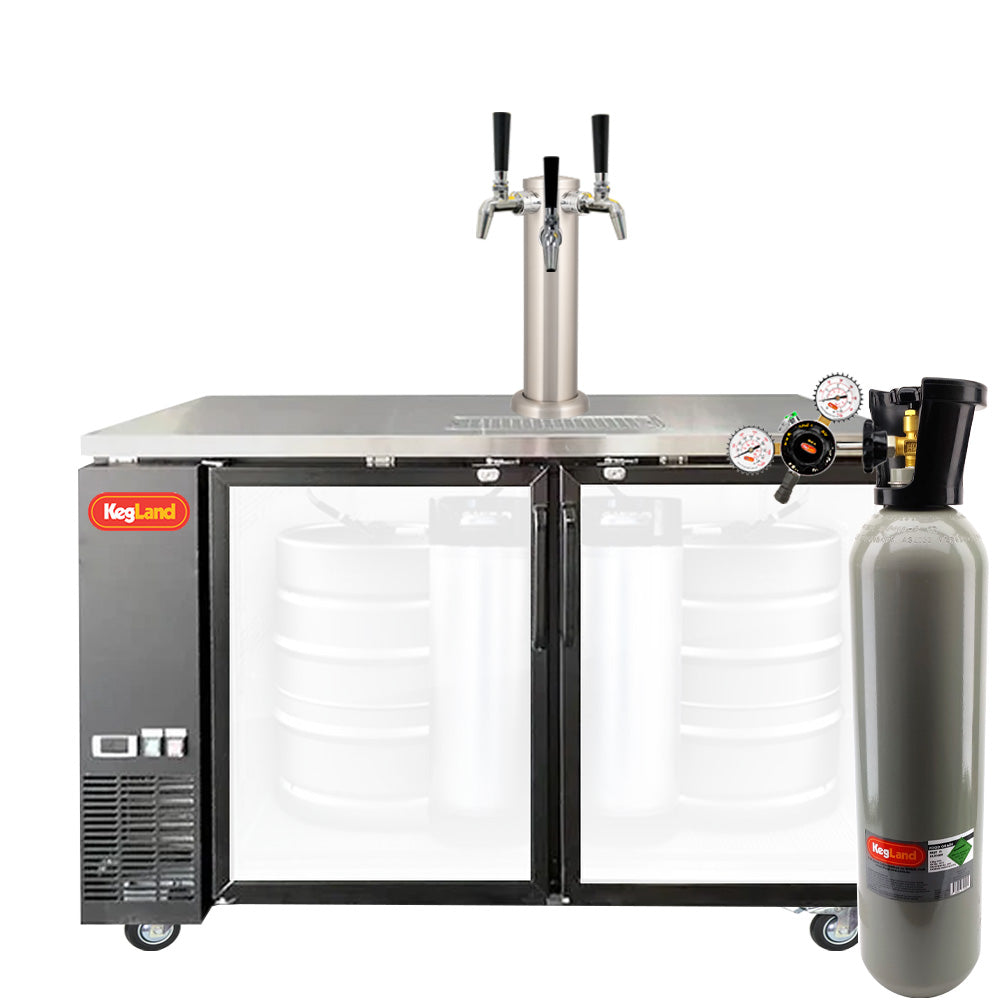

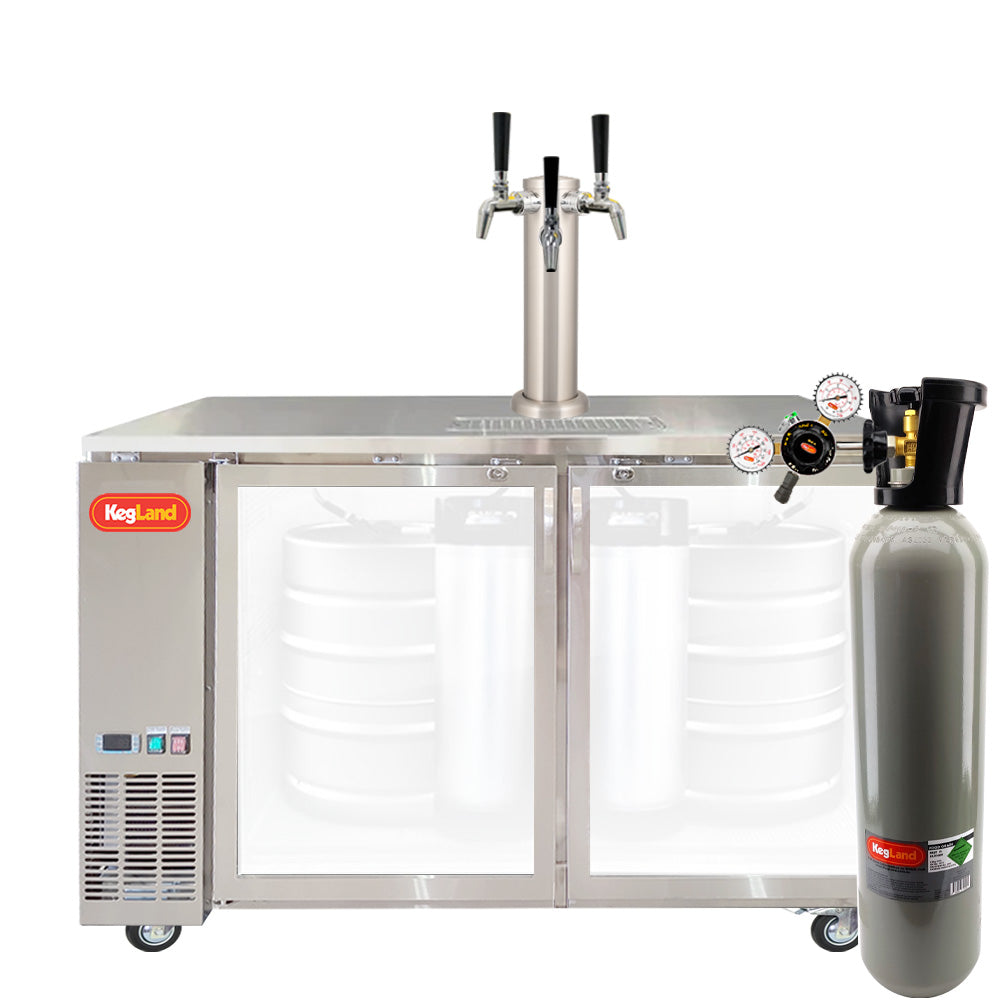

Three Tap Kit Includes:
1 x KL00499 Brushed Stainless Triple Tap Font Kit
3 x KL15509 NukaTap Stainless Steel Taps

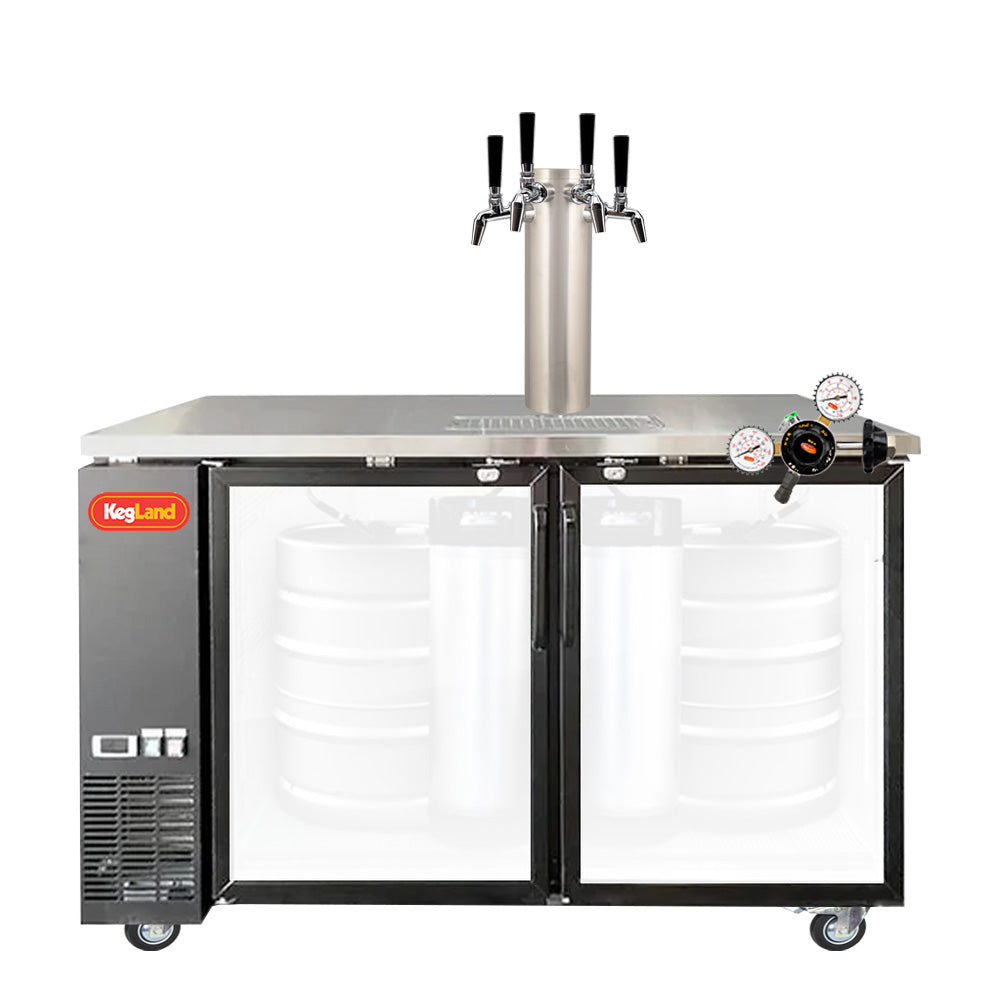

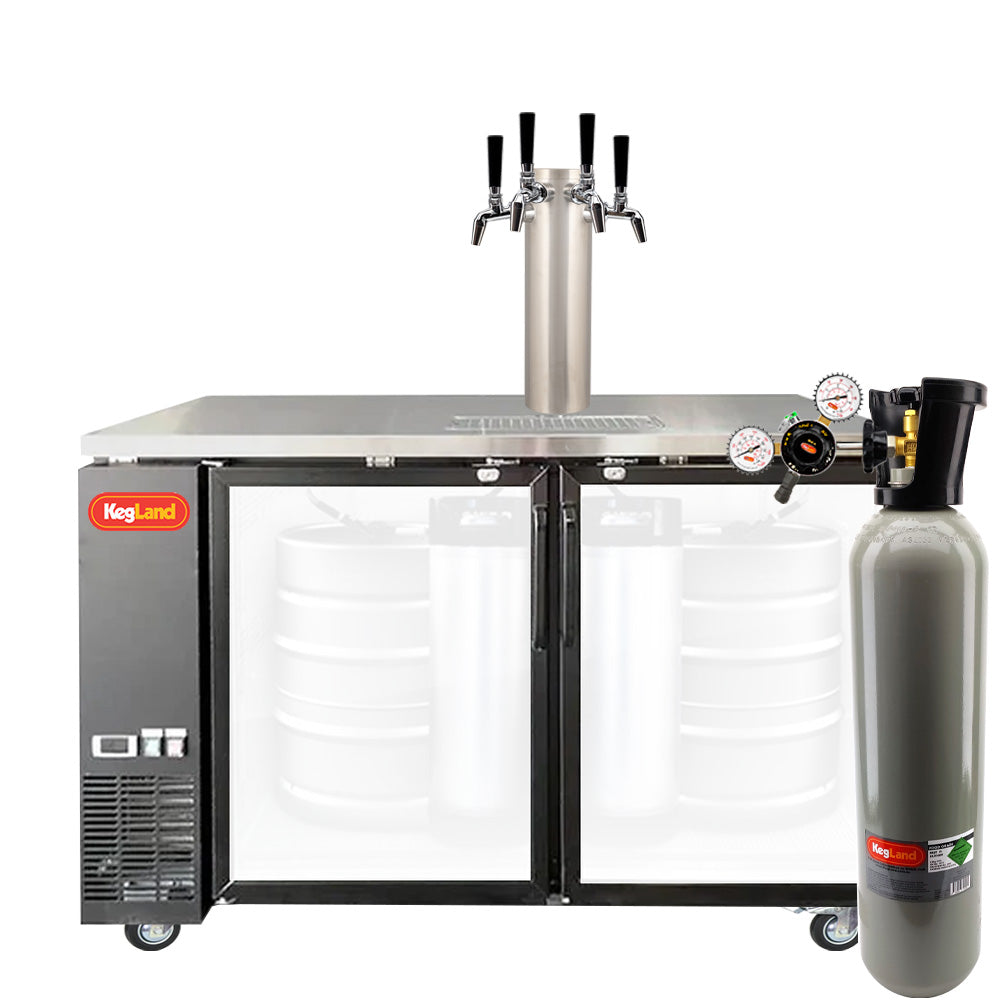

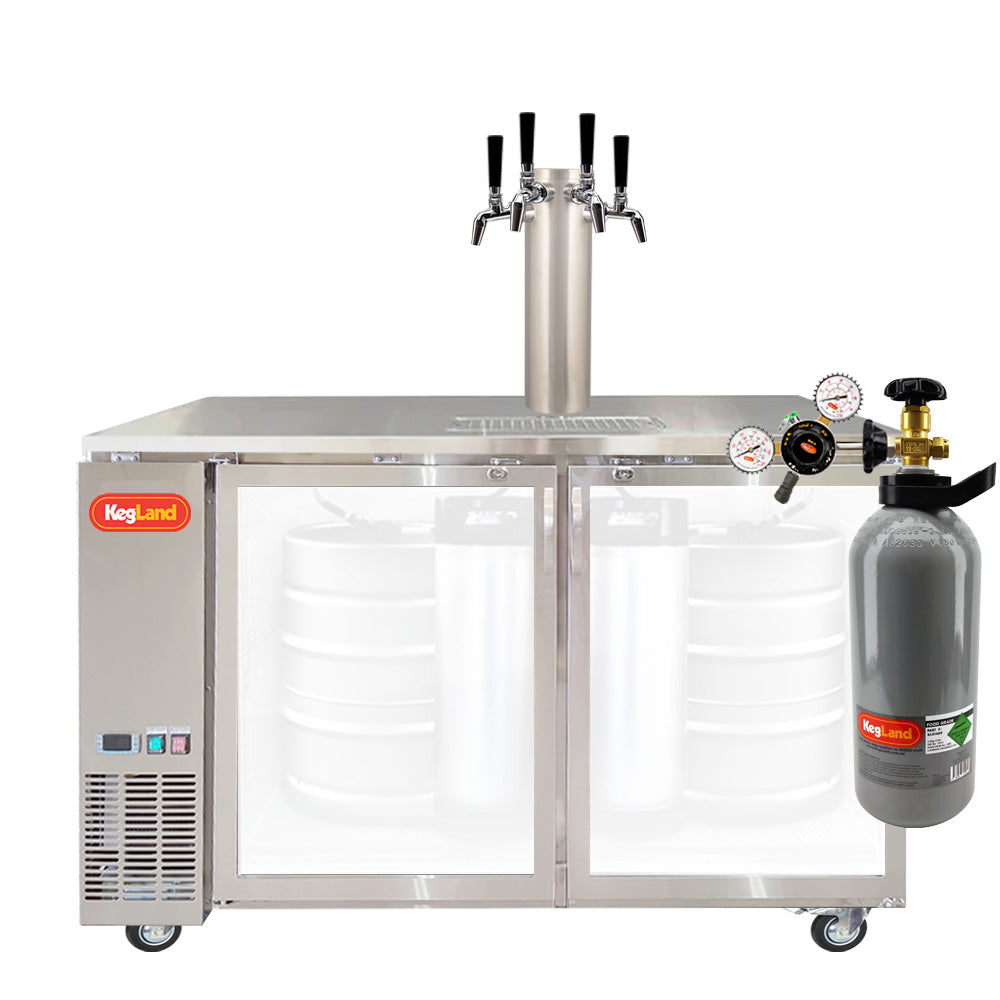

Four Tap Kit Includes:
1 x KL15745 Brushed Stainless Quadruple Tap Font Kit
4 x KL15509 NukaTap Stainless Steel Taps

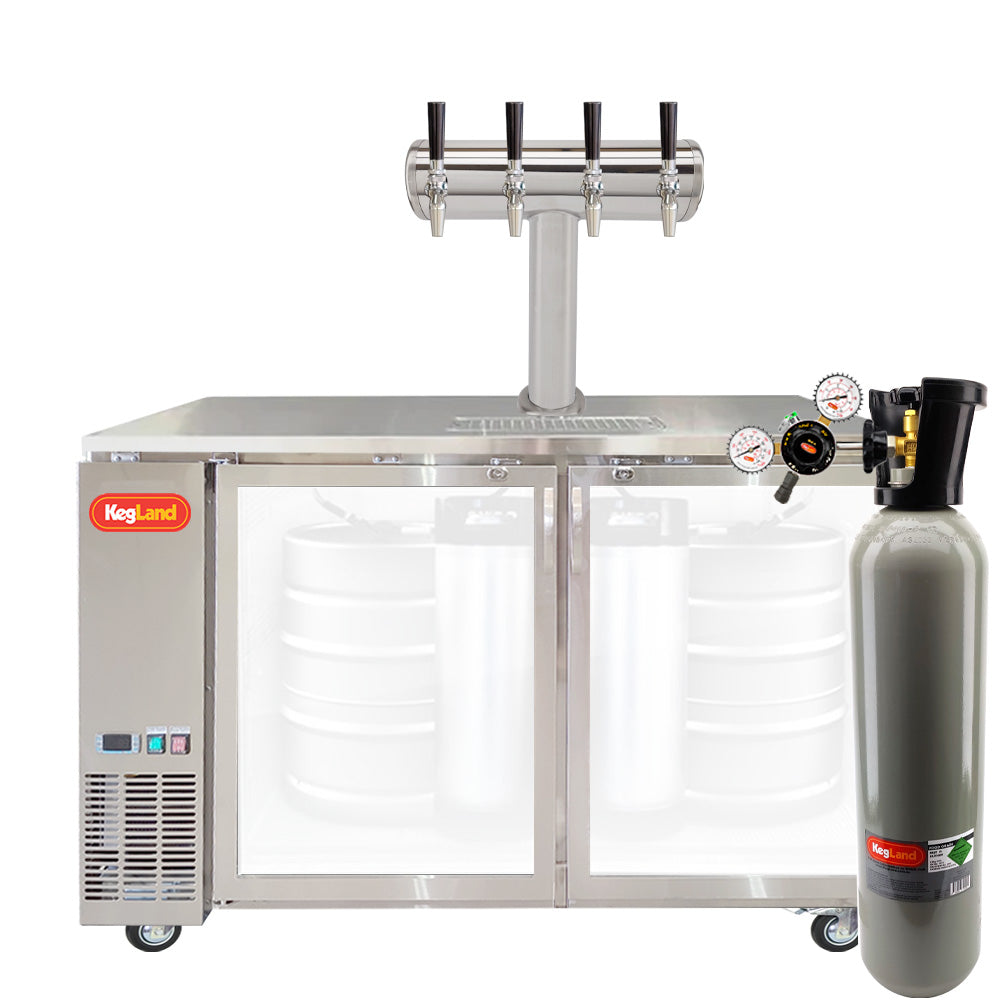

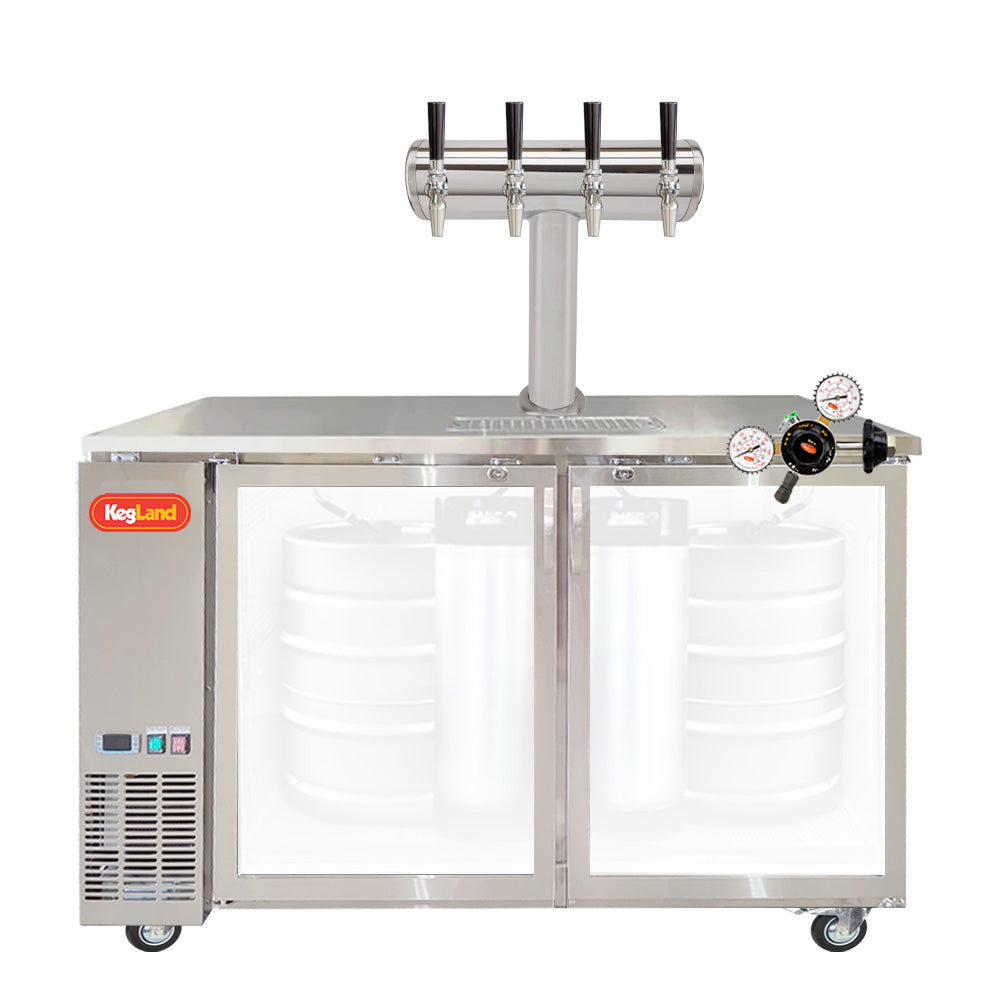

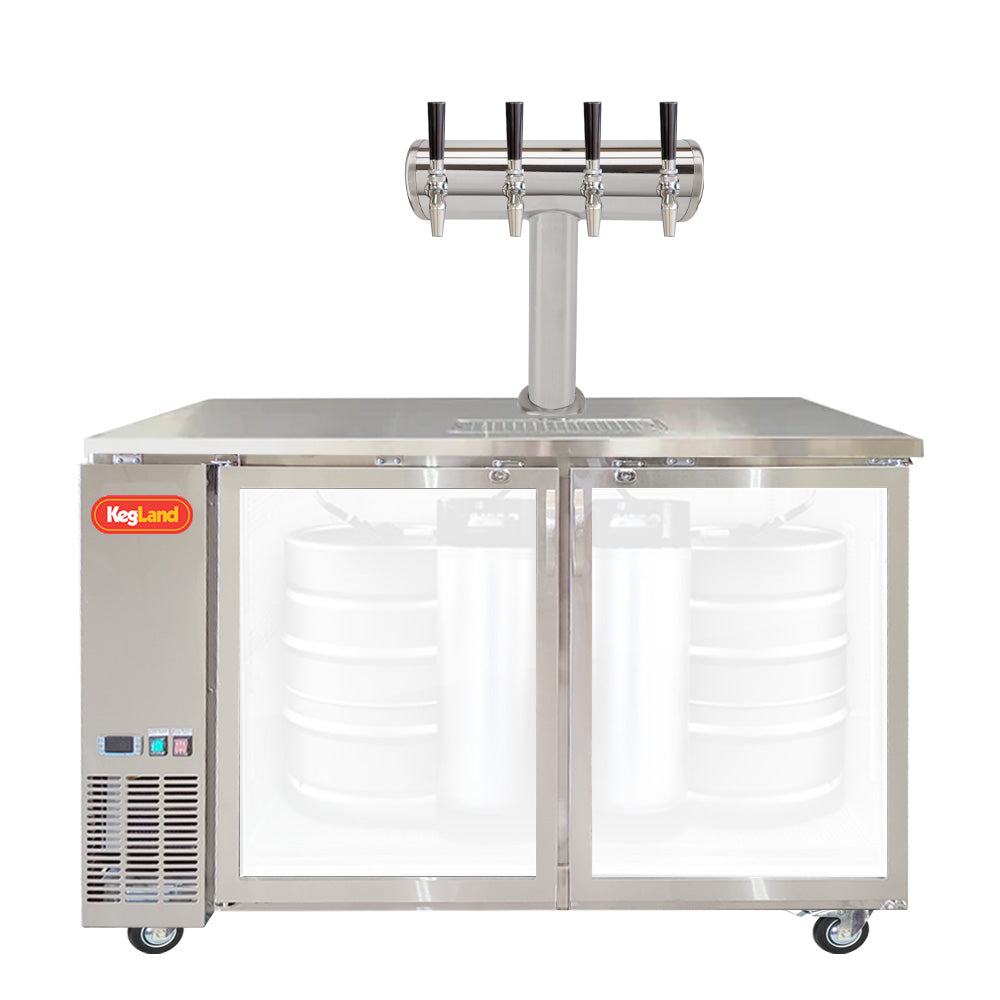

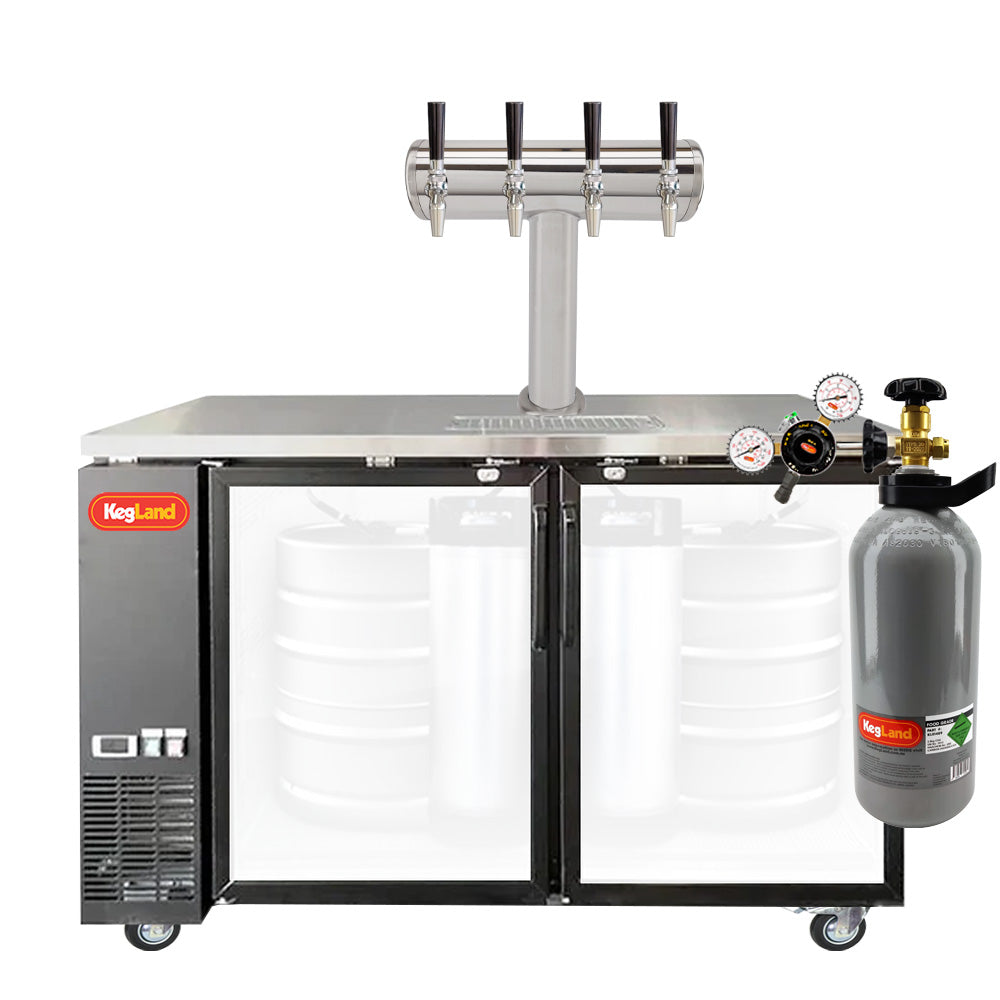

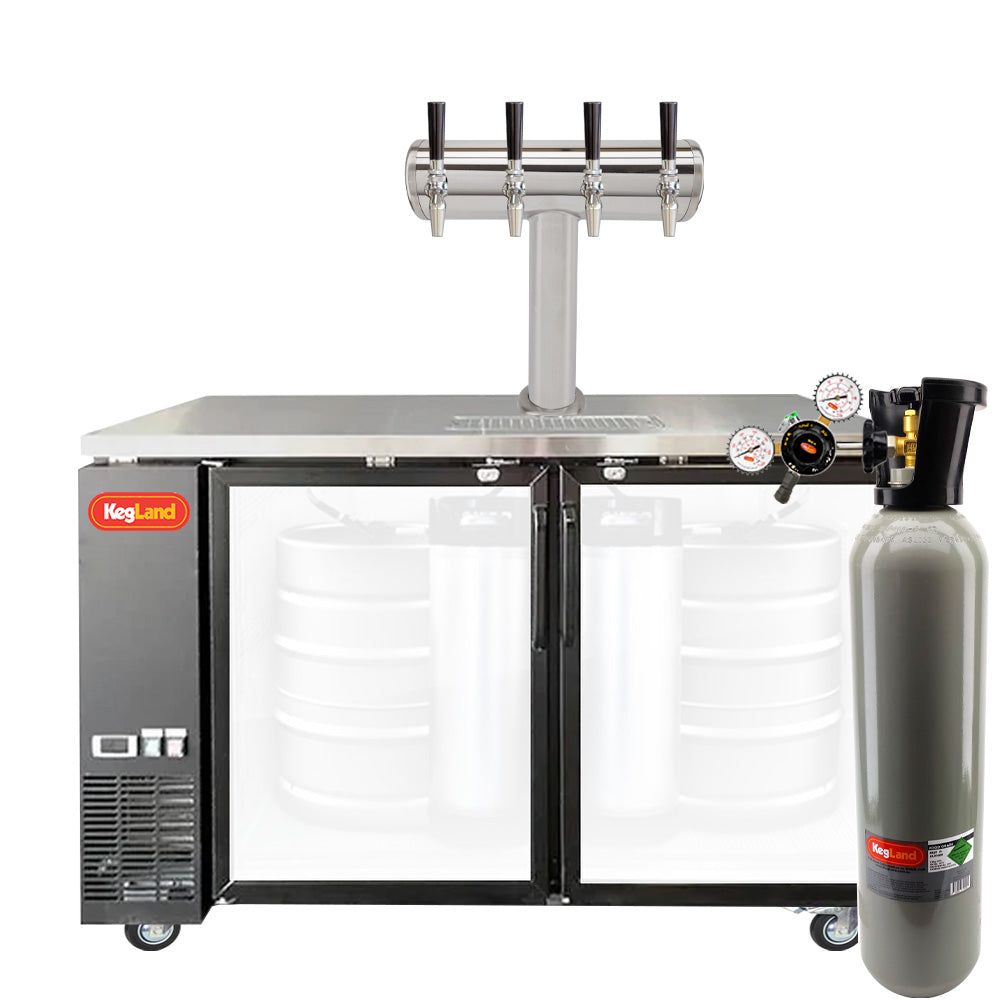

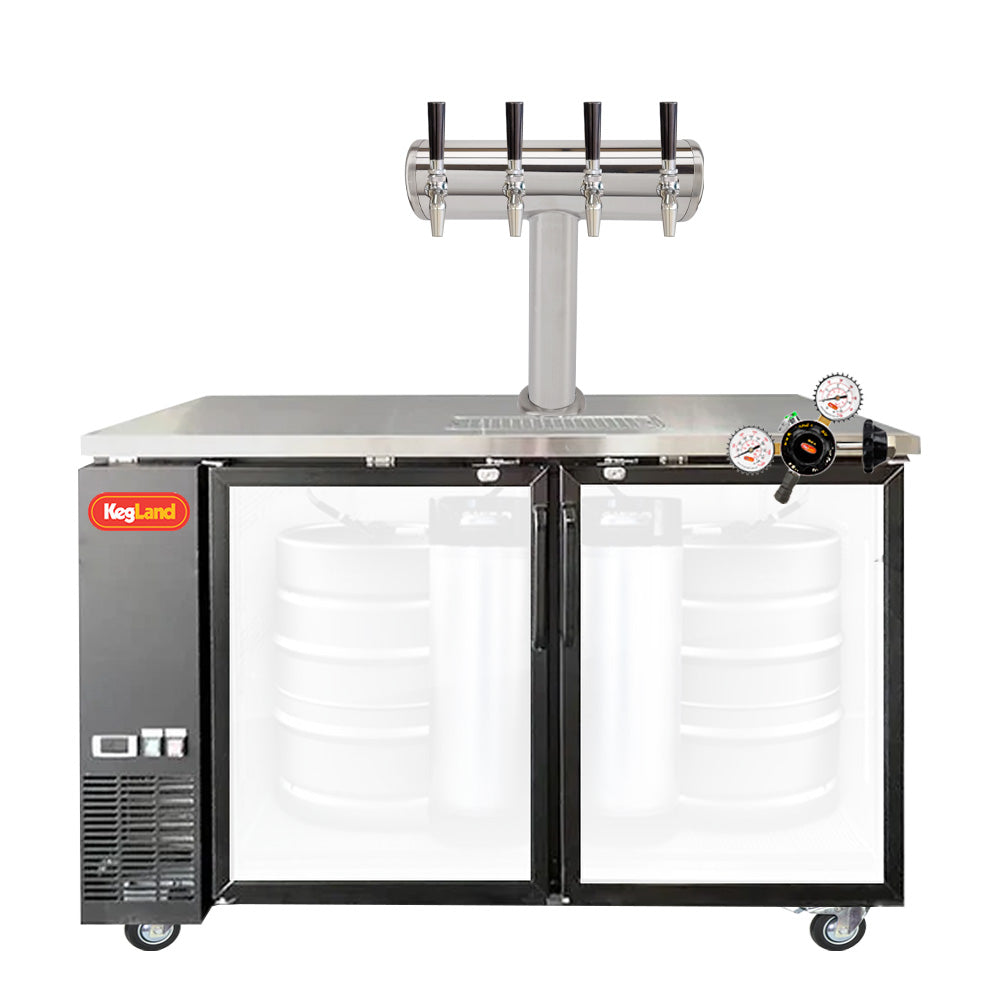

Four Tap T-Bar Kit Includes:
1 x KL29698 4 Tap T-Bar Brushed Stainless Font Kit
4 x KL15509 NukaTap Stainless Steel Taps

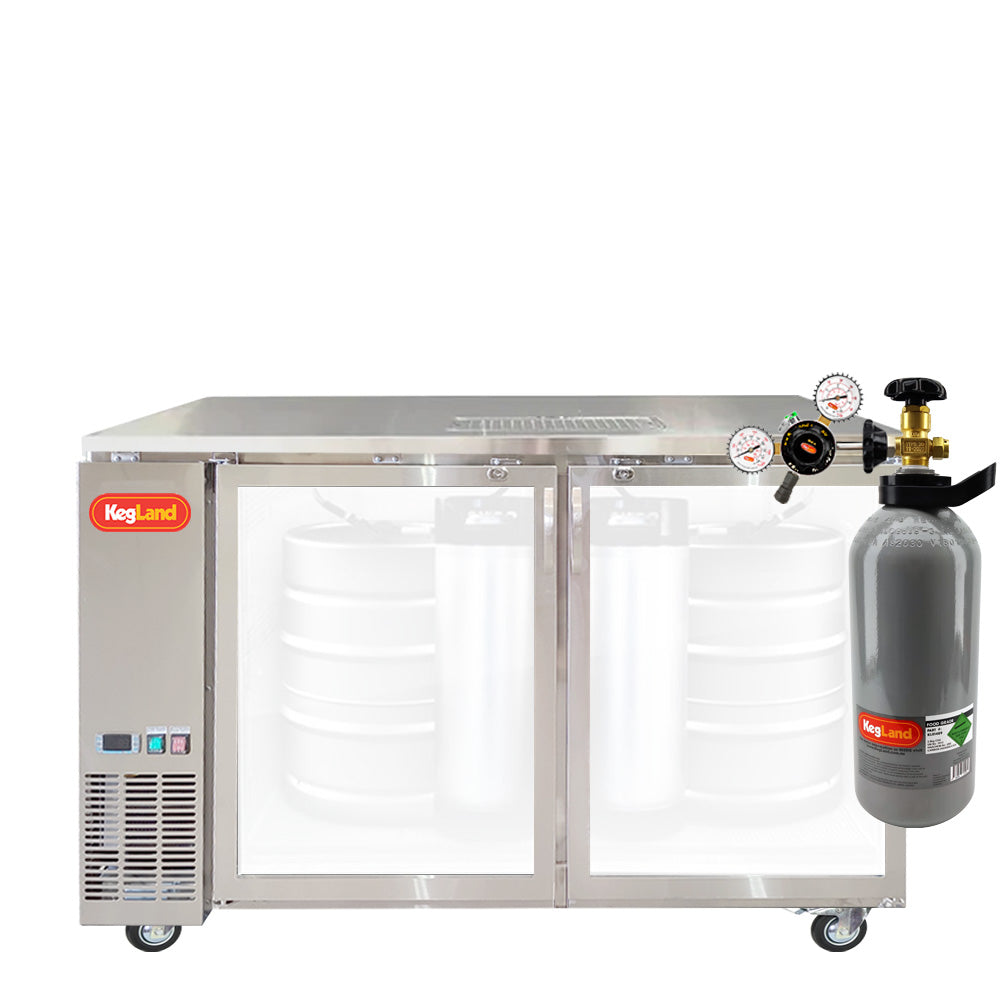

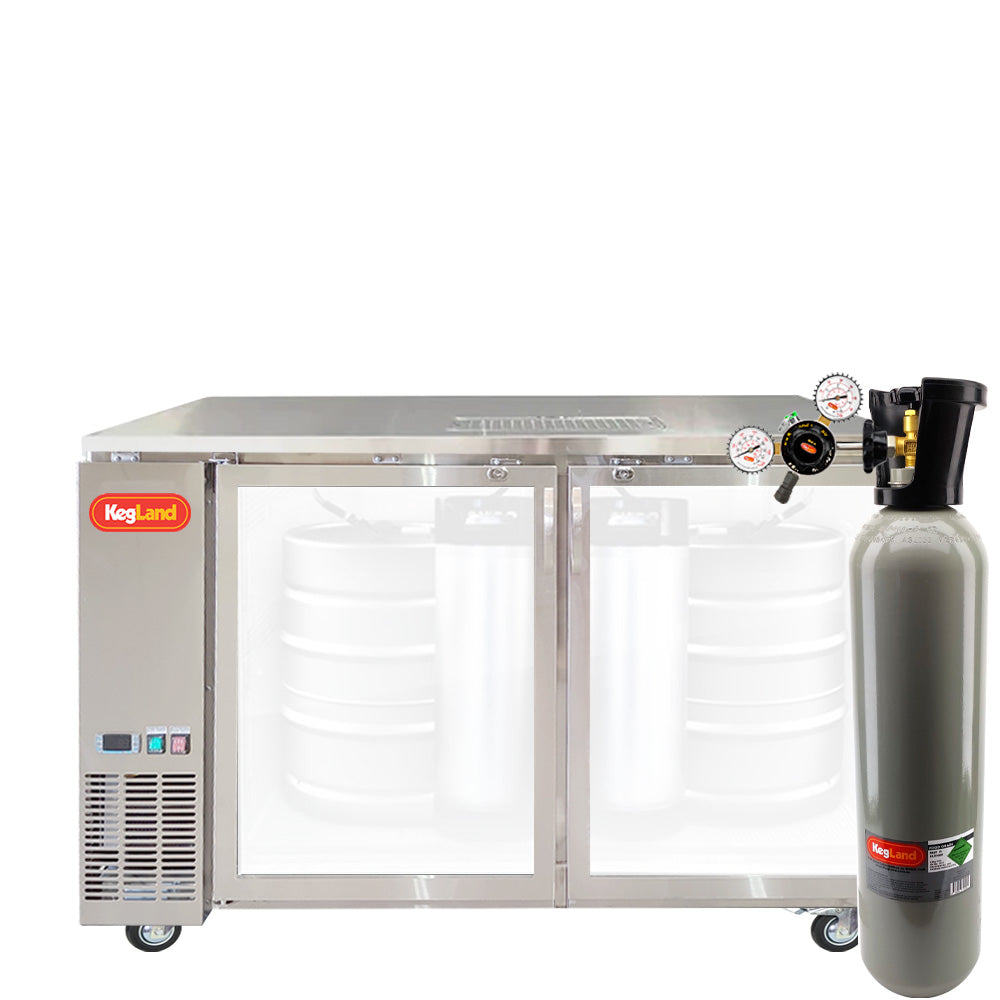

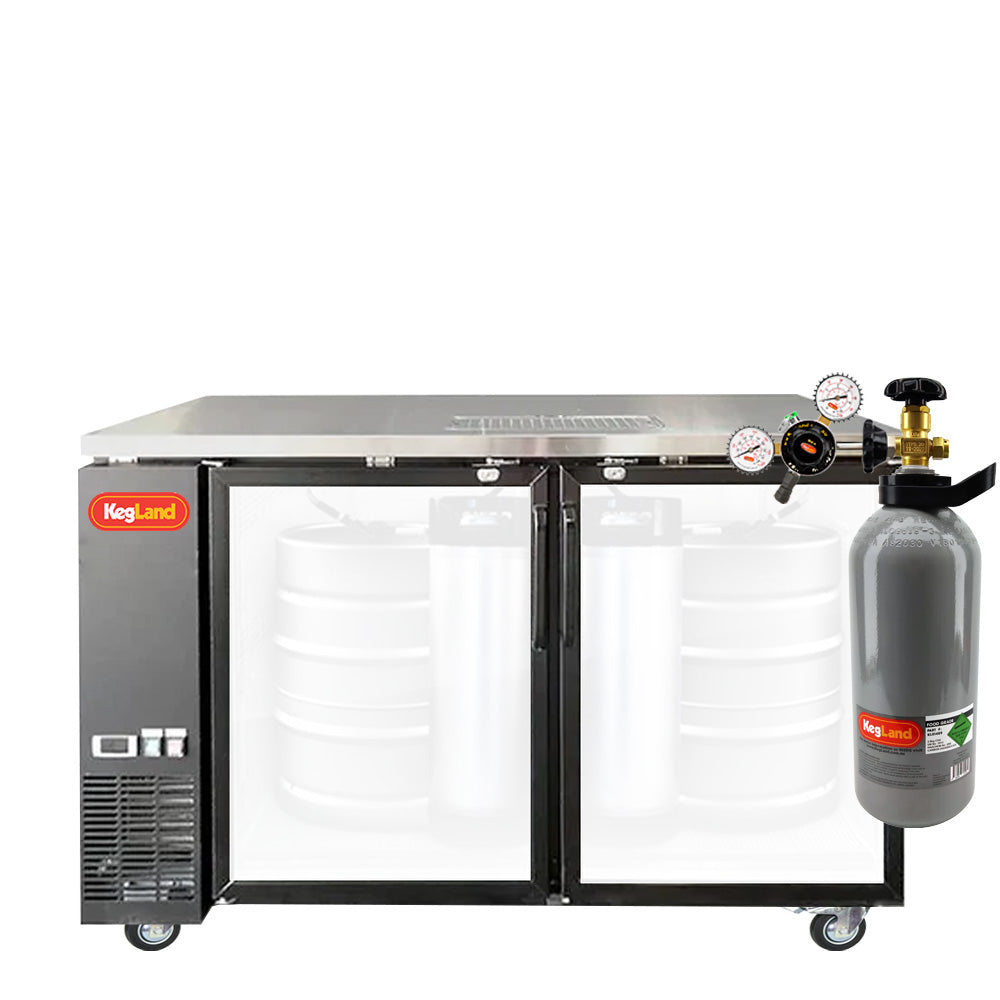

Option 3:

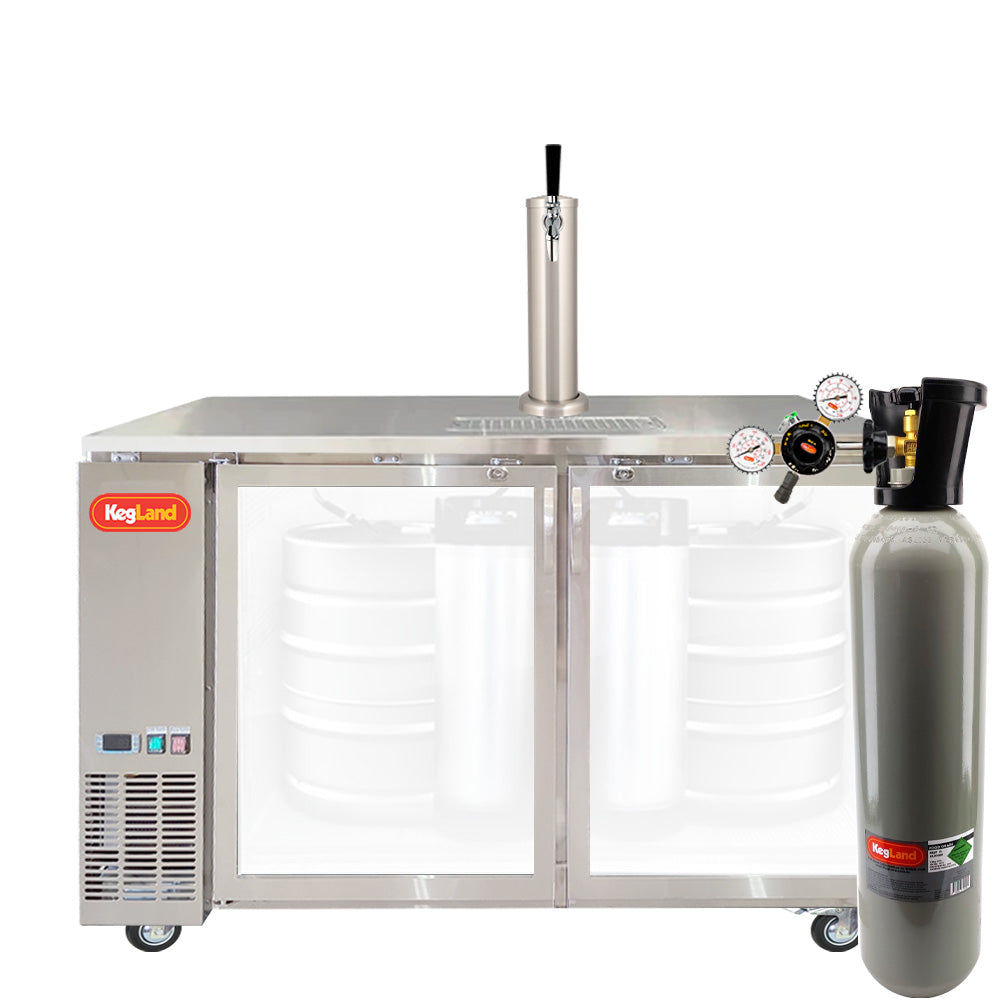

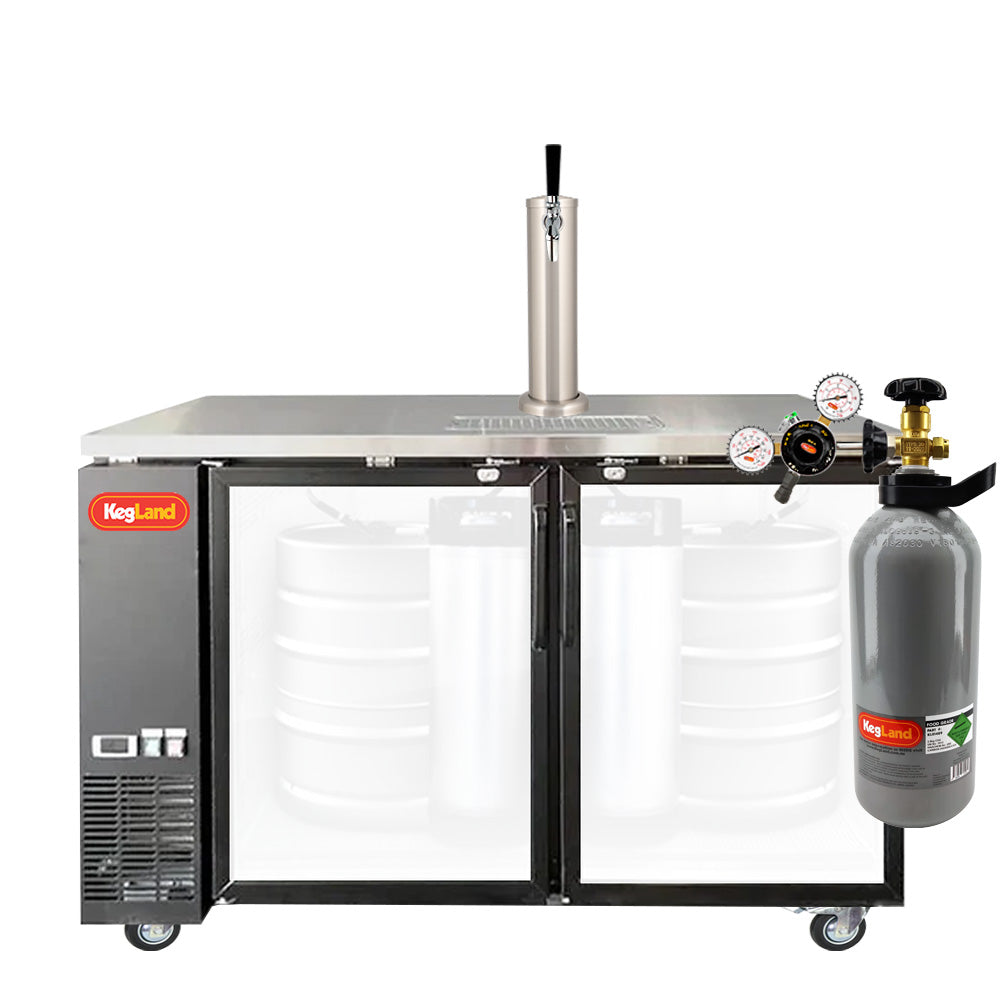

KL01489 2.6kg CO2 Gas Cylinder (FULL)
KL01496 6kg CO2 Gas Cylinder (FULL)
All of the Grand Deluxe 3 range come with Glass Doors as standard but can be upgraded to Solid Doors.
Solid doors have superior insulation to the Glass Door, as well as protection to UV exposure if you have beer bottles / beer lines in direct/indirect sunlight.
For Black GD3's
KL08952 Solid Door (Black) - Left (GD3)
KL08969 Solid Door (Black) - Right (GD3)
For Stainless Steel GD3's
KL32636 Solid Door (Stainless Steel) - Left (GD3)
KL32643 Solid Door (Stainless Steel) - Right (GD3)
Please Note
Commonly this will be in regards to defrost cycles and calibration of temperature of the Grand Deluxe 3. As KegLand does not know where the units will be installed and used in what conditions, the default settings are not always the correct for your use.
2. This is a commercial grade appliance with a high level of cooling performance. The powerful fans in this unit are louder than the smaller Series X and Series 4 Kegerators.
3. These commercial grade fridges have been handcrafted and may have some light cosmetic scratches or dings/dents, all of which will not affect the performance of the unit.
4. We prefer if customers can pick these up from our distribution centre as these are quite large and can be troublesome to ship. If you choose for us to organise the shipping please be aware that it's possible they may arrive with some cosmetic marks/scratches/dents from handling but we guarantee the cooling performance of the fridge.
5. Any fridge that is dispensing a liquid should not be stored on a surface that may tarnish or damage it. Accidents do happen and condensation can drip if the unit is pushed beyond its capable limits.
Climate Class 4 - Recommended to be used inside in an area that does not exceed 30°C and 55% relative humidity. If you do use it outside, please note that the unit will be on for much longer and seasonal defrosts will differ based on temperature/humidity levels.
These units do not have heated doors, if in an area exceeding 55% RH the doors will frost/endure larger amounts of condensation.
Shipping
Shipping prices are calculated on the checkout page based on the size, weight, and where it needs to be delivered. You can be confident that you will receive accurate and fair shipping rates specifically tailored to suit your individual purchase.
Once an order is placed, please note that KegLand is unable to make changes or additions to the order or modify the shipping information. If any changes are required, it is the customer's responsibility to directly contact the shipping provider and arrange for redirection or any necessary adjustments.
Read More: Shipping Policy
