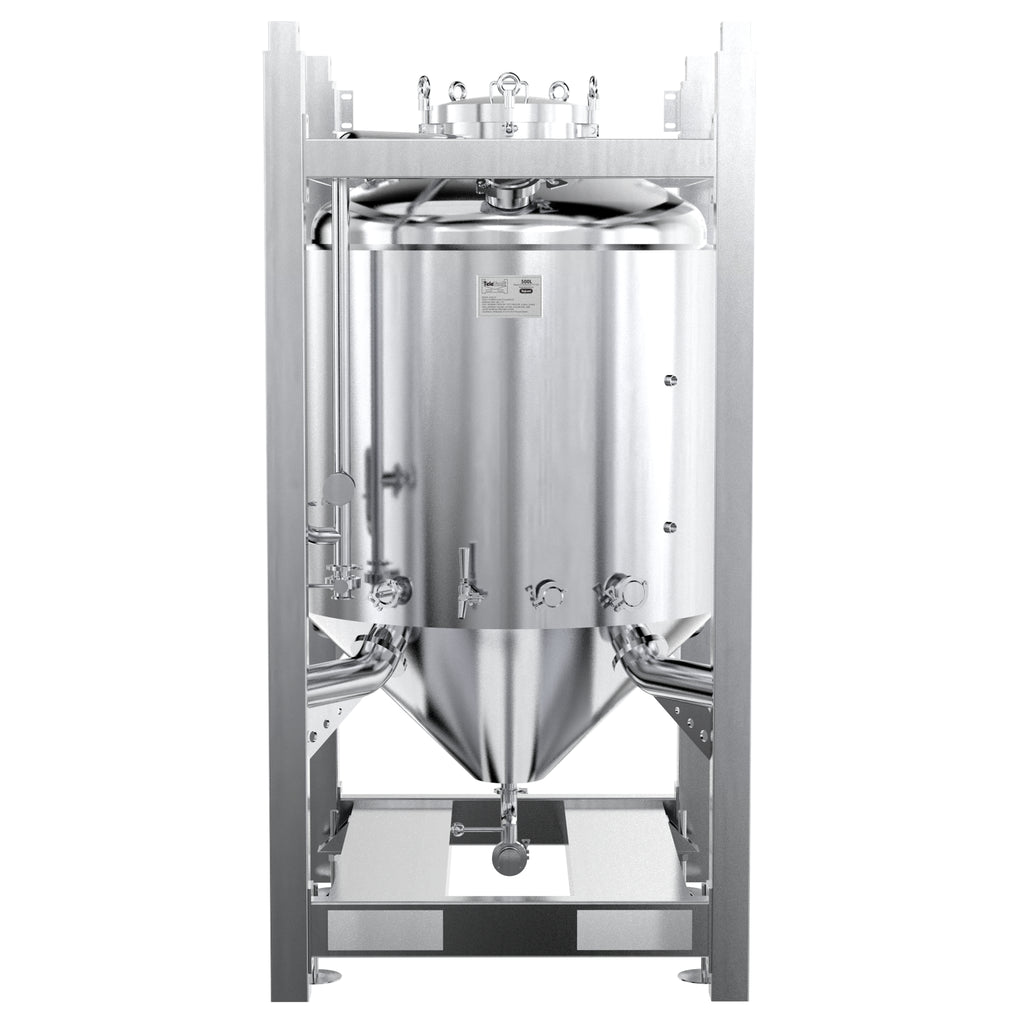

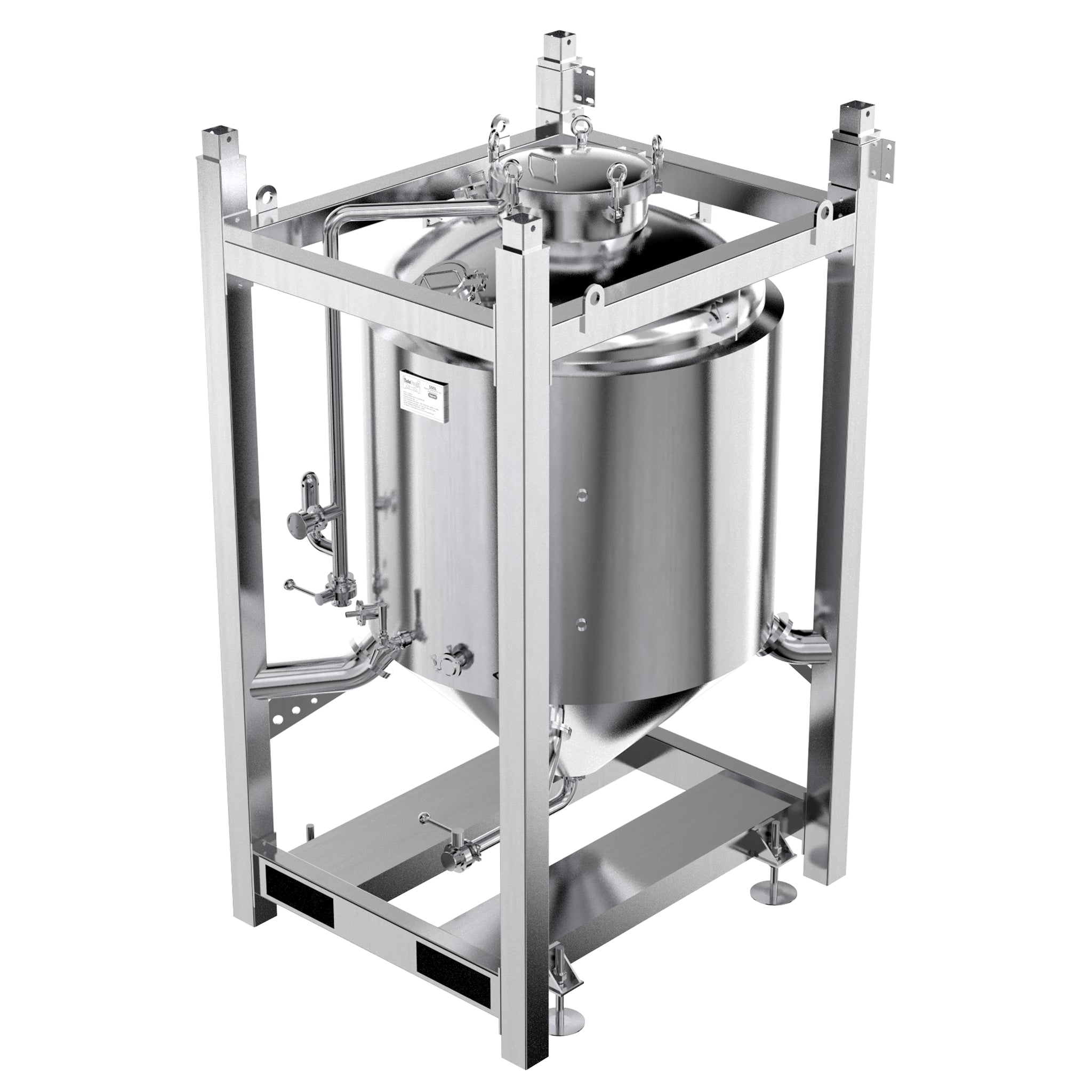

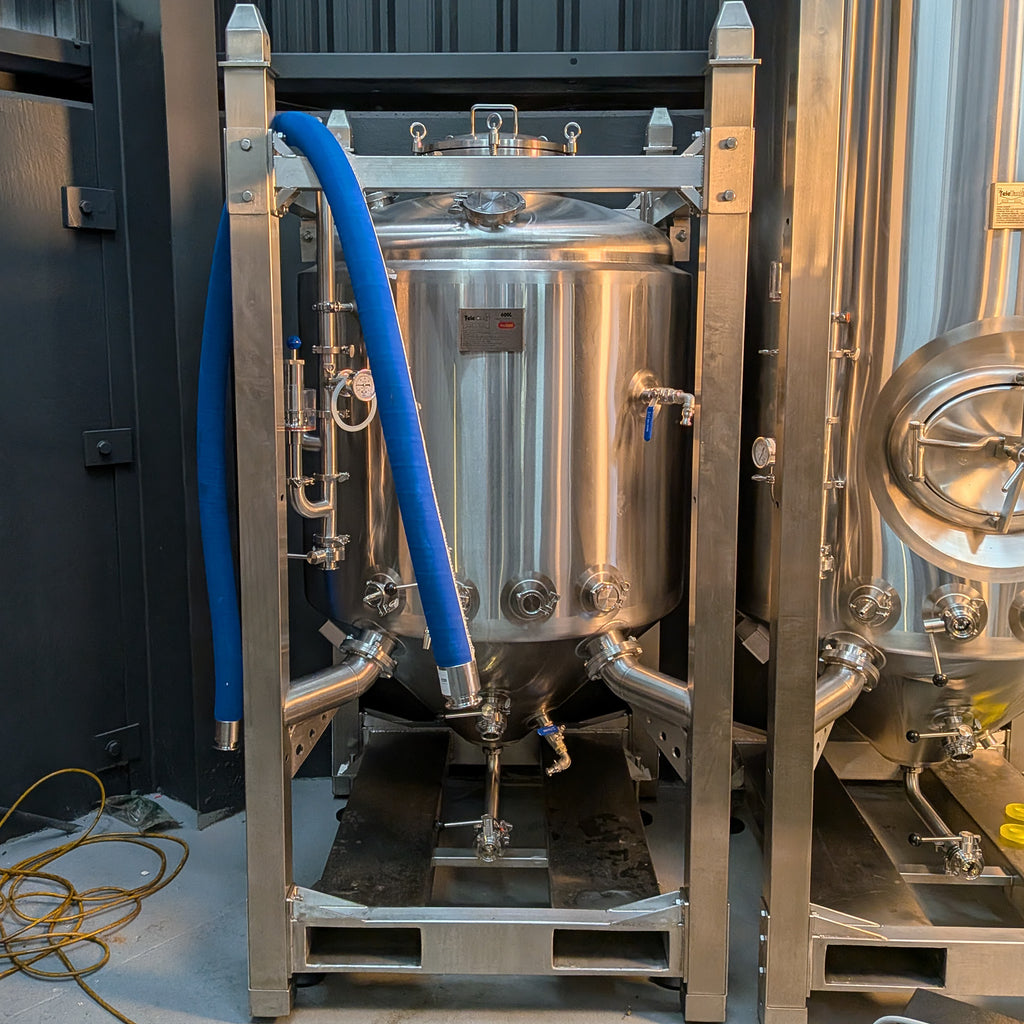

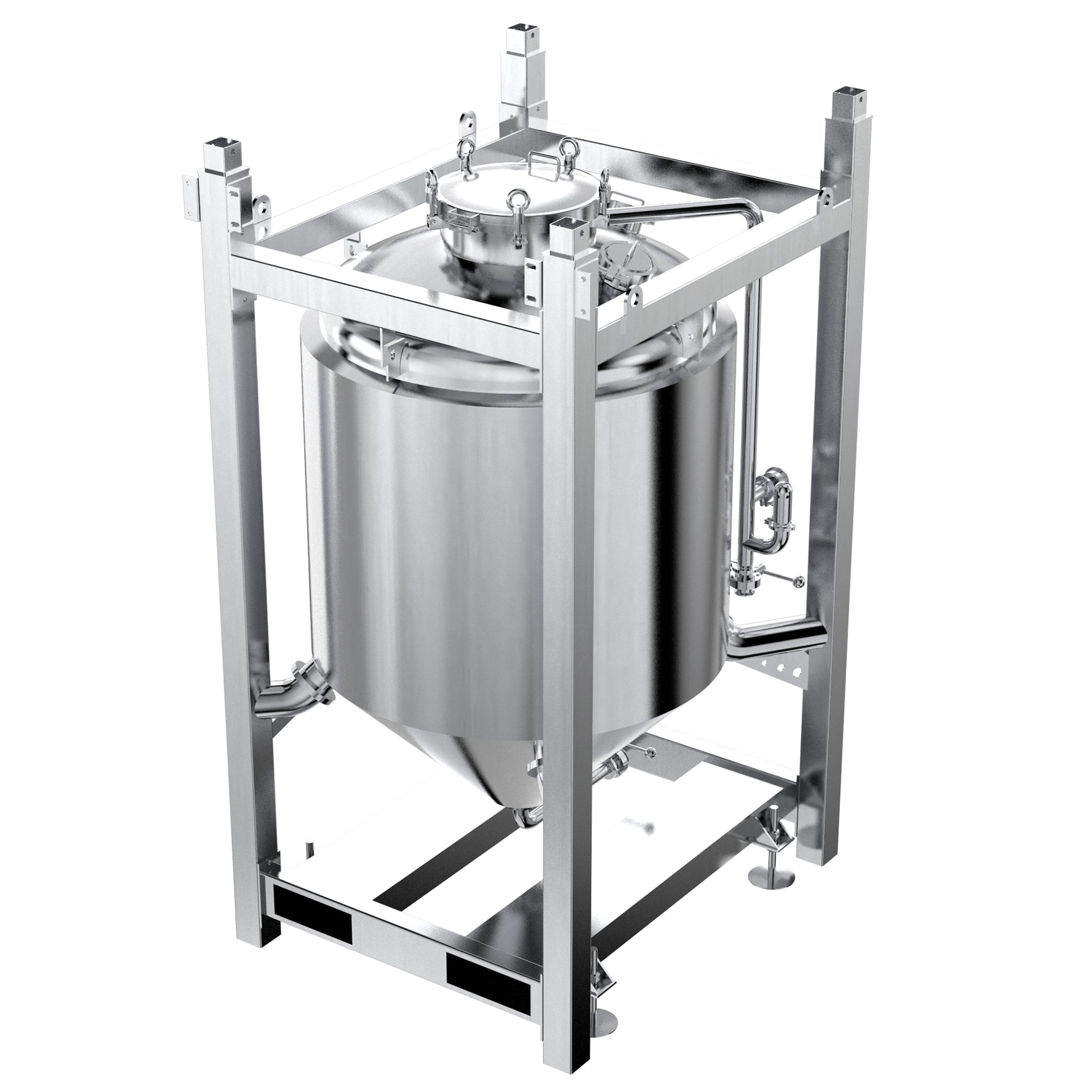

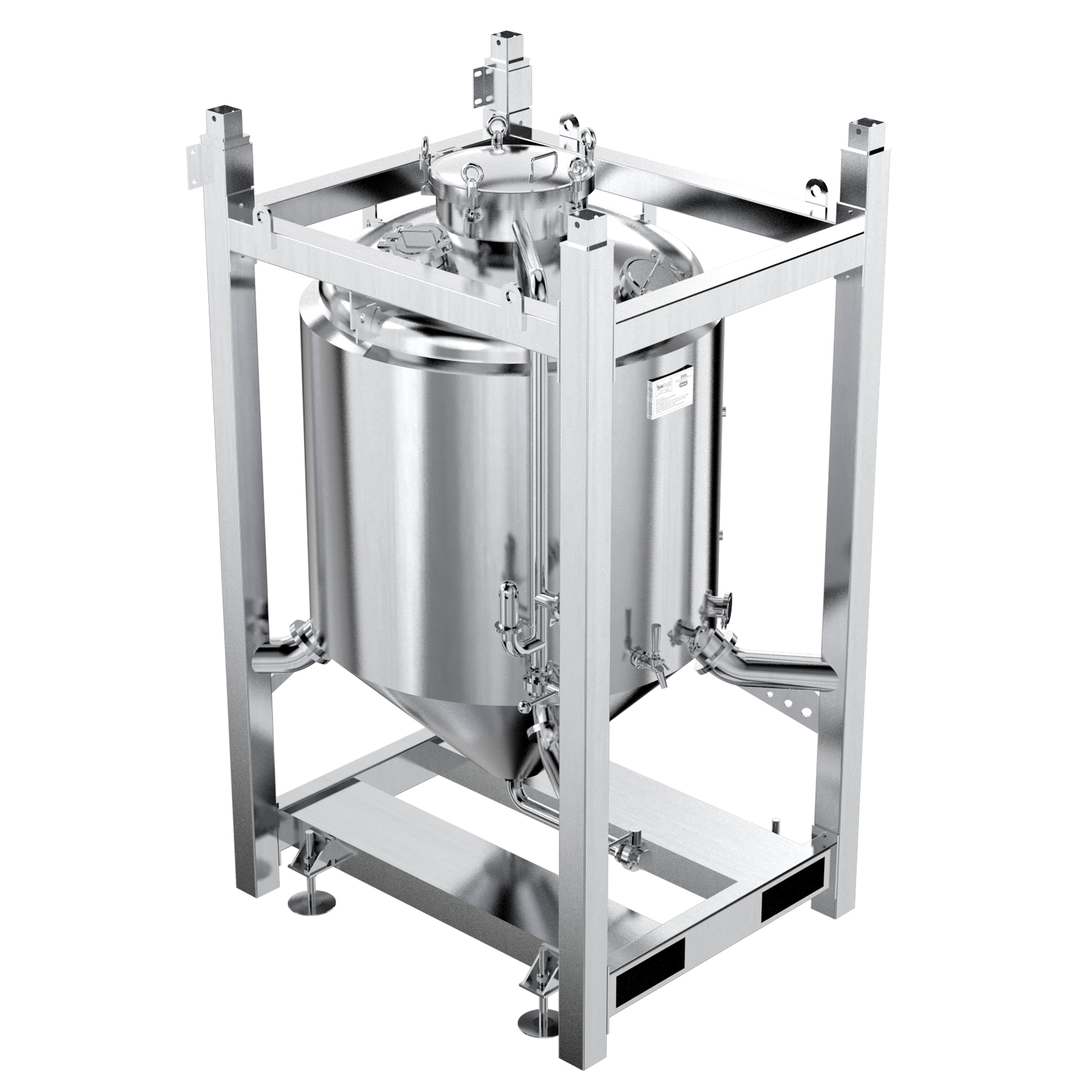

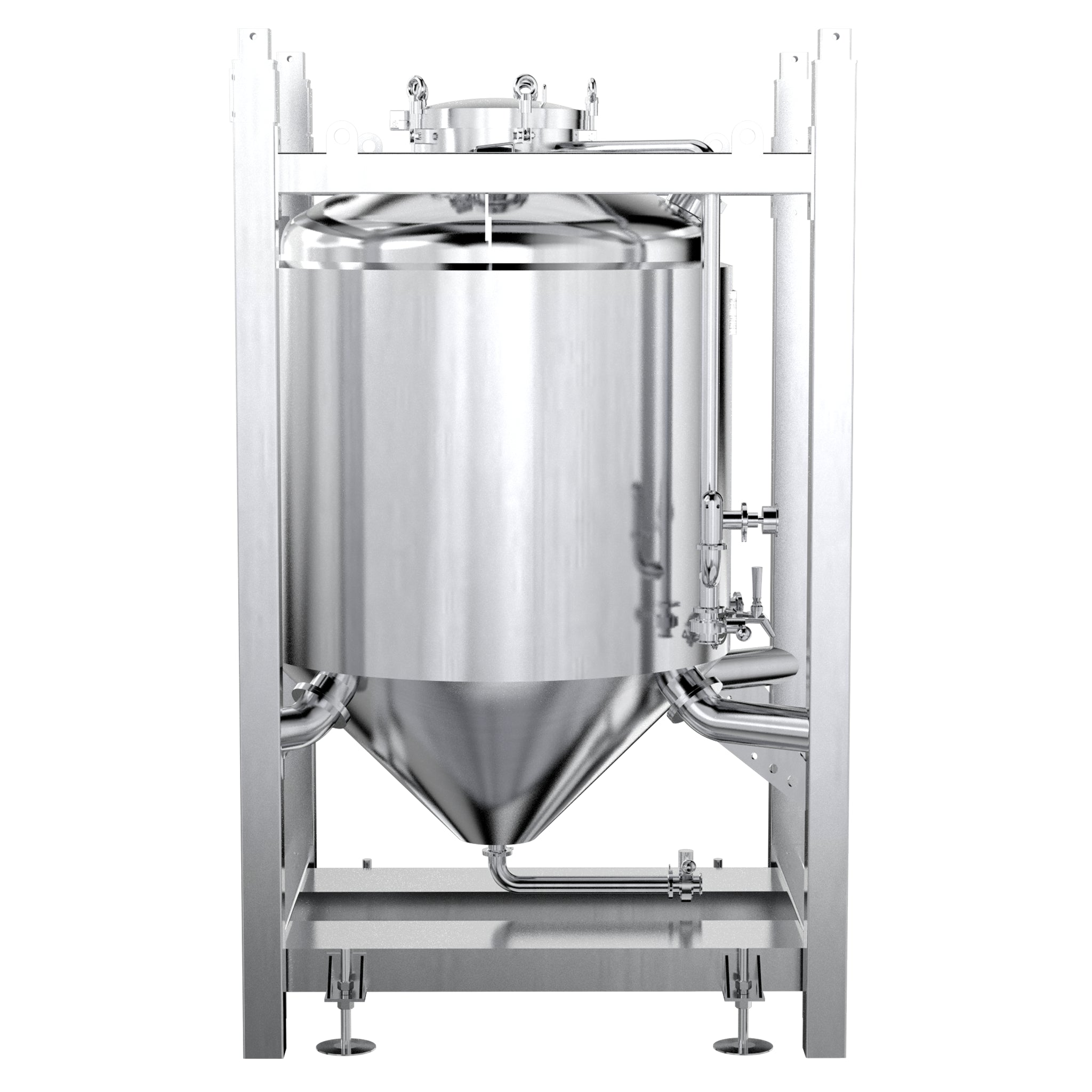

TeleTank 600L - Jacketed Pressurisable Fermenter/Uni-Tank (90 Degree)

Scale up your mid-tier production pipeline with the rugged TeleTank 600L glycol jacketed fermenter. Designed to serve as both a primary fermenter and a bright beer tank, this versatile unit delivers high-volume throughput on a standard space-saving footprint. It is built for commercial cellars requiring tight temperature control, high-pressure carbonation capabilities, and reliable yeast harvesting.

Key Performance Features

90° Cone Angle for Rapid Yeast Harvesting

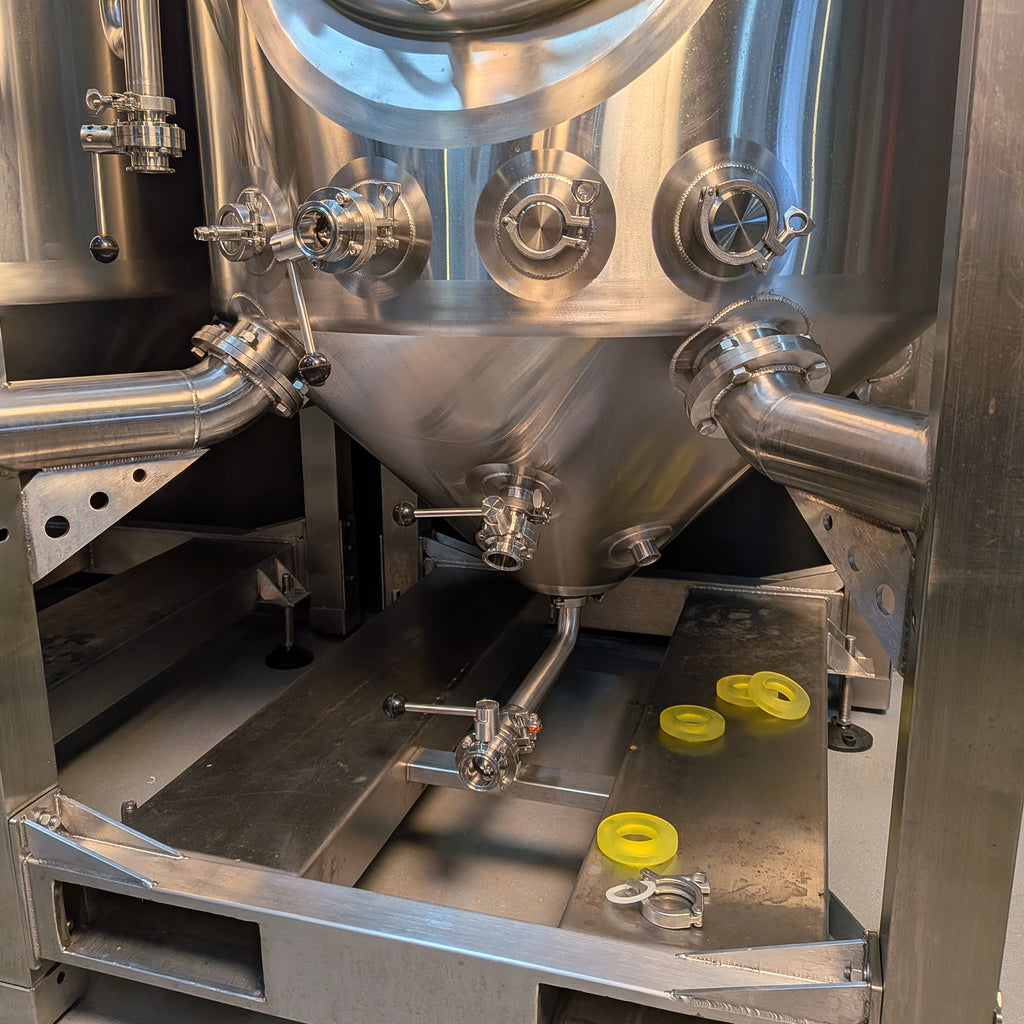

The sharp 90-degree conical base naturally concentrates yeast sediment and dry-hop dropouts at the bottom of the vessel. This makes purging trub fast and clean, ensuring your finished beverages achieve optimal clarity.

Standardised IBC Footprint & Mid-Sized Profile (2025mm Height)

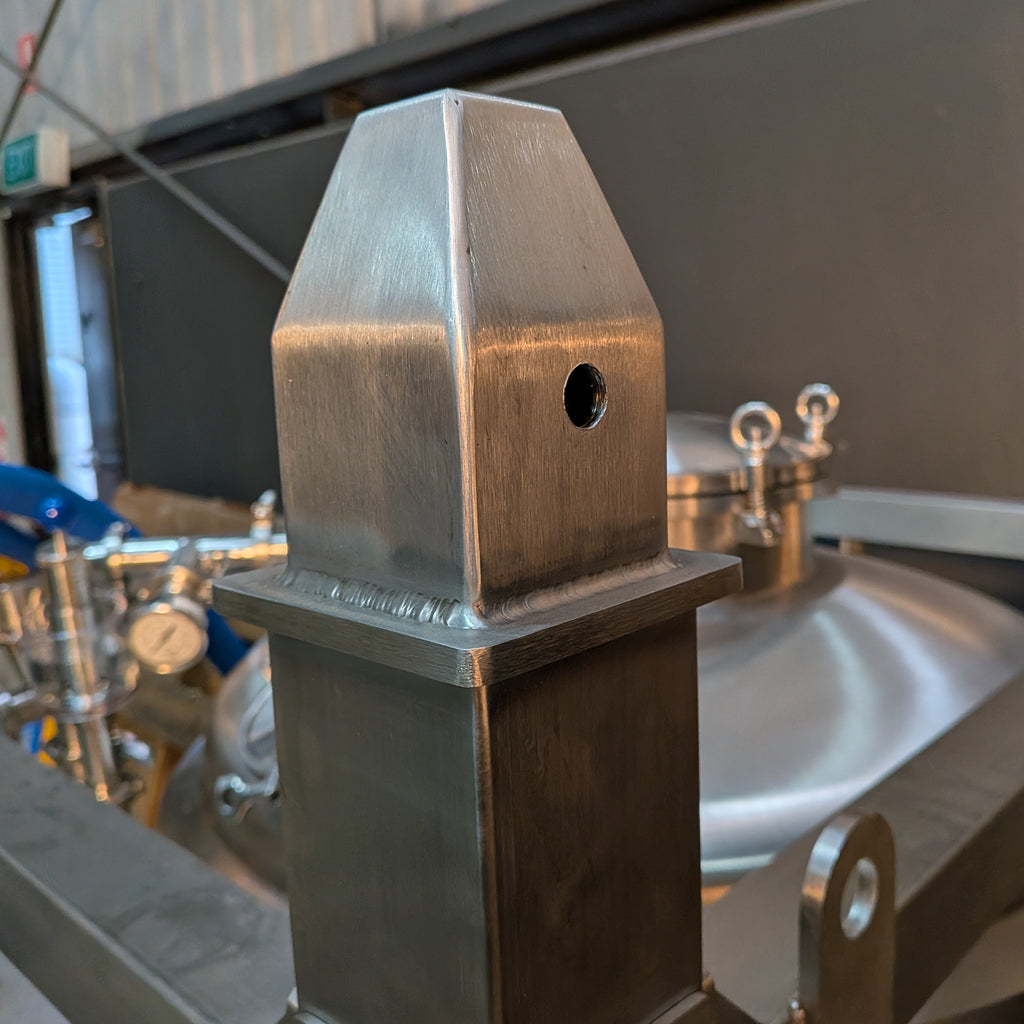

Built on a universal 1m x 1.2m IBC footprint with a total height of 2025mm, the 600L model strikes the perfect balance between high-volume capacity and ceiling clearance. It features integrated tine pockets for standard forklift mobility and interlocking top corners for secure vertical stacking.

Pump-Free Liquid Transfers

Operating safely at up to 2-bar (29 psi) working pressure, the TeleTank 600L lets you carbonate beverages directly in the tank. Use top gas pressure to push finished product smoothly to a packaging line or secondary tank without risking mechanical shearing or oxygen pickup from standard pumps.

Superior Thermal Efficiency

The high-density polyurethane insulation paired with a heavy-duty dimple cooling jacket minimises temperature drift. It connects flawlessly to your commercial glycol chiller via 3/4" ports, keeping cold crashes rock-solid even in hot ambient warehouse conditions.

Top-Access Manway & Accessories

Equipped with a secure Top Manway for easy interior cleaning, a 4" TC addition port for dry-hopping or optional VFD mixers, and a 2" TC port for optional heating element integration.

📊 TeleTank Range Specifications

Common Technical Specs across all models:

• 304 Grade Stainless Steel construction
• Sanitary welding throughout
• 3/4" Glycol Inlets/Outlets
• 4-inch TC Hop/Addition Port

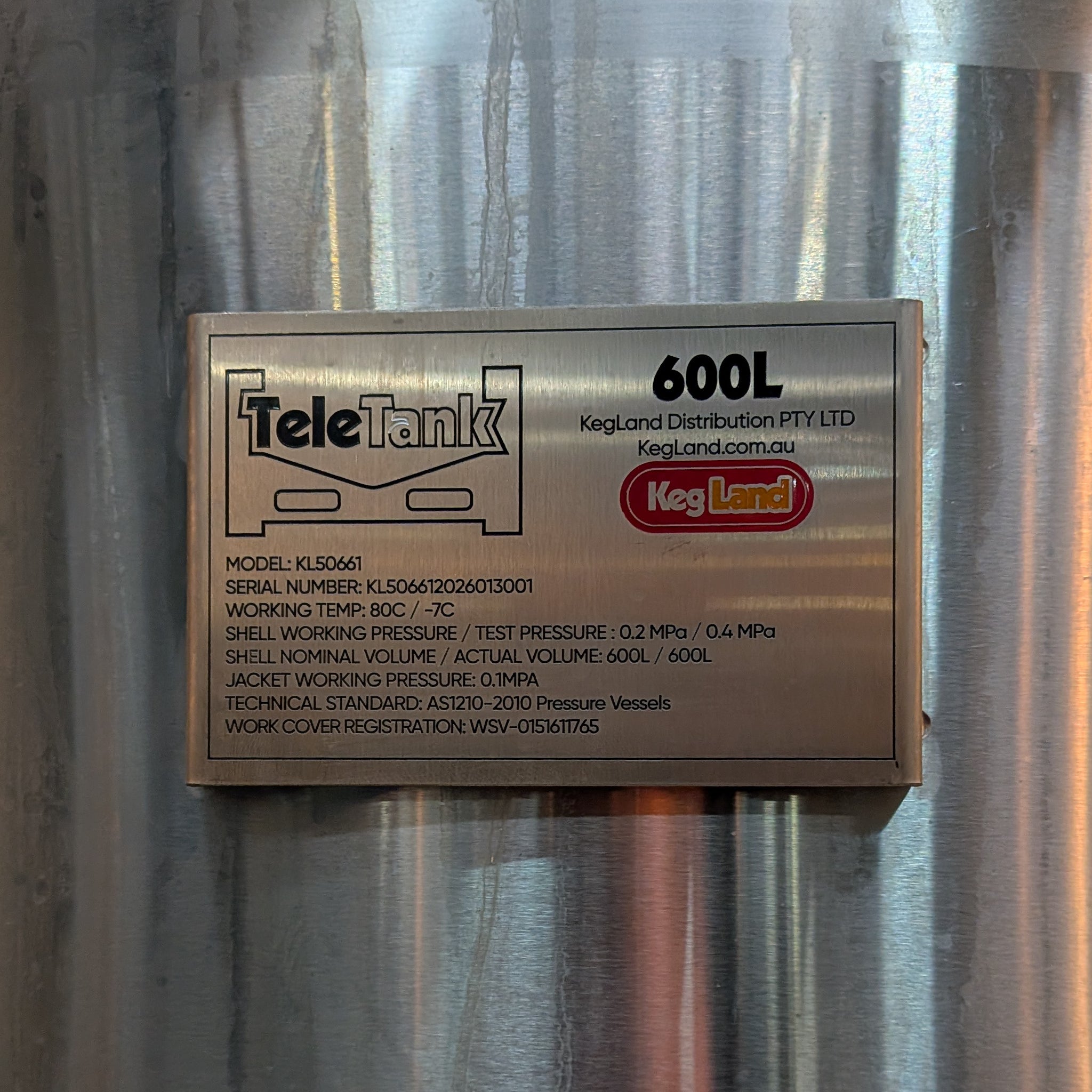

• AS1210:2010 Pressure Vessel Design Registration.
