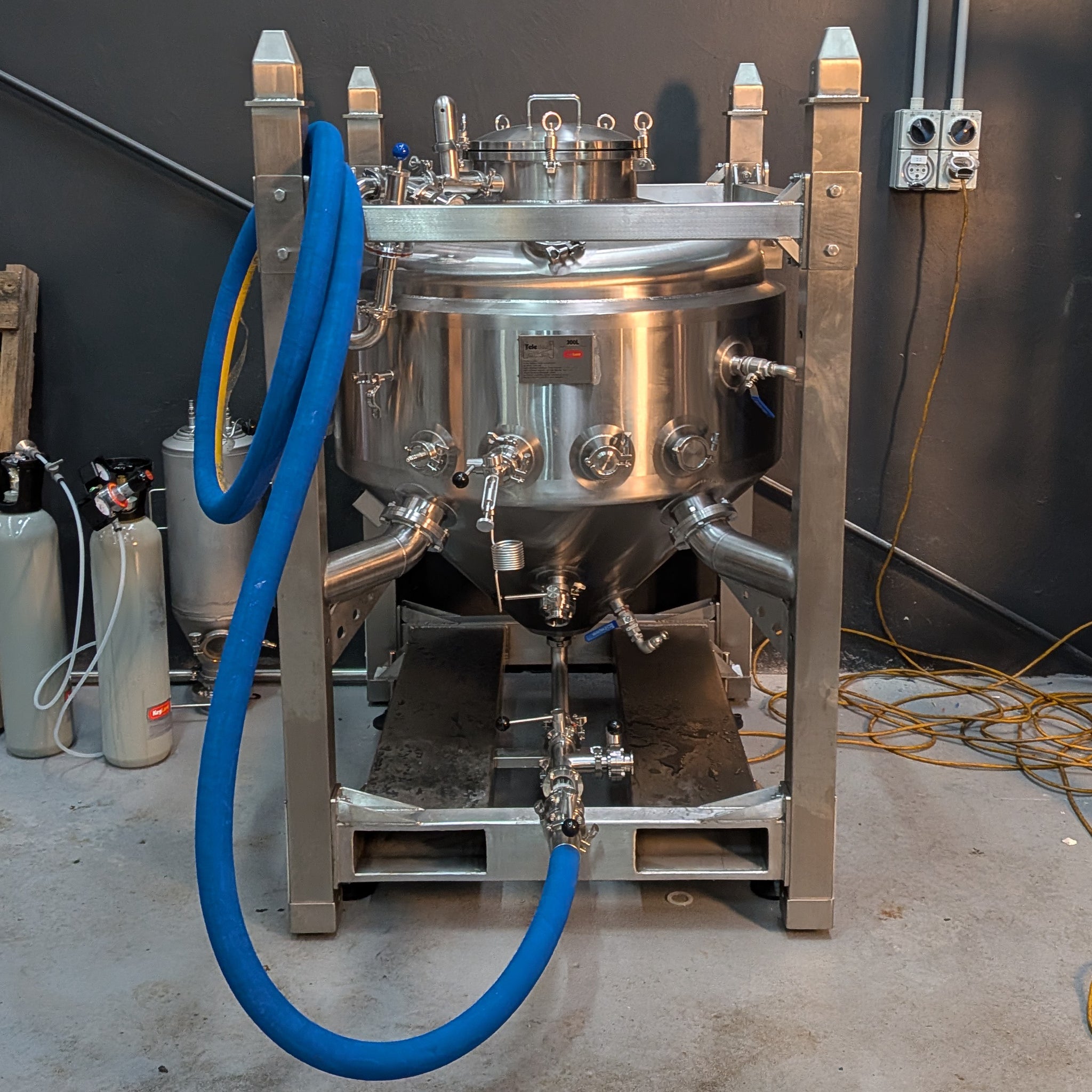

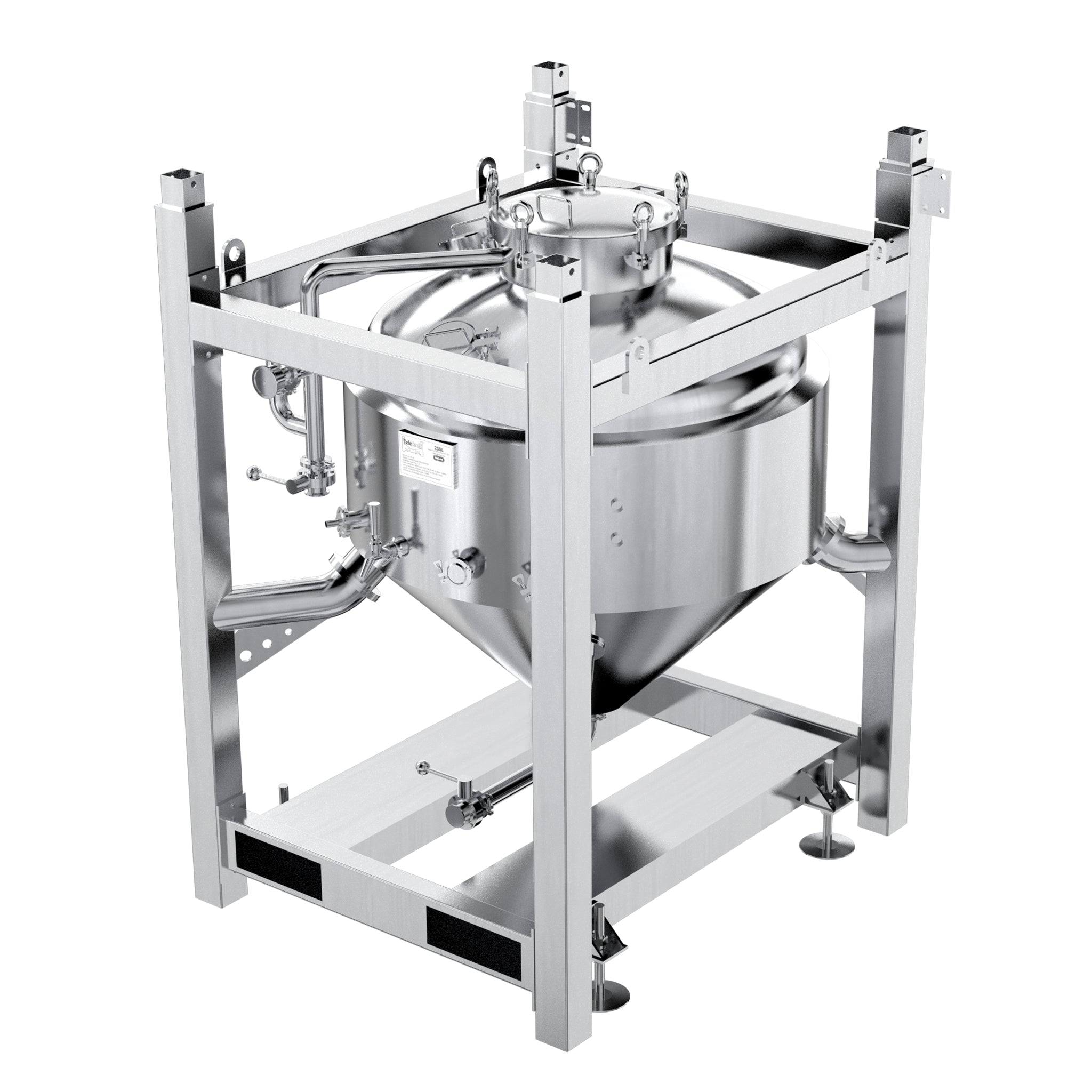

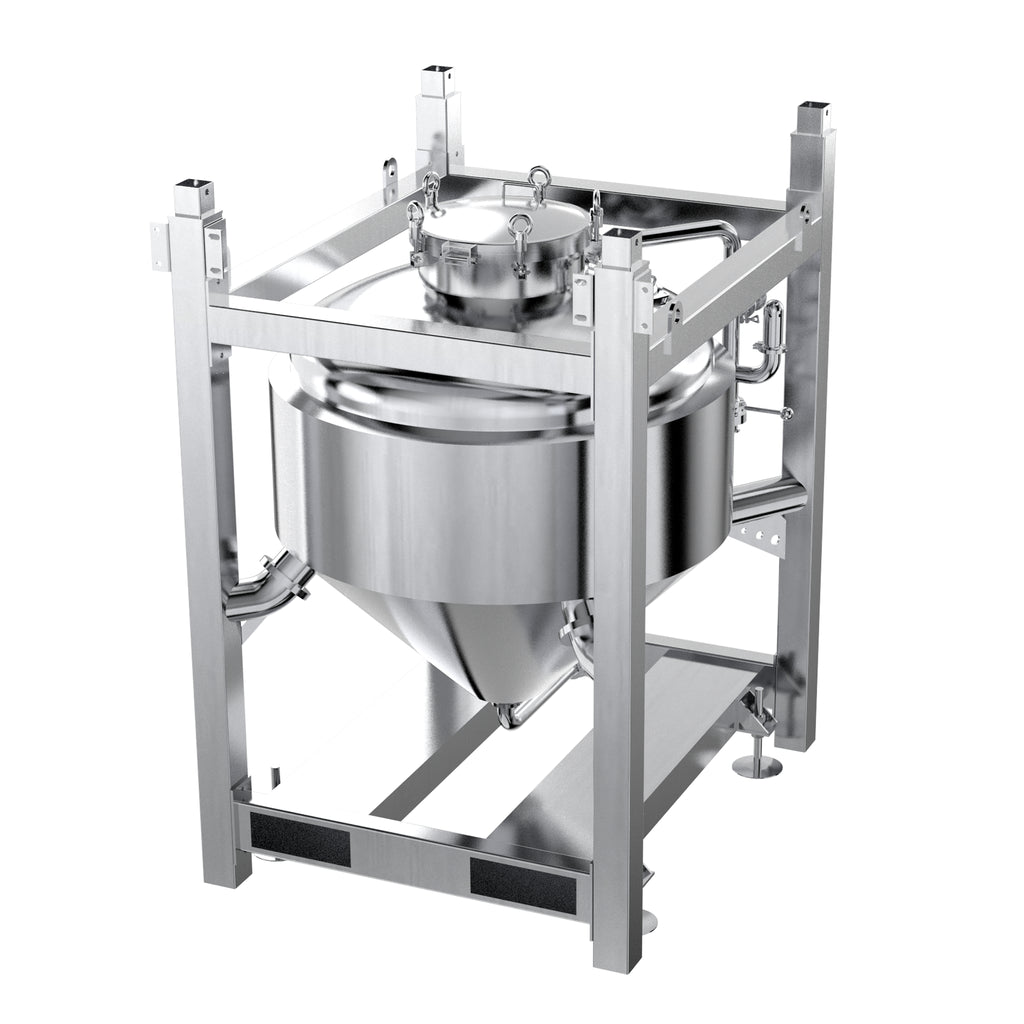

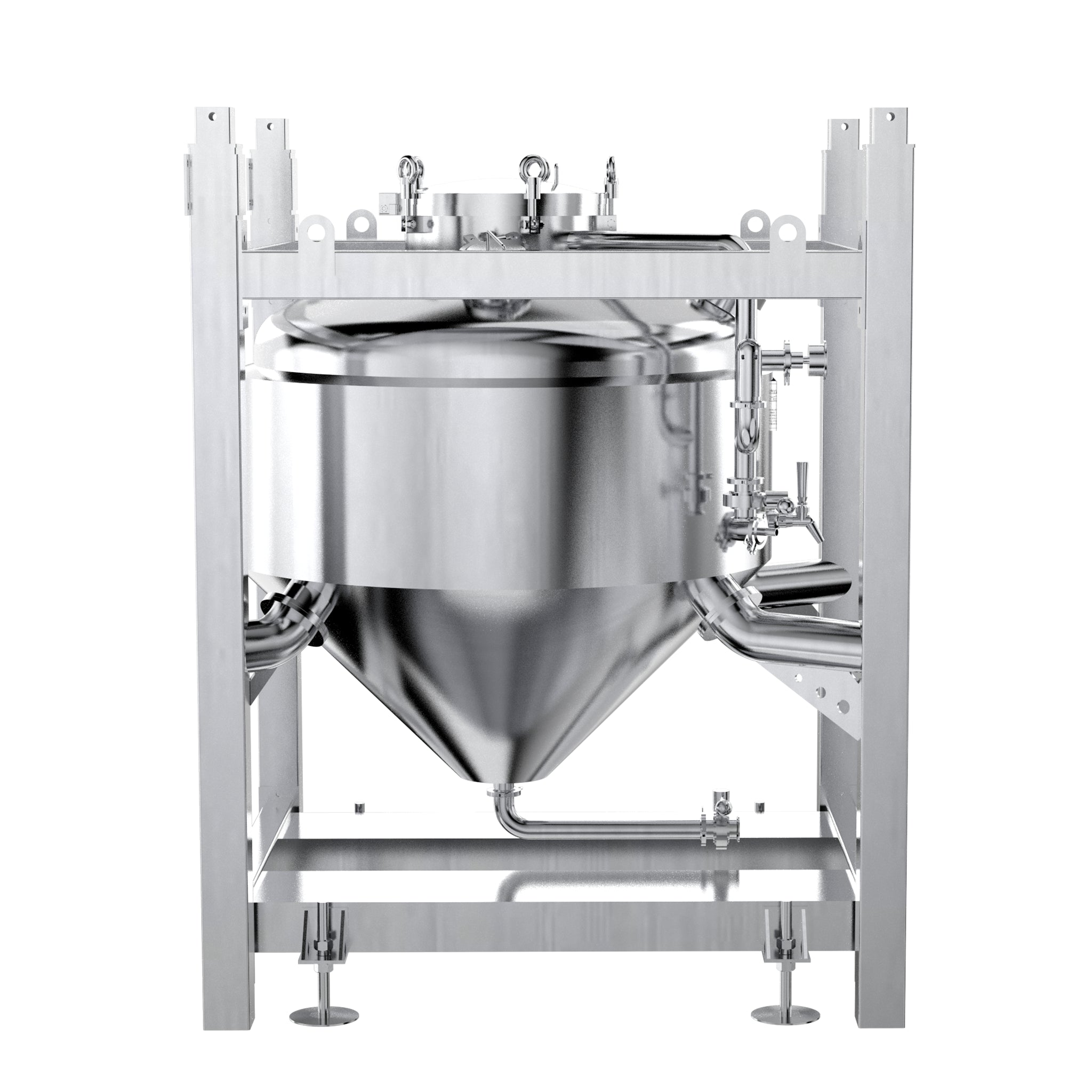

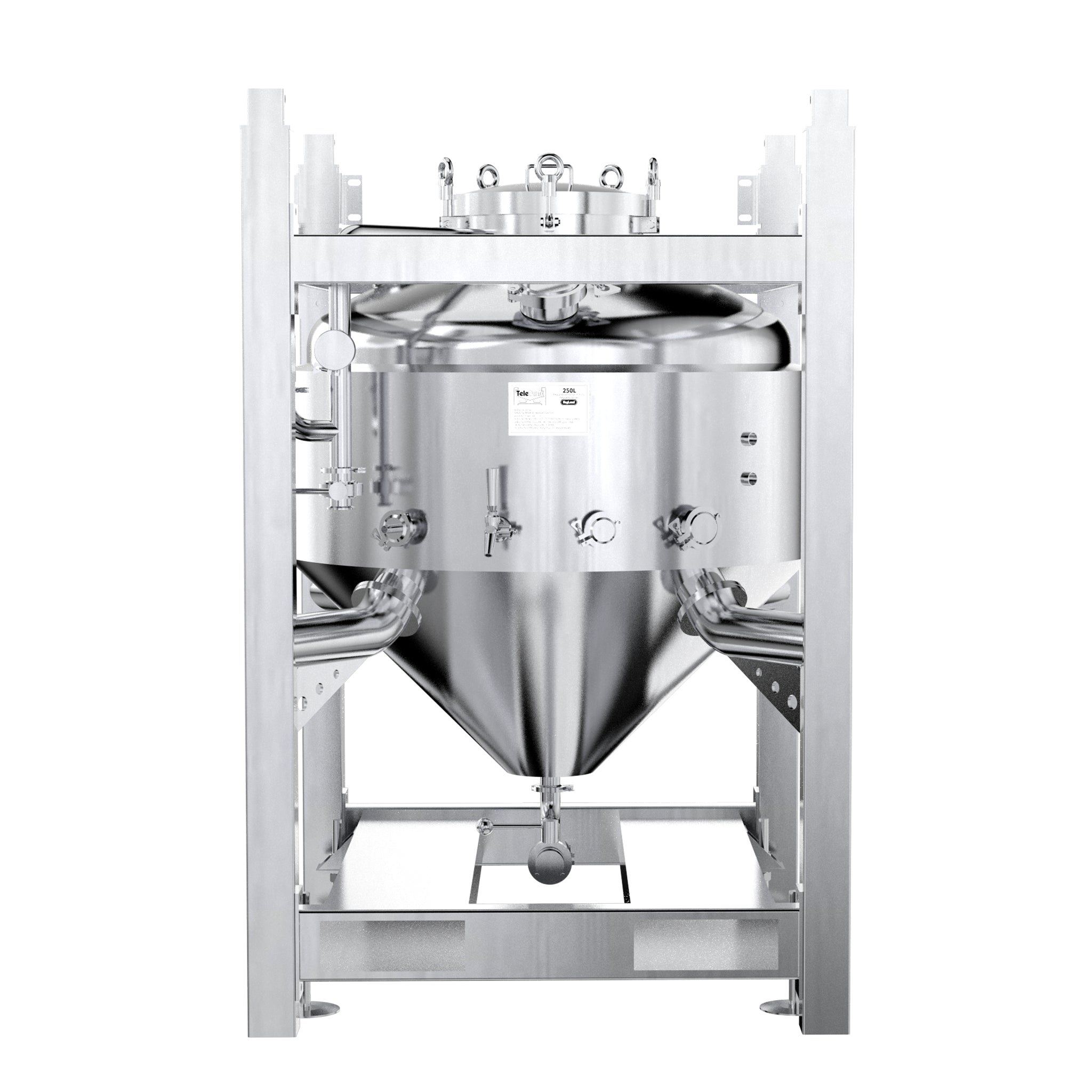

TeleTank 300L - Jacketed Pressurisable Fermenter/Uni-Tank (90 Degree)

SPECIAL ORDER ITEM

Approximate Lead Time: 8-12 weeks.
Deposit Required: 20% not including freight.

A pressure-rated, glycol-jacketed fermenter engineered for ultimate cellar flexibility. Designed to ferment, dump yeast, crash chill, and stack securely to save floor space.

Core Features

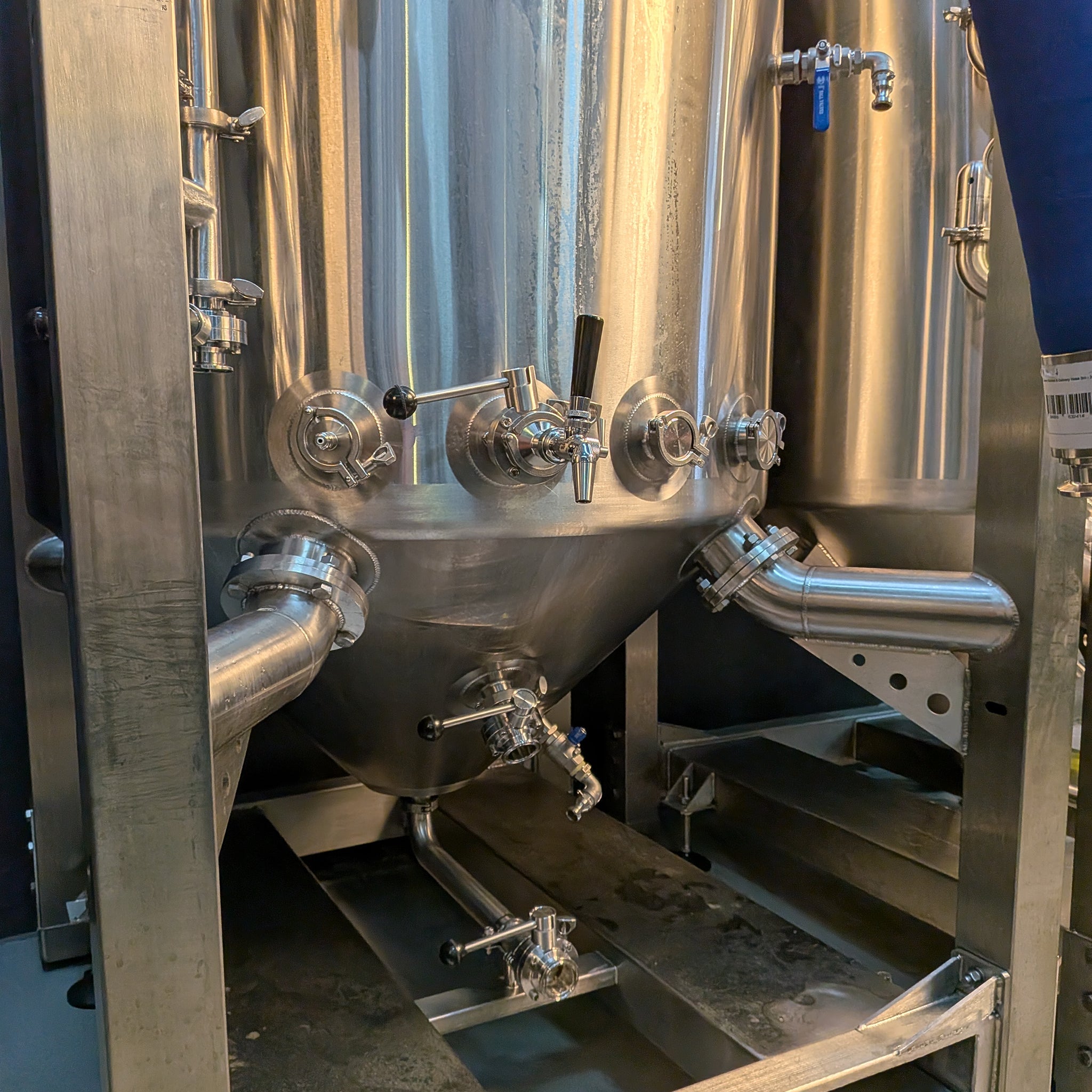

90° Conical Base

Steep angle optimised for active fermentation. Effortlessly dumps yeast and heavy dry-hop loads for bright, clean beers.

20% Cellar Scaling

Built to cascade perfectly. Transfer a batch from this into a TeleTank 250L - Jacketed Pressurisable Fermenter/Uni-Tank (150degree) or serving vessel.

IBC Footprint

Built on a standard 1 meter x 1.2 meter IBC footprint, these tanks fit seamlessly into shipping containers and trucks, and feature integrated tine pockets compatible with all standard forklifts. For ultimate cellar flexibility, different models within the range can be safely stacked on top of one another.

Pressurisable

Rated for a 2-bar working pressure, this tank allows you to carbonate beverages directly and execute pump-free, closed-pressure transfers. It's the ideal solution for protecting oxygen-sensitive products by maintaining a constant positive pressure.

Polyurethane Insulated and Dimple Jacketed

Featuring high-density insulation and a dimple jacket, these tanks offer exceptional thermal efficiency for both hot and cold liquids, minimising temperature drift. The glycol jacket is outfitted with standard 3/4" threads for universal plumbing compatibility, or it can be adapted to fit our dry-break glycol JoinTech fittings.

Heating Available

If you need to heat the tanks they also have been equipped with a 2" TC port that is able to attach one of our Warming Wizard Wands in either 125watt, 500watt or if  you need a lot of yeast you can even go up to our much more powerful KL18166 3600 Watt Element.

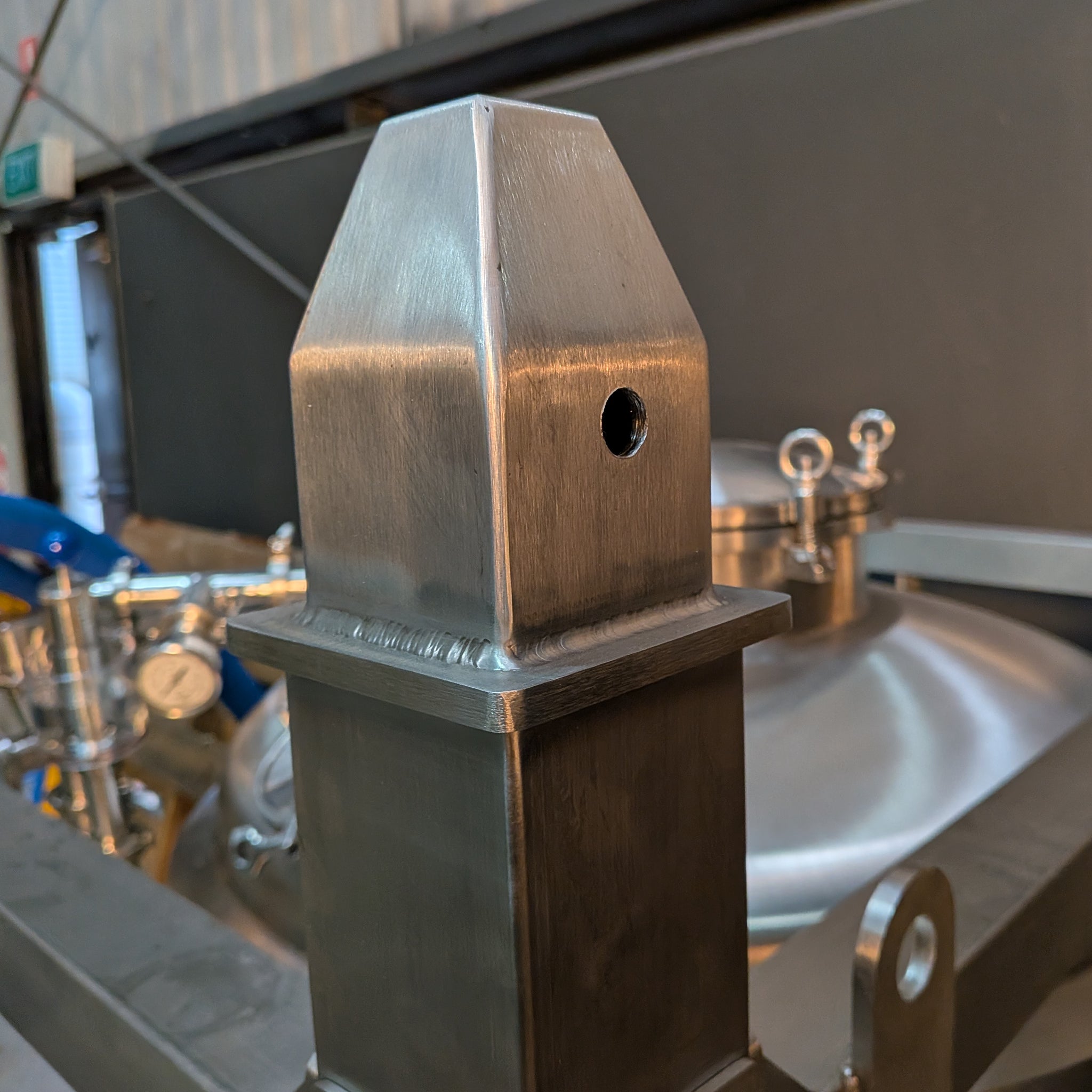

Space-Saving Stackable Frame

Redesigned with tapered alignment corners for easy forklift stacking.

Mixer Available
If you want to use a mixer you can purchase this separately and it can be installed via the 4" TC port on the dome of the vessel.  This can be useful if you use the tank for propagation, mixing or reacting certain reagents.  The mixer also is sold with VFD drive so you can digitally set the RPM of the mixing impeller.

SPECIFICATIONS
Material: 304 Grade stainless steel/EPDM/Silicone Seals

Welding: Sanitary welding throughout

Glycol Inlets/Outlets: ¾ inch

Manway: 300L (Top Manway), 600L (Top Manway) & 1200L (Side Manway)

Working Pressure: 2 Bar (29psi)

Working Temperature: -7C to 80C

Vacuum Pressure Relief: 1.5Bar

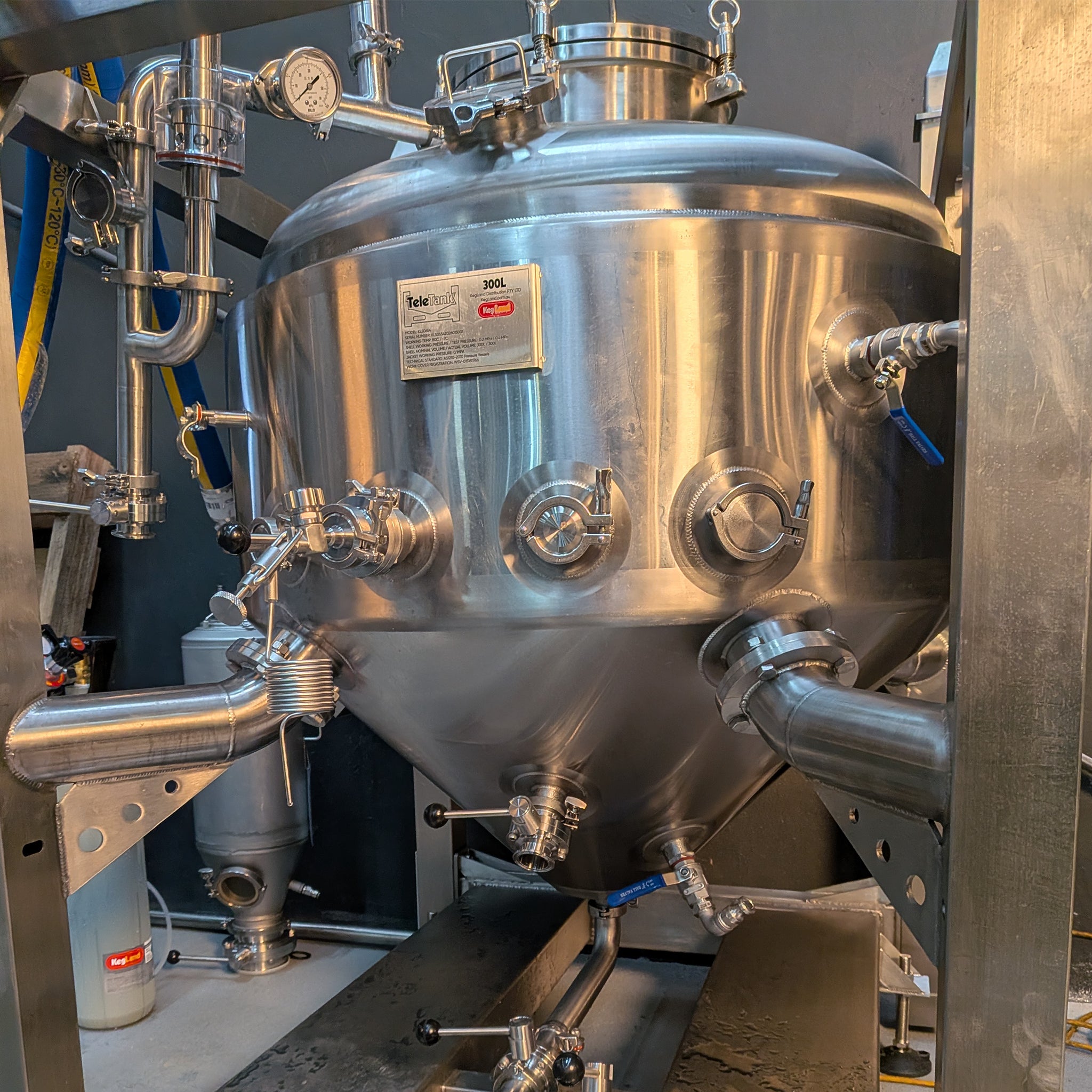

Pressure Gauge: 0-4Bar Liquid Filled Class 1.5

Hop/Addition Port: 4inch TC

Cone Angle: 90 degree

Design Registration/Verification: AS1210:2010 - Pressure Vessels
