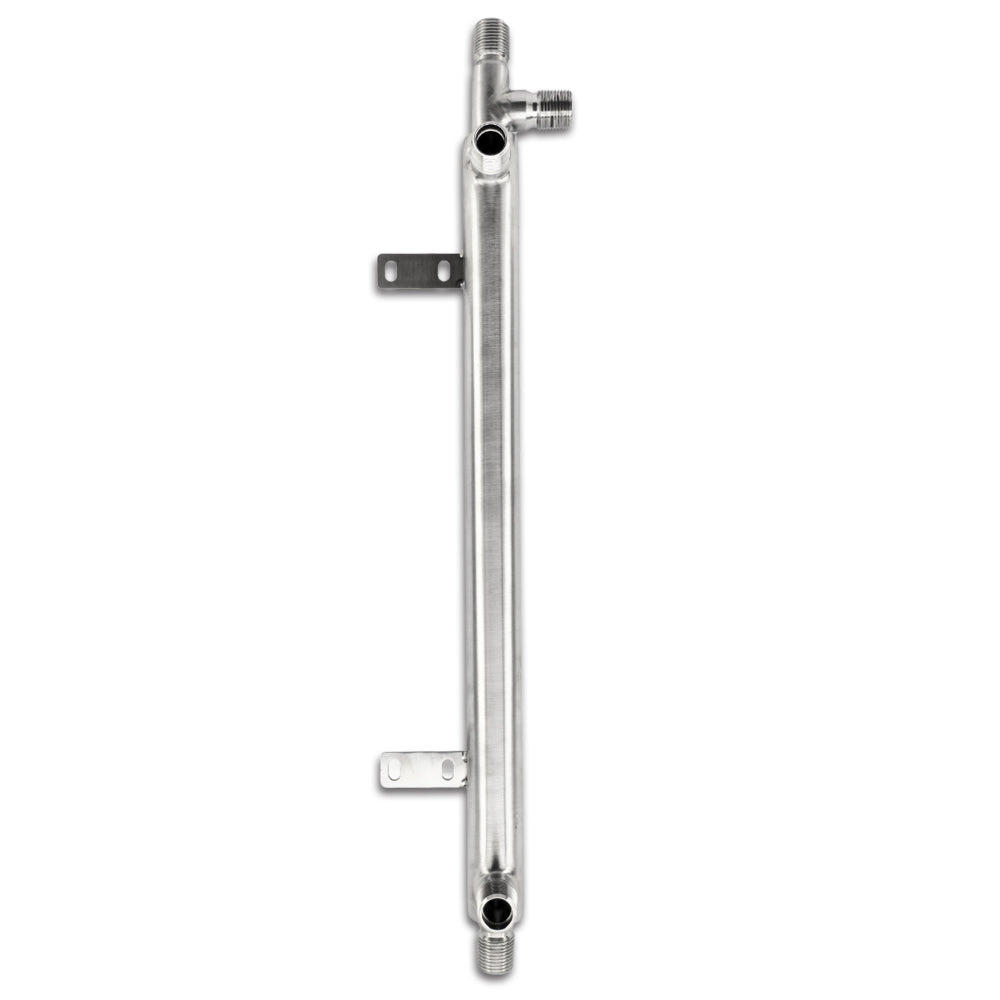

PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser

A Liebig condenser is the scientific name for a reverse flow single tube chiller. It consists of two tubes inside one another. The larger most outer tube is plumbed most from the lowest section to the highest section with water. This water condenses the vapour distillate which is rising vertically out of your still back down into liquid form in the inner most tube.
There are different variations with multiple inner tubes like a shotgun condenser. But these Liebig styles are the most common in scientific labs in either glass or stainless steel.

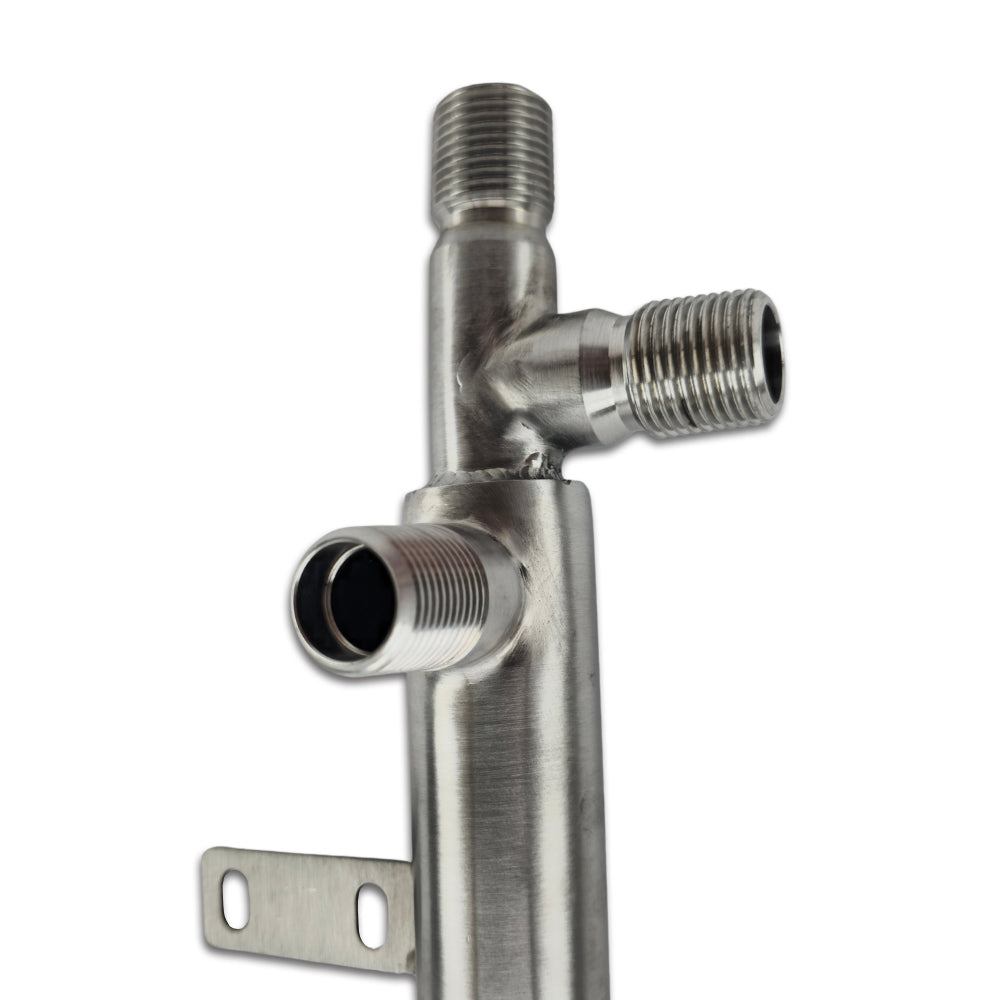

The inlets can be configured vertically or horizontally depending on your still set up. This condenser does not come with a KL39567  1/2" Quick Swivel Cap to cap off the other side you're not using.

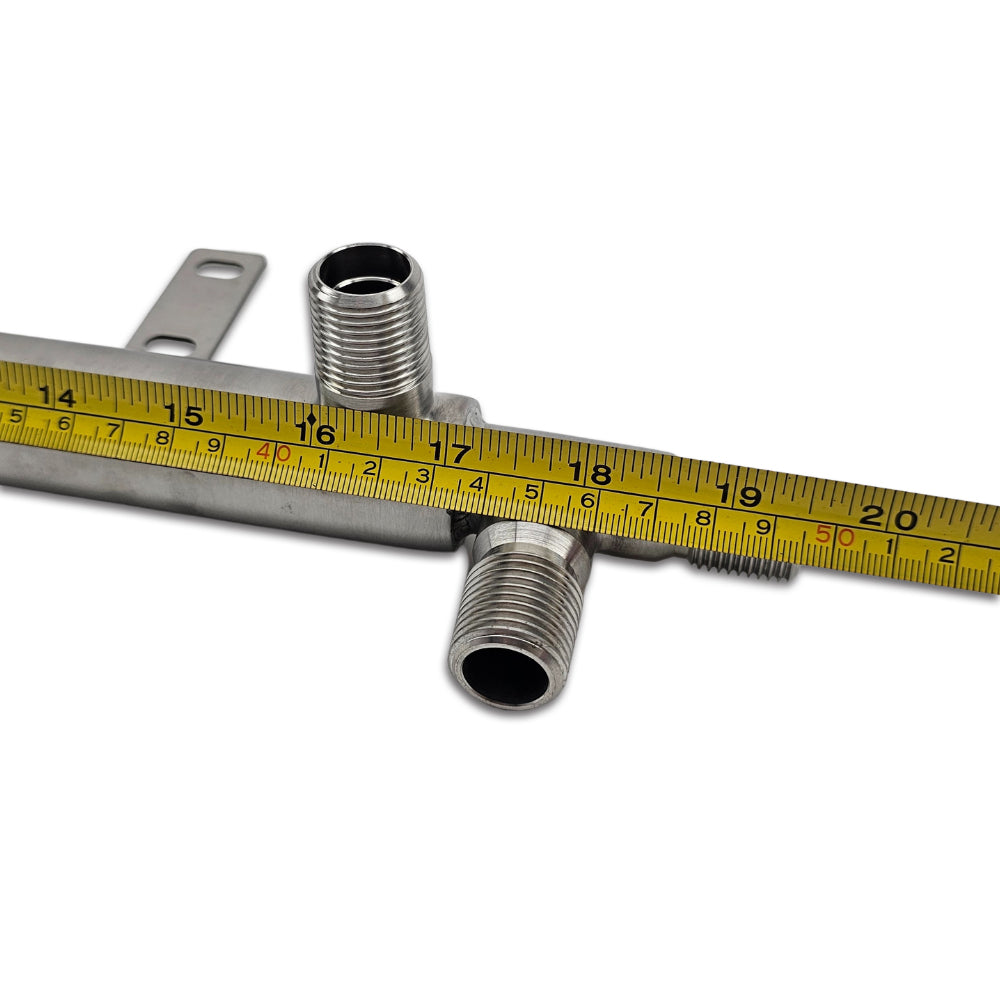

Dimensions:
Overall length including 1/2" NPT Fittings = 500mm
Outer tubing OD: 32mm
Inner tubing OD: 22mm
Fittings: 1/2" NPT

Capabilities:
Wattage Limit: 4000 watts
With 20°C coolant water at rate of 3.5L per minute exiting the condenser.
The colder the water, the higher the wattage rating.
