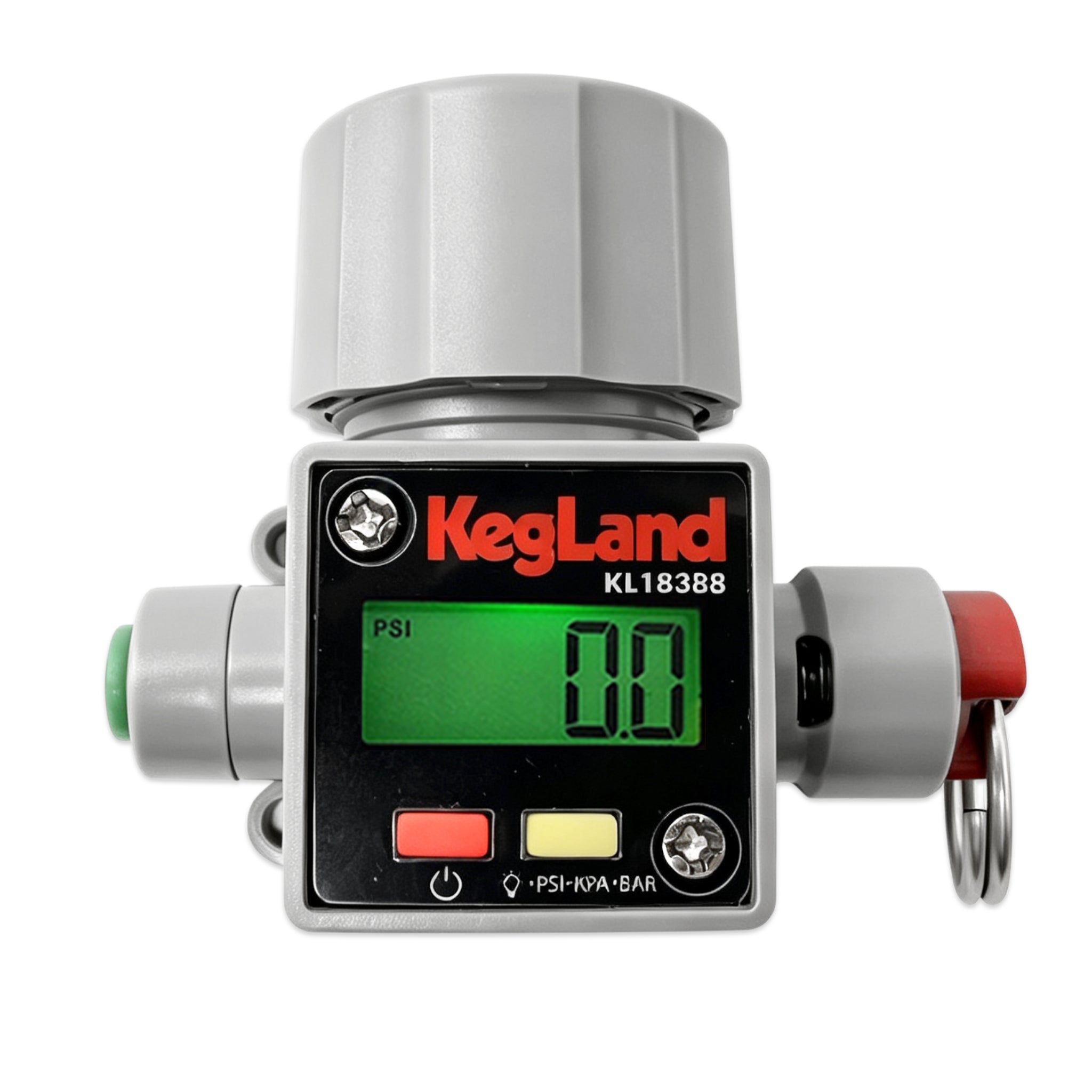

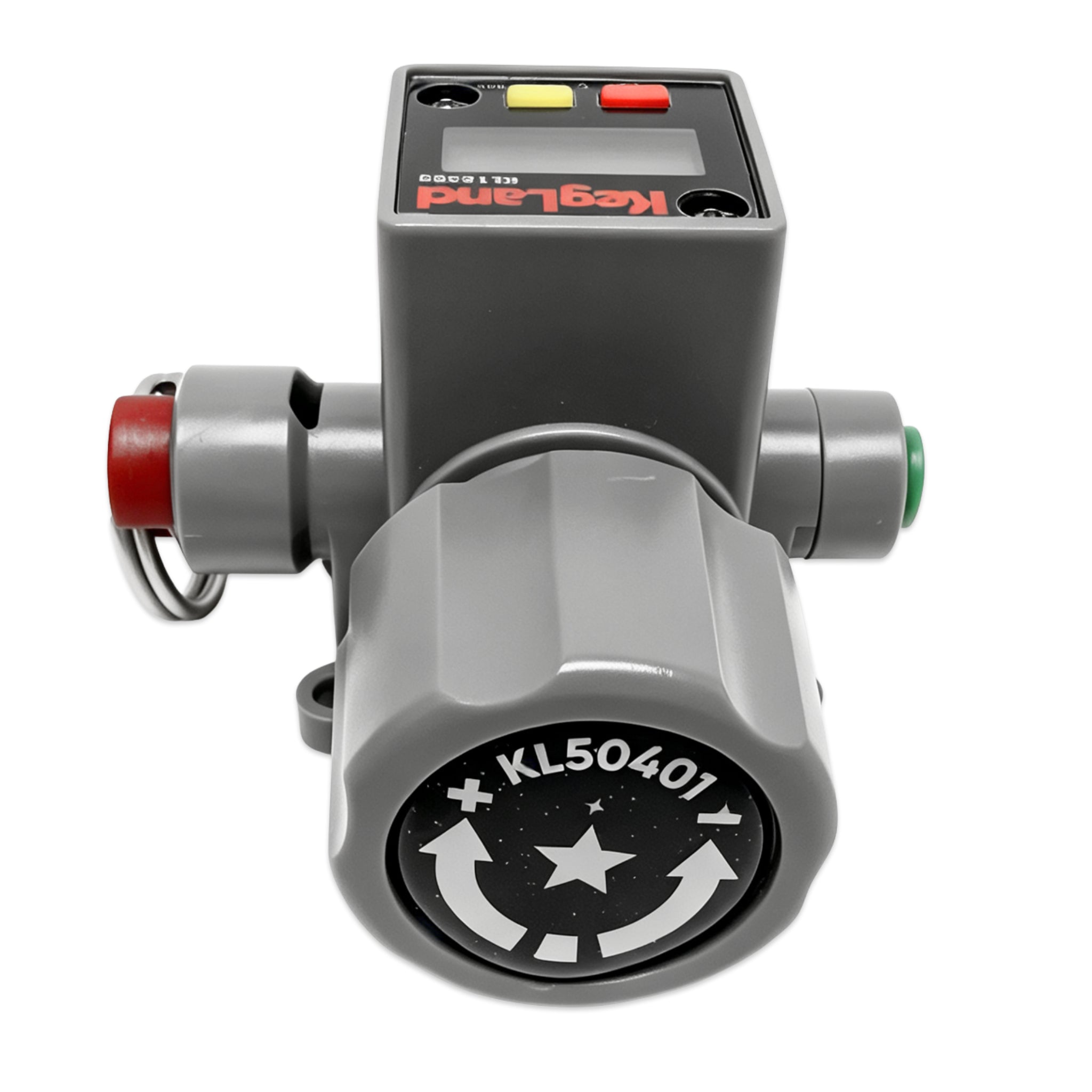

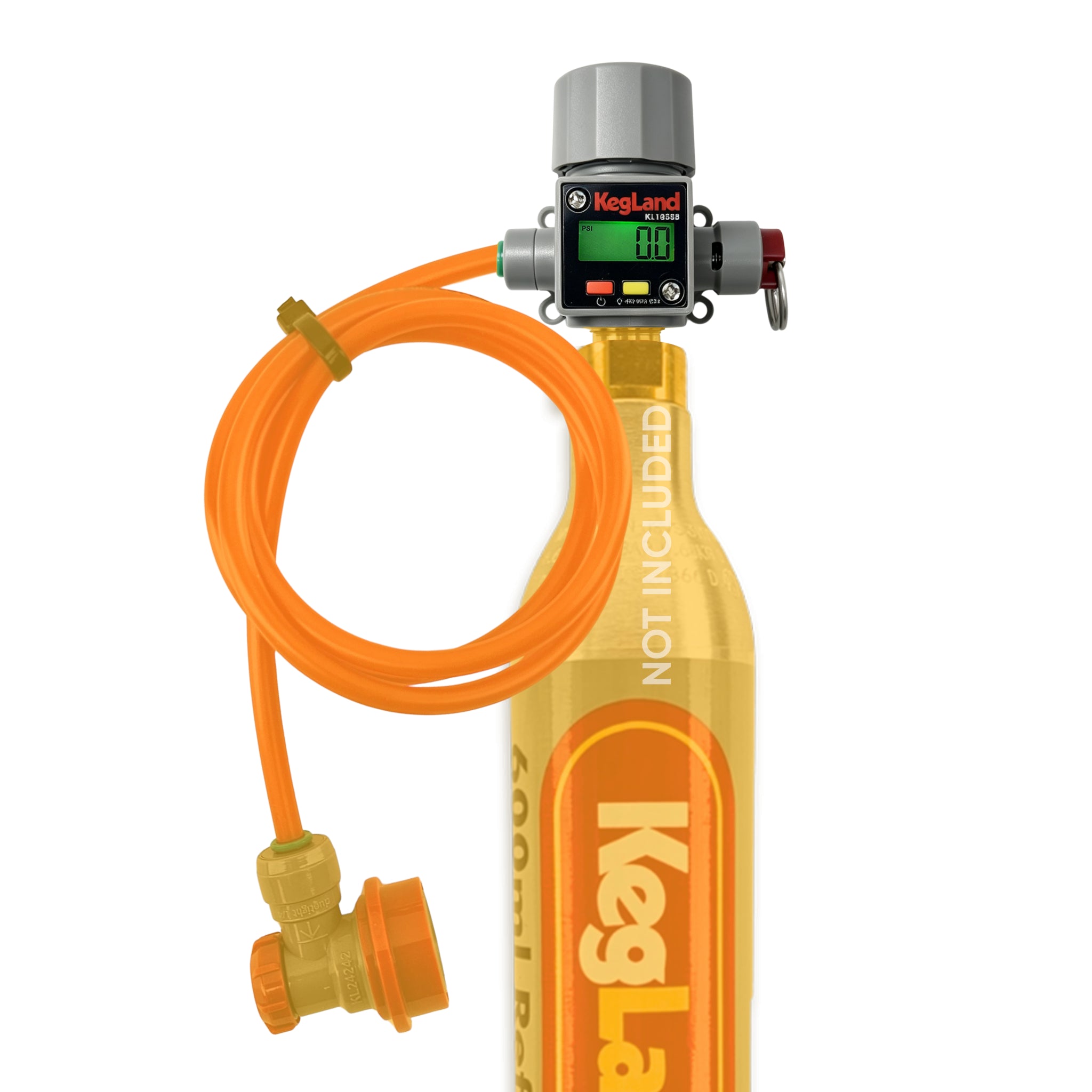

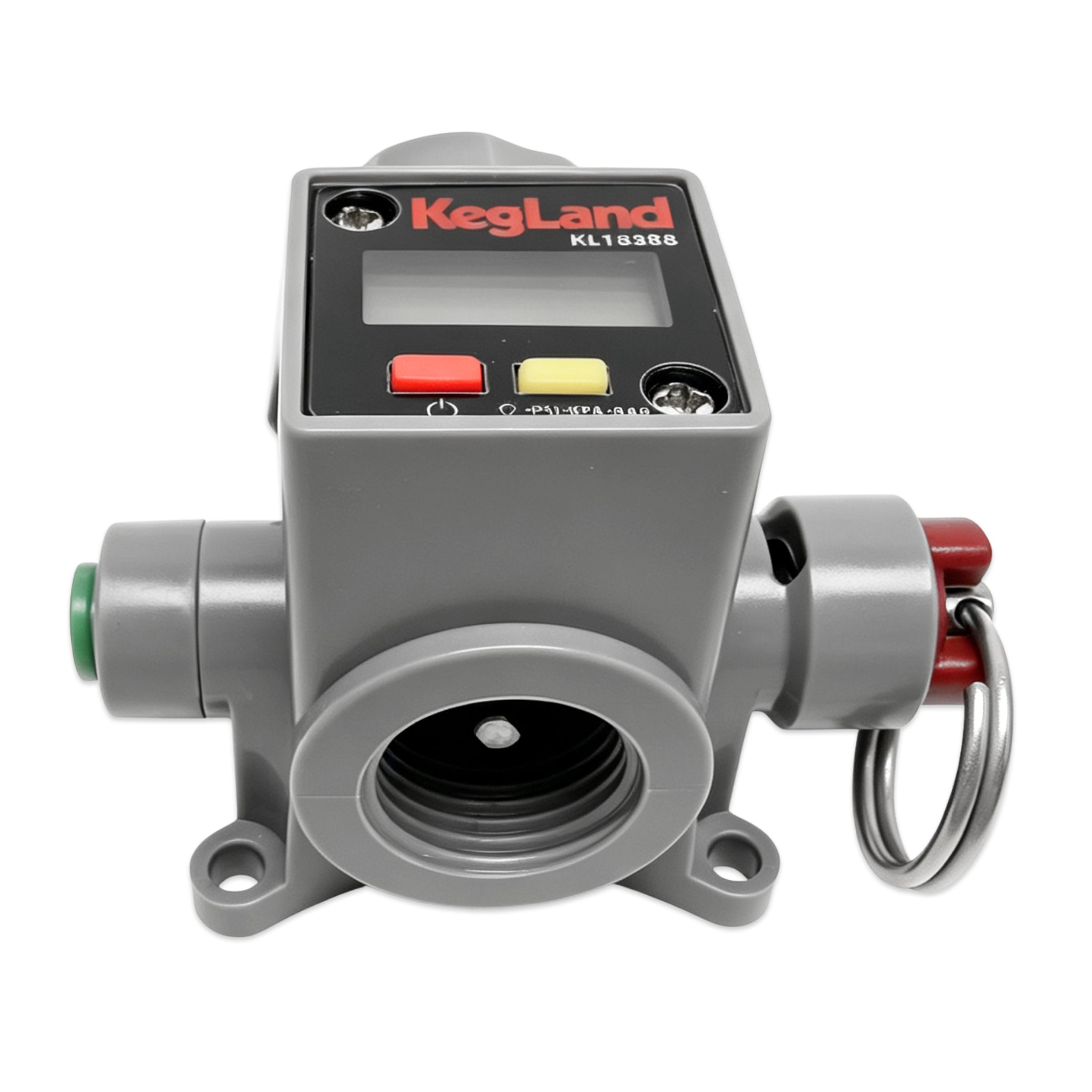

Direct Acting Odyssey Mini Regulator - 6.35mm (1/4) duotight x AU SodaStream Thread
Description
Take me on a journey around the stars! The all new lightweight Odyssey Sodastream Cylinder Regulator from KegLand.
The Patented "Direct Acting" regulator mechanism is a smarter design than traditional regulators as it omits several major parts to the seat and seat cap assembly. This helps to make the regulator more reliable and safer.
Traditional regulators use a piston or diaphragm to push down a poppet to allow gas flow. The poppet and sealing surface is know to be one of the key components that are susceptible to contamination which can result in pressure creep. When pressure creep occurs the regulator must be disassembled and repaired or replaced. A large number of regulator failures are due to this one common issue.
This direct acting regulator removes the whole poppet assembly from the regulator and the piston drives the poppet on the Sodastream Valve Directly. (Hence the name "Direct Acting"). Removing the poppet from the regulator greatly increases the reliability.
What if the poppet in the cylinder valve is faulty?
This is the natural question to ask and the reality is it's not your problem. If the poppet is contaminated in the cylinder valve or faulty it will be picked up at the time of filling and it's therefor repaired at that stage.
Weight, Cost Savings while being more Safe
As this is a Direct Acting regulator and high pressure gas never enters the regulator the whole regulator assembly can be injection moulded. This reduces cost but also means we remove any risks associated with high pressure gas outside of the cylinder itself. It also reduces the force required to tighten the cylinder to the regulator body as it's only a low pressure connection.
Features
- Illuminated 0-90 psi Mini Gauge which is protected by surrounding moulding
- 6.35mm Female duotight outlet
- Red 35psi Pressure Release Valve
- AU Sodastream thread. Most suitable with 450g KegLand branded CO2 Cylinders
- Super Lightweight: 200g
- 4 x Mounting Screw Ports if you wanted to afix this to your portable set up.
- Made from high impact engineering grade polykeytone for robustness.
Mini Illuminated Gauge Specs:
-
Battery Life: More than 2 years (using the mini gauge once a day)
-
Battery Type: CR2032
- Auto Battery Saver: YES, screen automatically turns off after 15sec
- Size: 27mm x 27mm
- Radial O-ring Stem: 7.8mm Bore
We would recommend using an inline check valve to ensure liquid does not pass backwards into the regulator / cylinder.
