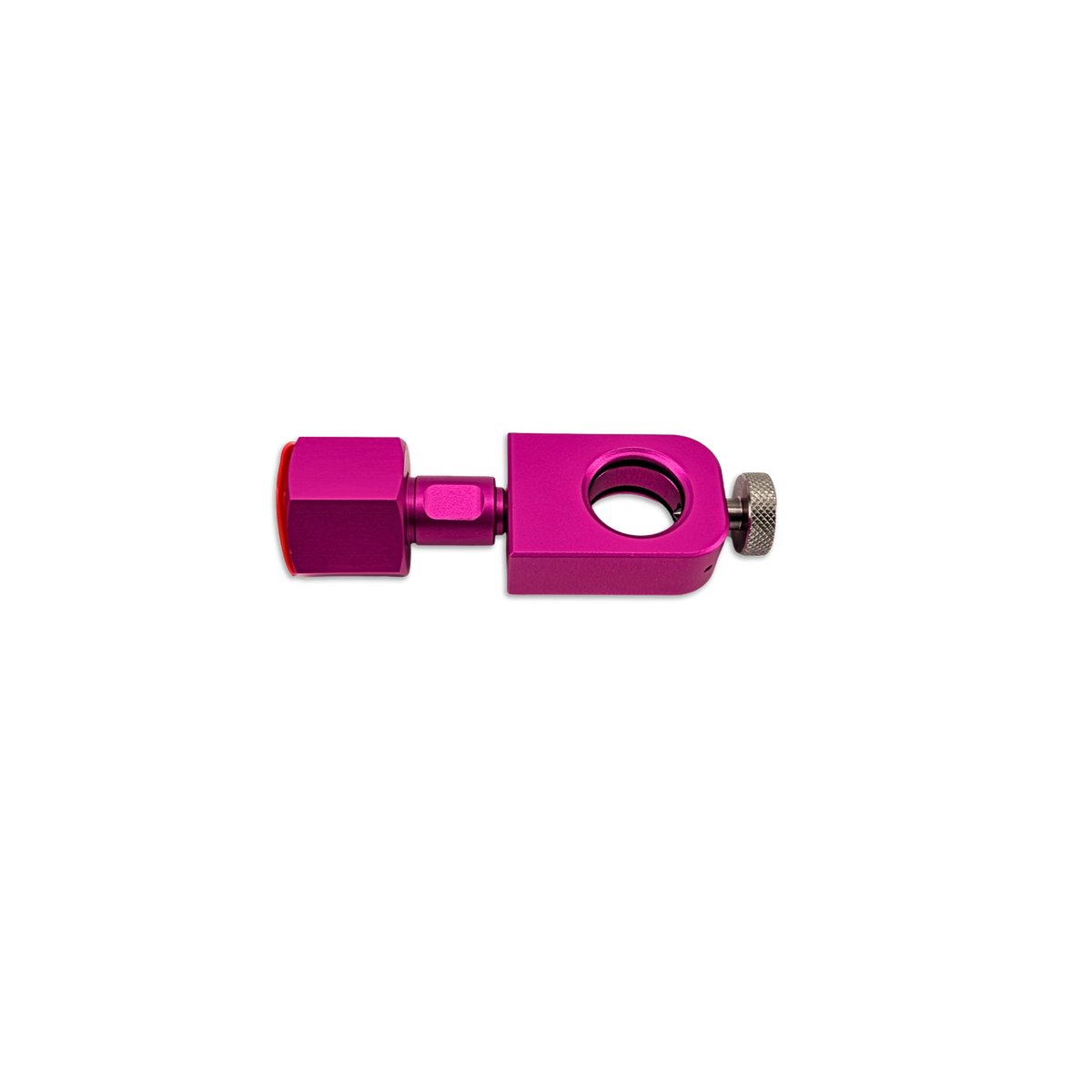

KegLand Sodastream Terra/Art/Duo Filling Adaptor

Save money and refill your own SodaStream Quick Connect (Pink) CO2 cylinders at home with the KegLand SodaStream Terra/Art/Duo Filling Adaptor. Precision-engineered for the modern generation of SodaStream machines—including the SodaStream Terra, Art, Duo, and Gaia—this adaptor enables seamless CO2 transfer from a larger supply tank into your pink Quick Connect bottles at a fraction of commercial swap prices.

⚠️ CRITICAL SAFETY & INSTRUCTION NOTICE

WARNING: It is VITAL that you read all instructions and watch our step-by-step video guide before attempting to refill your cylinder.

Watch this instruction video on YouTube before use.

Key Features & Specifications

• Quick Connect Compatible: Purpose-built for new-style Quick Connect (Pink) SodaStream CO2 cylinders used in Terra, Art, Duo, and Gaia machines.
• Heavy-Duty Brass Construction: Built for durability and reliable high-pressure operation.
• Integrated Thumbscrew & Bleed Valve: Allows safe and convenient pressure release after refilling.
• Complete Seal Kit Included: Includes high-quality internal seals for a leak-free connection.

Recommended Bulk CO2 Supply Cylinders

For reliable and safe refilling, we recommend pairing this adaptor with our KegLand Branded Bulk CO2 Cylinders:

• KegLand 2.6kg CO2 Gas Cylinder
• KegLand 6.0kg CO2 Gas Cylinder

Note: KegLand recommends using KegLand branded supply cylinders to guarantee correct fitting and gas transfer.

Step-by-Step Refilling Guide

Preparation

1. Put On Safety Goggles: Ensure eye protection is secured before handling CO2 equipment.
2. Ensure Cylinder is Empty: Refilling a partially full bottle is inefficient. Wait until your SodaStream cylinder is completely empty before starting.
3. Freeze the SodaStream Cylinder: Place your empty SodaStream cylinder in the freezer prior to filling. Colder cylinders accept liquid CO2 much more efficiently.
4. Check Empty Weight: Record the empty weight of your frozen cylinder using a digital scale to prevent overfilling later.
5. Remove RPV (Residual Pressure Valve): Ensure the RPV is removed from your bulk supply cylinder valve to allow reverse flow during refilling.

Refill Process

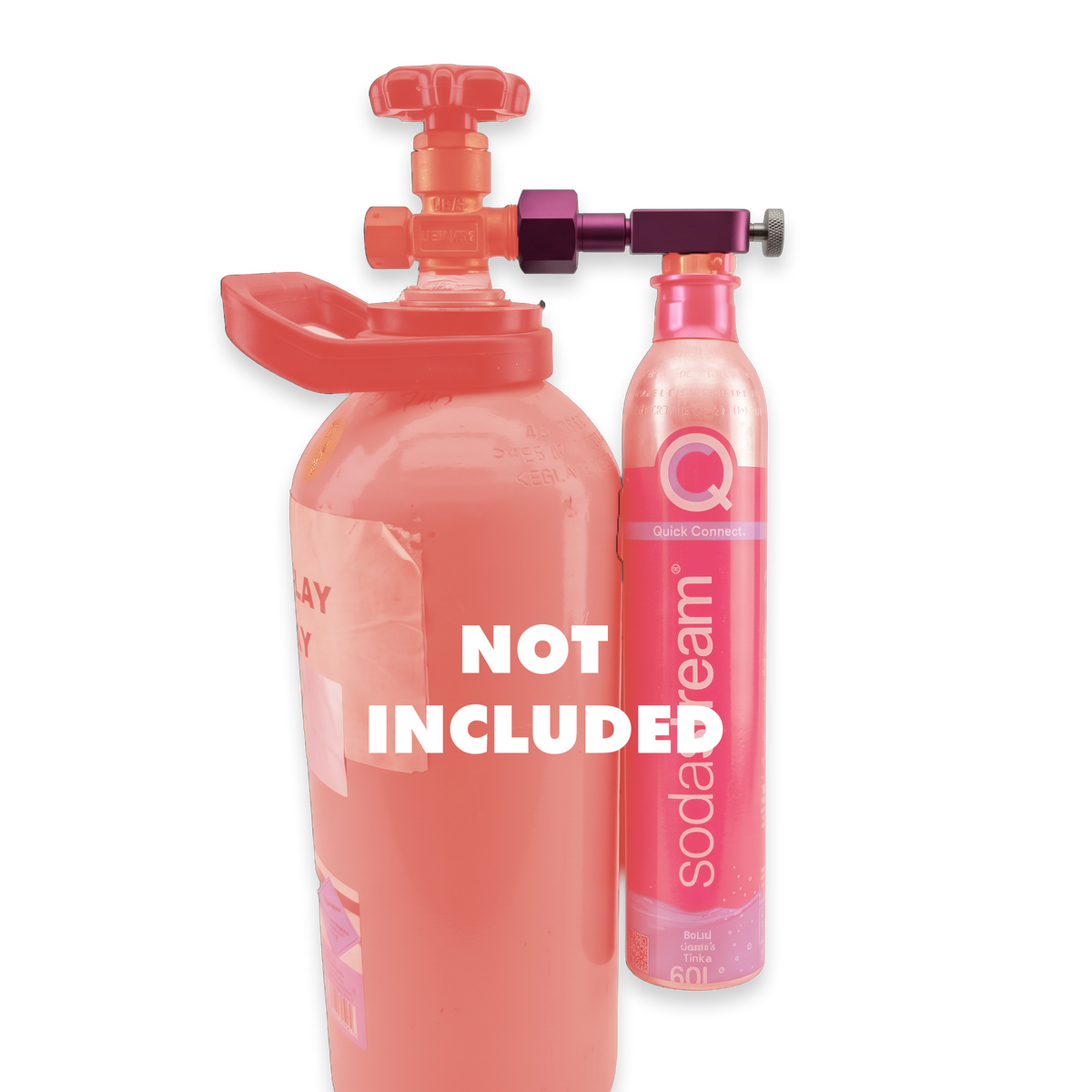

1. Attach Adaptor to Supply Tank: Screw the filling adaptor securely onto your bulk CO2 supply cylinder.
2. Insert SodaStream Cylinder: Push the Quick Connect fitting of the SodaStream cylinder into the refilling adaptor, then tighten the grub screw / release valve.
3. Invert & Open Valve: Invert (turn upside down) your main CO2 supply cylinder so liquid CO2 can flow, then open the valve on the supply cylinder.
4. Fill Cylinder: Listen carefully. Allow gas to transfer until you no longer hear the sound of flow into the cylinder.
5. Close & Vent: Close the valve on the supply cylinder. Open the grub screw / release valve on the adaptor to safely bleed off trapped line pressure.
6. Disconnect: Pull your refilled SodaStream cylinder out of the adaptor. Weigh the filled bottle on your digital scale to confirm it matches the target filled weight and has not been overfilled.

Note: Large CO2 supply cylinders and SodaStream cylinders shown in media are for demonstration purposes only and are sold separately.
