Icemaster G80 Glycol/Icebank with Digital Control 220-240V (69cm x 54cm x 78cm; 90L, 450W)

Commercial grade compact chilling dispensing solution. The G80 offers high performance for small to medium volume customers. Suits small and medium bars, cafés, restaurants or even the increasingly popular traveling bars that want to ice up their flooded fonts.

Please note this is for the unit only, it does not come with attachments for the lines such as tubing for product and chilling lines, or polypropylene glycol.

5/8"BSP to 8mm duotight fittings for the lines are included, for use with line such as 4mm x 8mm or 5mm x 8mm EVABarrier.

Comes with flooding impeller pump and agitator as standard, all enclosed inside the unit for efficiency and ease in transport. The G80 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.

8mm 304 Stainless tubing with welded 5/8" BSP male threads for a wider range of hose fitting needs.

The G80 will drop the temperature of the product by approximately 15°C with one pass through the product lines. Hence we highly recommend if you are dispensing in an area that will be over 30°C, that you double up the lines. This kit therefore suits our 4 Tap T-Bar Font perfectly for warmer climate operations.

Recommended Setup

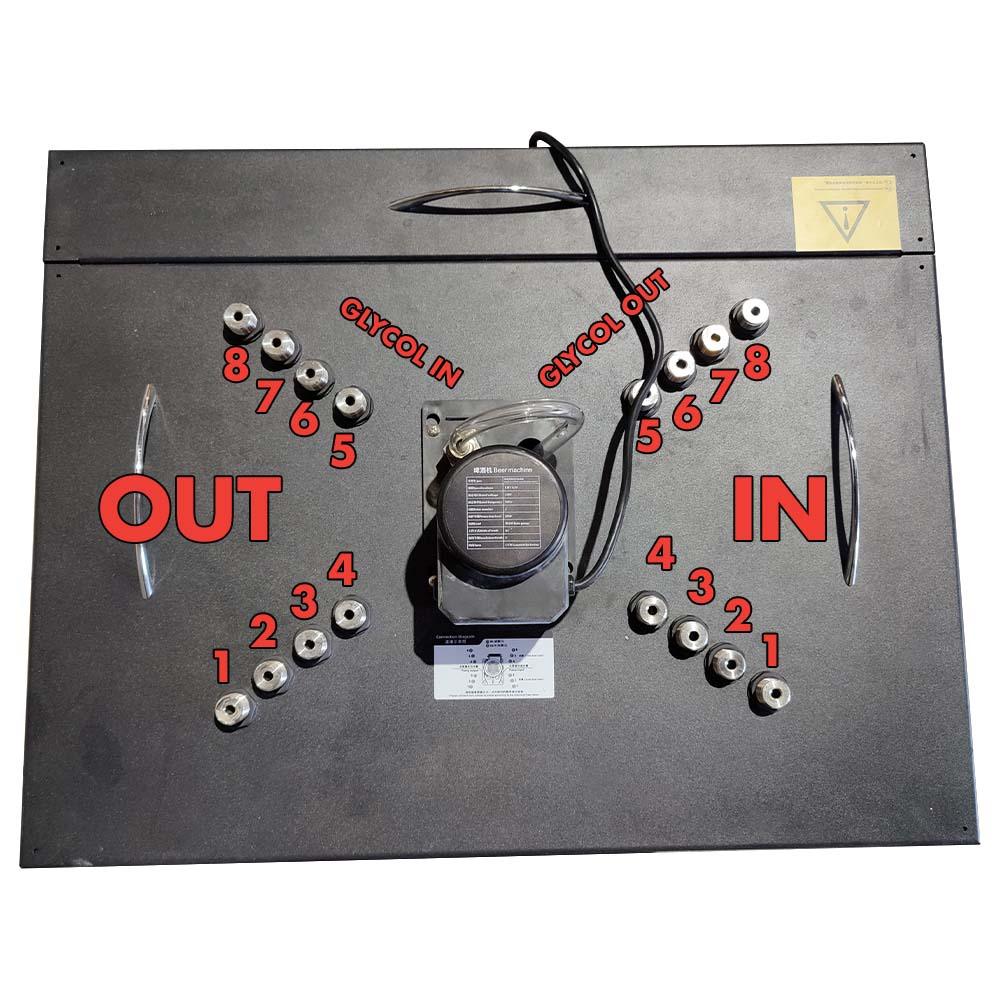

The G80 inlet and outlet connections are 5/8" Male BSP Threads. Included with the G80 are KL06903 duotight - 8mm (5/16”) Female x 5/8” Female Thread to make attaching EVABarrier beer line very simple.

Our 5mm x 8mm EVABarrier is generally the correct diameter for beer line.

For setting up a flooded font, you will also need some heavy duty silicone and clamps.

The inlet and outlet for flooding fonts have 1/2" BSP male and female fittings respectively, making them easy to hook up. 1/2" thread to barb fittings such as these and these are ideal.

Unless you are using this as an icebank, you will also need some propylene glycol.

Specifications

Pump: TBC

Product Lines: 8 Stainless Steel Product Lines

Product Line Size: 304 Stainless Steel Coils (5/8" BSP thread 7mm ID)

Cooling Output Line: 10mm OD 8mm ID

Tank Capacity: 90L Water Capacity

Cooling Capacity: 780watt cooling capacity (1HP) rated at 22°C

Typical Product Cooling Capacity: 90L in the first hour, 35L in each additional hour

Compressor Wattage: 450watt

Refrigerant: R600A

Dimensions: 540mm x 690mm x 780mm High

Digital Temp Controller
Simply set your upper and lower limits with the controller.
