Icemaster G60 Glycol/Icebank with Digital Control 220-240V (53cm x 53xm x 89cm;70L, 450W )

Commercial grade compact chilling dispensing solution. The G60 offers high performance for small to medium volume customers. Suits small bars, cafés, restaurants or even the increasingly popular travelling bars that want to ice up their flooded fonts.

Please note this is for the unit only, it does not come with attachments for the lines such as duotight fittings, tubing for product and chilling lines, or polypropylene glycol.

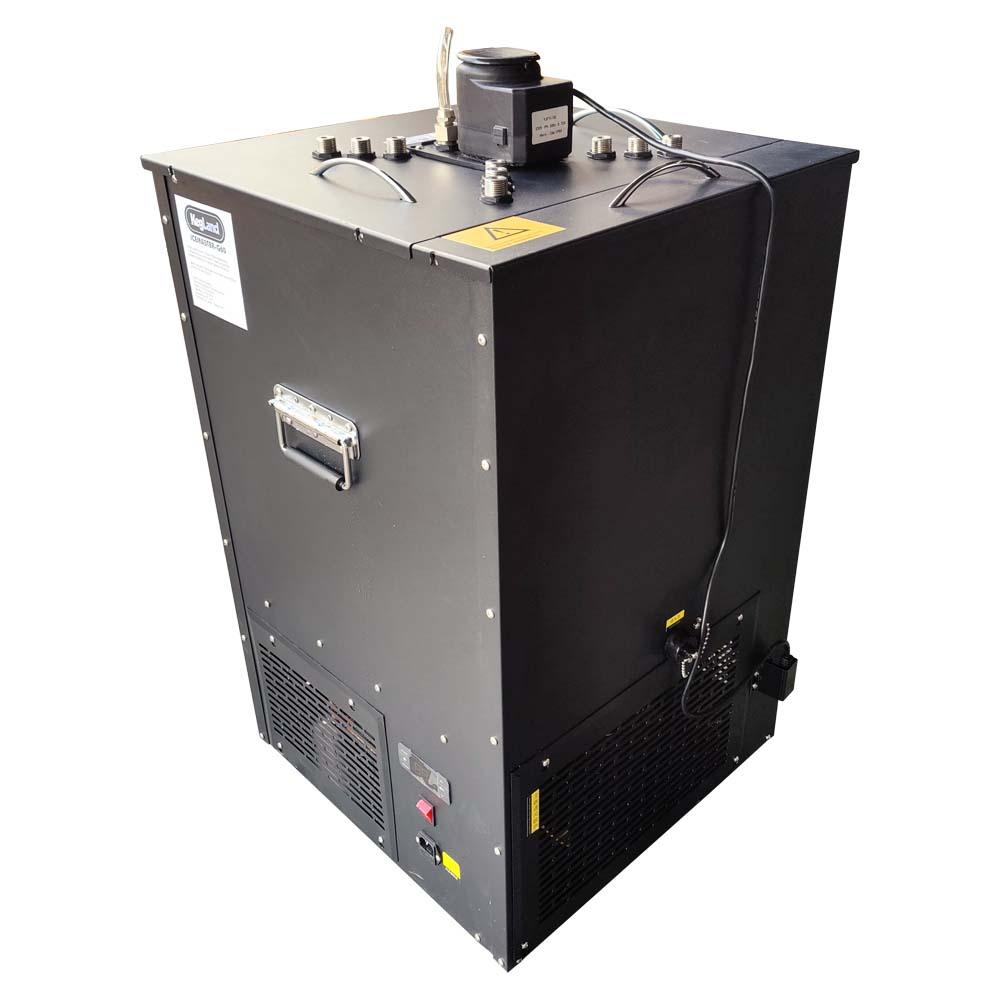

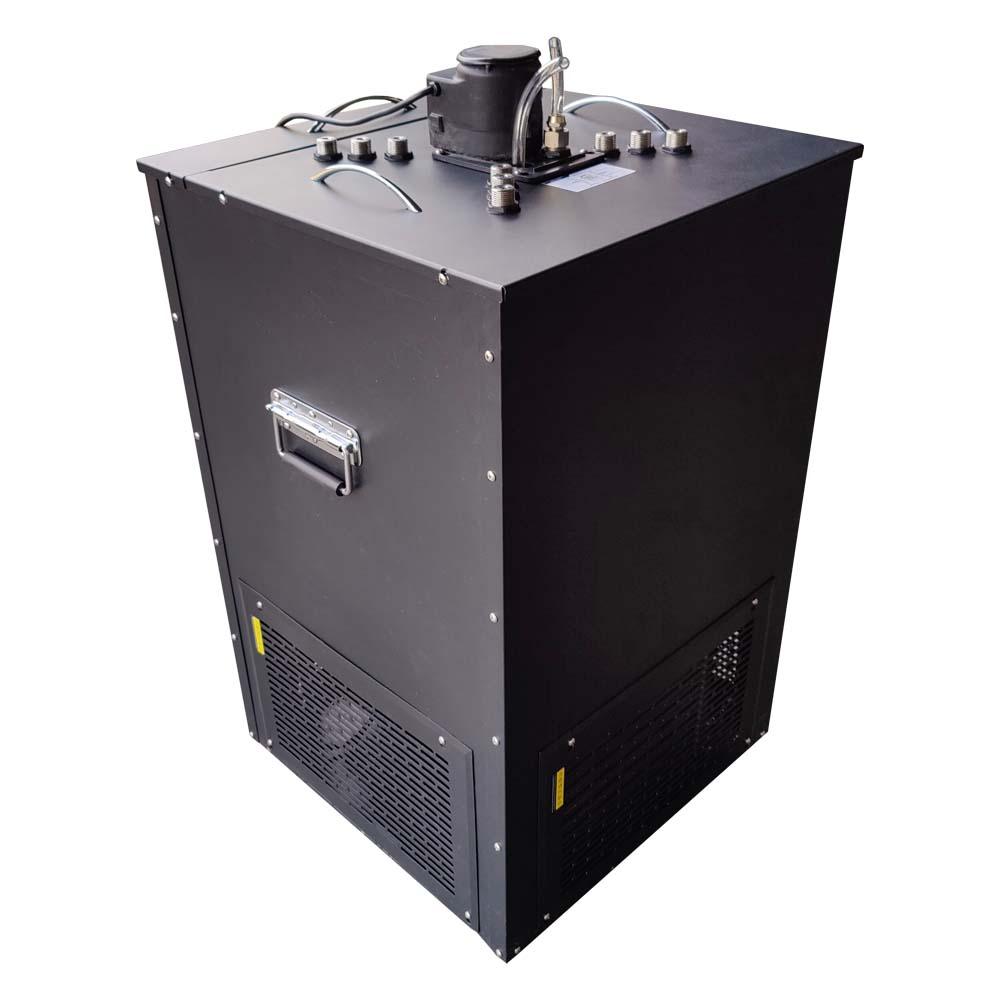

IceMaster G60 - Glycol Chiller / IceBank- Digital Control

Commercial grade compact chilling dispensing solution.  The G60 offers high performance for small to medium volume customers. Suits to small bars, cafés, restaurants or even the increasingly popular travelling bars.

Comes with flooding impeller pump and agitator as standard, all enclosed inside the unit for efficiency and ease in transport. The G60 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.

8mm 304 Stainless tubing with welded half inch male threads for a wider range of hose fitting needs. This unit is 890mm high to it is quite tall to fit under most benches, so a custom fit out or next to the bench would be an ideal set up.

I'd like to make clear that with one pass through, through the G60 will only be able to drop the temperature of your product by 15C. Hence we highly reccomend if you are dispensing in an area that will be over 30C, that you chill down your kegs prior to the event (and keep cold if possible) There are currently not plans to make a G120 for double pass through.

Recommended Setup

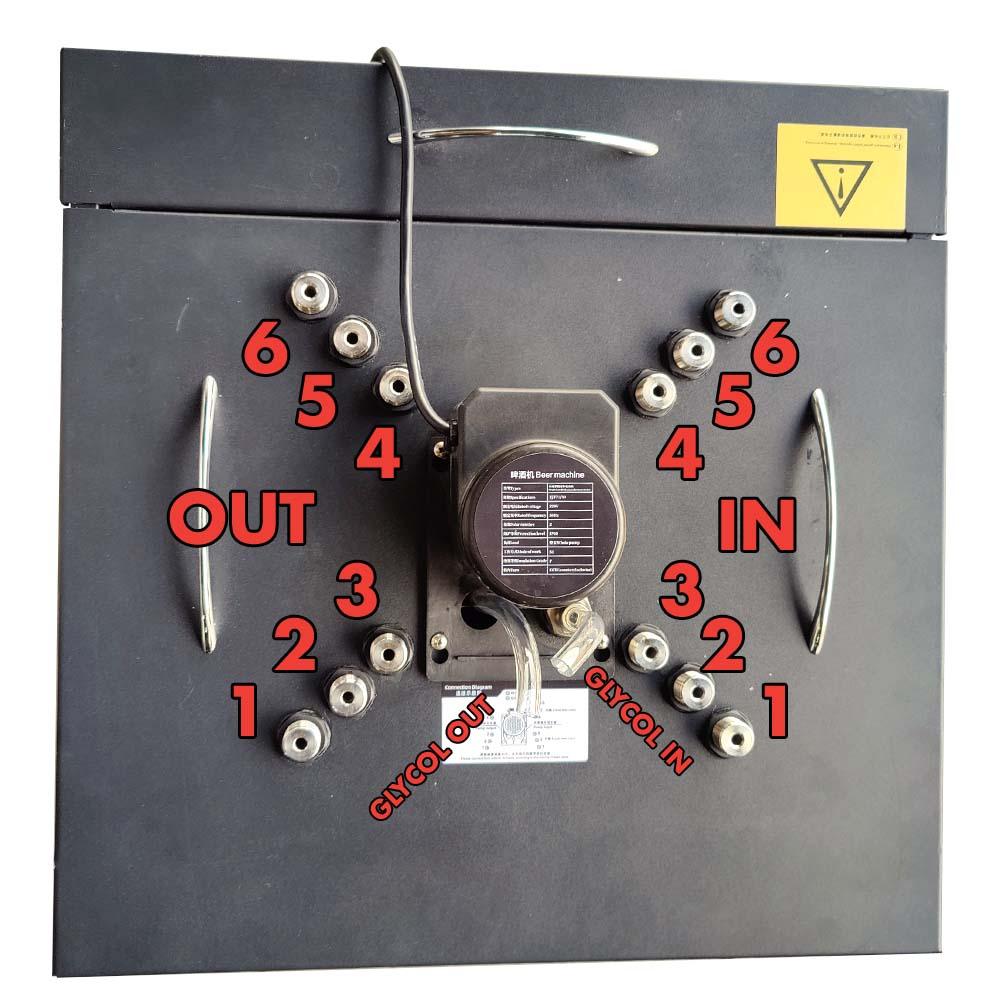

The G60 inlet and outlet connections are 1/2" Male BSP Threads, suitable for KL18753 monotight 8mm x 1/2" Female fittings, or any other 1/2" fitting that you see fit.
Our 5mm x 8mm EVABarrier is generally the correct diameter for beer line.

For setting up a flooded font, you will also need some heavy duty silicone and clamps.

Unless you are using this as an icebank, you will also need some propylene glycol.

Specifications

Pump: TBC

Product Lines: 6 Stainless Steel Product Lines

Product Line Size: 304 Stainless Steel Coils (1/2" BSP thread 7mm ID)

Cooling Output Line: 10mm OD 8mm ID

Tank Capacity: 70L Water Capacity

Cooling Capacity: 780watt Cooling Capacity (1HP) (Rated at 22C)

Typical Product Cooling Capacity: 90Litres in the first hour, 35Litres each additional hour

Compressor Wattage: 450watt

Refrigerant: R600A

Dimensions: 530mm x 530mm x 890mm High

Digital Temp Controller
Simply set your upper and lower limits with the controller.
