A must have bit of kit for any homebrewer. Don't waste time next to the hose, punch in what you need and concern yourself with other parts of the brew day. It is the KegLand way!

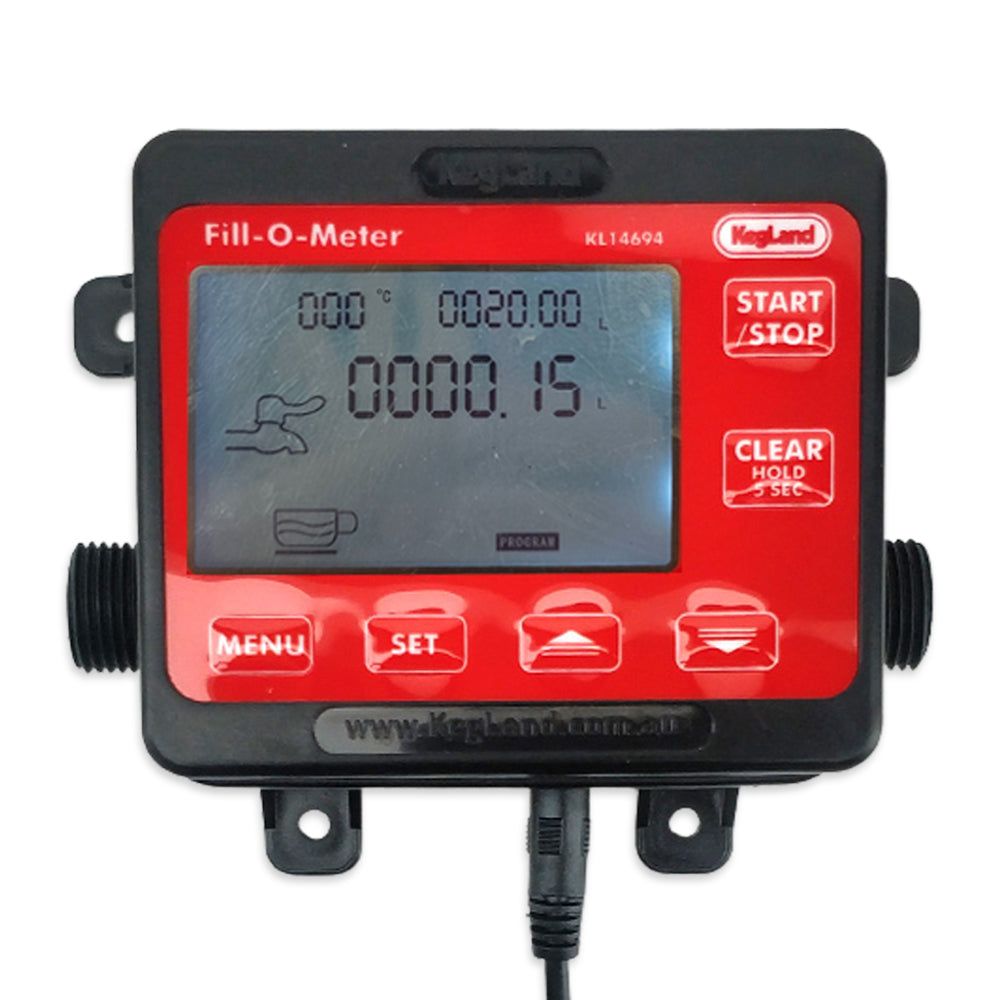

The perfect present for any homebrewer of any skill level, we all need water to brew.
- Displays real time flow rate and volume (Liters/Min or Gallons/Min)

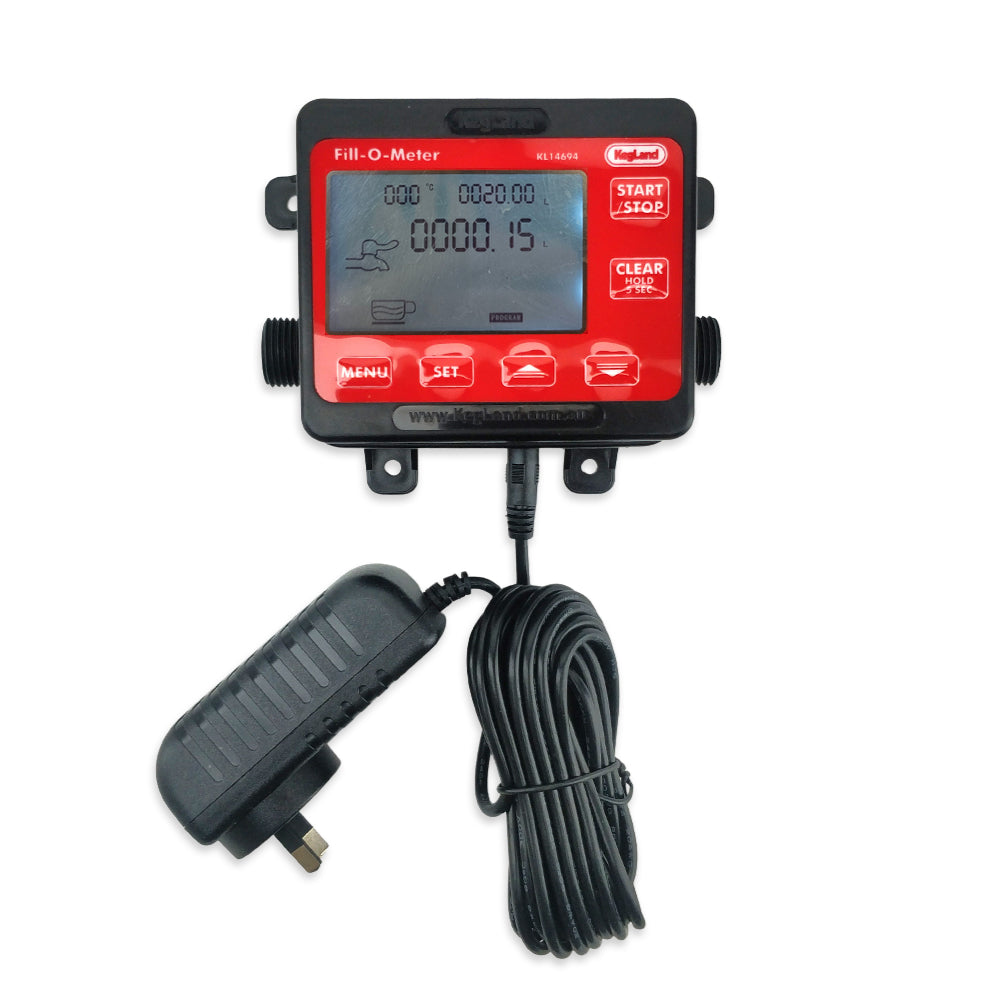

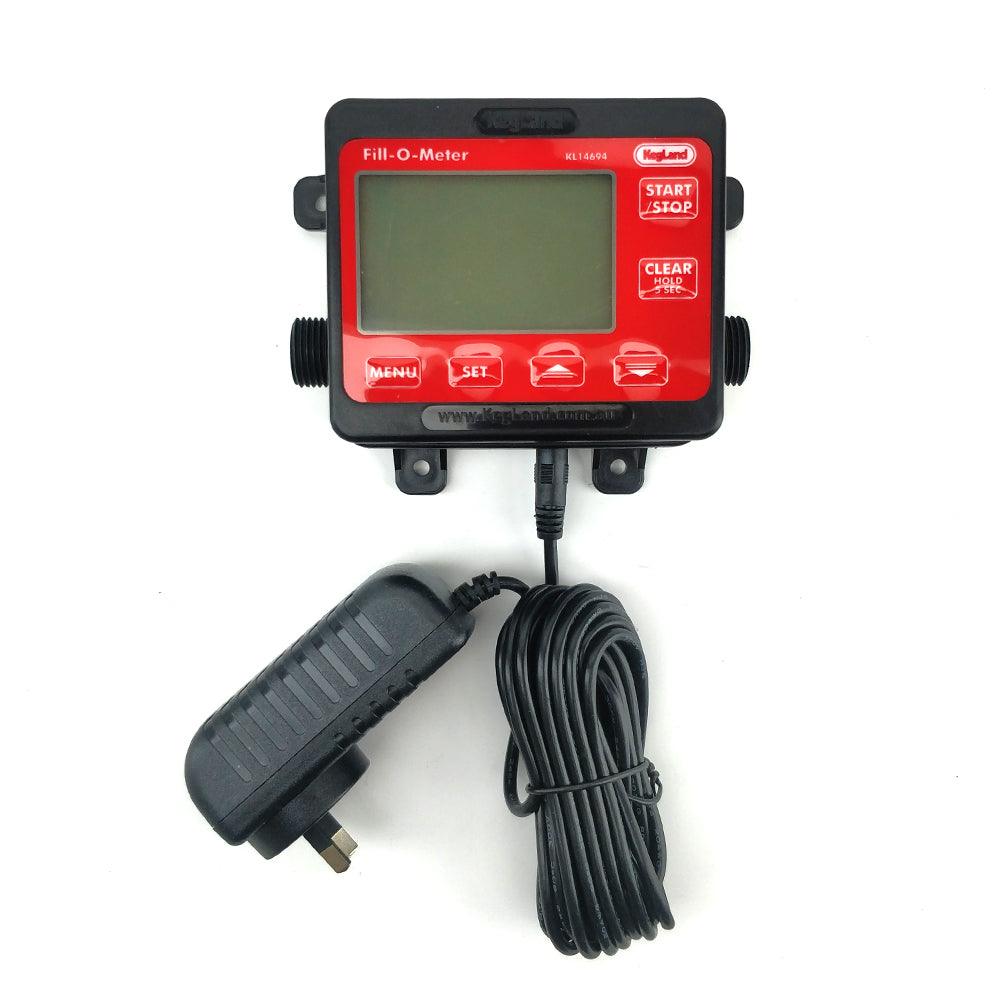

- Mains power supply included (never change a battery again)
- Accurately measures and controls volumes at flow rates from 1-30L/Min
- Never overfill or spillover again
- Splash resistant housing
- Great for filling pools, tanks, brewery hardware, distilling gear, mixing liquid and many other applications not mentioned
- Integrated flow meter and solenoid valve
- Illuminated display for usage in the evening
- Integrated sound alarm
- Easy 1/2" BSP Inlet and Outlet
- Measure the amount of water used in the garden

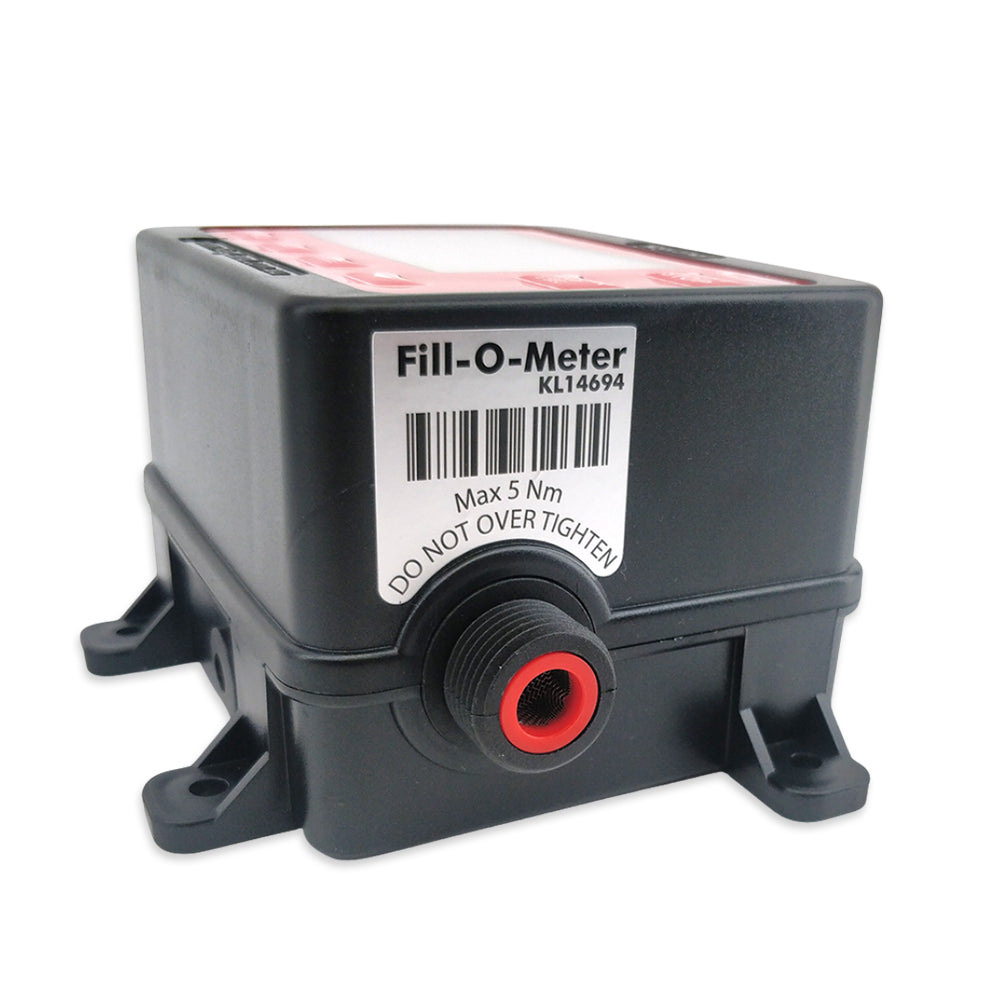

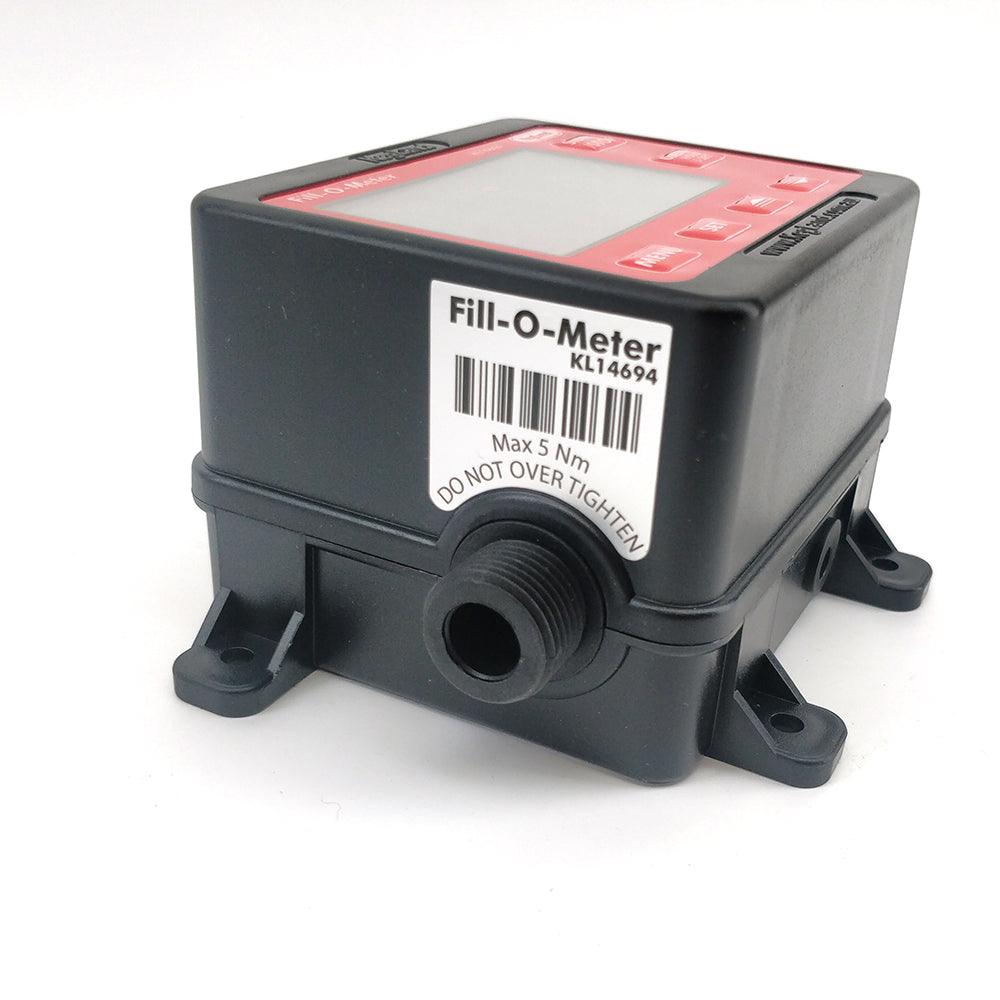

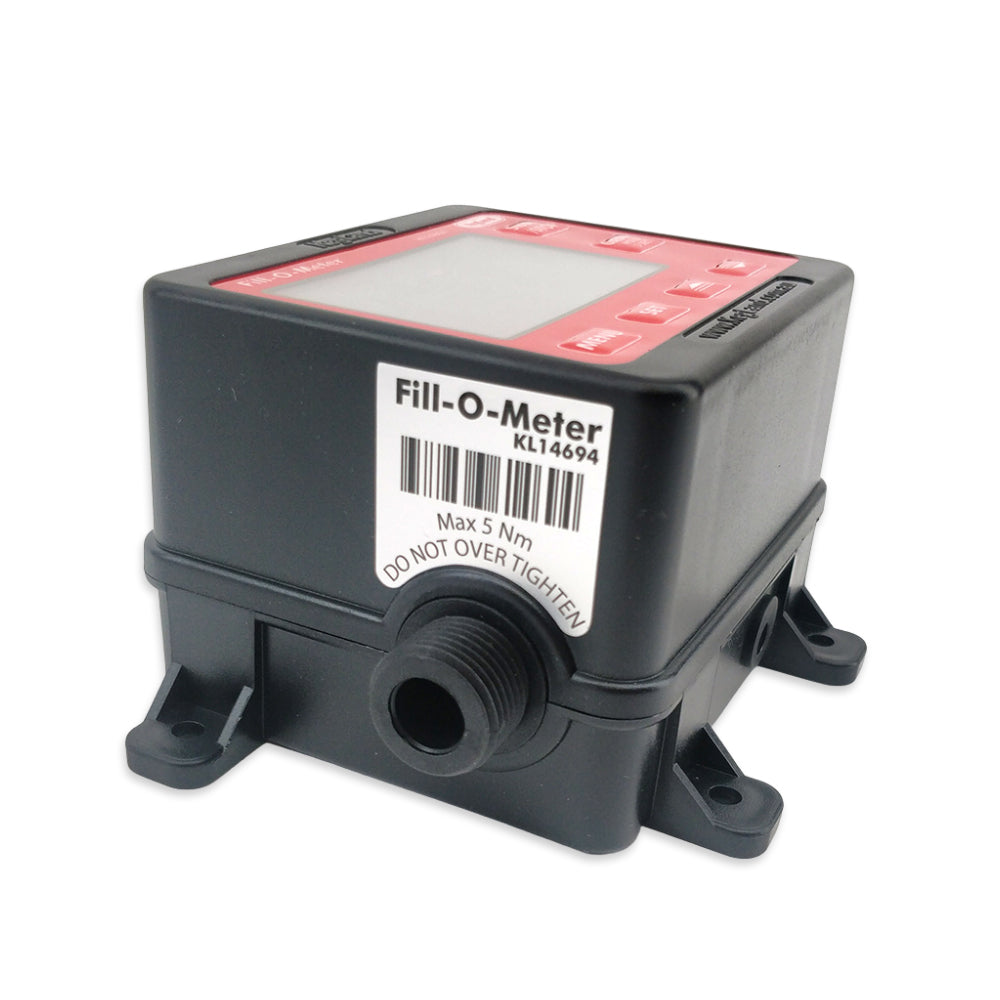

WARNING: DO NOT overtighten the inlet and outlet.
No More Spillovers!
Unlike other tap timers that simply measure time, this Fill-O-Meter measures volume of water and will automatically turn off when the specific volume of water is dispensed.
We recommend setting up the Fill-O-Meter with either the Garden Hose Connectors or Type A Camlocks. Thread tape will be required for the Camlock. Use sparingly as too much teflon can damage the plastic thread. And it is very important to never overtighten!
Important Notes:

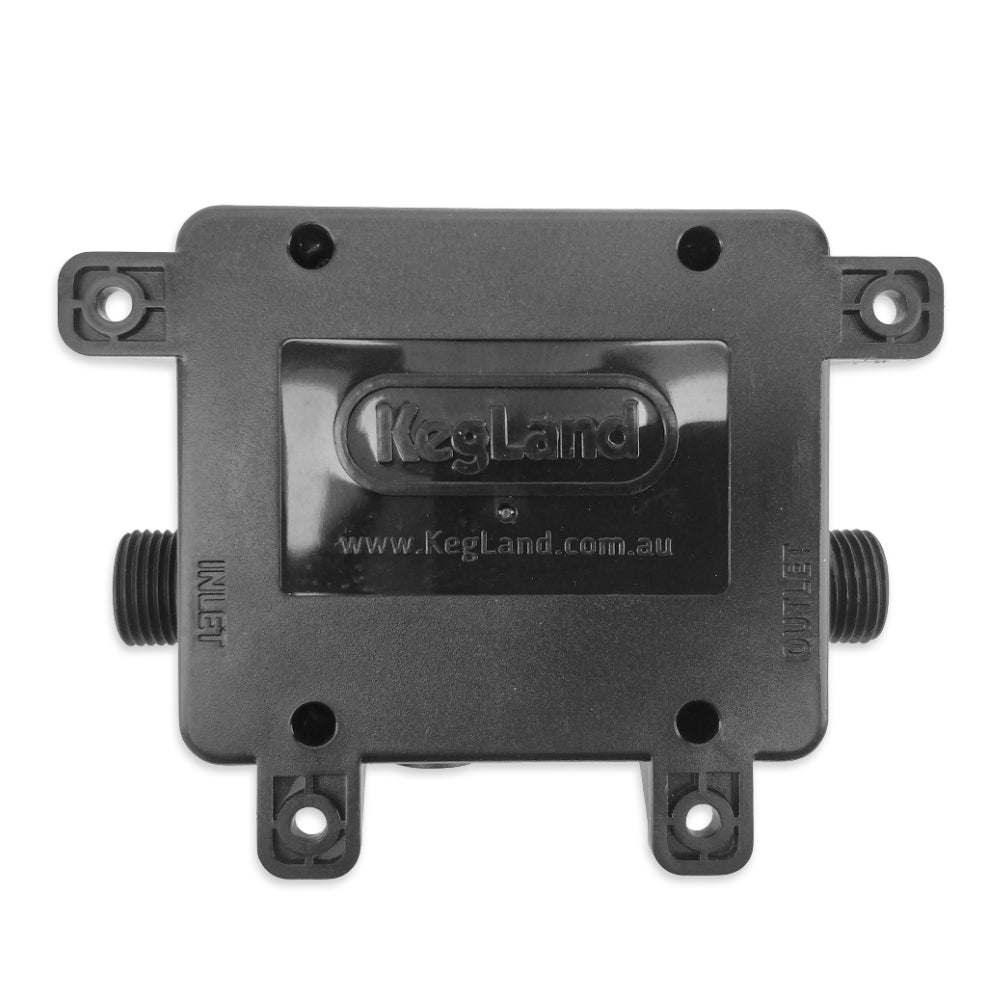

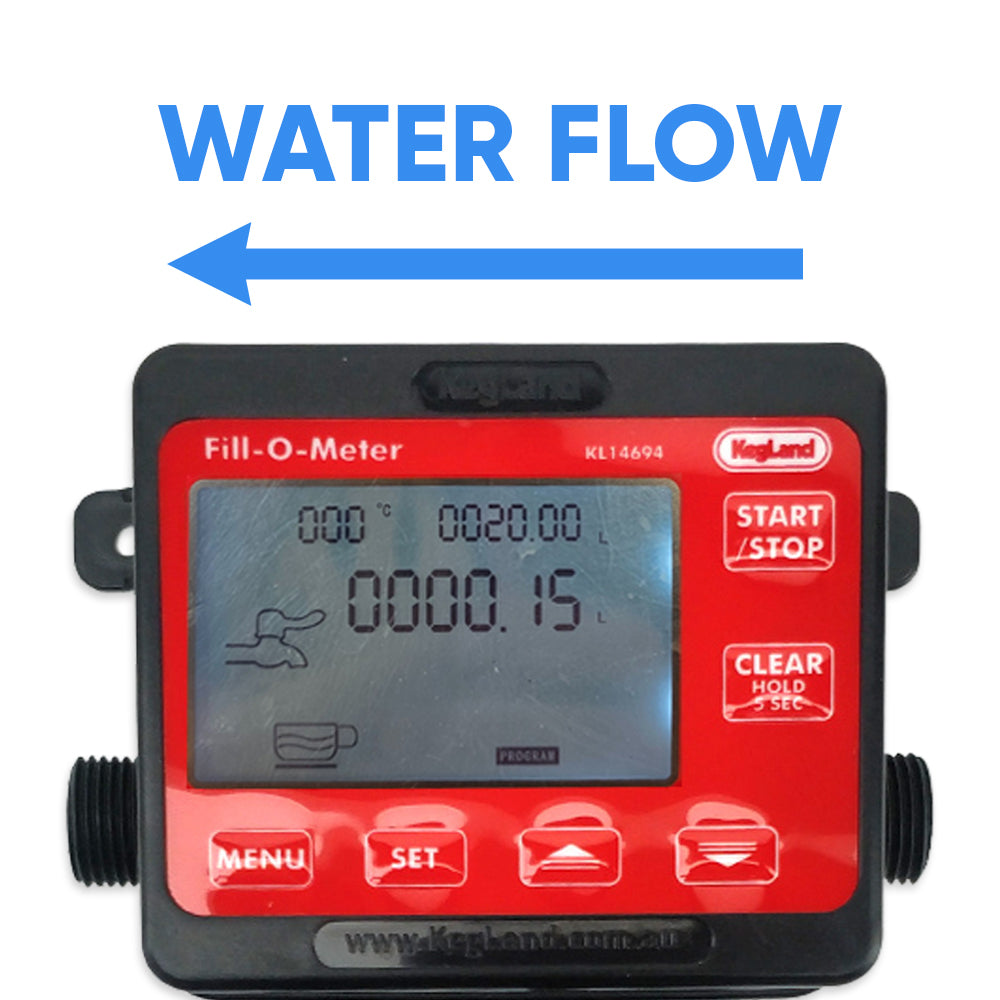

DO NOT flow liquid the wrong direction, it will break the unit.
DO NOT overtighten fittings onto the 1/2" ports.
DO NOT exceed temperatures greater than 80°C through the unit.
Specifications:
Power Supply Input: 100-240VAC (50/60Hz)
Power Supply Output: 24V DC, 1.5A
Flow Range: 1-30L per minute
Temperature Range 0°C to 40°C when use at mains water pressure (180psi) or up to 80°C when used at 60psi. Please note: Temperature module is not installed on unit.
LCD: 3 inch back lit display
Housing Material: ABS
Input/Output threads: G1/2"
Pressure Rating: 0-12bar (0-180psi)
Accuracy: +/- 5%
Note: Accuracy can be improved with stable flow. Repeated start/stop or varation in water supply can have negative effect on accuracy.
FAILSAFE
If for any reason the power turns off, then the Fill-O-Meter will shut the flow.
