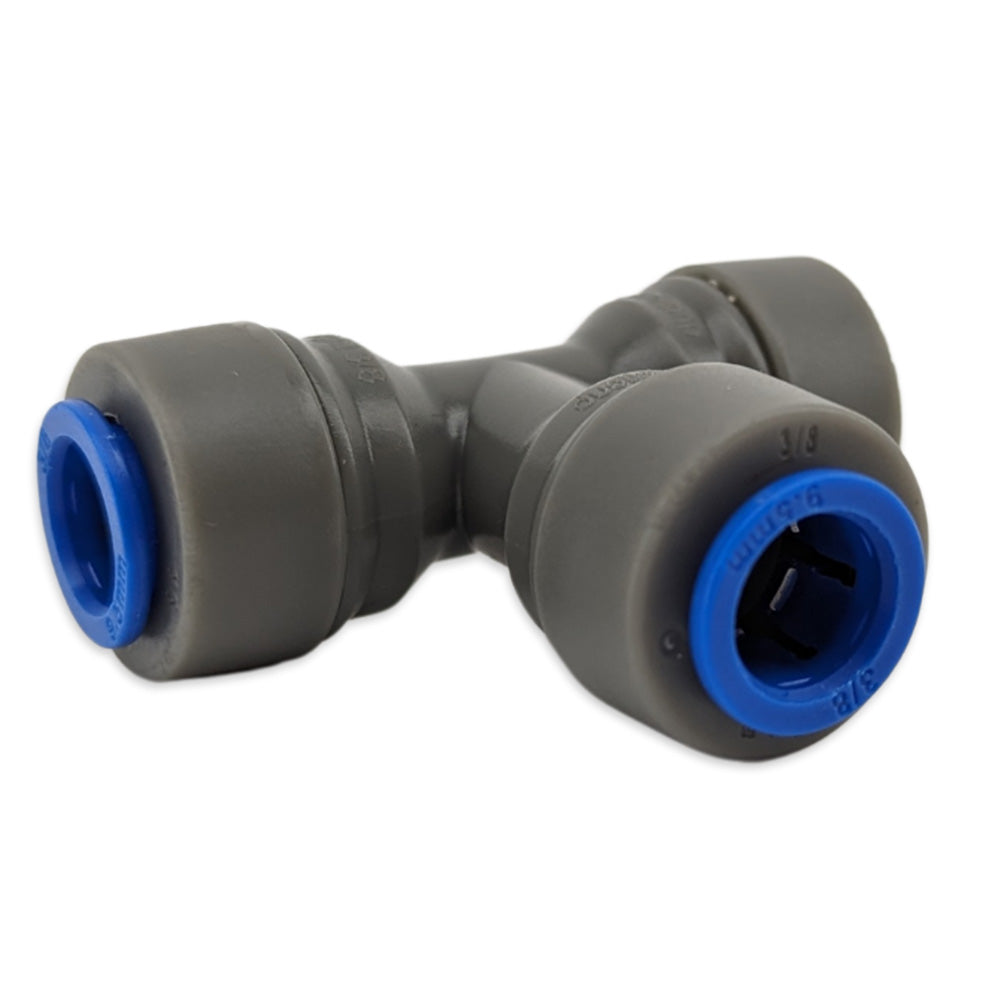

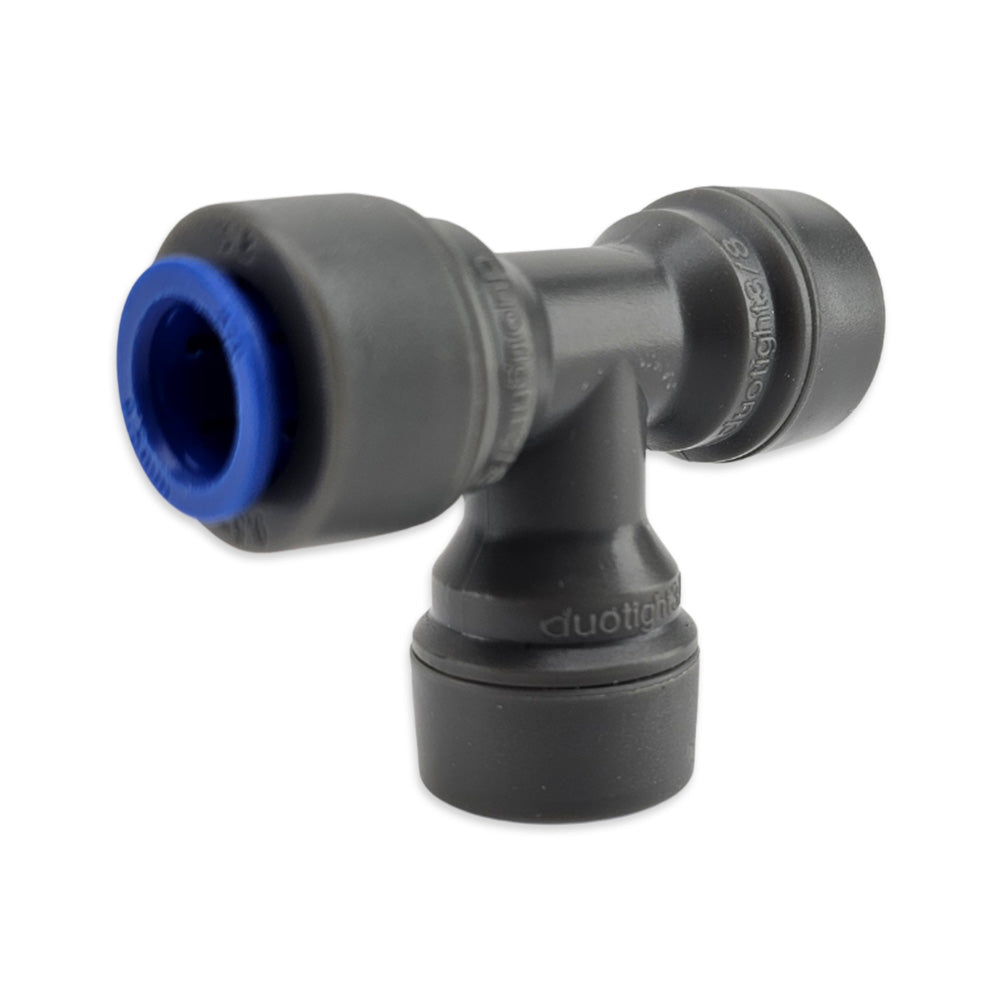

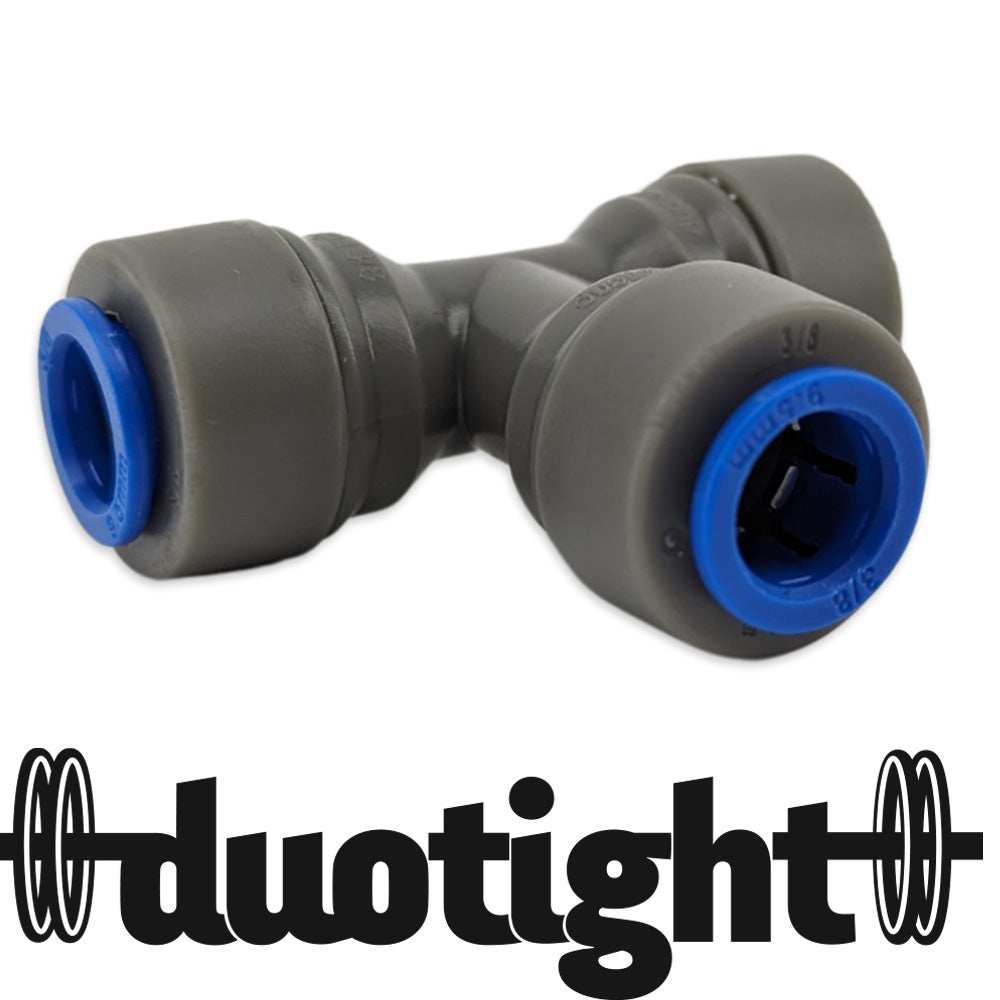

duotight - 9.5mm (3/8') Thermowell Tee (suits 3.5 - 4.5mm OD Probe)

The KegLand duotight 9.5mm (3/8") Thermowell Tee is an essential, high-precision fitting crafted specifically for homebrewers and commercial craft beverage producers who demand strict temperature control throughout their brewday. Whether installed on the hot side (mashing, recirculating, or whirlpooling) or the cold side (fermentation and chilling loops), this thermowell tee allows you to monitor real-time inline fluid temperatures accurately without interrupting fluid flow.

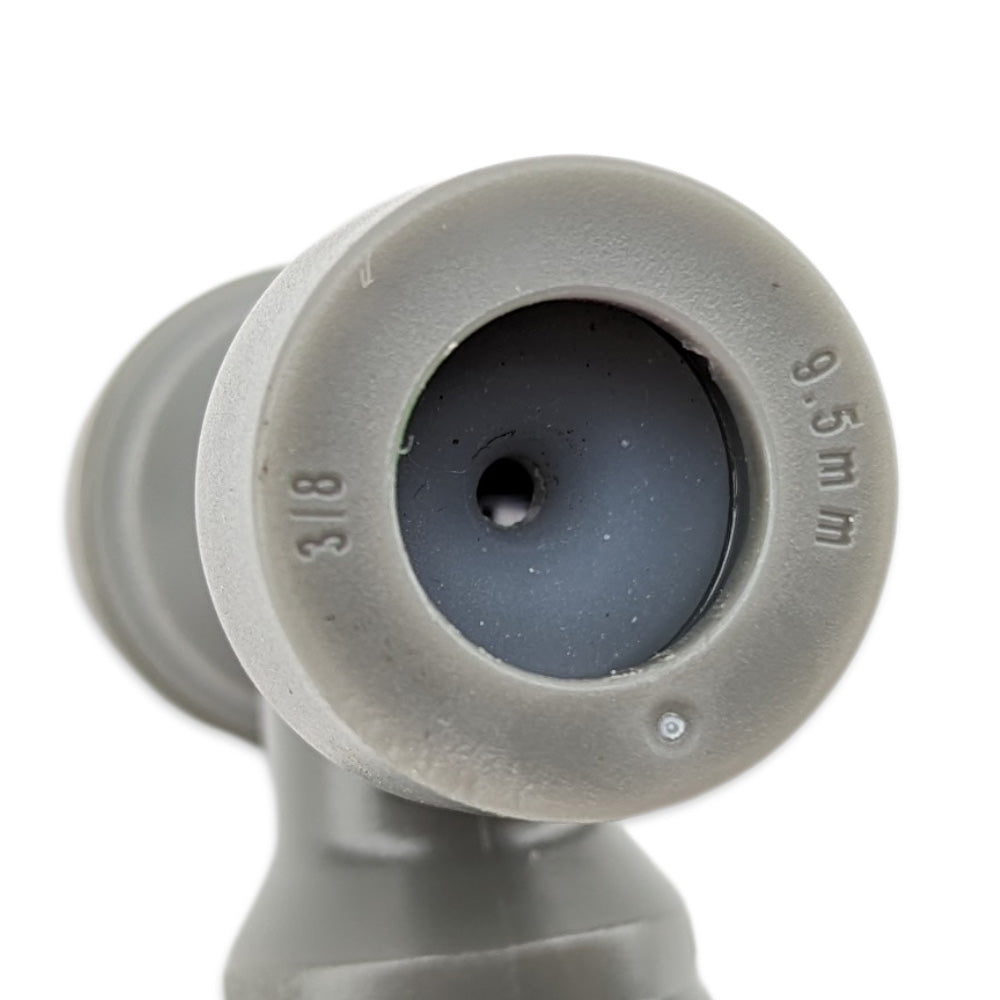

Engineered to accommodate standard 3.5mm to 4.5mm OD temperature probe thermowells, the fitting incorporates a snug silicone bung that forms an airtight seal around your probe. This design guarantees a highly sensitive thermal connection for precise digital readings while effectively eliminating the risk of accidental leaks, pressure loss, or liquid disconnections during operation. The sleek duotight double O-ring design allows for fast, tool-free installation directly into your existing 9.5mm tubing setup.

In addition to performance and simplicity, hygiene and ease of maintenance are central to the design of the KegLand duotight 9.5mm Thermowell Tee. The entire assembly can be effortlessly dismantled into individual components for complete cleaning, allowing you to soak and boil parts in hot water for thorough sterilisation. When integrated into a hot-side brewing system, sanitisation is even easier—simply recirculate hot wort or boiling liquid through the tee prior to transfer.

Applications & Compatibility

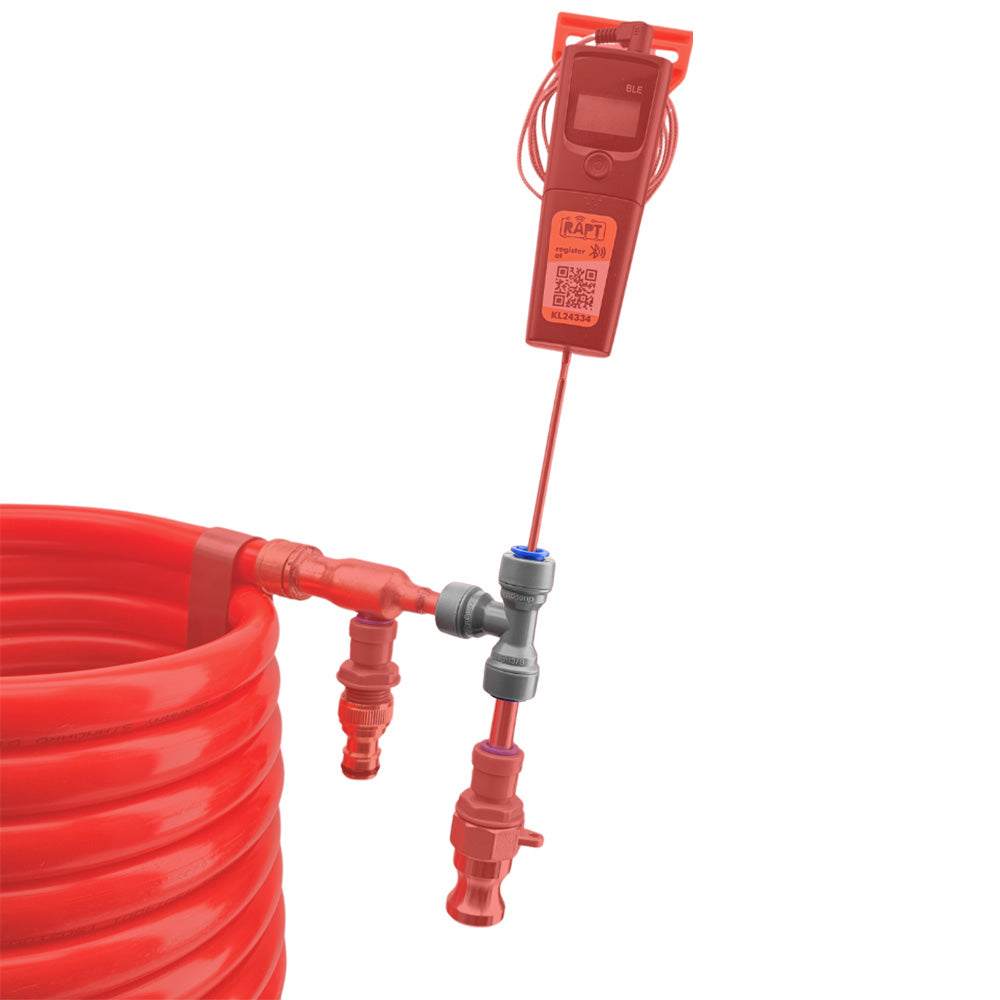

• Temp Controllers: Fits the probe of any of our temperature controllers.
• Instant-read Thermometers: Will also fit our thermometers.

9.5mm Tubing Compatibility

This 9.5mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06248: 6.3mm ID x 9.5mm OD | 12m
• KL42772: 6.3mm ID x 9.5mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Blue denotes 9mm (3/8").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
