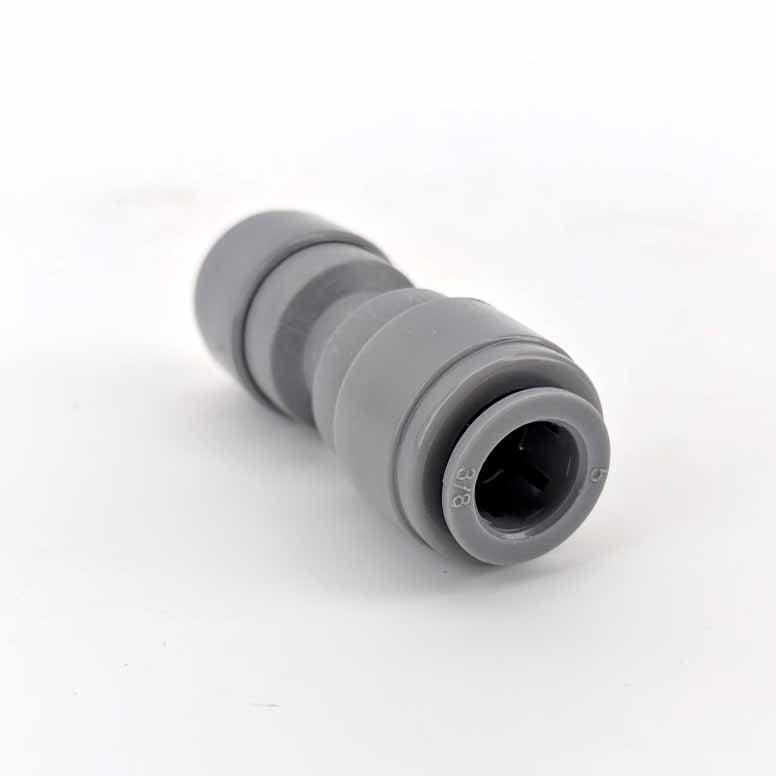

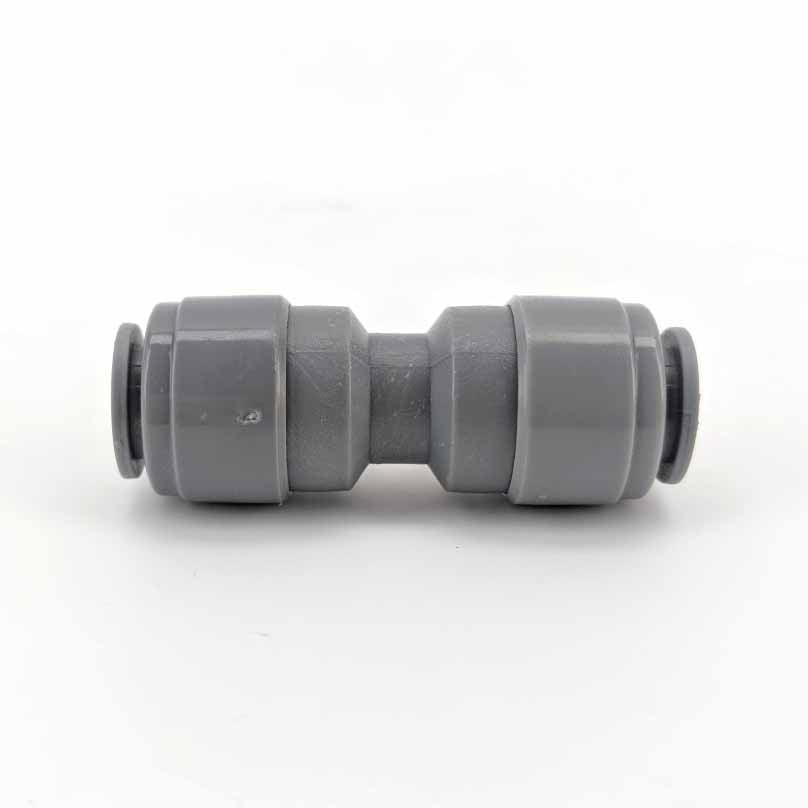

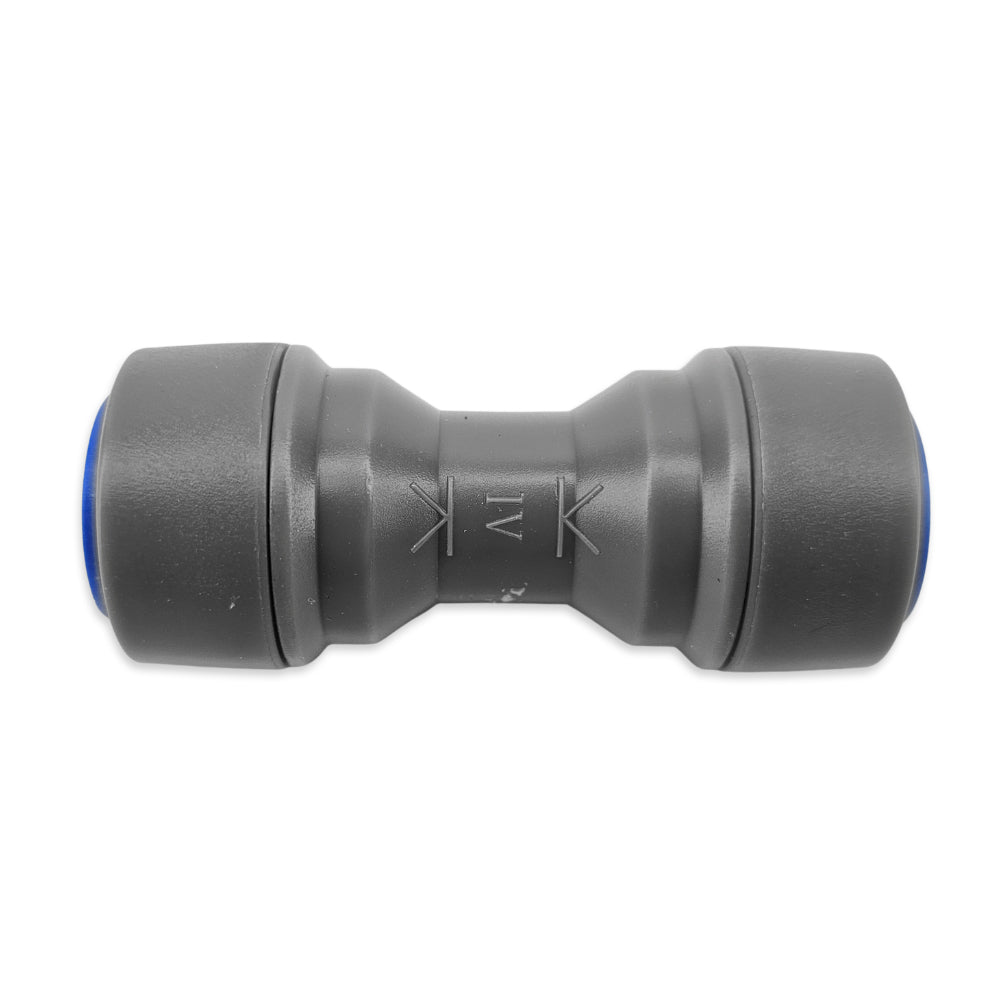

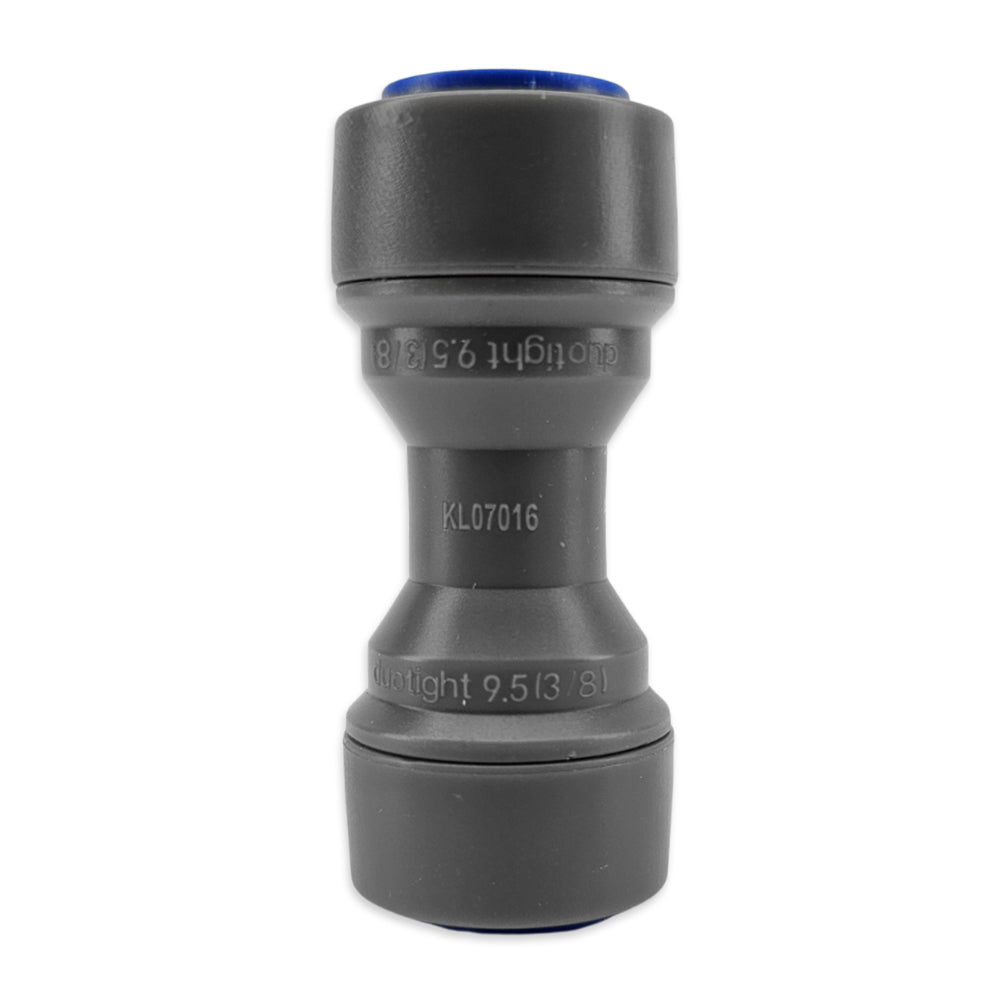

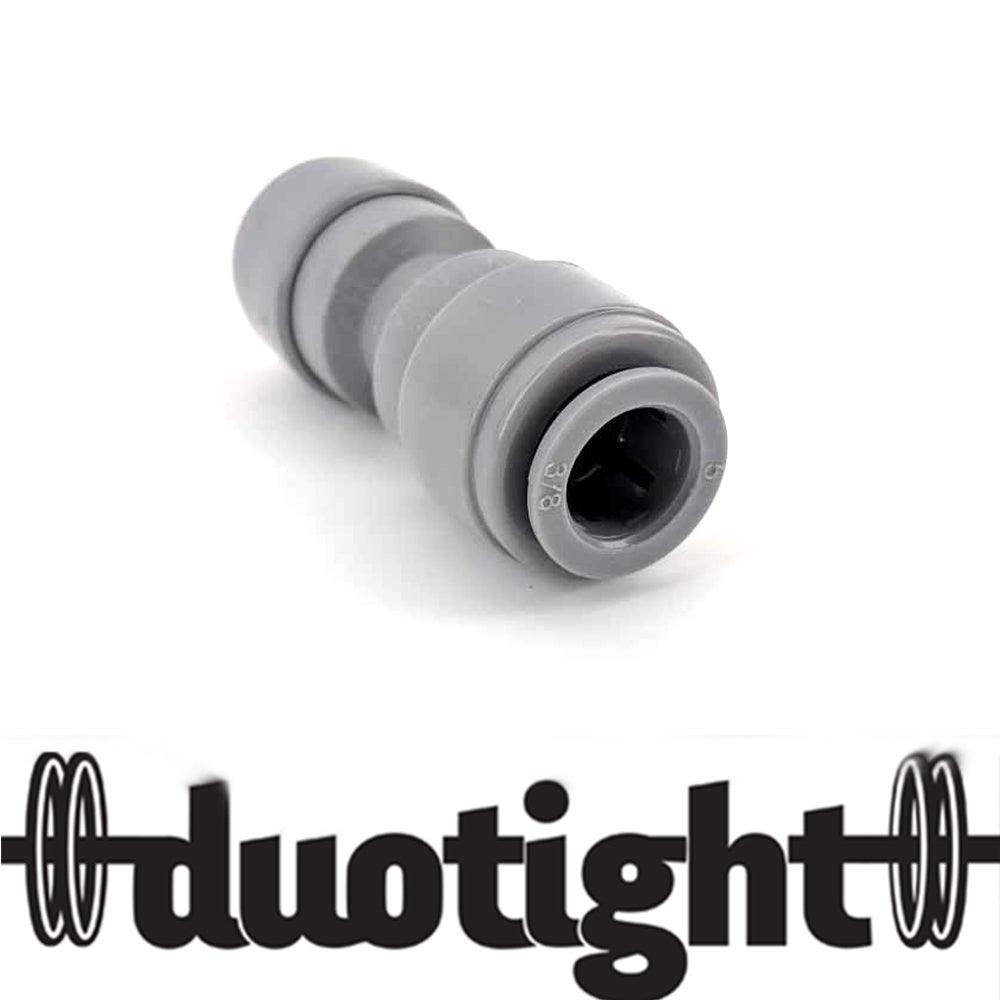

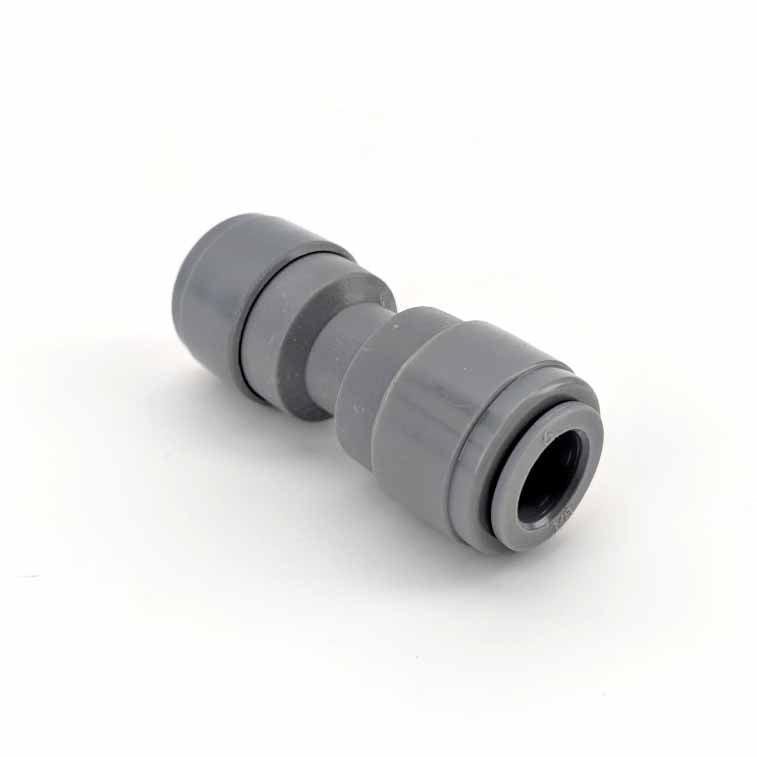

duotight - 9.5mm (3/8”) Female x 9.5mm (3/8”) Female Joiner

This particular fitting is designed to securely join two lengths of 9.5mm Outer Diameter (OD) flexible tubing or hose together. Additionally, it can be used to connect a hose to a rigid or fixed 9.5mm male barb connection. It creates a reliable, leak-resistant connection suitable for various fluid-handling, draft-dispensing, or brewing setups.

Applications & Compatibility

• Hose to Hose: Join two 9.5mm OD hoses together.

• Hose to Barb: Join a 9.5mm barb to a 9.5mm OD hose - useful if you want to attach a 7mm barb to your hose.


9.5mm Tubing Compatibility

This 9.5mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06248: 6.3mm ID x 9.5mm OD | 12m
• KL42772: 6.3mm ID x 9.5mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Blue denotes 9mm (3/8").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
