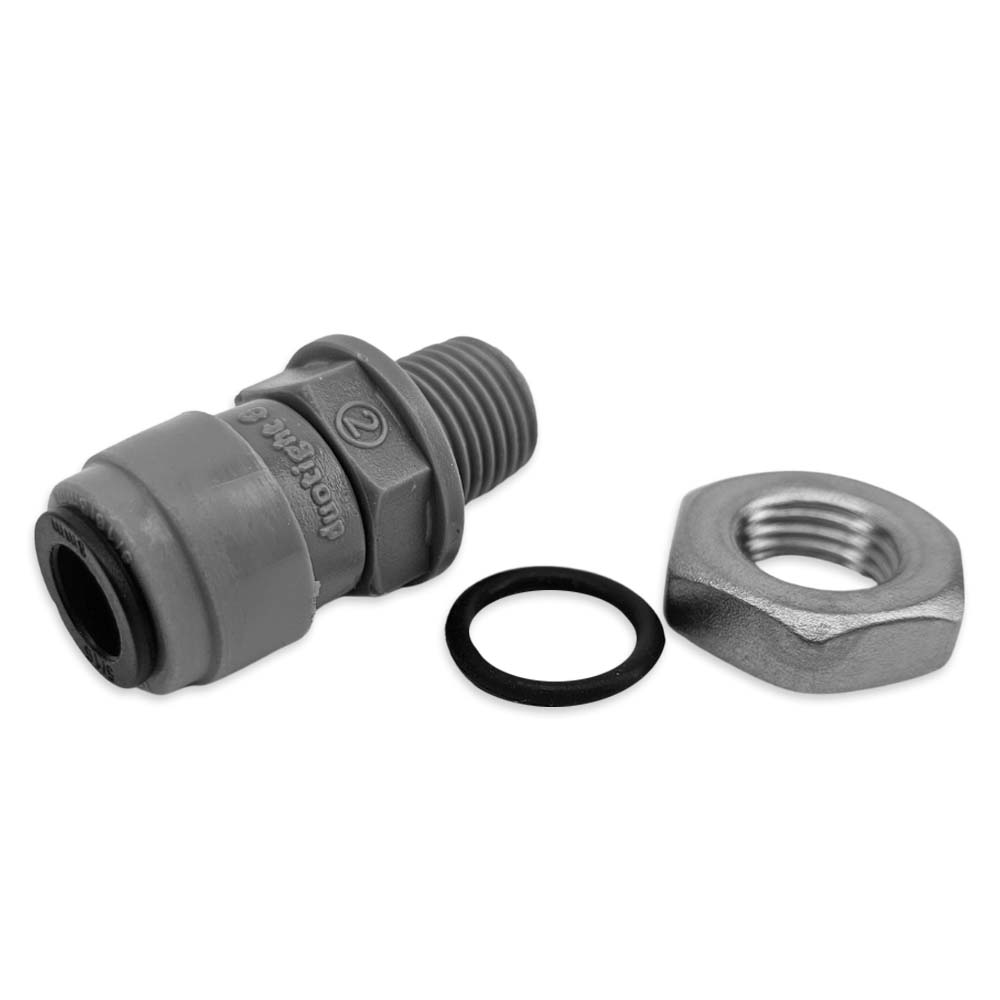

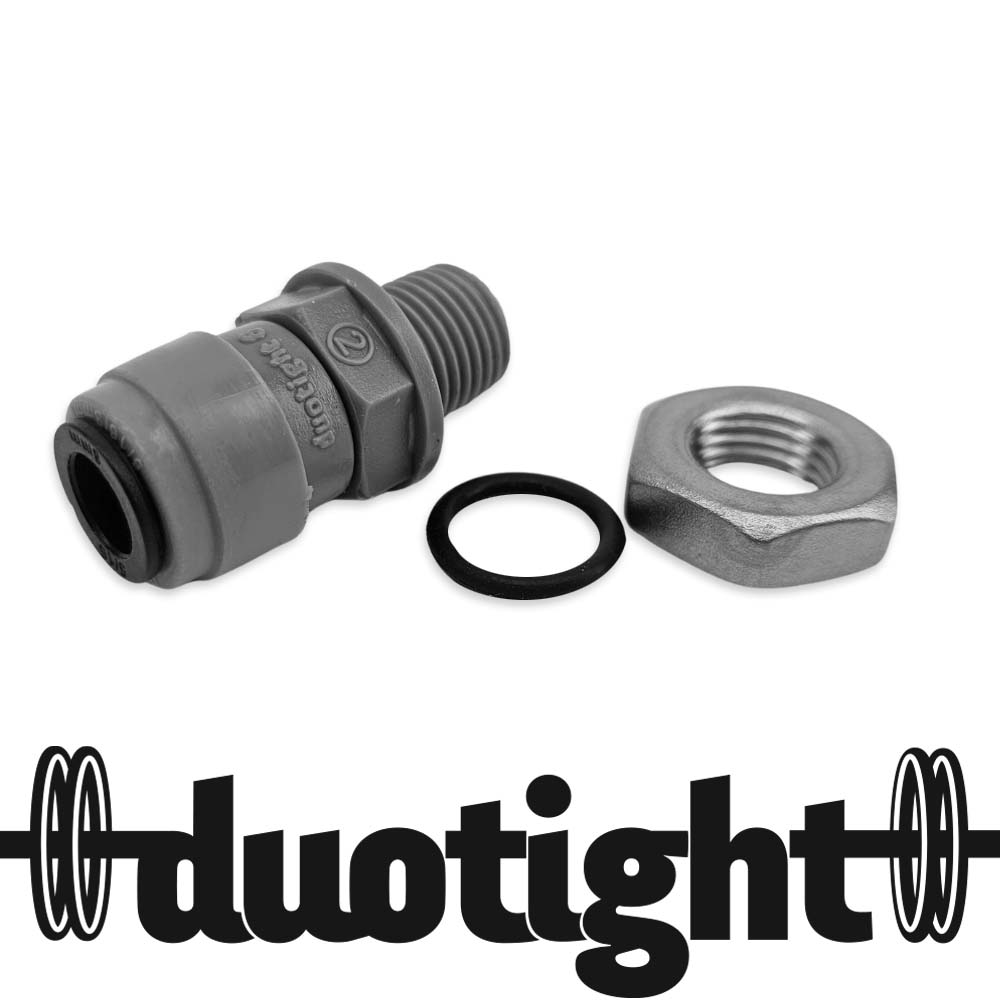

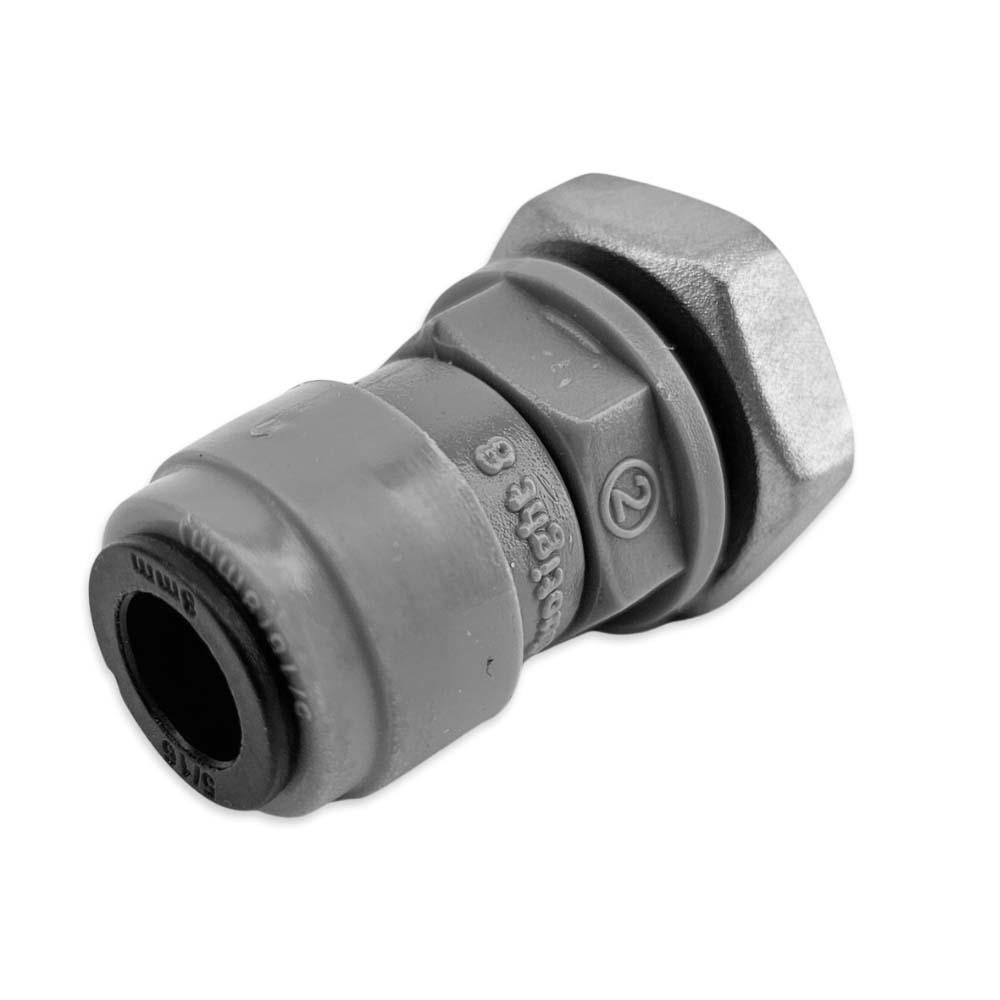

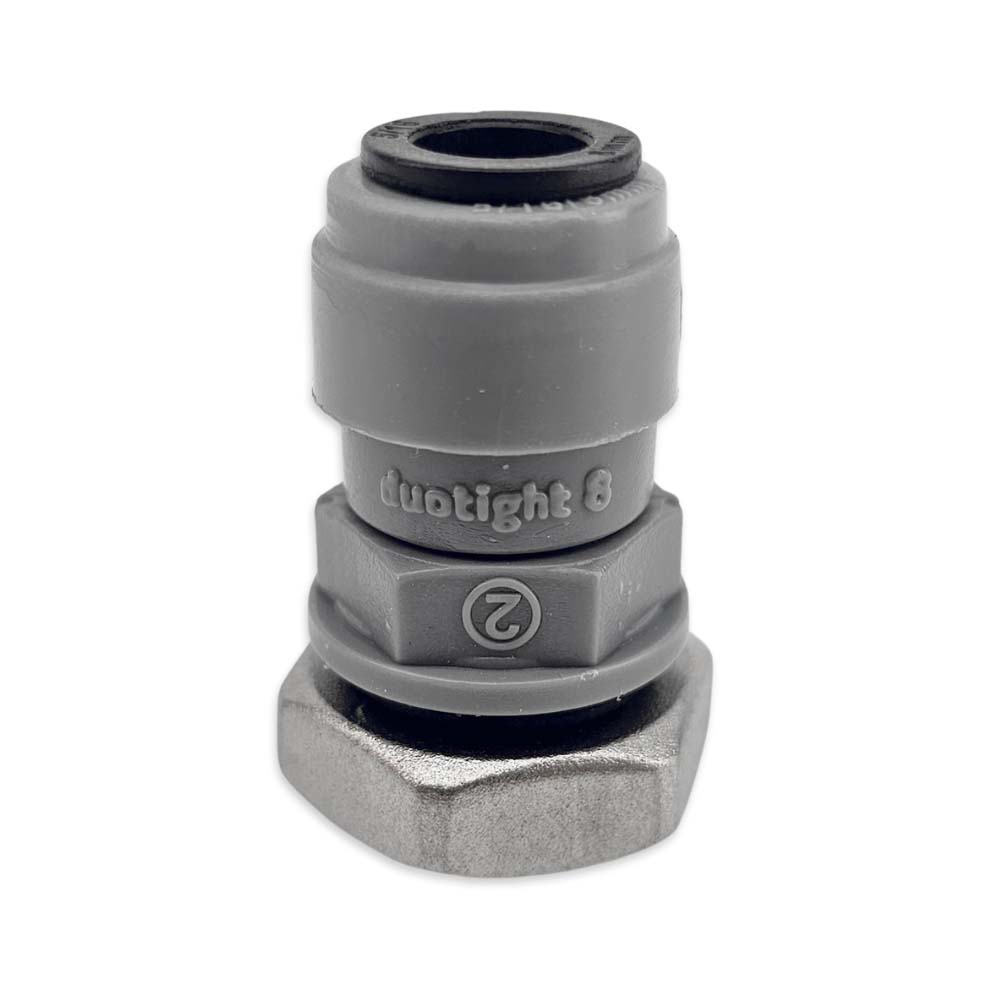

duotight - 8mm (5/16') Female x 1/4' Male Thread Bulkhead (suits 60cm Thermowell)

Currently the Gen4 model of bulkhead, but it is also the Gen2 model of duotight. This unit features refined double O-ring design principles, providing an exceptionally reliable and leak-free push-fit connection for plastic tubing without requiring complex fittings.

Suitable for fixing thermowells to FermZilla lids or any sort of fermentation vessel. When cut and drilled correctly, it will hold pressure up to 30psi.

Installation Tips:
1. Drill a clean, deburred hole in your vessel lid or wall using an appropriate step drill bit.
2. Ensure all sealing O-rings are clean, properly seated, and lightly lubricated with food-grade lubricant before assembly.
3. Tighten the bulkhead nut firmly by hand or with proper tools, taking care not to overtighten and warp the vessel wall or pinch the seal.
4. Cut your tubing straight and square, then push it firmly into the duotight fitting until it bottoms out against the internal stop.

Applications & Compatibility

• Thermowell: Affix our 60cm Thermowell to the lid of your FermZilla, or any sort of fermentation vessel.

• 8mm Passthrough: Need your 8mm OD line to go through a thin solid surface? Drill a hole and use this.


8mm Tubing Compatibility

This 8mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06224: 4mm ID x 8mm OD | 12m
• KL06231: 5mm ID x 8mm OD | 12m
• KL42741: 5mm ID x 8mm OD | 12m (Red)
• KL42765: 4mm ID x 8mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Black denotes 8mm (5/16").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
