duotight – 8mm (5/16”) Female x 8mm (5/16”) Female Push In Elbow
$3.95 AUD
Skip to product information
In stock

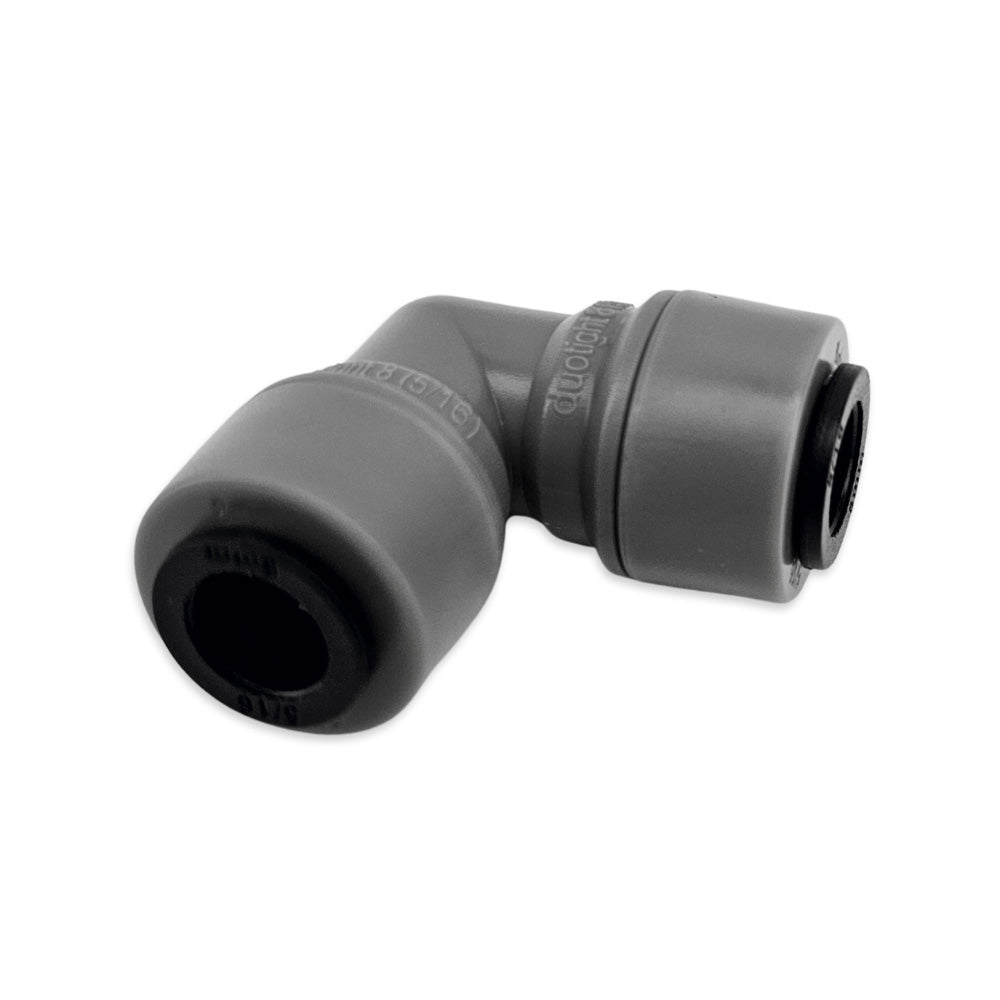

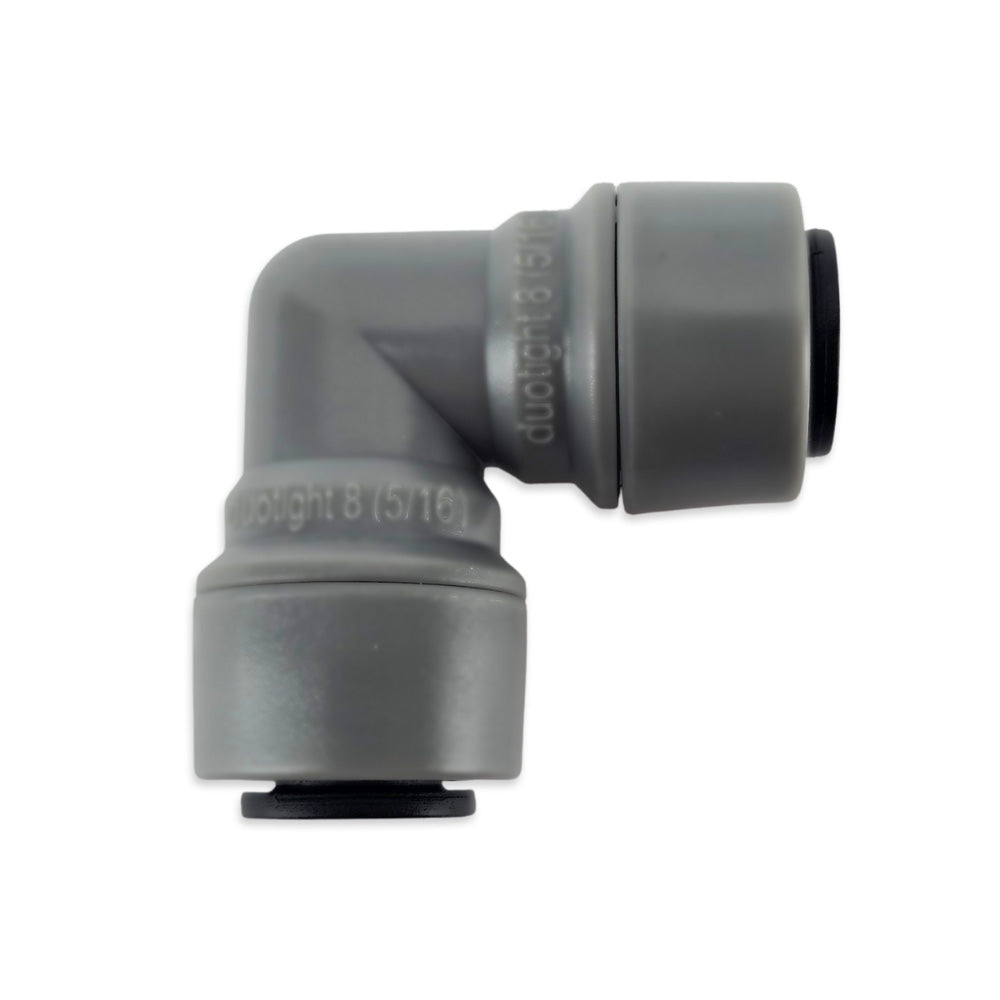

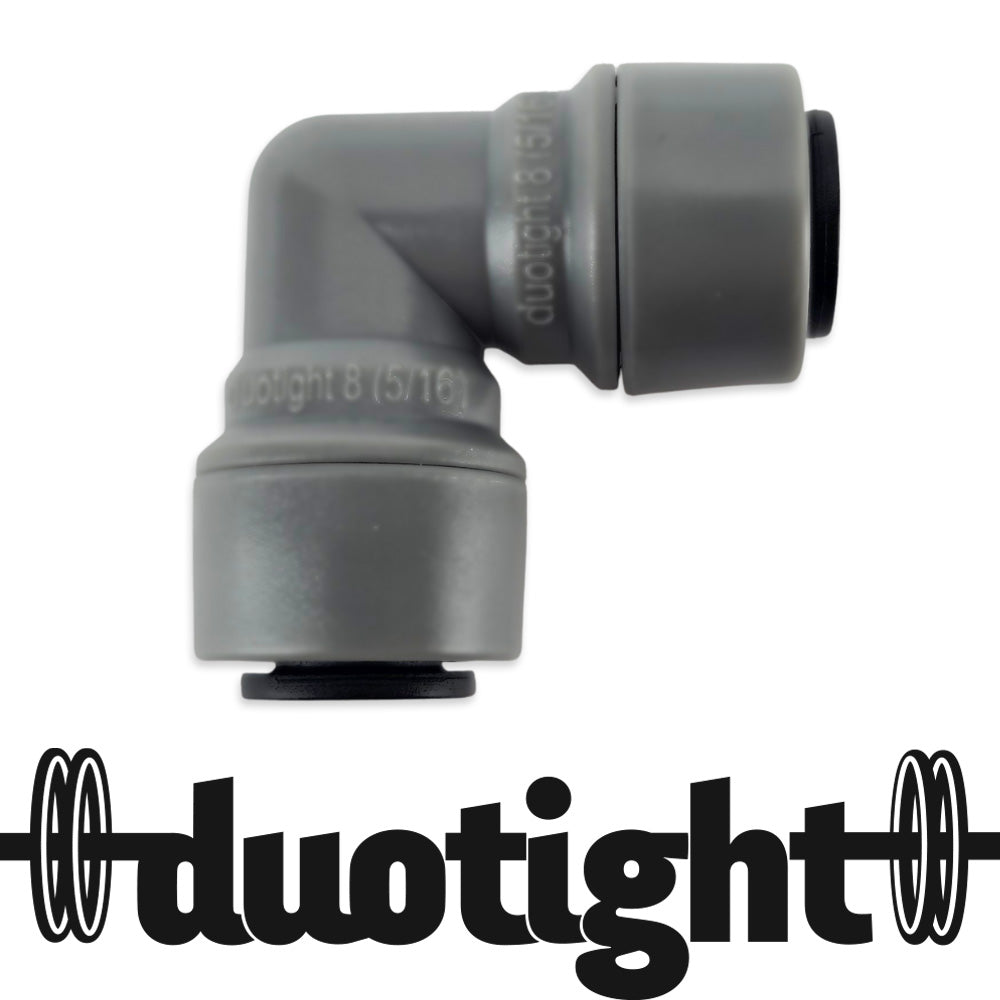

duotight – 8mm (5/16”) Female x 8mm (5/16”) Female Push In Elbow
KL02400
$3.95 AUD
Duck around corners and make sharp turns with the duotight elbow fitting. Designed for quick, reliable push-in connections, this fitting allows tight 90-degree routing of tubing without causing kinks or restricting flow. Its double EPDM O-ring seal ensures a leak-free join across a variety of liquid and gas applications.
Applications & Compatibility
- Stop kinks: Avoid kinking your liquid or gas line when you need it to bend at right angles.
- 8mm EVAbarrier or post: Compatible with any 8mm OD EVAbarrier or 8mm duotight post.
8mm Tubing Compatibility
This 8mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:
- KL06224: 4mm ID x 8mm OD | 12m
- KL06231: 5mm ID x 8mm OD | 12m
- KL42741: 5mm ID x 8mm OD | 12m (Red)
- KL42765: 4mm ID x 8mm OD | 12m (Black Lightshield)
The duotight Generation 2 Difference
Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.
Dual-Material Double O-Ring Design
The secret to our superior seal is a two-stage system using two different high-quality materials:
- EPDM O-Ring: Provides exceptional chemical and gas resistance.
- Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.
High-Performance Materials (POK)
Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).
- Higher Chemical Resistance: Withstands harsh brewery cleaners.
- UV Protection: Won't become brittle over time.
- Extreme Durability: Rated for over 300psi @ 25°C.
User-Friendly Features
- Color-Coded Collets: Black denotes 8mm (5/16").
- Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
- No Clamps Necessary: Simply push to seal; push the collet to release.
We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
