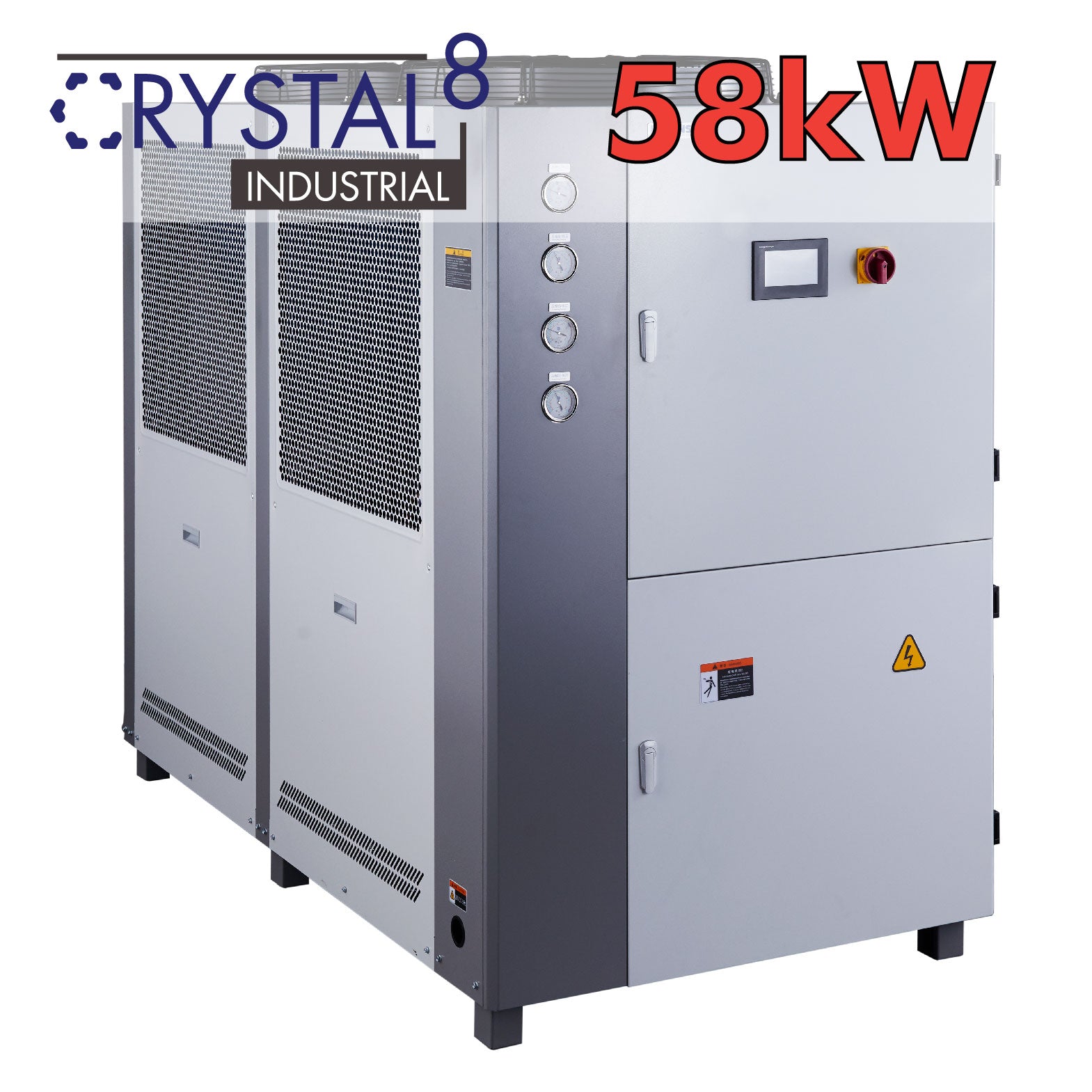

Crystal8 - 58kw Industrial Glycol Chiller- 380v - Three Phase

SPECIAL ORDER ITEM

Approximate Lead Time: 8-12 weeks.
Deposit Required: 20% not including freight.

This compact yet powerful chiller is suited to any larger brewery that needs large cooling capacity while still ensuring highly efficient electrical efficiency boasting coefficient of performance greater than x3. This unit has low ongoing maintenance and is built with high level of reliability.

Suitable for cooling conical fermenters, bright beer tanks, or many other wine/beverage tanks.

Also can be used as a cool room chiller or for many other industrial applications.

This compact yet powerful chiller is powerful enough to cool approximately 4-5 x 4000L Conical Fermenter Tanks and Crash Chill them if necessary while still having enough cooling power up the sleeve for some other applications too.

It's designed with an inbuilt stainless glycol cooling tank however for a larger brewery you might want to consider additional external cold tanks of glycol solution.

Please note: The pump installed within this unit recirculates from the glycol cooling tank internally through the evaporator. It does not pump externally. You will need to install external brewery pump(s) to circulate the glycol solutions to your fermenters. For a plumbing diagram please refer to the instruction manual.

Made from Danfoss and Emerson components for maximum reliability.

Specifications
Cooling Capacity: 58kW
Power: 41.7amp Three Phase
Power: 21.1kW
Integrated Tank Volume: 230L
Input/Output Fittings: DN50
Pump: Stainless centrifugal pump, Max Head 27meters
Refrigerant: R407C
Noise Level: 67dB
Dimensions: 2080 x 1050 x 1820
Weight: 620kg (dry)

Features
- Stainless glycol/water pump
- Colour touch screen with in depth diagnostics
- High efficiency copper shell and tube evaporator
- High efficiency hydrophilic aluminium fin condenser
- Made from rust resistant components
- Integrated stainless steel glycol tank
- Quiet operation
- Electrically efficient
- Shilin branded electrical components
- Reliable
