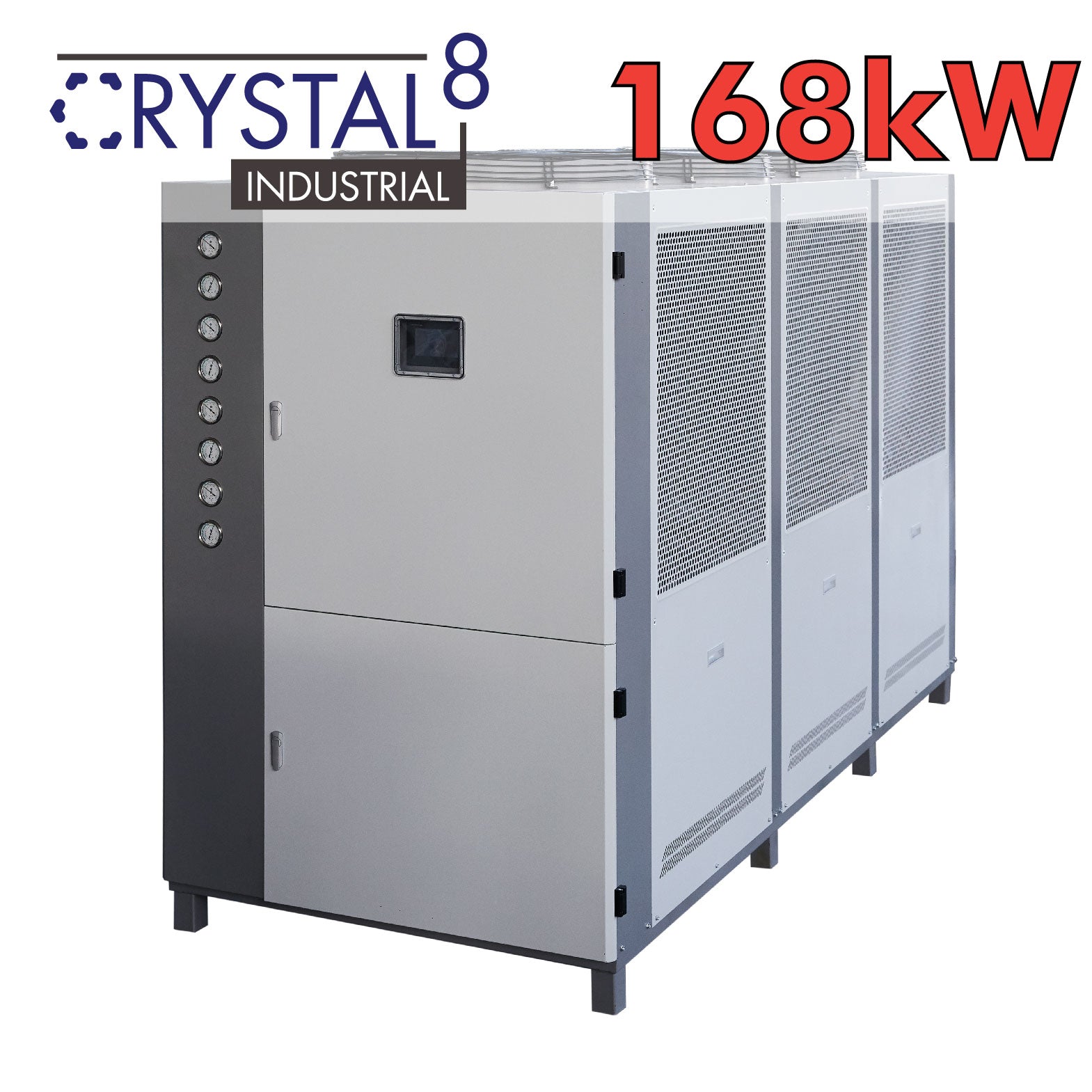

Crystal8 - 168kw Industrial Glycol Chiller- 380v - Three Phase
or make 4 interest-free payments of $10,612.50
Special Order Only
This product is a special order item. If you would like this product you need to contact our staff, pay 20% deposit. The chiller will be manufactured for you and will take 8-12 weeks to get completed for you. The residual 80% is due once the tank arrives to Australia.
This compact yet powerful chiller is suited to any large scale brewery that needs large cooling capacity while still ensuring highly efficient electrical efficiency boasting coefficient of performance greater than x3. This unit has low ongoing maintenance and is built with high level of reliability.
Suitable for cooling conical fermenters, bright beer tanks, or many other wine/beverage tanks.
Also can be used as a cool room chiller or for many other industrial applications.
This compact yet powerful chiller is powerful enough to cool approximately 5-6 x 10,000L Conical Fermenter Tanks and Crash Chill them if necessary while still having enough cooling power up the sleeve for some other applications too.
It's designed with an inbuilt stainless glycol cooling tank however for a larger brewery you might want to consider additional external cold tanks of glycol solution.
Please note: The pump installed within this unit recirculates from the glycol cooling tank internally through the evaporator. It does not pump externally. You will need to install external brewery pump(s) to circulate the glycol solutions to your fermenters. For a plumbing diagram please refer to the instruction manual.
Made from Danfoss and Emerson components for maximum reliability.
Specifications
Cooling Capacity: 168kW
Power: 110amp Three Phase
Power: 58.5kW
Integrated Tank Volume: 300L
Input/Output Fittings: DN65
Pump: Stainless centrifugal pump, Max Head 25 meters
Refrigerant: R407C
Noise Level: 69dB
Dimensions: 3400 x 1200 x 2135
Weight: 1500kg (dry)
Features
- Stainless glycol/water pump
- Colour touch screen with in depth diagnostics
- High efficiency copper shell and tube evaporator
- High efficiency hydrophilic aluminium fin condenser
- Made from rust resistant components
- Integrated stainless steel glycol tank
- Quiet operation
- Electrically efficient
- Shilin branded electrical components
- Reliable
