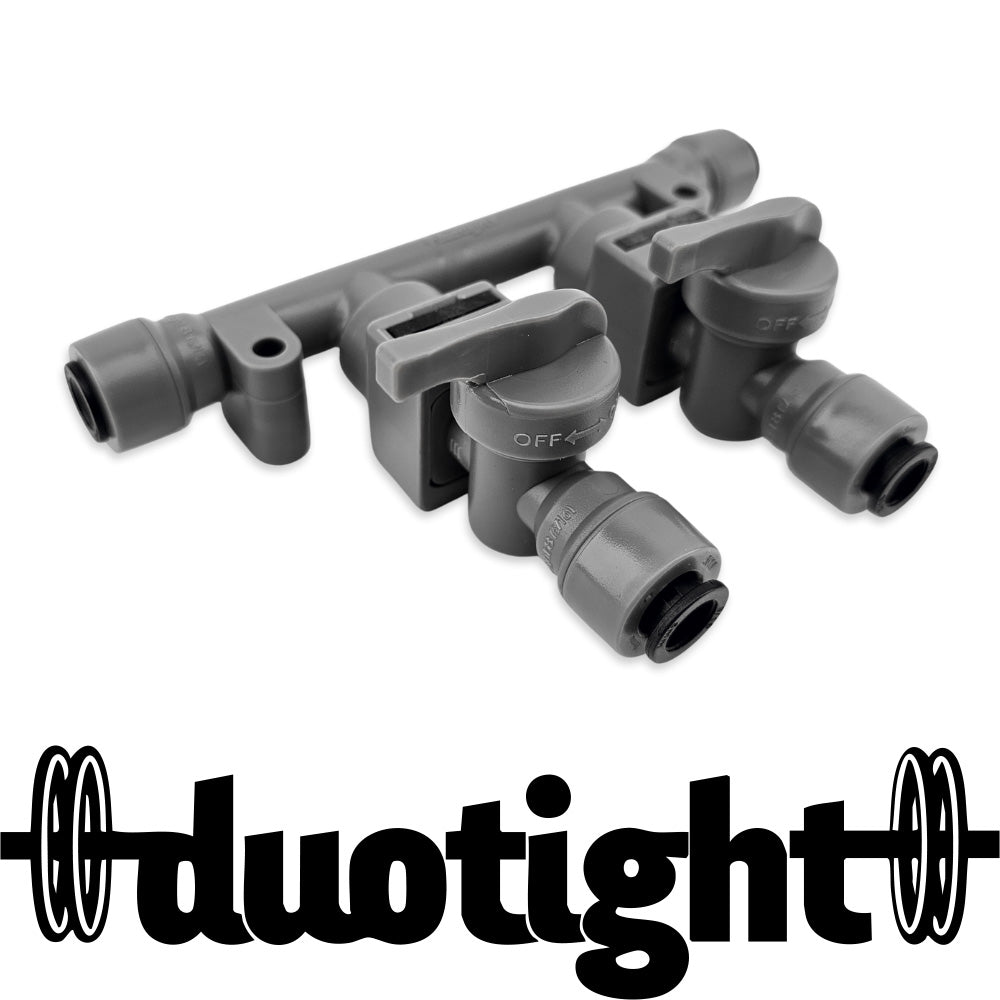

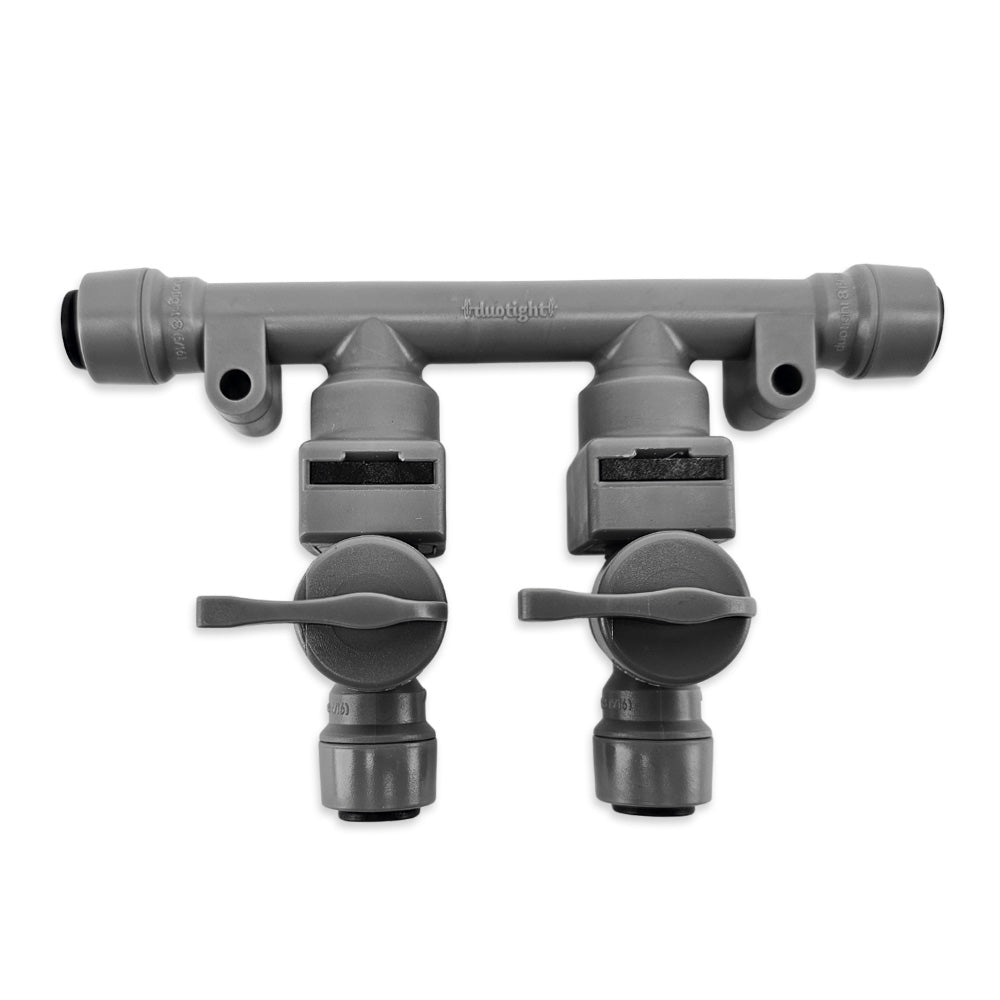

8mm (5/16) duotight x 2 Way Manifold with Check Valves & Isolation Valves

This manifold bracket comes equipped with integrated check valves installed on each individual ball valve outlet to prevent backflow. If your setup requires gas or water to move freely and unobstructed in both directions, each check valve can be easily removed as needed.

If you need to close or cap off specific unused lines on the manifold, we recommend utilising the KL06958 duotight - 8mm (5/16") Plug to ensure a secure seal.

To disassemble or service a ball valve, take a thin flat-headed screwdriver to gently slide or pop open the black retainer tabs, allowing you to seamlessly detach the valve.

The duotight 8mm 2-way manifold includes built-in mounting features right out of the box using button-head screws. However, if you plan to attach it directly to a kegerator surface, we suggest using the duotight 8mm adhesive brackets (no drilling required) for an easier installation.

(not suitable for liquids other than filtered water)

Applications & Compatibility

• Gas: Isolate up to 2 individual 8mm gas lines

• Inline regulators: Stagger inline regulators on up to 3 different gas lines

8mm Tubing Compatibility

This 8mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06224: 4mm ID x 8mm OD | 12m
• KL06231: 5mm ID x 8mm OD | 12m
• KL42741: 5mm ID x 8mm OD | 12m (Red)
• KL42765: 4mm ID x 8mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Black denotes 8mm (5/16").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
