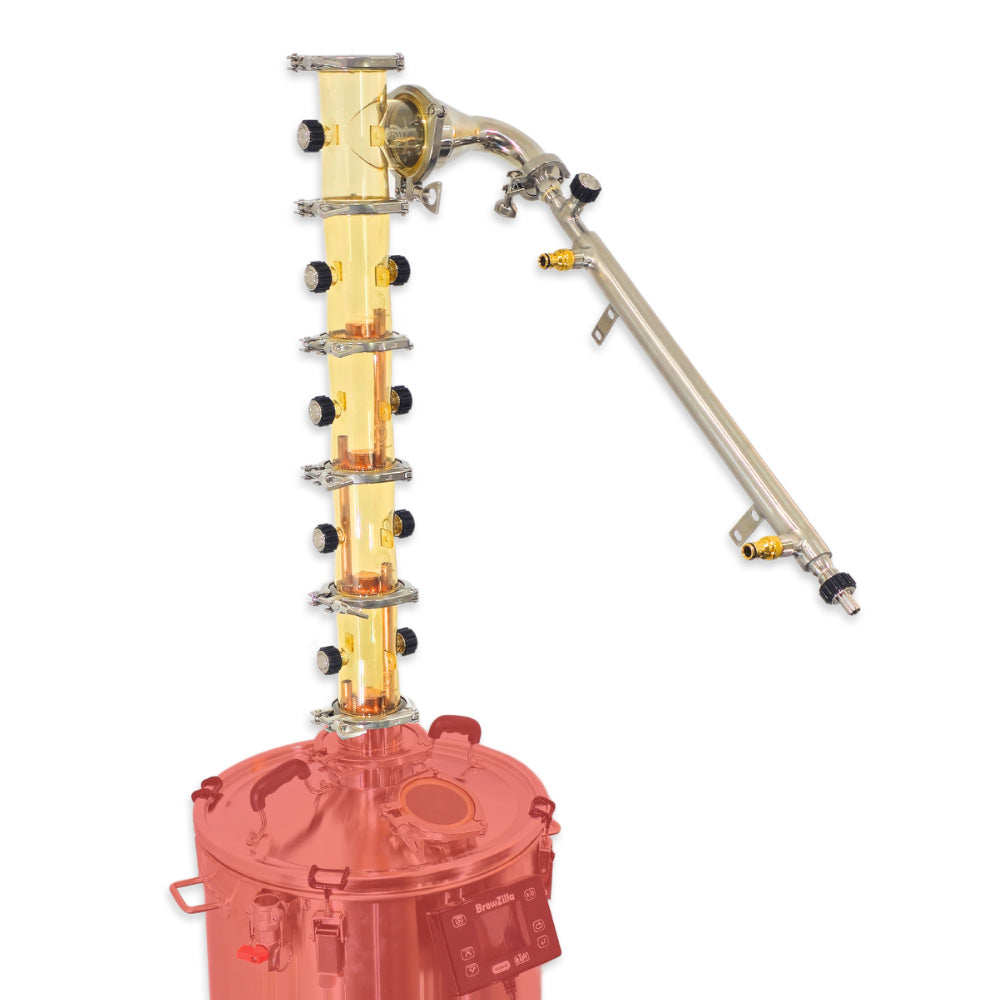

3'' PolyPhoenix WRB Copper Bubble Plate Still Builder

The PolyPhoenix WRB Copper Bubble Plate Still is an easy to use, powerful, bubble plate still. The bubblers are removable if you want to run this as a pure pot still. You can add one or more gin baskets as well - the beauty of PolyPhoenix is the flexibility.

WRB means Whisky/Rum/Brandy - a Bubble Plate Pot Still set up is the perfect way to get the best combination of flavour and purity from your malt, molasses or brandy wash - or any other spirit that you want to make!

How Many Bubble Plates To Order?
3 Bubble Plates - for absolute maximum flavour transfer of your Whiskey, Rum or Brandy (WRB)
4 Bubble Plates - the perfect middle ground for versatility of higher strength with a lot of flavour passthrough
5 Bubble Plates - for even greater strength distillate with still quite a bit of flavour passthrough

NOTE: As the PolyPhoenix Still is completely modular, you can add or remove Bubble Plates and Extensions at will!

What do Bubbler Plates do?
Bubble plates are used to create more reflux in the column. Think of it like modular distillation chambers that allow alcohol vapour to pass up the column, as well as a "downcomer" that lets excess liquid on the plate fall back to the plate below.
Each time refining and changing phase over and over until it reaches a condenser. This helps to regulate the rate that good spirit is collected and can help to produce a more consistent, high-quality spirit.

This rising and falling action helps to separate the different types of alcohol in the still, with lighter alcohols gradually moving upwards where they can be removed so that they don't form part of the final product. The heavier alcohols, on the other hand, remain lower in the column and are eventually removed once the unwanted alcohols that form the foreshots, and heads are removed.

Why would I use a Bubbler Plate?
They allow for greater control over the distillation process. The distiller can adjust the height of the plates to control the reflux ratio, this is the amount of vapour that is condensed and returned to the column.

Do Bubbler Plates have to be Copper? (Short Answer...Yes)
Having a high level of copper contact helps neutralise and remove flavour and aroma compounds that aren't desirable in the finished product, and by forcing the alcohol vapour to pass through the bubble plates multiple times this effect is greatly enhanced.

This Kit Includes:
5/4/3 x KL39666    PolyPhoenix - Straight Bubble Capper Kit - PPSU 3 Inch TC*
1 x KL37976    PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser
1 x KL36962    PolyPhoenix - Tee Piece - PPSU 3 Inch TC
2 x KL39567    Quick Swivel Connector 1/2' x Stainless Steel End Cap (18mm)
1 x KL31547    KegLand Quick Swivel Connector 1/2' Nut With Silicone Grip Only
1 x KL31585    13mm (1/2') Straight Barb Only for KegLand Quick Swivel Connector 1/2'
3 x KL25799    3 Inch TC Clamp - 3 Segments
3 x KL25805    3 Inch TC Beaded Seal - Silicone
1 x KL22071    3 Inch TC PPSU Sight Glass / End Plate
1 x KL29469    3 Inch TC to 1.5 Inch TC Reducing Elbow
1 x KL01878    1.5 Inch TC Clamp - 2 Segments
1 x KL01861    1.5 Inch TC Beaded Seal - Silicone
1 x KL25362    1.5 Inch TC with 1/2 Female Thread (BSP) (Teflon Required)
2 x KL09461    Garden Hose Male Quick Connect Coupling 1/2 inch Female
1 x KL37921    PolyPhoenix - Copper U-Bend with Silicone Tube

*Number of Bubble Plates depends on selection

Drop-down menu options:

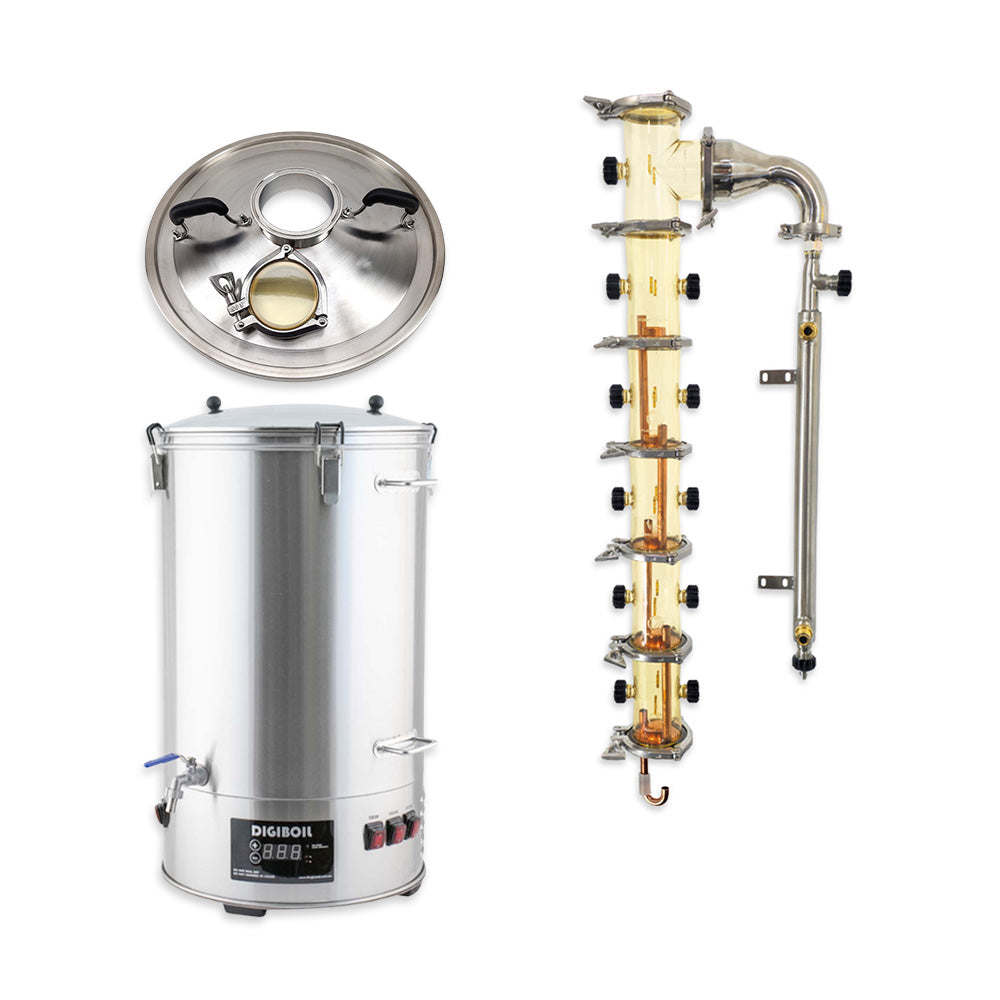

65L DigiBoil PolyPhoenix Boiler Bundle Indlues:
1 x KL07313    DigiBoil 65L - 3500watt - Digital 220-240V
1 x KL30649    BrewZilla + DigiBoil S.S Adjustable Lid Clamps - Short (4pcs/set) (Removal of current clamps on DigiBoil Recommended)
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

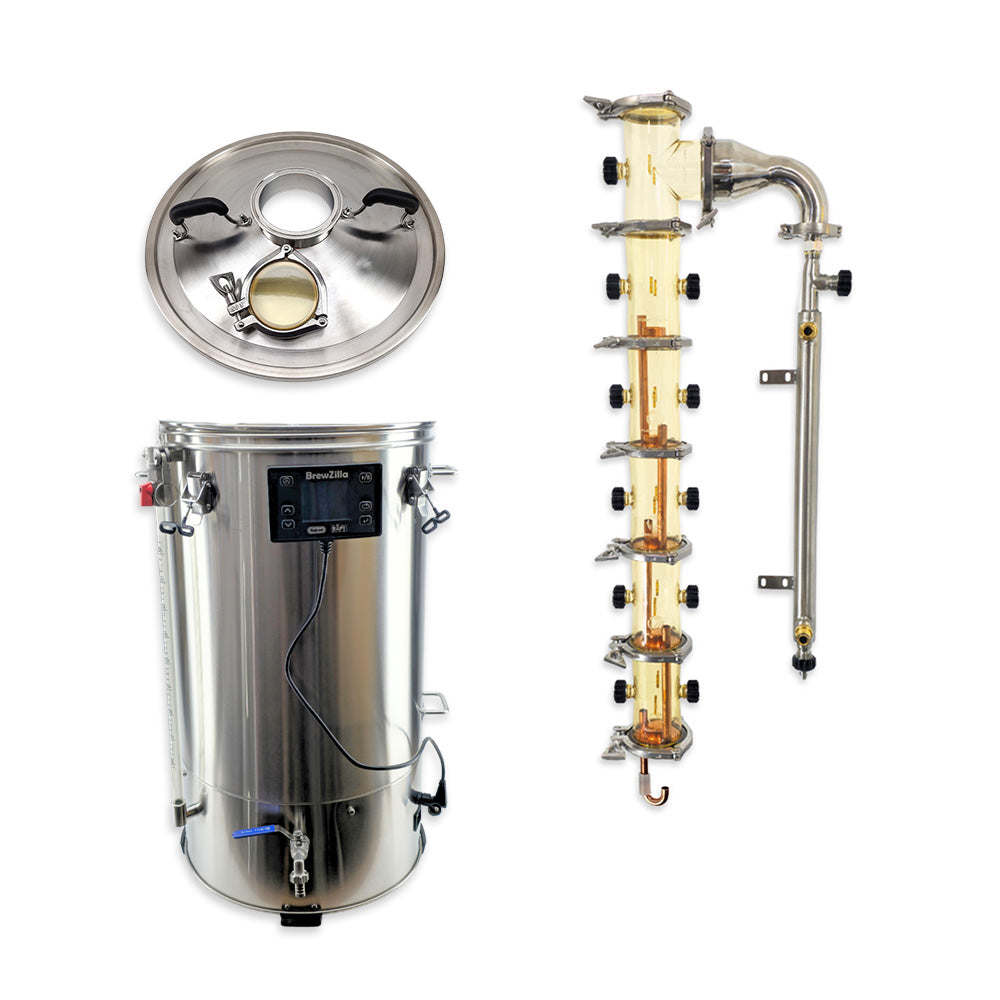

65L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27458    65L BrewZilla Gen 4.1
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

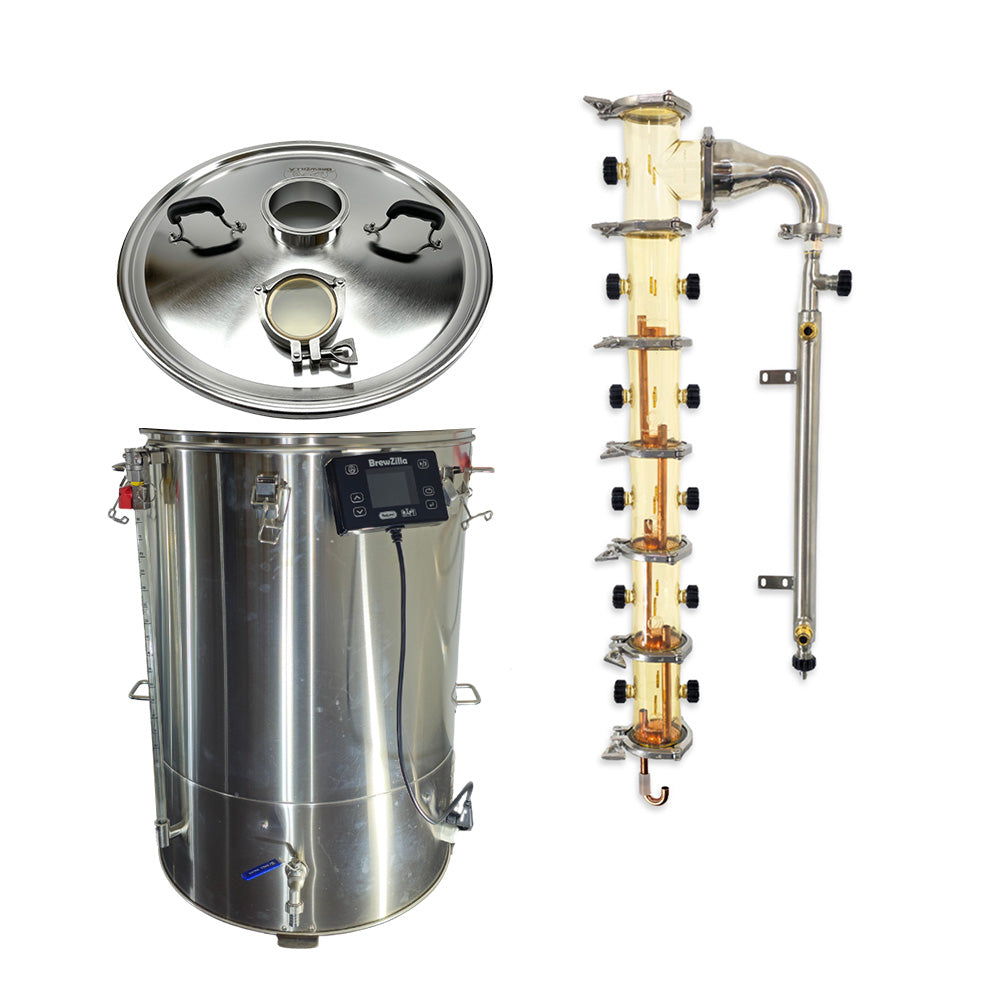

100L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27465    100L BrewZilla Gen 4.1
1 x KL25836    100L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal
