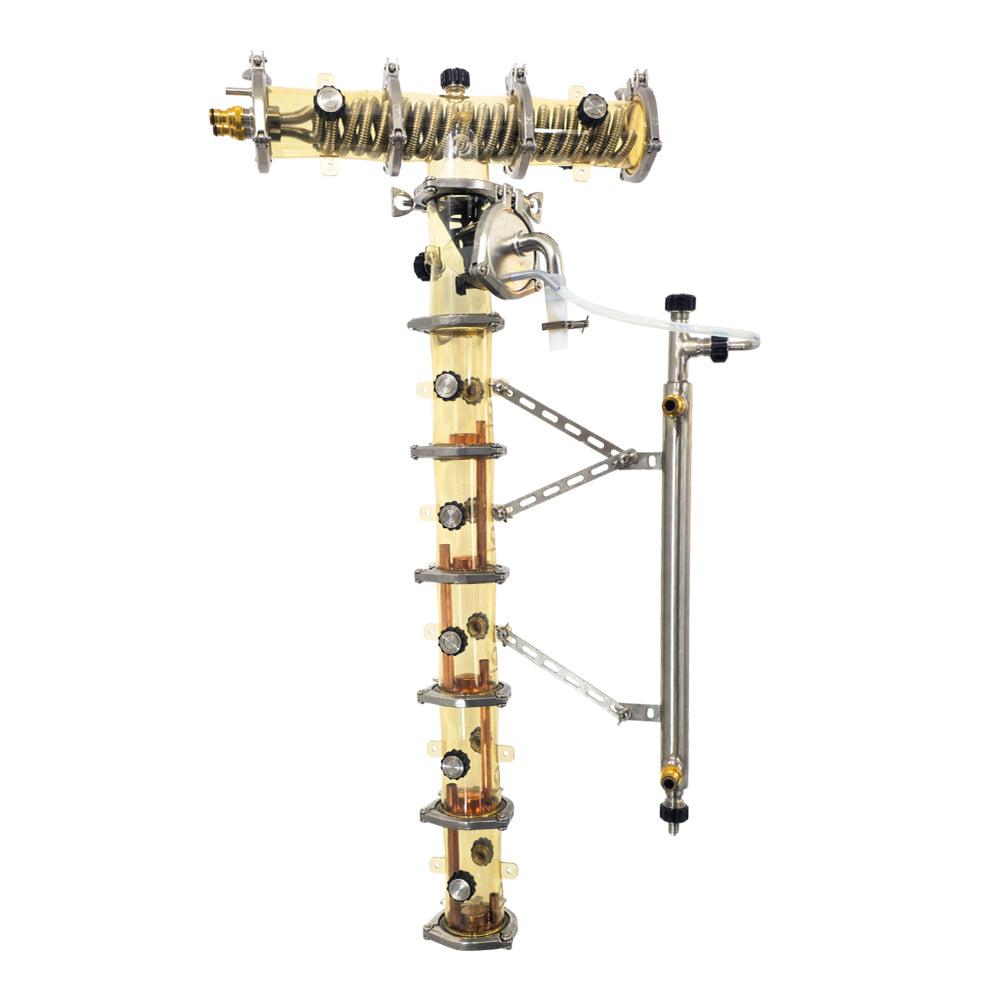

3' PolyPhoenix T-WRB-5 Copper Bubble Plate Still

The PolyPhoenix T-WRB-5 Copper Bubble Plate Still is an easy to use, powerful, bubble plate still. The bubblers are removable if you want to run this as a pot still. You can add one or more gin baskets as well - the beauty of PolyPhoenix is the flexibility. With a hammerhead condenser and a shotgun condenser, this baby can handle as much power as you care to throw at it for fast, clean runs.

What do Bubbler Plates do?
Bubble plates are used to create more reflux in the column. Think of it as modular distillation chambers that allow alcohol vapour to pass up the column, as well as a "downcomer" that lets excess liquid on the plate fall back to the plate below.
Each time refining and changing phase over and over until it reaches a condenser. This helps to regulate the rate that good spirit is collected and can help to produce a more consistent, high-quality spirit.

This rising and falling action helps to separate the different types of alcohol in the still, with lighter alcohols gradually moving upwards where they can be removed so that they don't form part of the final product. The heavier alcohols, on the other hand, remain lower in the column and are eventually removed once the unwanted alcohols that form the foreshots, and heads are removed.

Why would I use a Bubbler Plate?
They allow for greater control over the distillation process. The distiller can adjust the height of the plates to control the reflux ratio, this is the amount of vapour that is condensed and returned to the column.

Do Bubbler Plates have to be Copper? (Short Answer...Yes)
Having a high level of copper contact helps neutralise and remove flavour and aroma compounds that aren't desirable in the finished product, and by forcing the alcohol vapour to pass through the bubble plates multiple times this effect is greatly enhanced.

General Rules of Thumb:
3 Plates is for absolute maximum flavour transfer of your Whiskey, Rum or Brandy (WRB)
4 Plates is a perfect middle ground for versatility of higher strength with a lot of flavour passthrough.
5 Plates is for even greater strength distillate with still quite a bit of flavour pass over.
7 Plates will get you the highest purity, but the least amount of flavour carry over.
What is great about this particular T-WRB 5 setup is that you can simply swap out the bubble plate inserts for 3" TC Silicone Seals and treat it as a 4, 3, 2 or single plate still. Due to the thermal capacity of the PPSU PolyPhoenix Still you will not get a great deal of passive reflux from the column wall. Meaning you'll get maximum flavour through the height of the still even with fewer plates in a 5 or more column high unit.

This Kit Includes:
1 x KL39031 - PolyPhoenix - Modular Hammerhead / Vertical Condenser - PPSU 3 Inch TC
1 x KL45285 - PolyPhoenix - Undertaker Collector Tee Kit G3 - PPSU 3 Inch TC
1 x KL37976 - PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser
5 x KL39666 - PolyPhoenix - Straight Bubble Capper Kit - PPSU 3 Inch TC
1 x KL37921 - PolyPhoenix - Copper U-Bend with Silicone Tube
1 x KL39611 - S6 - PolyPhoenix Support Bracket - Straight 6 (4 Pack)
2 x KL27427 - M6 x 14mm - Stainless Wing Nut and Wing Bolt (set of 4)
4 x KL09461 - Garden Hose Male Quick Connect Coupling 1/2 inch Female
1 x KL31639 - KegLand Quick Swivel Connector 1/2' x 13mm (1/2') Straight Barb

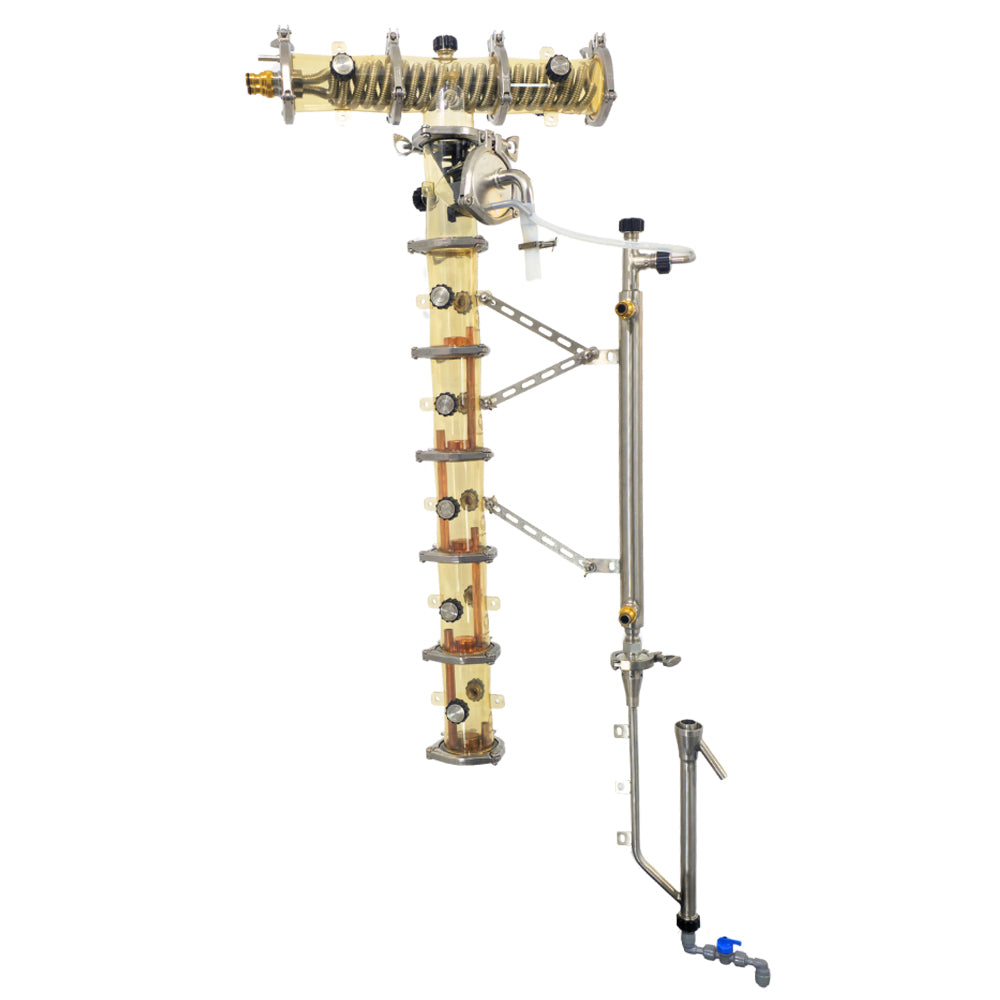

PolyPhoenix Parrot Kit
1 x KL01878    1.5 Inch TC Clamp - 2 Segments
1 x KL01861    1.5 Inch TC Beaded Seal - Silicone
1 x KL25362    1.5 Inch TC with 1/2 Female Thread (BSP) (Teflon Required)
1 x KL39024 - PolyPhoenix - Adjustable Distillation Parrot with 1.5' TC Input
1 x KL31615 - KegLand Quick Swivel Connector 1/2' x 8mm (5/16') Straight Barb (duotight compatible)
2 x KL18456 - duotight - 8mm (5/16”) Female x 8mm (5/16”) Male Elbow
1 x KL06934 - duotight – 8mm (5/16”) Female Ball Valve/Shut Off Valve

Drop-down menu options:

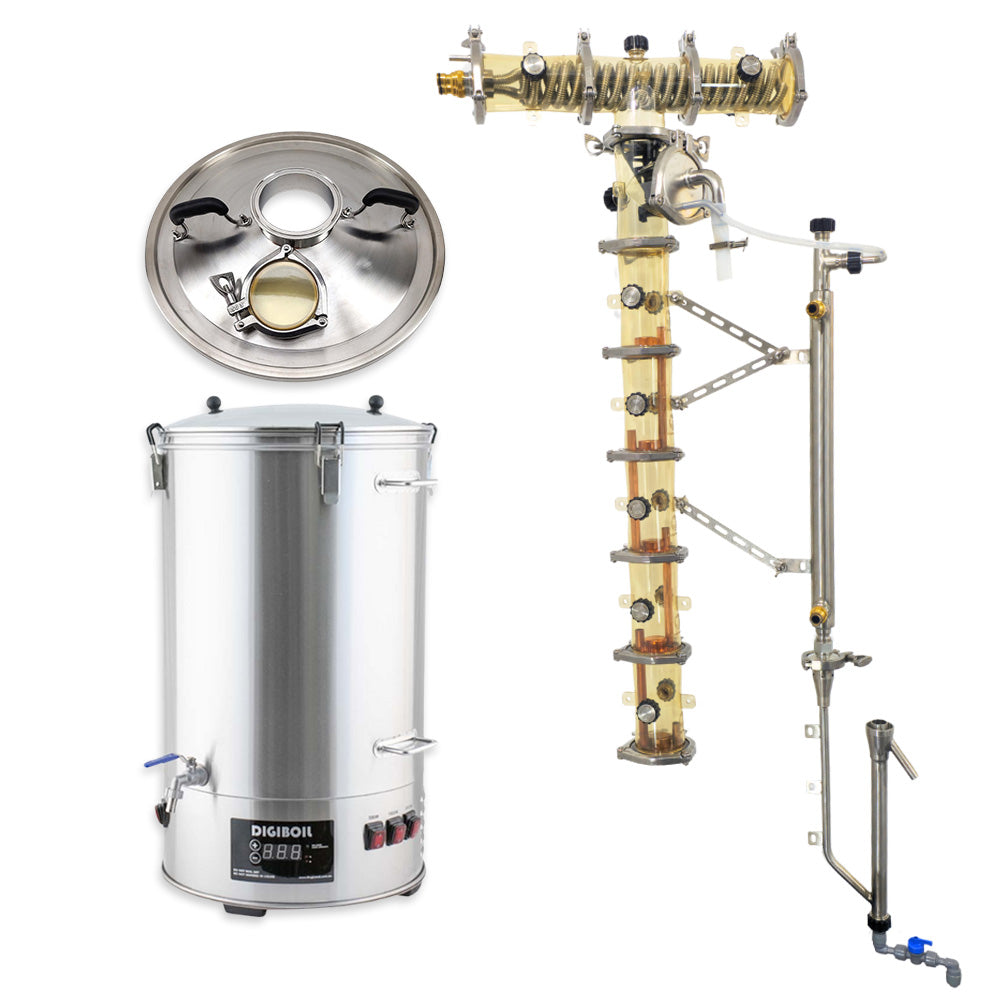

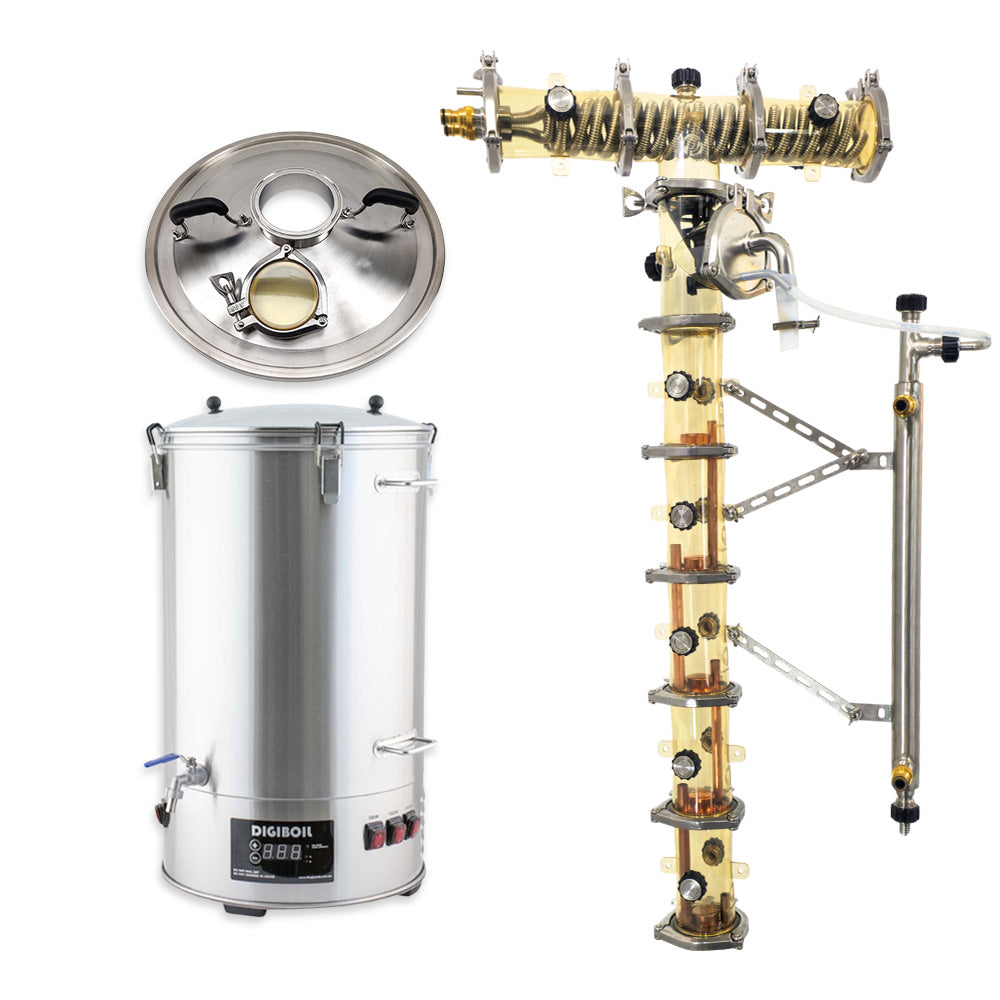

65L DigiBoil PolyPhoenix Boiler Bundle Indlues:
1 x KL07313    DigiBoil 65L - 3500watt - Digital 220-240V
1 x KL30649    BrewZilla + DigiBoil S.S Adjustable Lid Clamps - Short (4pcs/set) (Removal of current clamps on DigiBoil Recommended)
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

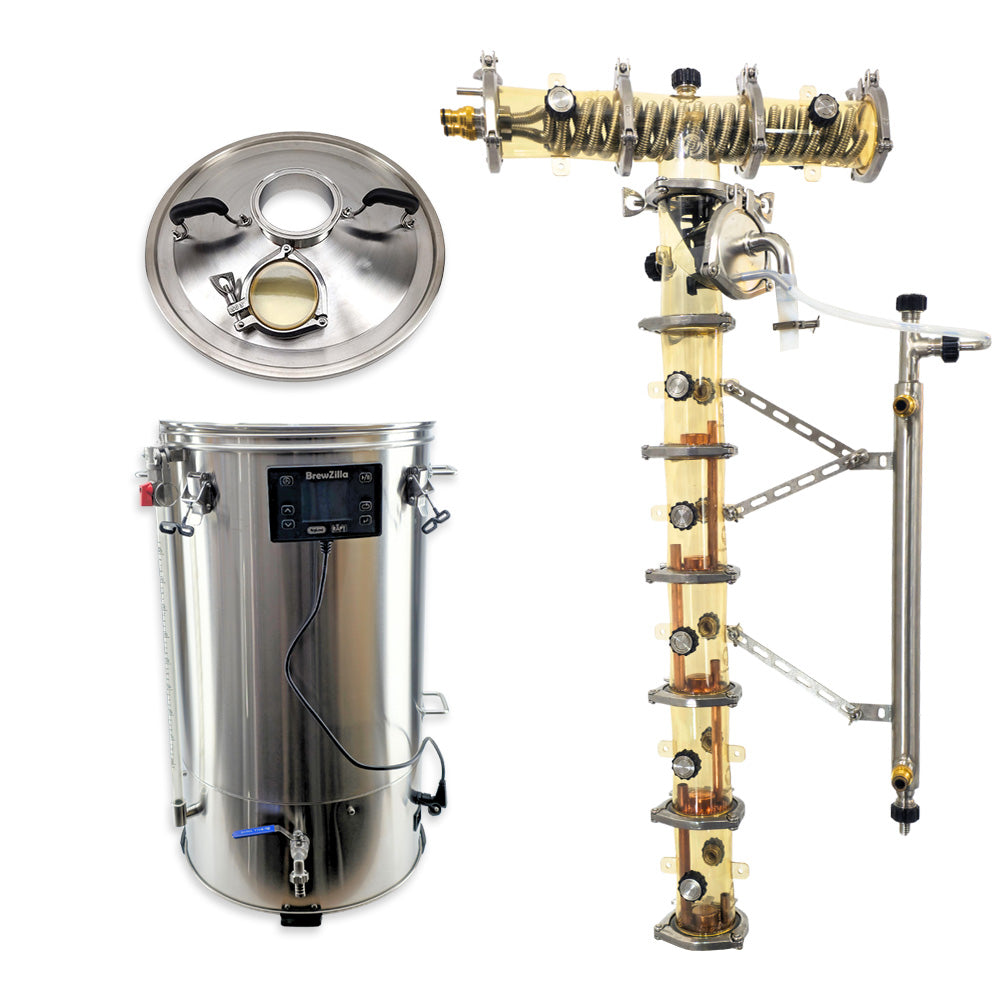

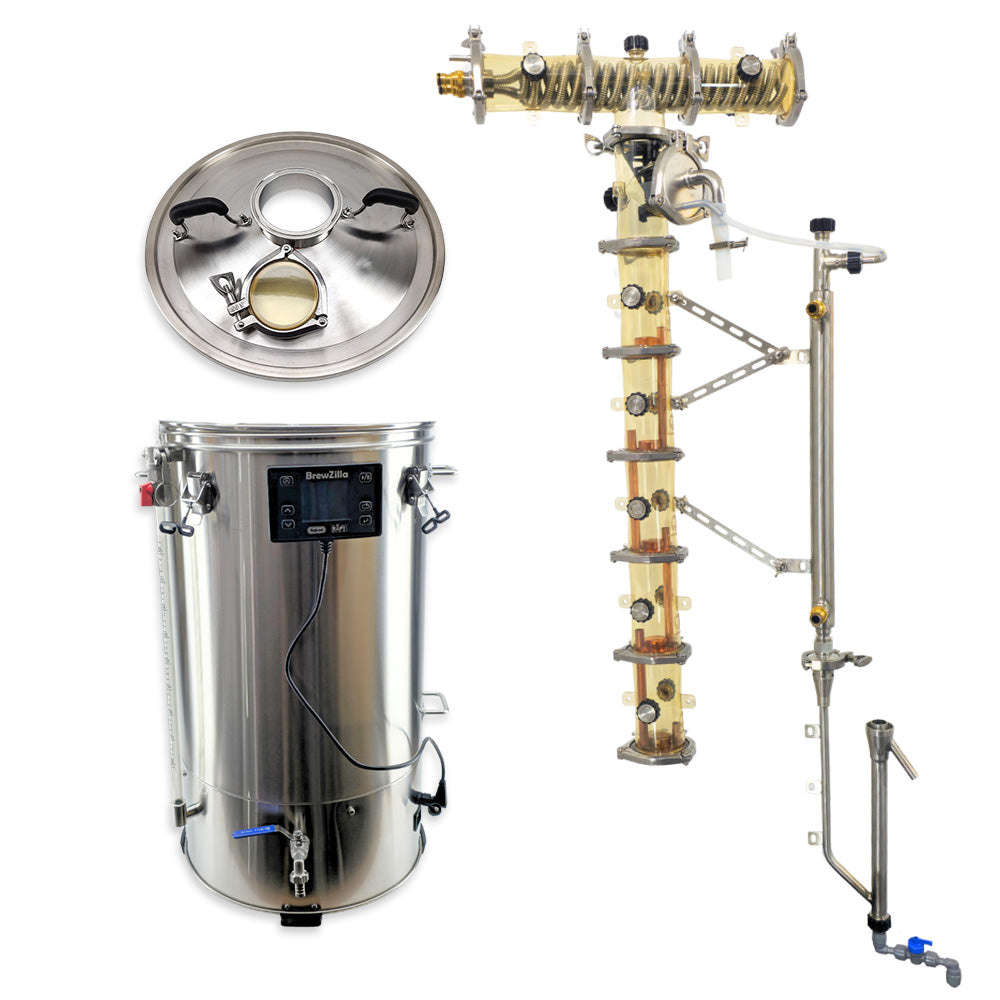

65L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27458    65L BrewZilla Gen 4.1
1 x KL25829    65L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal

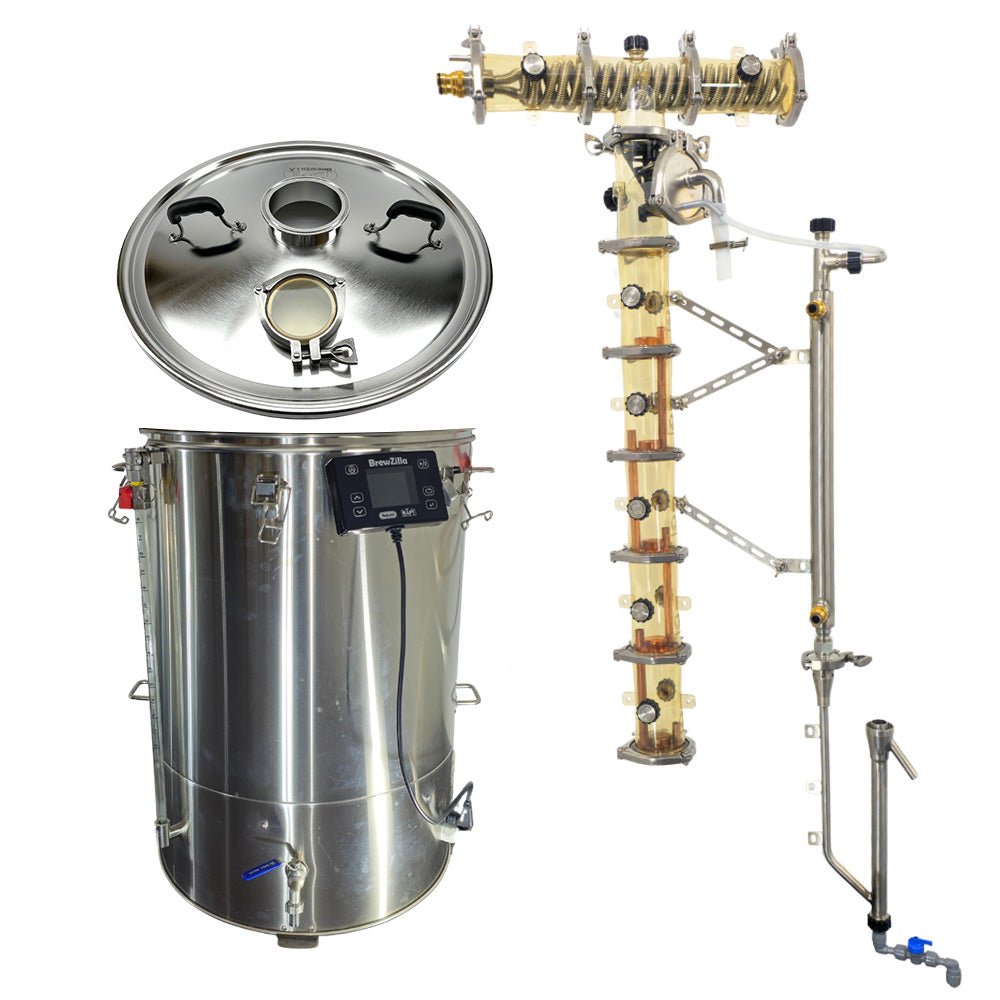

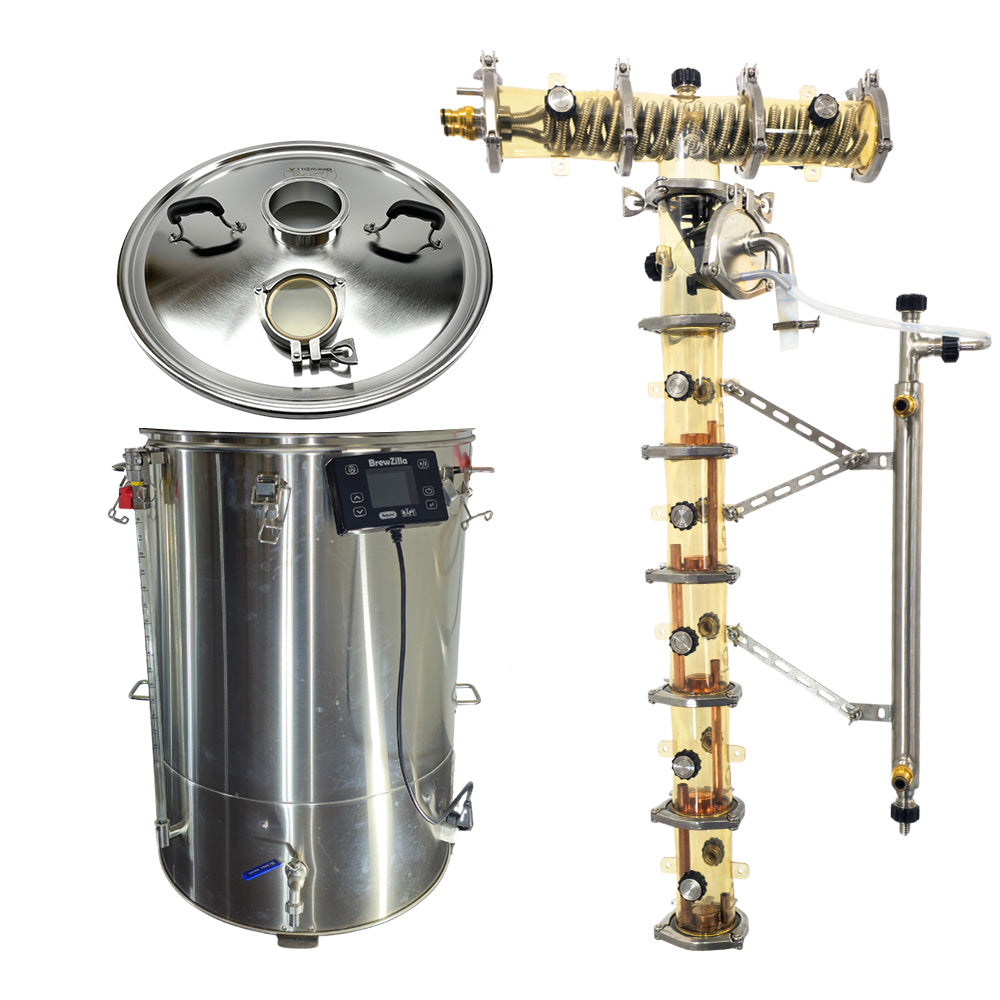

100L BrewZilla G4.1 PolyPhoenix Boiler Bundle Indlues:
1 x KL27465    100L BrewZilla Gen 4.1
1 x KL25836    100L Pro Sight Glass Distillation Lid - 4 Inch TC - 3 Inch PPSU Sight Glass
1 x KL26185    3 Inch to 4 Inch TC Stainless Steel Reducer
1 x KL32902    4 Inch TC Clamp - 3 Segments
1 x KL04602    4 Inch TC Silicone Beaded Seal
