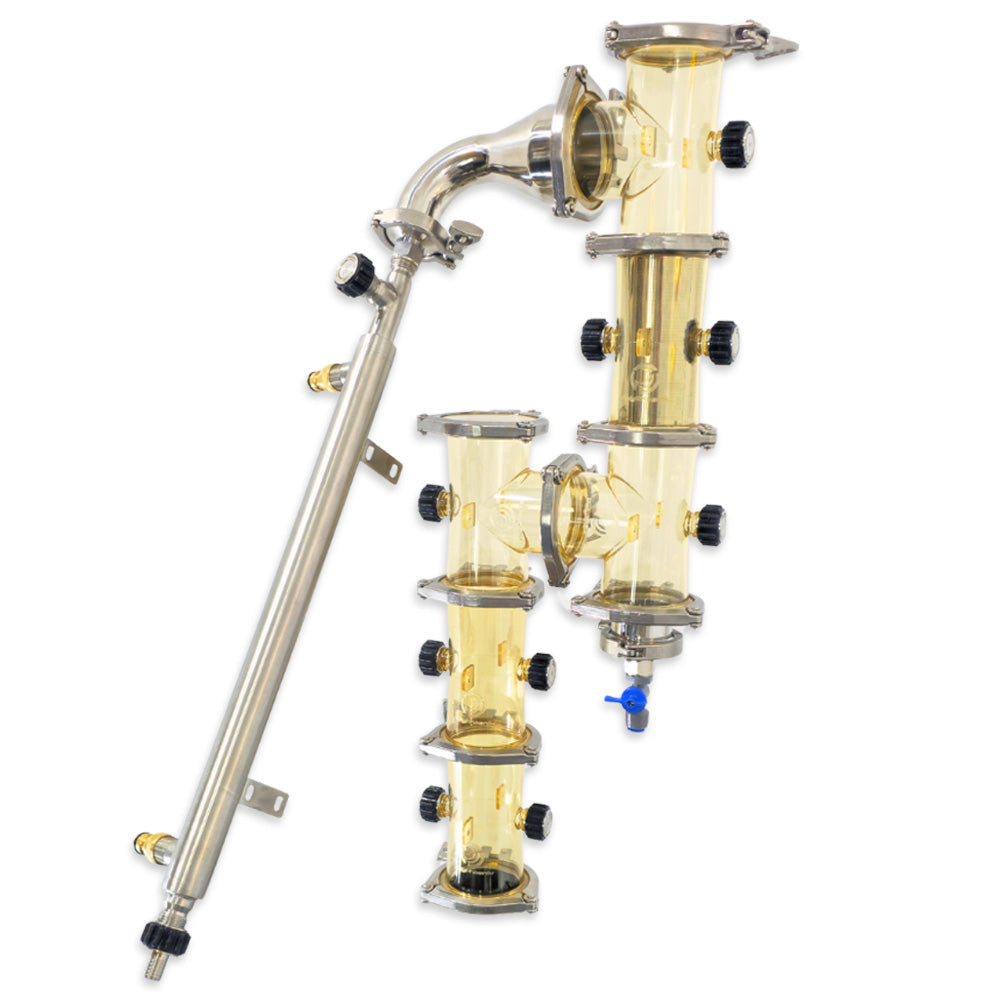

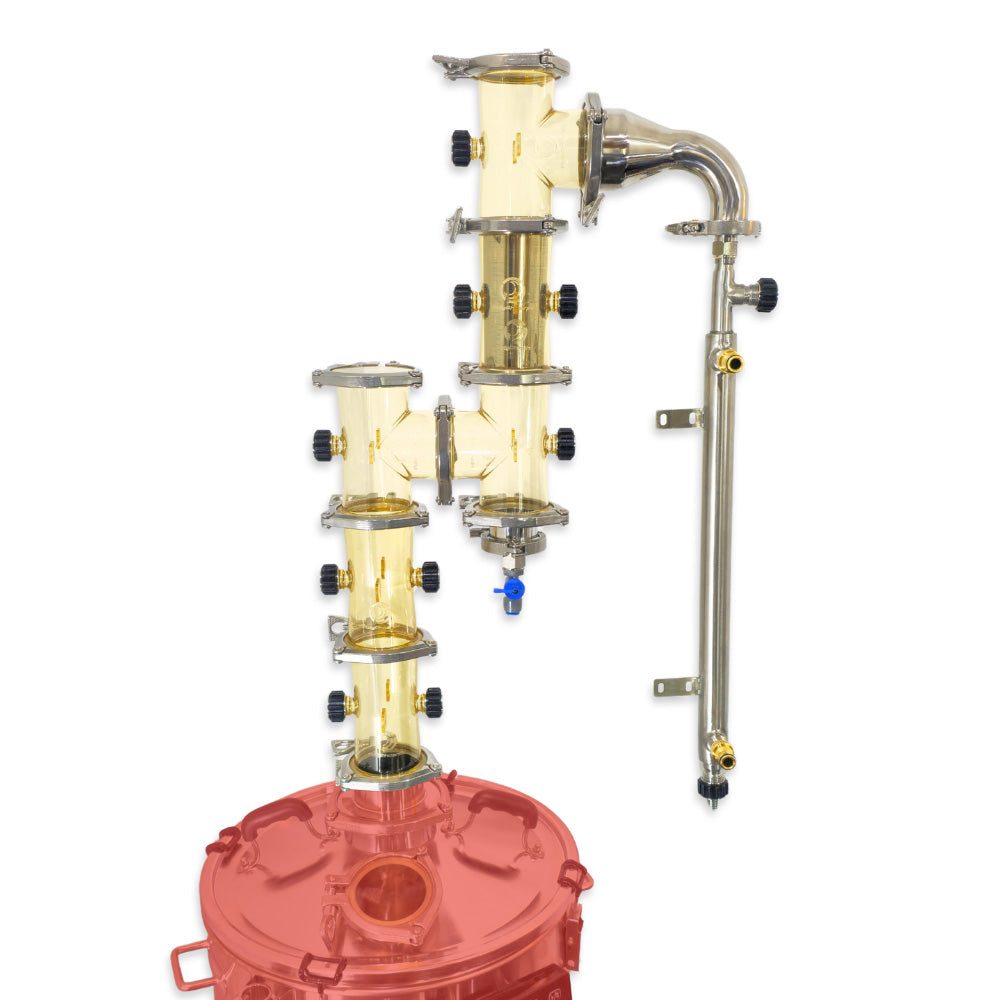

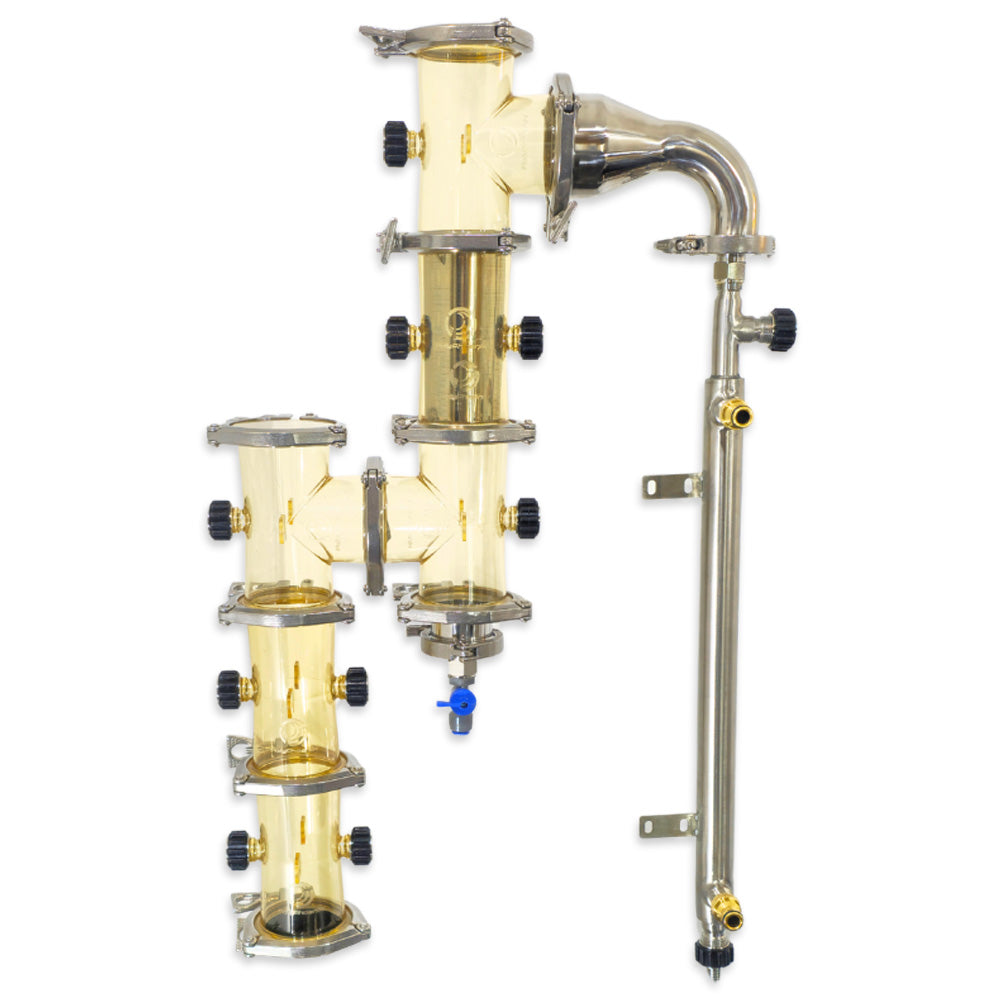

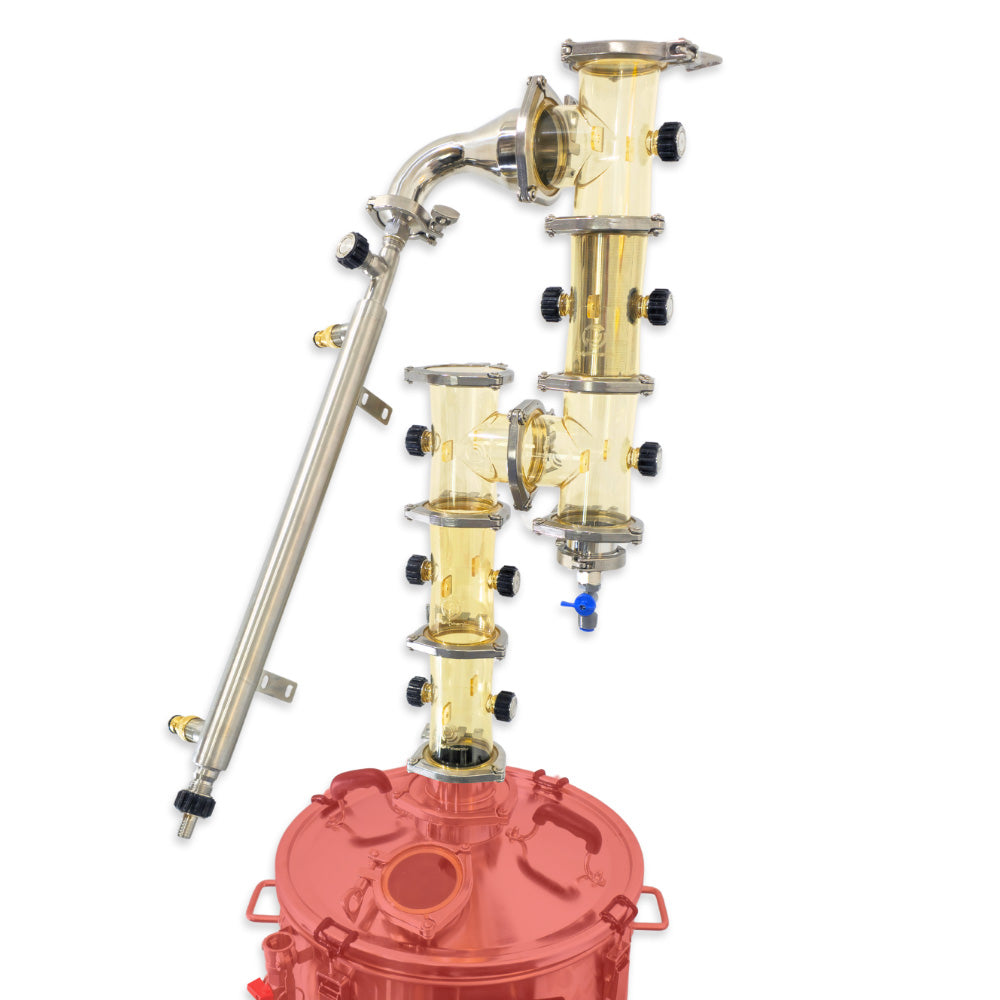

3" PolyPhoenix G-6 Vapour Infused Gin Pot Still

This is a simple, offset Pot Still for making gin (or other spirits that would be infused with botanicals)

The offset arrangement means that any oils from the botanicals in the vapour path will not drip directly back into the boiler, as would be the case if the Gin Basket is not offset. There is also a ball valve under the basket so collected oils can be easily drawn off if required.

This can also be used as a standard pot still, or additional KL36986 Botanicals Baskets can be added if desired. It can also be run without the offset if preferred with 4 straight extensions.

The included shotgun condenser can handle up to 4kw of power. By adding a KL39031 PolyPhoenix - Modular Hammerhead / Vertical Condenser you can even run this full blast on a 6.6kw 100L BrewZilla!

Liebig Condenser Dimensions:
Overall length including 1/2" NPT Fittings = 500mm
Outer tubing OD: 32mm
Inner tubing OD: 22mm
Fittings: 1/2" NPT

Capabilities:
Wattage Limit: 4000 watts {20°C coolant water at rate of 3.5L per minute exiting the condenser)
The colder the water, the higher the wattage rating.

Included

3 x KL36979 - PolyPhoenix - Straight Extension - PPSU 3 Inch TC
1 x KL37976 - PolyPhoenix - 4kW Straight Liebig / Shotgun Condenser
3 x KL36962 - PolyPhoenix - Tee Piece - PPSU 3 Inch TC
1 x KL36986 - PolyPhoenix - Botanicals Basket - 3 Inch TC
10 x KL39567 - Quick Swivel Connector 1/2' x Stainless Steel End Cap (18mm)
1 x KL31547 - KegLand Quick Swivel Connector 1/2' Nut With Silicone Grip Only
1 x KL31585 - 13mm (1/2') Straight Barb Only for KegLand Quick Swivel Connector 1/2'
2 x KL09461 - Garden Hose Male Quick Connect Coupling 1/2 inch Female
10 x KL25799 - 3 Inch TC Clamp - 3 Segments
10 x KL25805 - 3 Inch TC Beaded Seal - Silicone
1 x KL26178 - 2 Inch to 3 Inch TC Stainless Steel Reducer
1 x KL03322 - 2 Inch TC Clamp - 2 Segments
1 x KL03438 - 2 Inch TC Beaded Seal - Silicone
1 x KL25379 - 2 Inch TC with 1/2 Female Thread (BSP)
1 x KL06927 - duotight - 9.5mm (3/8”) Female x 1/2 Male Thread
1 x KL29469 - 3 Inch TC to 1.5 Inch TC Reducing Elbow
1 x KL25362 - 1.5 Inch TC with 1/2 Female Thread (BSP)
1 x KL01878 - 1.5 Inch TC Clamp - 2 Segments
1 x KL01861 - 1.5 Inch TC Beaded Seal - Silicone

About PolyPhoenix

The PolyPhoenix modular distillation range are primarily made out of a material called PPSU.
This material is 100% safe with hot alcohol vapour that will not leech any chemicals into your product.

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.
We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.
